Parameter Specification Product Model 13104RS5007 Product Line Cutler Hammer by Eaton Product Type Emergency Stop Push Button Station Button Type Mushroom Head, Emergency Stop (E-STOP) Button Function Maintained Contact (latching); requires a twisting or pulling action to release after being pressed. Button Diameter 50 mm (Large, highly visible and accessible) Button Color Red Contact Block Typically supplied as a N.O. (Normally Open) contact that opens when pressed (safety standard). Note: Configuration can vary; verifying the specific contact arrangement upon receipt is recommended. Enclosure Rating NEMA 4X (Weatherproof, Watertight, Dusttight, Corrosion-Resistant) Ingress Protection (IP) IP66 (Equivalent to NEMA 4X, protected against powerful water jets and dust.) Enclosure Material Fiberglass Reinforced Polyester or similar robust, corrosion-resistant material. Mounting Surface Mount Operator Material Thermoplastic or Metal (designed for high impact and repeated use) Applications Industrial machinery, manufacturing lines, processing plants, and any application requiring a highly visible and reliable emergency stop function. Compliant Standards UL Listed, cULus Listed, conforms to relevant IEC and NEMA standards for safety devices.

Parameter Specification Product Model 311574 Product Type Window-type, Fixed-mount Current Transformer (CT) Rated Primary Current (Ipr) 400 A Rated Secondary Current (Isr) 5 A Frequency 50/60 Hz Accuracy Class 0.5 or 1.0 Burden (Rated Output) e.g., 2.5 VA or 5 VA Insulation / Voltage Rating e.g., 600 V to 1000 V Window Diameter (Opening) e.g., 30 mm Mounting Method Fixed mounting, typically with pre-drilled holes for bolts/screws. Standards Compliance Complies with IEC 61869-1, IEC 60044-1, or equivalent ANSI/IEEE standards. Applications

• Electrical energy metering
• Power monitoring systems
• Motor load monitoring
• Protective relaying

Material Typically a thermoset or thermoplastic insulated housing.

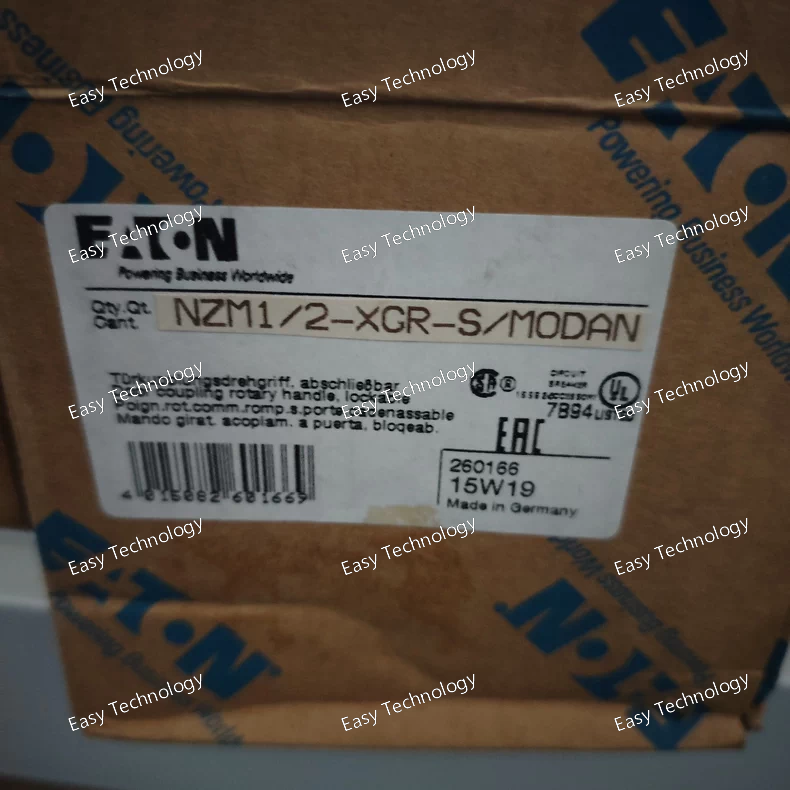

Parameter Specification Notes / Typical Value for this Series Product Model NZM1/2-XCR-S/MODAN Product Line NZM (Molded Case Circuit Breaker) Rated Operational Voltage (Ue) Typically up to 690V AC Rated Current (In) Depends on the Rating Plug. The frame size NZM1/2 supports a range (e.g., up to 63A or 125A). The actual current is set by a separate rating plug. Rated Ultimate Breaking Capacity (Icu) Standard Breaking Capacity ("S") Specific kA value at a given voltage (e.g., 25kA @ 415V) must be verified from datasheet. Trip Unit Type Electronic (XCR) Protection Functions

• L - Long-Time (Overload)
• S - Short-Time (Short-Circuit)
• I - Instantaneous
• G - Ground Fault

All thresholds are adjustable. Communication Capability Yes (Typically PROFIBUS-DP or Modbus) The "X" in XCR often denotes communication readiness. Requires a separate communication module. Auxiliary Contacts Can be equipped Via add-on modules. Mounting Fixed or Plug-in (as per MODAN kit) The "MODAN" kit facilitates specific mounting. Standards Compliance IEC 60947-2, UL 489, etc.

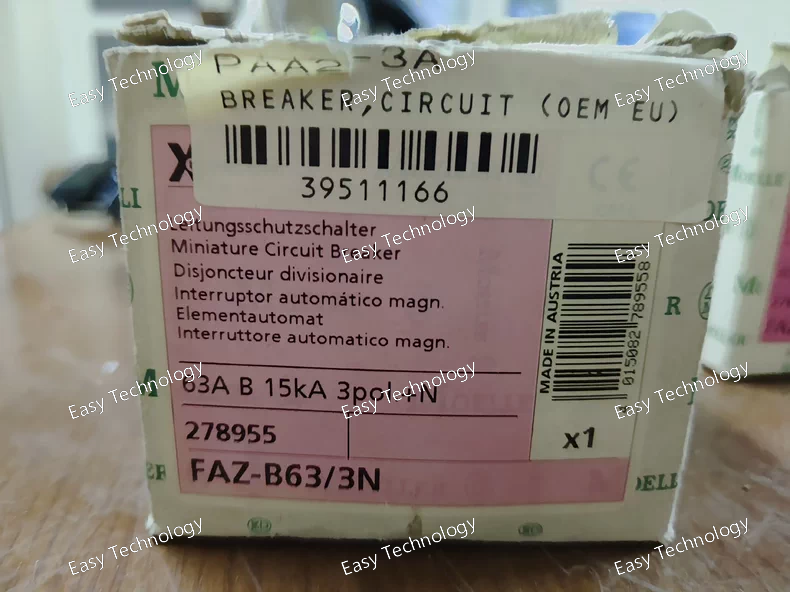

Parameter Specification Product Model FAZ-B63/3N Product Line Eaton FAZ B-Series (Miniature Circuit Breaker) Number of Poles 3 Poles + Neutral (3P+N) Rated Current (In) 63 A Tripping Characteristic B-Curve (Instantaneous tripping between 3 to 5 times rated current). Suitable for resistive and low inductive loads. Rated Operational Voltage (Ue) 230/400 V AC Rated Insulation Voltage (Ui) 500 V AC Rated Impulse Withstanding Voltage (Uimp) 4 kV Rated Breaking Capacity (Icn) Typically 10 kA at 230/400V AC according to IEC 60898-1. (Please confirm with local catalog as higher capacity versions may exist). Standards IEC/EN 60898-1, IEC/EN 60947-2 Terminal Connection Suitable for cables up to 35 mm² (copper). Mounting Standard DIN Rail (35 mm) mounting. Mechanical Life Typically > 20,000 cycles Electrical Life Typically > 10,000 cycles Torque Screw Typically 3.0 N·m

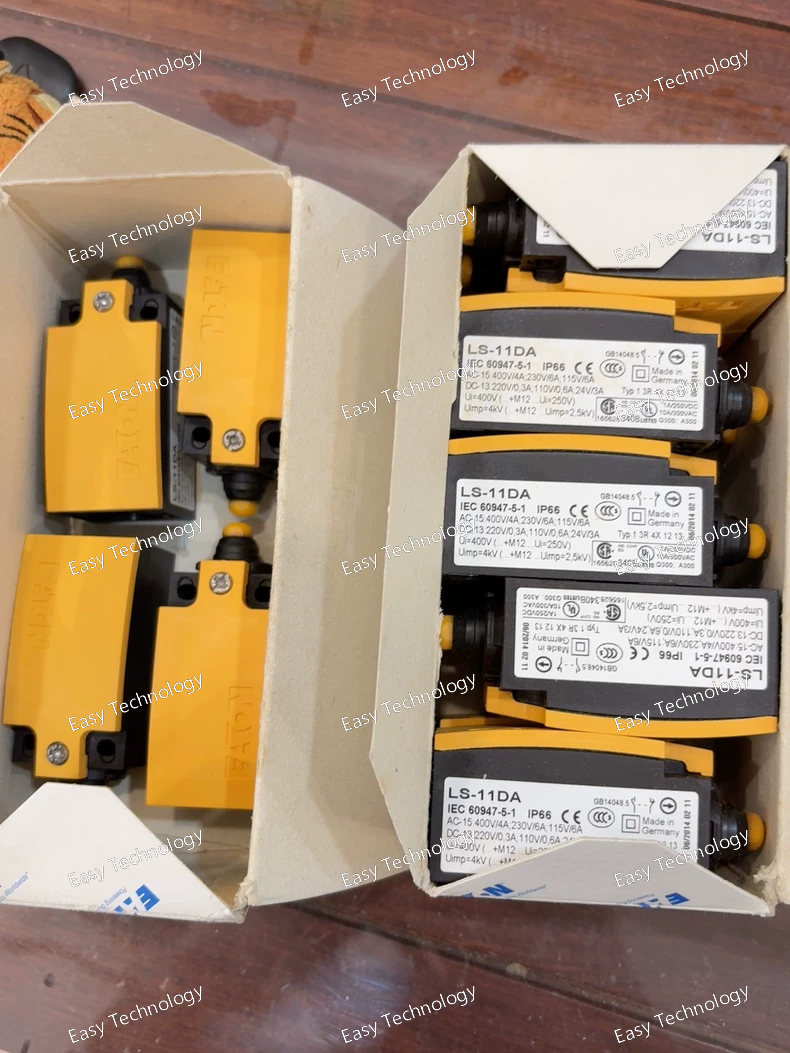

Parameter Specification Product Model LS-11DA Product Type Heavy-Duty Limit Switch Contact Arrangement 1 NO (Normally Open) + 1 NC (Normally Closed) - Single Circuit, Double Break Contact Operation Maintained Contact Switch Mechanism Slow Action (Snap-Action) Rated Operational Current Typically 10 A @ 600 V AC / 0.5 A @ 600 V DC (Specific values depend on thermal and inductive load) Electrical Life Typically 1 to 2 million operations (at rated load) Mechanical Life Typically 10 million operations Enclosure Rating NEMA 4, 4X, 6P, 13; IP67 (Dust-tight and protected against immersion) Housing Material Typically Zinc Die Cast Operating Head Various actuator types available (e.g., roller lever, plunger) - the "DA" suffix may specify a particular type. Terminal Type Screw terminals Conduit Opening Standard ½" NPT Temperature Range Typically -20°C to +120°C (-4°F to +248°F) Standards Compliance UL Listed, cULus Listed, CE

Parameter Specification Product Model BLR-CX06R Sensor Type Inductive Proximity Sensor Body Shape Rectangular Detection Type Shielded (Embeddable) Output Type DC 3-wire Output Configuration NPN Normally Open (NO) Supply Voltage 10 to 30 V DC Rated Sensing Distance 2 mm (±10%) Setpoint 0 to 1.62 mm Hysteresis ≤ 10% of rated sensing distance Standard Target Fe 12x12x1 mm (Mild Steel) Response Frequency 500 Hz Protection Circuit Reverse Polarity Protection, Short-circuit protection, Overcurrent protection Protection Rating IP67 Housing Material Nickel-plated brass Connection Type Pre-wired cable (2m standard length is common, but please verify) Operating Temperature -25 to 70°C Compliance CE

Parameter Specification Product Model MTL-779+ Product Line Eaton MTL Signal Conditioners & Isolators Function 2-Wire Transmitter Isolator & Power Supply Input Signal Accepts and powers a 2-wire, 4-20 mA transmitter from a hazardous area. Output Signal 4-20 mA DC (Isolated) Input/Output Isolation Galvanic Isolation between input, output, and power supply. Power Supply Typically 20-30 V DC (for standard models) Intrinsic Safety (IS) Approval Yes. Certified for use in Hazardous Areas (e.g., ATEX, IECEx). Entity Parameters (Example values, MUST be verified for design): - Vmax (Ui): e.g., 28 V - Imax (Ii): e.g., 93 mA - Pi: e.g., 0.65 W - Ci: e.g., 0 μF - Li: e.g., 0 mH Non-Incendive (NI) Approval Yes (for applicable standards like FM/CSA). Line Fault Detection Yes, can detect open and short circuits in the field wiring. Accuracy Typically better than ±0.1% of span. Mounting DIN-Rail Mount (Standard 35 mm) Operating Temperature -20°C to +60°C Compliance & Certifications ATEX, IECEx, FM, CSA, NEPSI, etc. (Specific certifications depend on the product suffix).

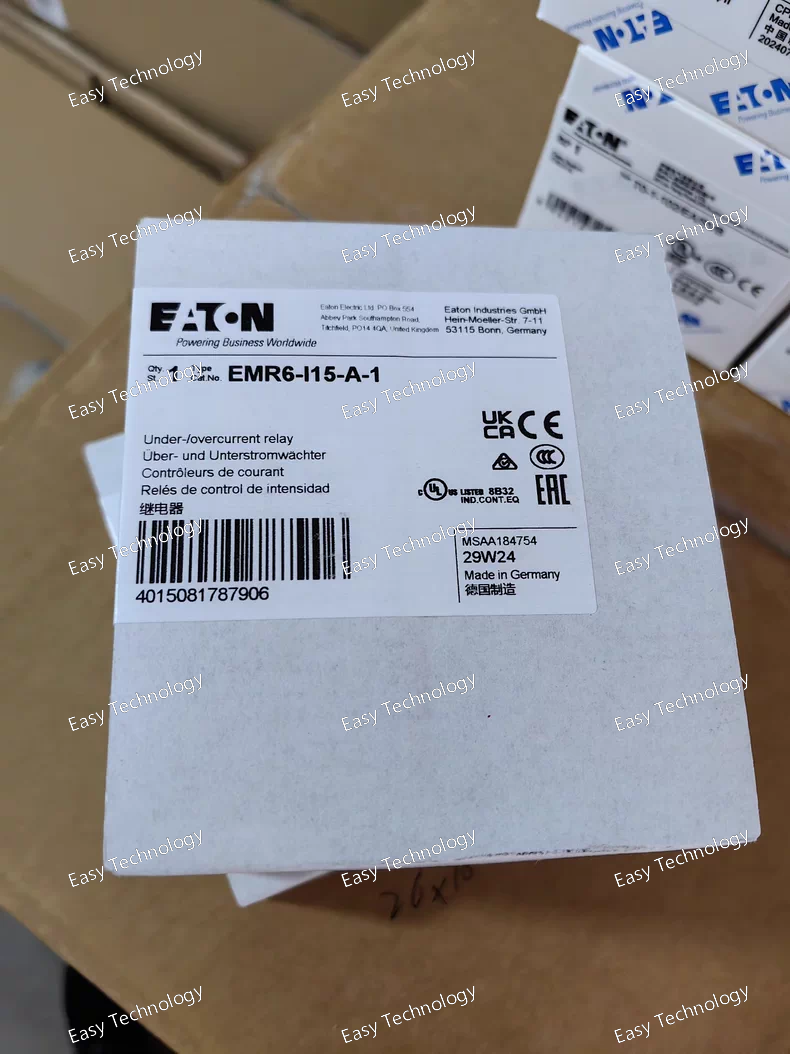

Parameter Specification Product Model EMR6-I15-A -1 Product Line Eaton EMR6 Electronic Overload Relay Rated Operational Voltage (Ue) Up to 690 V AC Motor Full-Load Current Range Depends on the installed Heater Element / Rating Plug. The I15 frame covers a specific range (e.g., 0.15 A to 25 A). The exact value is set by a removable rating plug. Tripping Class Selectable (e.g., Class 5, 10, 15, 20, 30) Protection Functions

• Phase Loss / Unbalance
• Overload
• Locked Rotor / Stall
• Jam / High Current
• Ground Fault (Earth Fault)

Auxiliary Contacts Typically includes at least one 95-96 (NC) fault contact and one 97-98 (NO) alarm contact. Reset Mode Manual Reset (inferred from "-1" suffix), with options for automatic reset. Mounting Designed to be mounted directly onto a corresponding Eaton contactor (e.g., DIL series) without tools. Ambient Temperature -25°C to +60°C Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14

Parameter Specification / Inference Product Model T5-4-I5682/I5/SVB Product Line Eaton T5 Power Contactor Rated Operational Current (Ie) ~ 32 A at AC-3, 400V Rated Operational Voltage (Ue) Up to 690 V AC Number of Main Poles 4 Coil Voltage 24 V DC Auxiliary Contacts 1 NO (Normally Open) + 1 NC (Normally Closed) Mounting Style Base Mounting with Screw Terminals (SVB) Terminal Type Screw Clamp Electrical Life > 1 million operations (at rated load) Mechanical Life > 10 million operations Standards Compliance IEC 60947-4-1, UL 508

Parameter Specification Product Model PFS3322 Product Line Eaton Bussmann PFS (High Performance Class Fuse) Fuse Type Current-Limiting Ampere Rating 200 A Voltage Rating AC 600 V AC Voltage Rating DC Typically 300 V DC (Please verify for specific DC applications) Interrupting Rating 200,000 A RMS (200 kA) at 600V AC Standards & Approvals UL Listed (Class J), CSA Certified Time-Current Characteristic Fast-Acting Label Color Black (Standard for this amperage in PFS series) Terminal Type Knife Blade (Standard for Class J fuses) Dimensions (Body) Standard Class J dimensions.
