Parameter Specification Product Series Eaton PLD101X (Accessory for PL10 MCB) Model Variants PLD101X-C10 (for 10A MCB), PLD101X-C40 (for 40A MCB) Description Residual Current Release Module, for 1P+N MCB, C-Curve Compatible With Eaton PL10 series, 2-pole (1P+N), C-Curve Miniature Circuit Breakers Rated Current of Assembly 10 A (for C10) / 40 A (for C40) Number of Poles 2 Poles (1 Phase + Neutral) Rated Residual Operating Current (IΔn) Typically 30 mA Residual Current Type Typically Type A Rated Voltage 230V AC (1P+N) Mounting Snaps onto the side of a compatible PL10 MCB on a DIN Rail. Standards & Certifications IEC 61009-1, CE

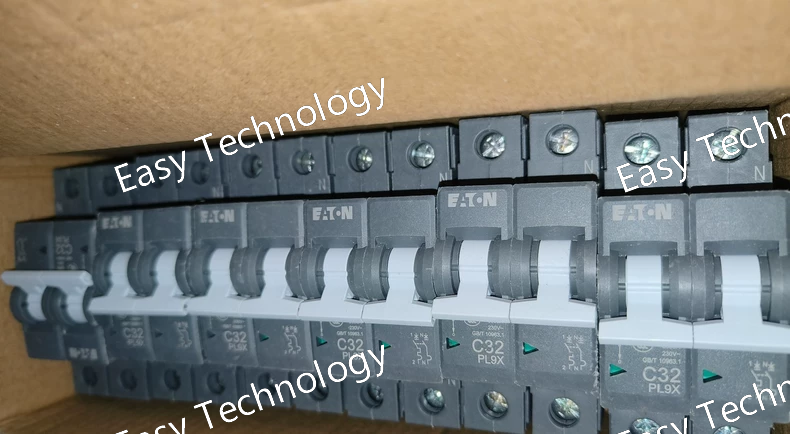

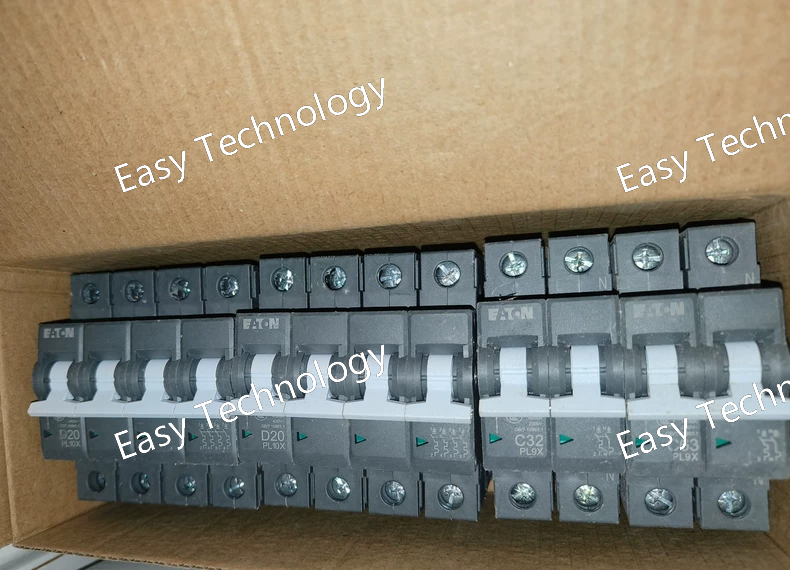

Parameter Specification Product Series Eaton PL9X (Accessory for PL9 MCB) Model Number PL9X-C32 Description Residual Current Release Module, for 1P+N (2-Pole) MCB, 32A Compatible With Eaton PL9 series, 2-pole (1P+N), 32A Miniature Circuit Breaker Rated Current of Assembly 32 A Number of Poles 2 Poles (1 Phase + Neutral) Rated Residual Operating Current (IΔn) Typically 30 mA Residual Current Type Typically Type A Rated Voltage 230V AC (1P+N) Mounting Snaps onto the side of a compatible PL9 MCB on a DIN Rail. Standards & Certifications IEC 61009-1, CE

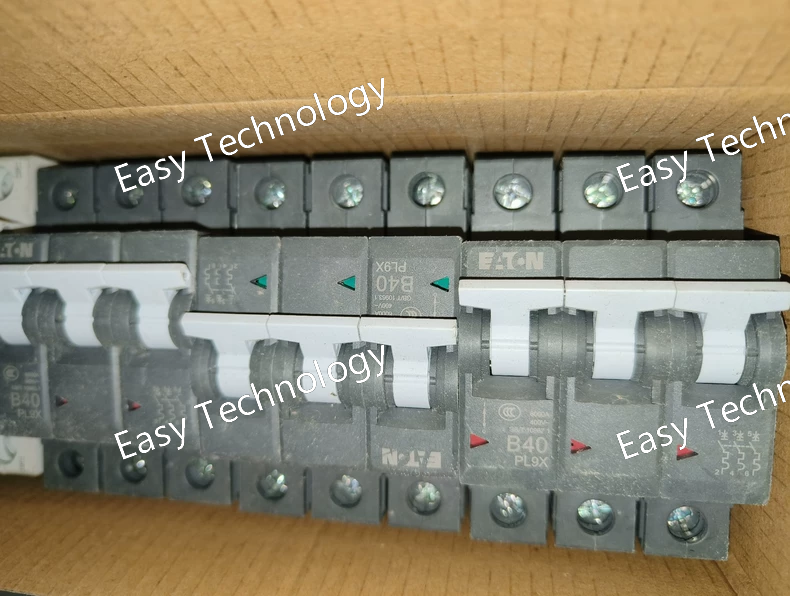

Parameter Specification Product Series Eaton PL9X (Accessory for PL9 MCB) Model Number PL9X-B40 Description Residual Current Release Module, for 3-Pole MCB, 40A Compatible With Eaton PL9 series, 3-pole, 40A Miniature Circuit Breaker Rated Current of Assembly 40 A Number of Poles 3 Poles (3 Phase) Rated Residual Operating Current (IΔn) Typically 30 mA Residual Current Type Typically Type A Rated Voltage 400V AC (3P) Mounting Snaps onto the side of a compatible PL9 MCB on a DIN Rail. Standards & Certifications IEC 61009-1, CE

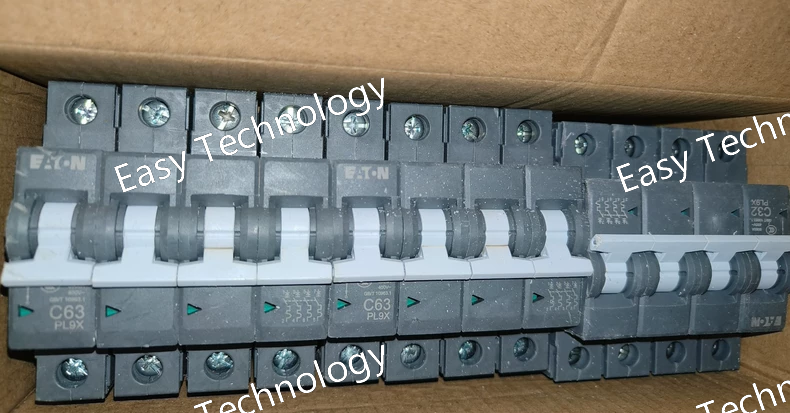

Parameter Specification Product Series Eaton PL9X Model Number PL9X-C63 Description Residual Current Release Module, for 4-Pole MCB, 63A Compatible With Eaton PL9 series, 4-pole, 63A Miniature Circuit Breaker Rated Current of Assembly 63 A Number of Poles 4 Poles (3 Phase + Neutral) Rated Residual Operating Current (IΔn) Typically 30 mA Residual Current Type Typically Type A Rated Voltage 400V AC (3P+N) Mounting Snaps onto the side of a compatible PL9 MCB on a DIN Rail. Standards & Certifications IEC 61009-1, CE

Parameter Specification Product Series Eaton PL10X Model Number PL10X-C32 Description Residual Current Release Module, for 4-Pole MCB, 32A Compatible With Eaton PL10 series, 4-pole, 32A Miniature Circuit Breaker Rated Current of Assembly 32 A Number of Poles 4 Poles (3 Phase + Neutral) Rated Residual Operating Current (IΔn) Typically 30 mA Residual Current Type Typically Type A Rated Voltage 400V AC (3P+N) Mounting Snaps onto the side of a compatible PL10 MCB on a DIN Rail. Standards & Certifications IEC 61009-1, CE

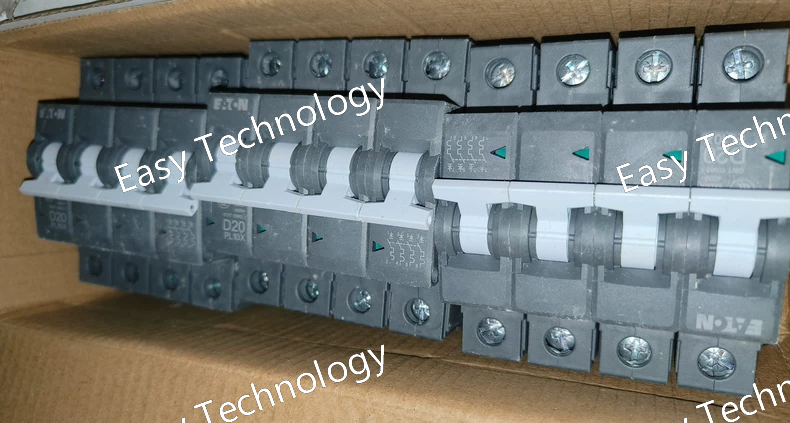

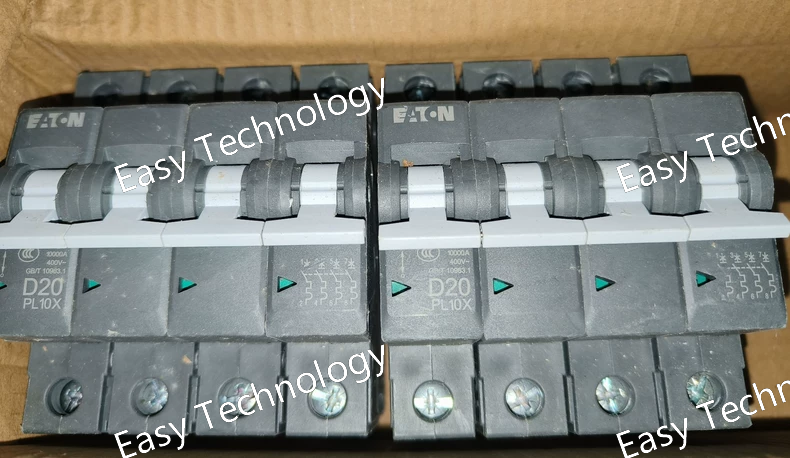

Parameter Specification Product Series Eaton PL10X (Accessory for PL10 MCB) Model Number PL10X-D20 Description Residual Current Release Module, for 4-Pole MCB, 20A Compatible With Eaton PL10 series, 4-pole, 20A Miniature Circuit Breaker Rated Current of Assembly 20 A Number of Poles 4 Poles Rated Residual Operating Current (IΔn) Typically 30 mA Residual Current Type Typically Type A Rated Voltage 400V AC (3P+N) Mounting Snaps onto the side of a compatible PL10 MCB on a DIN Rail. Standards & Certifications IEC 61009-1, CE

Parameter Specification Product Series Eaton EAR2..TO (Electronic Overload Relay) Model Number EAR2TO012S1 Description Electronic Overload Relay, 1.0-1.6A, Self-Protected, Screw Terminals Motor Current Setting Range (FLA) 1.0 - 1.6 A Poles 3 (for 3-phase motor protection) Rated Operational Voltage (Ue) 690V AC Rated Supply Voltage (Us) 24V AC/DC - 240V AC/DC (for the control circuit) Protection Functions Overload (Class 10, 20, 30 adjustable) Phase Loss Phase Unbalance Jam / Stall Protection Earth Fault Protection (Optional, may require external CT) Self-Protected Feature Yes (Integral HBC fuse for short-circuit protection of the control unit) Auxiliary Contacts 1 NO + 1 NC (95-96 / 97-98) Terminals Screw Terminals Mounting Mounts directly onto compatible contactors (e.g., Eaton DIL series) Communication Optional communication modules (e.g., PROFIBUS, Modbus) available Standards & Certifications IEC/EN 60947-4-1, UL 508, CE, cULus

Parameter Specification Product Series Eaton PLD9X (Accessory for PL9 MCB) Model Number PLD9X-6/2/D/003 Description Residual Current Release Module, for 2-Pole MCB, Type A, 30mA Compatible With Eaton PL9 series, 2-pole Miniature Circuit Breakers Max. Rated Current of Assembly Up to 63A (When combined with a compatible PL9 MCB) Rated Residual Operating Current (IΔn) 30 mA Residual Current Type Type A (for alternating and pulsating direct currents) Rated Voltage 230V AC (1P+N) / 400V AC (3P+N) Mounting Snaps onto the side of a compatible PL9 MCB on a DIN Rail. Standards & Certifications IEC 61009-1, CE

Parameter Specification Product Series Eaton IZM Model Number IZM67N3-AC40WH Description Molded Case Circuit Breaker, 400A, 3-Pole, Fixed Mount Frame Size IZM67 Rated Current (In) 400 A (Fixed) Number of Poles 3 Rated Operational Voltage (Ue) 480V AC Rated Insulation Voltage (Ui) 690V AC Trip Unit Type AC Trip Unit (Fixed Setting) Mounting Fixed Operating Handle White (WH) Standards & Certifications IEC 60947-2, UL 489, CCC, CE

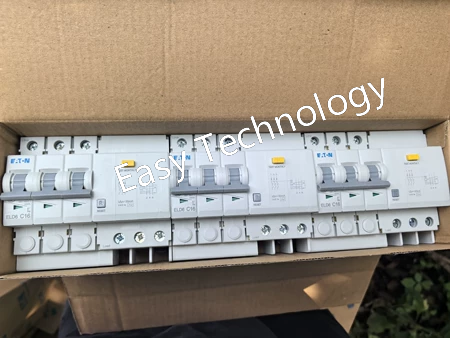

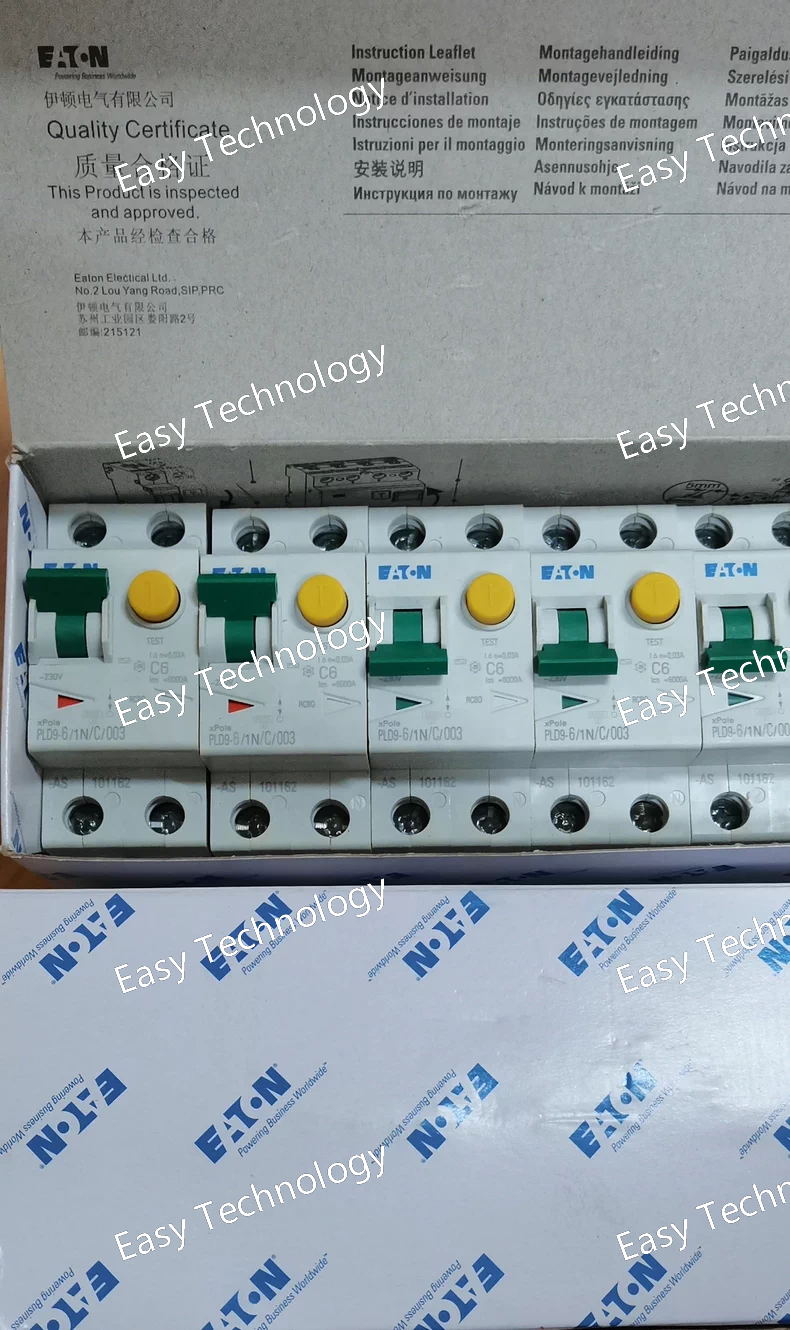

Parameter Specification Product Series Eaton ELD6 (Electronic Accessory for D6 MCB) Model Number ELD6-6/1N/C/003 Description Electronic Residual Current Release Module, for 1P+N MCB, Curve C, 30mA Type A Compatible With Eaton D6 series, 2-pole (1P+N), C-curve Miniature Circuit Breakers Max. Rated Current of Assembly Up to the rating of the MCB it is attached to (e.g., 6A, 10A, 16A, 20A, etc.) Rated Residual Operating Current (IΔn) 30 mA Residual Current Type Type A (for alternating and pulsating direct currents) Technology Electronic (Requires auxiliary power from the monitored circuit to operate) Rated Voltage 230V AC Mounting Snaps onto the side of a compatible D6 MCB on a DIN Rail. Standards & Certifications IEC 61009-1, CE
