Parameter Specification Product Series Eaton HMCP (Motor Circuit Protector) Model Number HMCP400N5 Description Motor Circuit Protector (MCP), 400A Frame, 5-Pole Frame Size 400A Poles 5 Rated Operational Voltage (Ue) 600V AC Rated Insulation Voltage (Ui) 600V AC Short-Circuit Breaking Capacity Specific value (e.g., 65kA, 100kA) depending on the "N" rating. Trip Unit Magnetic Instantaneous Only (No Thermal Overload) Instantaneous Pickup Setting Adjustable (typically a multiple of the frame size, e.g., 5x to 13x) Mounting Fixed or Plug-in Standards & Certifications UL 489, CSA C22.2 No. 5, IEC 60947-2

Parameter Specification Product Type Wirewound Power Resistor Model Number RGH 70K Description Ceramic Housed Wirewound Resistor, 70 Ohm Resistance Value (R) 70 Ohms (Ω) Resistance Tolerance Typically ±5% or ±10% Rated Power Depends on physical size and cooling, typically in the range of 10W to 50W for this style. Construction Wirewound on a ceramic core, vitreous enamel coated Terminals Solder lugs or screw terminals Mounting Metal mounting brackets Application Load Resistor, Heating Element, Bleeder Resistor, Snubber Resistor

Parameter Specification Product Type Braking Resistor Model Number RES1600LSI Description Aluminum Housed Braking Resistor, 1600W Rated Power (Pbr) 1600 W Resistance Value (R) A specific Ohm (Ω) value (e.g., 10Ω, 20Ω, 50Ω ). This is a critical parameter. Resistance Tolerance Typically ±5% or ±10% Duty Cycle Specific to the model (e.g., 100% continuous duty) Enclosure Finned Aluminum Housed Protection Degree IP20 (Protection against touch by fingers, no protection against water) Mounting Multiple mounting options (e.g., with brackets for wall or panel mounting) Terminals Screw Terminals Operating Temperature Up to several hundred degrees Celsius (surface temperature can be very high)

Parameter Specification Product Series Eaton W Series (Automatic Voltage Regulator) Model Number W200M4CNC Description Automatic Voltage Regulator, 200kVA, 3-Phase, 4-Wire Rated Power 200 kVA Phases & Wires 3-Phase, 4-Wire (3P+N) Input Voltage Range Typically ±15% or ±20% of nominal voltage (e.g., 380V nominal, range ~323V - 437V) Output Voltage 380V / 400V / 415V (settable, typically) Output Voltage Accuracy Typically ±1% Regulation Speed Typically <100 ms (for a 10% input change) Frequency 50/60 Hz Cooling Method Forced Air (Fan Cooling) Efficiency High (typically >98%) Protections Overload, Short-Circuit, Over-temperature, Overvoltage, Undervoltage Display & Controls Digital Meter, Status Indicators, Manual Bypass Switch Standards & Certifications UL, cUL, CE, IEC 61000

Parameter Specification Product Series Eaton C25 (Combination Motor Starter) Model Number C25DNF240A Description Combination Motor Starter, 25A, 3-Pole, Non-Reversing, Fused, 240V AC Rated Current 25 A Maximum HP Rating 15 HP @ 240V AC / 25 HP @ 480V AC Poles 3 Rated Voltage 240V / 480V / 600V AC Short-Circuit Protection Fused (Fuse type and size specified by the "F" and the full model number) Overload Protection Included (Thermal or Electronic Overload Relay) Duty Non-Reversing (Standard Start/Stop) Control Voltage 240V AC (for the starter coil) Enclosure Type NEMA Type (e.g., NEMA 1, 12, 4, 4X) - depends on the specific ordered variant. Standards & Certifications UL 508, CSA C22.2 No. 14, IEC/EN 60947-4-1

Parameter Specification Product Series Eaton FWF Model Number FWF1016L Description Surge Protective Device (SPD), Type 2, 1P+N, 100kA, w/ Remote Signal Type Type 2 (For main distribution board protection) Rated Voltage 230V AC (Single-Phase) Max. Continuous Operating Voltage (Uc) 255V AC Nominal Discharge Current (In) 20 kA (8/20 µs, per pole) Max. Discharge Current (Imax) 100 kA (8/20 µs) Voltage Protection Level (Up) <1.5 kV (at In) Poles/Protected Circuits 1P + N Status Indication Visual (Green/Red indicator) Remote Signaling Yes (L) - 1 Change-over (SPDT) contact Mounting DIN Rail (35mm) Standards & Certifications IEC 61643-11, UL 1449 (4th Ed.), CE

Parameter Specification Product Series Eaton E2 (N Frame) Model Number E2NM3125T32WP09 Description Electronic Motor Management Relay, 125A, w/ Display & Comm Motor Current Setting Range (FLA) Up to 125 A Poles 3 (for 3-phase motor protection) Rated Operational Voltage (Ue) 690V AC Rated Supply Voltage (Us) 24-240V AC/DC Display Large Graphical LCD (T32) Communication Integrated (e.g., Modbus, PROFIBUS DP, as per "W" code) Protection Functions Thermal Overload (with Memory) Short-Circuit (Instantaneous) Phase Loss / Unbalance Jam / Stall Underload / Undercurrent Earth Fault (Restricted/Sensitive) Number of Starts / Time Between Starts RTD Inputs (for direct motor winding temperature monitoring) Control Functions Direct Start/Stop, Auto-restart, Fault Diagnostics Auxiliary Contacts Multiple programmable relays Mounting Panel-mounted or DIN Rail (with adapter) Standards & Certifications IEC/EN 60947-4-1, UL 508, CE, cULus

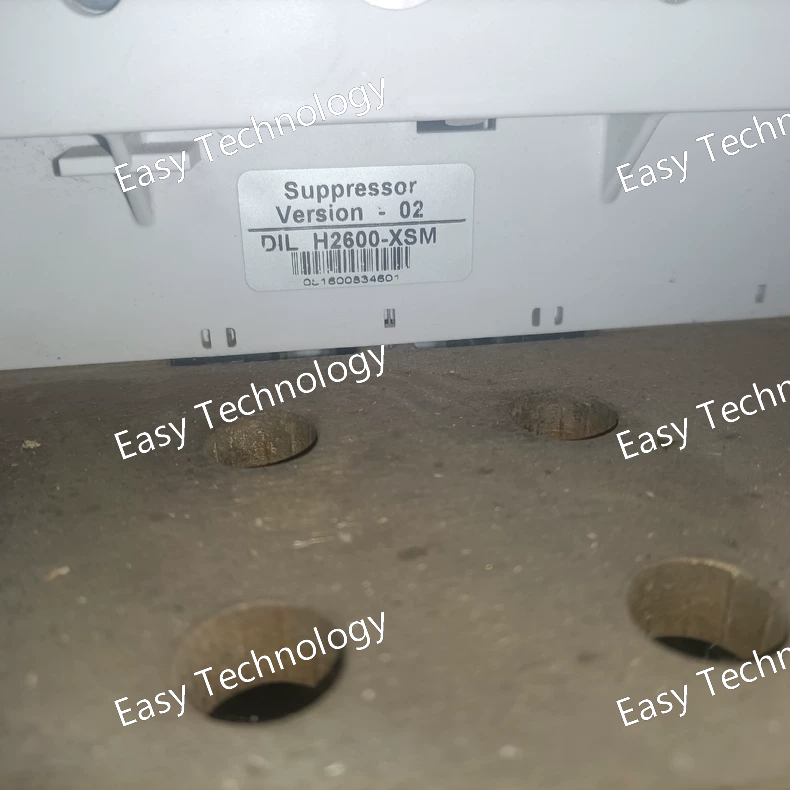

Parameter Specification Product Series Eaton DIL H Model Number DIL H2600-XSM Description Power Contactor, 3-Pole, 260A, 230V AC Coil Rated Operational Current (Ie) 260 A (at AC-3, 400V) Rated Thermal Current (Ith) 260 A Poles 3 Rated Operational Voltage (Ue) 690V AC Rated Insulation Voltage (Ui) 1000V AC Utilization Category AC-3 (Squirrel-cage motors) Rated Power at AC-3 ~132 kW (at 400V) Coil Control Voltage 230V AC (as denoted by "-XSM" code) Auxiliary Contacts Typically includes at least 1 NO + 1 NC (as part of "-XSM" configuration) Mechanical Life Several million operations Electrical Life (AC-3) Hundreds of thousands of operations Mounting Screw mounting Standards & Certifications IEC/EN 60947-4-1, UL 508, CE, cULus

Parameter Specification Product Series Eaton Lightwatch Model Number ELJW4250 Description 4-Channel Relay Module, 16A/Channel, DALI Number of Outputs/Channels 4 Rated Load per Channel 16 A (Resistive, 250V AC) Total Rated Load 64 A Control Voltage 230V AC (Auxiliary Supply) Control Protocol DALI (Digital Addressable Lighting Interface) Communication Bus Lightwatch System Bus Mounting DIN Rail (35mm) within a distribution board Status Indication LED per channel for output status Standards & Certifications IEC 60669-1, CE, cULus

Parameter Specification Product Series Eaton Power Xpert DX Model Number PDG33F0600B2NN Description DIN Rail DC Power Supply, 600W, 24V DC Out Output Power 600 W Output Voltage 24 V DC Output Current 25 A Input Voltage Range 85 - 264 V AC (Wide Range, suitable for global use) Input Frequency 47 - 63 Hz Efficiency High (typically >94%) Power Factor (PFC) >0.98 Line Regulation <±0.5% Load Regulation <±0.5% Ripple & Noise <100mV peak-to-peak Protections Overload (110-150%), Overvoltage, Short-circuit, Over-temperature Operating Temperature -25°C to +70°C (with derating) Cooling Fan-cooled Mounting DIN Rail (35mm) Safety & EMC CE, cULus, RoHS, compliant with IEC/EN/UL 62368-1
