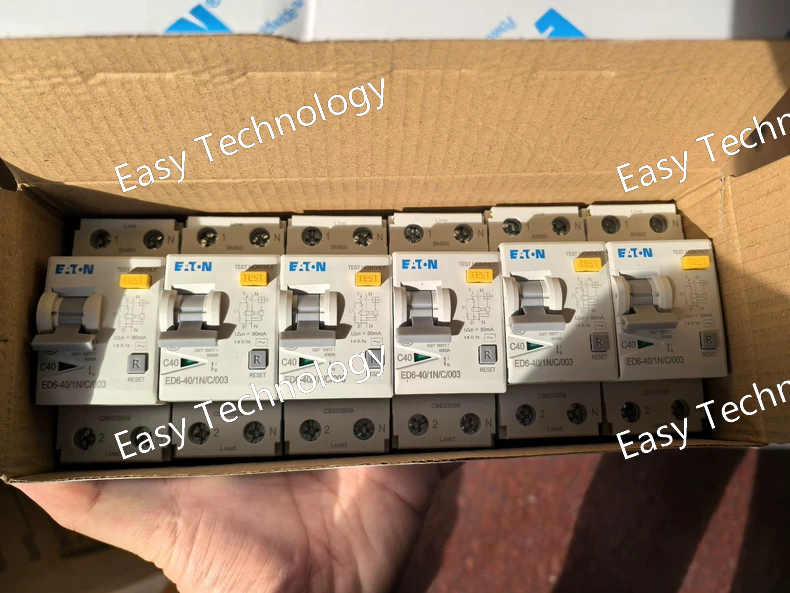

Parameter Specification Product Series Eaton ED6 Model Number ED6-40/1N/C/003 Description Residual Current Circuit Breaker (RCCB), 2-Pole, 40A, 30mA, Type AC Number of Poles 2 Poles (1 Phase + Neutral) Rated Current (In) 40 A Rated Residual Operating Current (IΔn) 30 mA Rated Voltage (Ue) 230V AC Rated Short-circuit Capacity (Icn) 10 kA Residual Current Type Type AC (for alternating sinusoidal residual currents only) Tripping Characteristic Instantaneous Overcurrent Protection No (Requires backup protection by an MCB or fuses) Mechanical Life 20,000 cycles Electrical Life 2,000 cycles Mounting DIN Rail (35mm) Standards & Certifications IEC 61008-1, CE

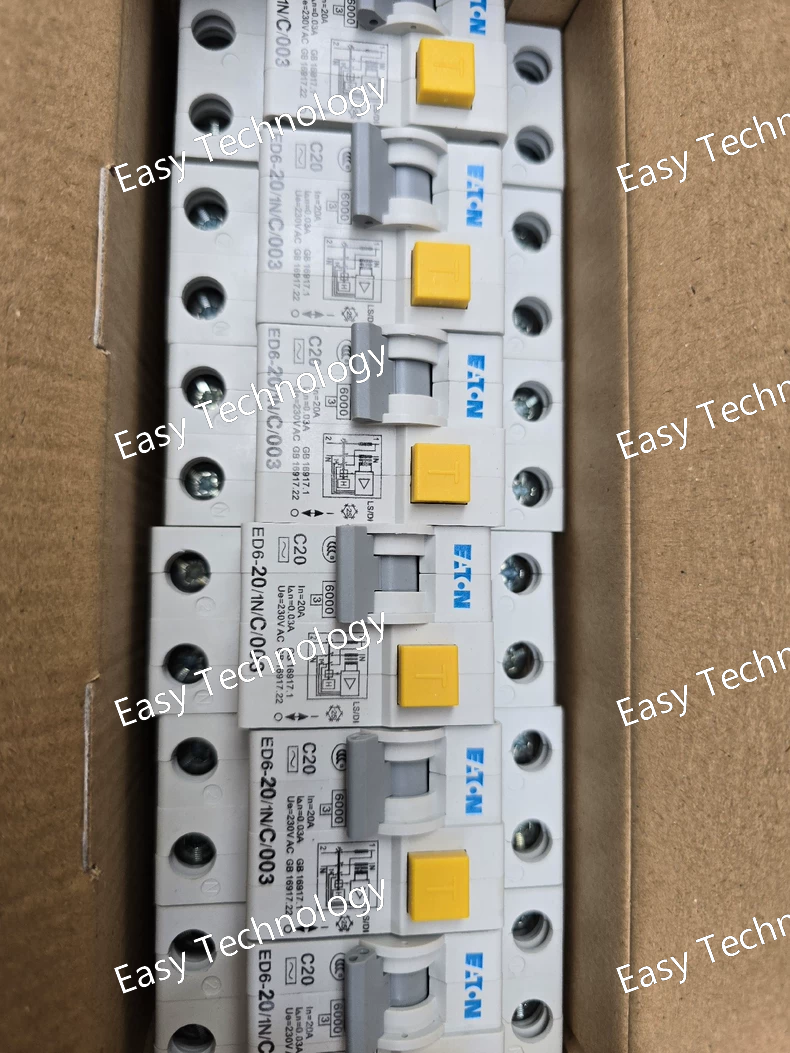

Parameter Specification Product Series Eaton ED6 Model Number ED6-20/1N/C/003 Description Residual Current Circuit Breaker (RCCB), 2-Pole, 20A, 30mA, Type AC Number of Poles 2 Poles (1 Phase + Neutral) Rated Current (In) 20 A Rated Residual Operating Current (IΔn) 30 mA Rated Voltage (Ue) 230V AC Rated Short-circuit Capacity (Icn) 10 kA Residual Current Type Type AC (for alternating sinusoidal residual currents only) Tripping Characteristic Instantaneous Overcurrent Protection No (Requires backup protection by an MCB or fuses) Mechanical Life 20,000 cycles Electrical Life 2,000 cycles Mounting DIN Rail (35mm) Standards & Certifications IEC 61008-1, CE

Parameter Specification Product Series Eaton ED6 Model Number ED6-20/1N/C/003 Description Residual Current Circuit Breaker (RCCB), 2-Pole, 20A, 30mA, Type AC Number of Poles 2 Poles (1 Phase + Neutral) Rated Current (In) 20 A Rated Residual Operating Current (IΔn) 30 mA Rated Voltage (Ue) 230V AC Rated Short-circuit Capacity (Icn) 10 kA Residual Current Type Type AC (for alternating sinusoidal residual currents only) Tripping Characteristic Instantaneous Overcurrent Protection No (Requires backup protection by an MCB or fuses) Mechanical Life 20,000 cycles Electrical Life 2,000 cycles Mounting DIN Rail (35mm) Standards & Certifications IEC 61008-1, CE

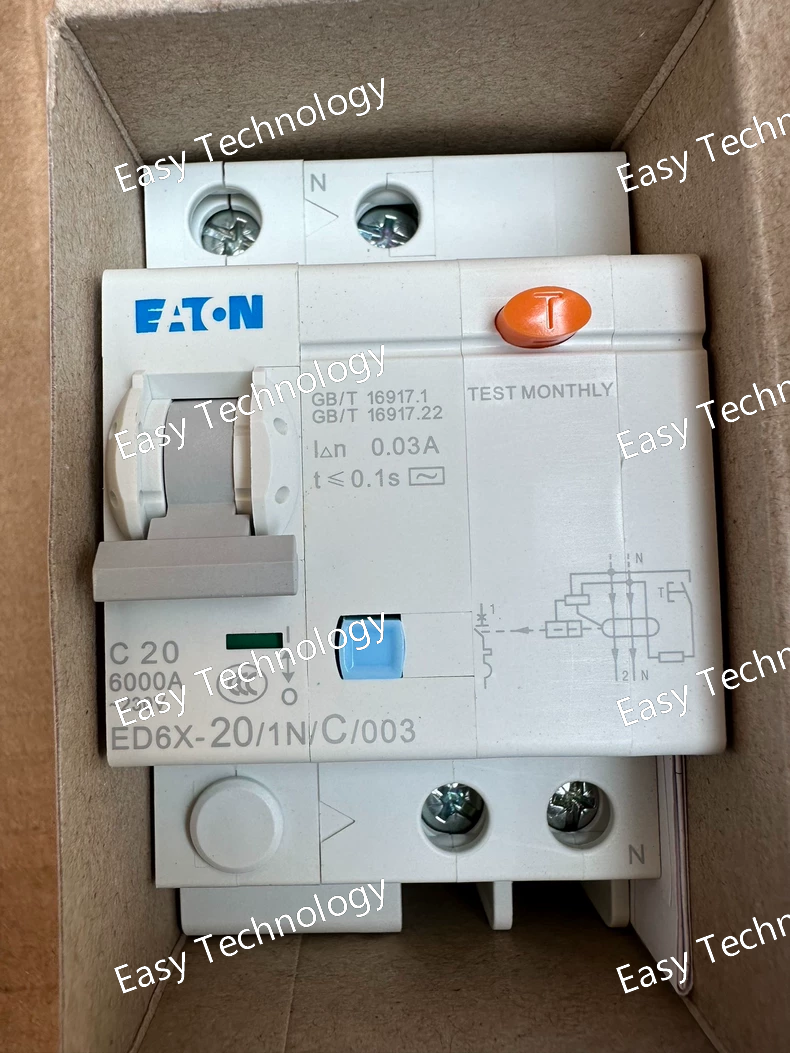

Parameter Specification Product Series Eaton ED6X (Accessory for D6 MCB) Model Number ED6X-20/1N/C/003 Description Residual Current Release Module, for 1P+N MCB, 20A, Curve C, 30mA AC Compatible With Eaton D6 series, 2-pole (1P+N), C-curve Miniature Circuit Breakers Max. Rated Current of Assembly Up to 20A (When combined with a compatible D6 MCB) Rated Residual Operating Current (IΔn) 30 mA Residual Current Type Type AC (for alternating sinusoidal residual currents only) Rated Voltage 230V AC Mounting Snaps onto the side of a compatible D6 MCB on a DIN Rail. Standards & Certifications IEC 61009-1, CE

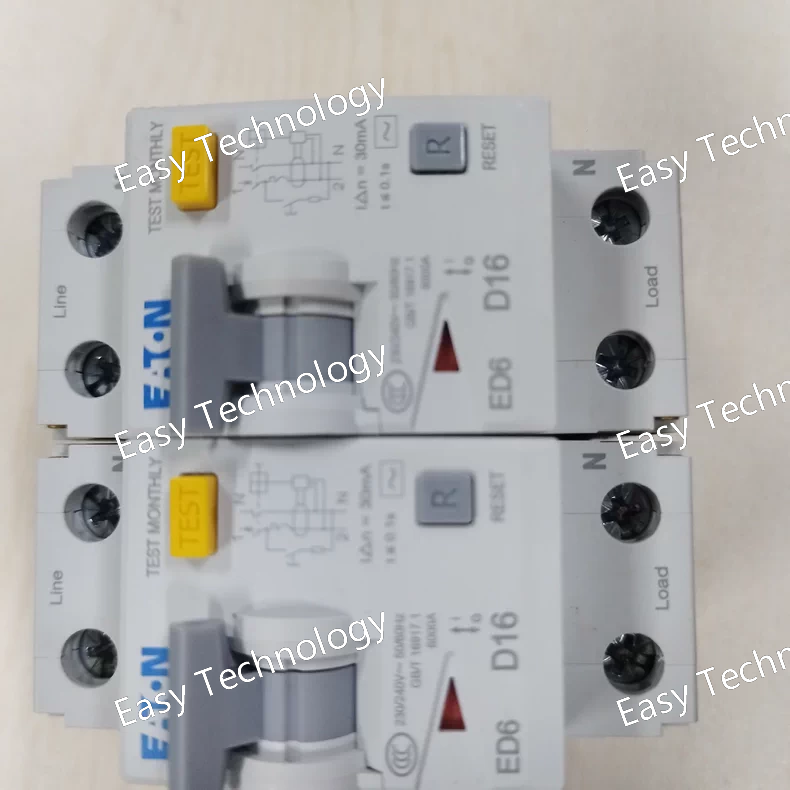

Parameter Specification Product Series Eaton ED6 Model Number ED6-16/1N/D/003 Description Residual Current Circuit Breaker (RCCB), 2-Pole, 16A, 30mA, Type A Number of Poles 2 Poles (1 Phase + Neutral) Rated Current (In) 16 A Rated Residual Operating Current (IΔn) 30 mA Rated Voltage (Ue) 230V AC Rated Short-circuit Capacity (Icn) 10 kA Residual Current Type Type A (for alternating and pulsating direct currents) Tripping Characteristic Instantaneous Overcurrent Protection No (Requires backup protection by an MCB or fuses) Mechanical Life 20,000 cycles Electrical Life 2,000 cycles Mounting DIN Rail (35mm) Standards & Certifications IEC 61008-1, CE

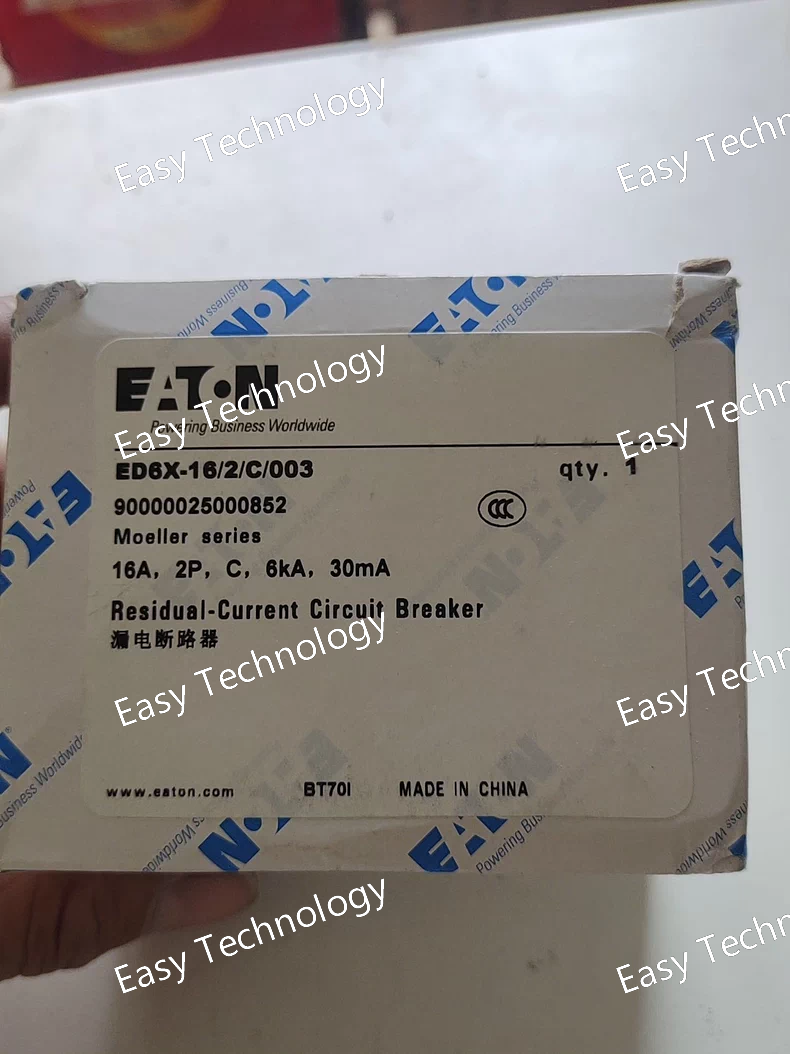

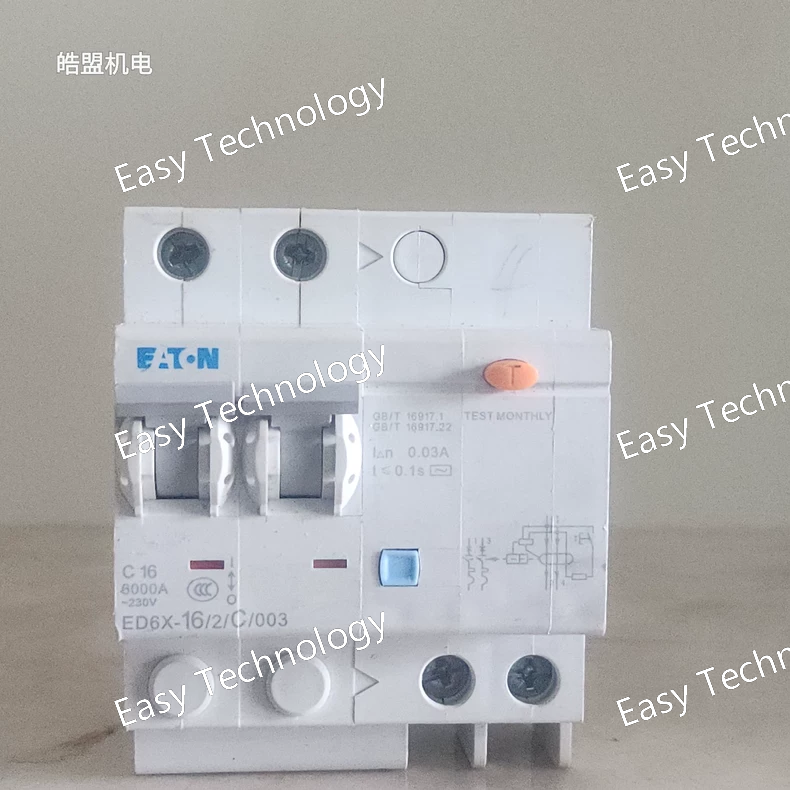

Parameter Specification Product Series Eaton ED6X (Accessory for D6 MCB) Model Number ED6X-16/2/C/003 Description Residual Current Release Module, for 2-Pole MCB, 30mA Compatible With Eaton D6 series, 2-pole Miniature Circuit Breakers Rated Current of Assembly Up to 25A (When combined with a compatible D6 MCB) Rated Residual Operating Current (IΔn) 30 mA Residual Current Type Type AC (for alternating sinusoidal residual currents only) Rated Voltage 230V AC Mounting Snaps onto the side of a compatible D6 MCB on a DIN Rail. Standards & Certifications IEC 61009-1, CE

Parameter Specification Product Series Eaton D6 Model Number D6-16/1N/C/003-A Description Miniature Circuit Breaker (MCB), 2-Pole, 16A, Curve C Number of Poles 2 Poles (1 Phase + Neutral) Rated Current (In) 16 A Tripping Characteristic Curve C (5-10 x In) Rated Operational Voltage (Ue) 230/400V AC Rated Insulation Voltage (Ui) 500V AC Rated Impulse Withstand Voltage (Uimp) 4 kV Rated Short-circuit Breaking Capacity (Icn) 6 kA Mechanical Life 20,000 cycles Electrical Life 10,000 cycles Mounting DIN Rail (35mm) Standards & Certifications IEC 60898-1, CE

Parameter Specification Product Series Eaton ED6 Model Number ED6-10/1N/C/003-A Description Residual Current Circuit Breaker (RCCB), 2-Pole, 25A, 30mA Number of Poles 2 Poles (1 Phase + Neutral) Rated Current (In) 25 A Rated Residual Operating Current (IΔn) 30 mA Rated Voltage (Ue) 230V AC Rated Short-circuit Capacity (Icn) 10 kA Residual Current Type Type AC (for alternating currents only) Tripping Characteristic Instantaneous Overcurrent Protection No (Requires backup protection by MCB or fuses) Mechanical Life 20,000 cycles Electrical Life 2,000 cycles Mounting DIN Rail (35mm) Standards & Certifications IEC 61008-1, CE

Parameter Specification Product Line Eaton Zero-Xposure Model Number ZX-FW-LPB Description Fusible Safety Disconnect Switch, Large Push Button, 30HP/60A Rated Horsepower (HP) 30 HP @ 240V AC / 50 HP @ 480V AC / 60 HP @ 600V AC Rated Amperage (A) 60 A Rated Voltage (V AC) 240V / 480V / 600V Type Fusible Disconnect Switch Actuation Large, Yellow Push Button (Turns to OFF position) Safety Standard Complies with OSHA Lockout/Tagout requirements and relevant UL/CSA standards. Locking Capability Yes, accepts multiple safety locks (up to 3 or 6, depending on the specific model variant). Fuse Type Accepts standard Class R, J, or T fuses (not included). Enclosure Rating Typically NEMA 1, 3R, 4, 4X, 12 (depending on the specific enclosure ordered). Application Used as a main or branch circuit safety disconnect for industrial machinery, motors, and control panels to ensure safe maintenance.

Parameter Specification Product Series Eaton EIT (Industrial Indicators) Model Number EIT30Y-15BO1B Description 30mm Panel Indicator Light, Yellow, Incandescent, 24V Lens Color Yellow (Y) Mounting Hole Size 30 mm Light Source Incandescent Bulb (pre-installed) Rated Voltage 24V AC/DC Bulb Power Typically ~1.5W to 3W (e.g., 24V, 1.7W) Bulb Life Shorter than LED (typically several thousand hours) Terminals Screw terminals or quick-connect, at the rear Mounting Panel mount, secured with a supplied bayonet ring Material Thermoplastic lens and body Agency Approvals UL, CSA, CE
