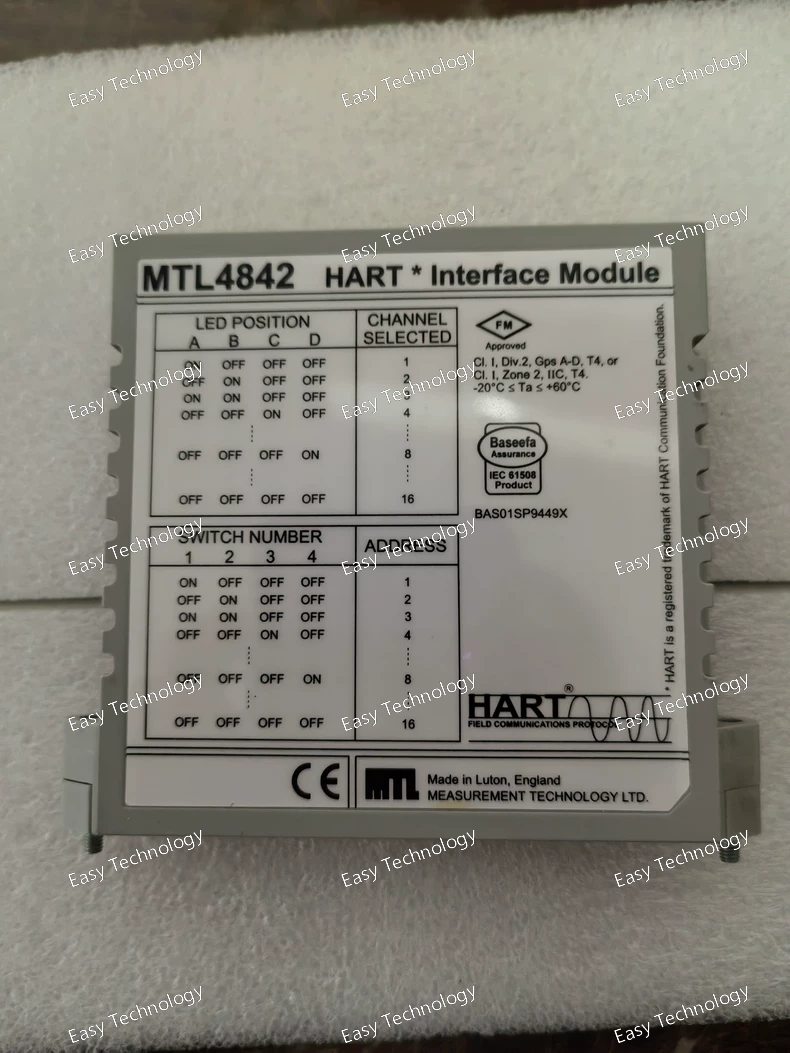

Technical Parameters Category Specification Model MTL4842 Product Type HART Isolator / Signal Conditioner (Externally Powered) Input Signal 4-20 mA with superimposed HART digital signal. Output Signal 4-20 mA (isolated replica) with superimposed HART signal. Power Supply External Auxiliary Power (e.g., 20-30 V DC). This is the key difference from loop-powered versions. Isolation Galvanic Isolation between input, output, and power supply. HART Signal Handling Transparently passes the HART FSK signal. Key Features Ground Loop Elimination Yes. Noise Suppression Yes. Intrinsic Safety Can be part of an IS loop when used with a safety barrier. Accuracy Typically ±0.1% of span. Load Capacity Higher load capacity due to external power (e.g., up to 1000 Ω). Mounting Standard 35 mm DIN rail. Operating Temperature -20°C to +60°C

Technical Parameters Category Specification Model EPF31P-M115V202PR Product Type Single-Phase Online Double-Conversion UPS Power Capacity 1150 VA / 800 W Input Voltage 100-125 VAC (for 120V market) Frequency 50/60 Hz Auto-sensing Connector NEMA 5-15P (Standard household plug) Output Voltage 100-125 VAC (Stabilized pure sine wave) Frequency 50/60 Hz (Synchronized to input or internal oscillator) Waveform Pure Sine Wave Connectors NEMA 5-15R (Standard household outlets) Typical Backup Time Varies based on load. Provides several minutes at full load, with extended runtime available via external battery packs. Communications Includes a Network Management Card (PR) for remote monitoring and management via network. Display & Interface LCD display for system status and configuration. Key Features Automatic Voltage Regulation (AVR) Yes, corrects under/over voltages without using the battery. Zero Transfer Time Yes, seamless transition between AC and battery power. Hot-Swappable Batteries Allows for battery replacement without shutting down connected equipment.

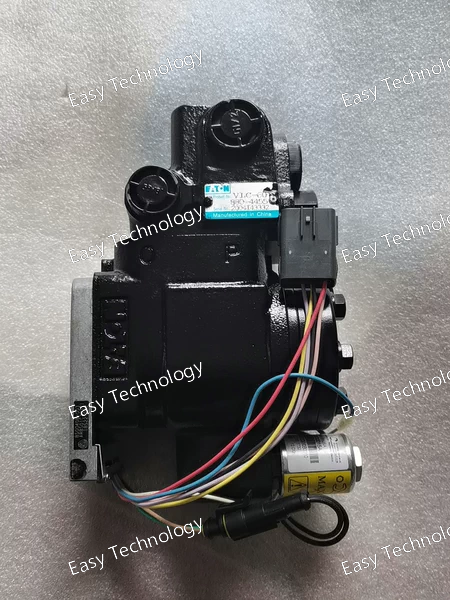

Technical Parameters Category Specification Model VLC-60-880-4455 Product Type Proportional Solenoid Directional Control Valve Nominal Flow Rate 60 L/min (at a standard pressure drop, e.g., 10 bar) Nominal Pressure Typically up to 350 bar (≈ 5075 psi) Number of Spool Positions Typically 4 positions / 3-way (4/3) or similar. Actuation Proportional Solenoid Control Signal Typically proportional current (e.g., 0- ±800 mA, 0- ±2.5A) or voltage. Electrical Connector IP65 or higher rated, sealed connector. Port Size Defined by "880-4455" (Likely SAE or metric threaded ports, e.g., SAE 1-1/4"). Spool Type Defined by the order code (e.g., open center, closed center, pressure compensated). Typical Applications Mobile Equipment Steering systems, boom/arm control on excavators, winch control. Industrial Machinery Precision press control, injection molding machines.

Technical Parameters Category Specification Part Number 253-3038-004 Product Type Hydraulic Filter Element / Cartridge Industry Aerospace Filtration Rating Absolute Filtration Rating, typically 3 microns. This is a critical parameter, meaning it is certified to capture 99.97% or more of particles at the stated size (3 µm). Beta Ratio Very high at its rated size (e.g., β₃ ≥ 1000), indicating exceptional filtration efficiency. Construction Material Filter Media Fine glass fiber or other high-performance material. End Caps & Center Tube Typically metal (aluminum or steel). Seals Viton or other aerospace-grade elastomers compatible with Skydrol, Mil-PRF-5606, and other aircraft hydraulic fluids. Bypass Valve Integral, set to open at a specific differential pressure to protect the system if the element becomes clogged. Test Standards Manufactured and tested in accordance with ISO 2941 (Burst Pressure), ISO 2942 (Bubble Point), and ISO 2943 (Material Compatibility).

Technical Parameters Category Specification Model DT8P1-06-5-11 Product Type Definite Purpose Contactor Rated Load Current 40 A (at specific voltages, e.g., 600V AC) Poles 3 Poles (3-P) Coil Voltage 240V AC, 50/60 Hz (This is the most common interpretation for suffix "-5". Must be verified.) Rated Thermal Current (Ith) 40 A Application Category AC-1 (Non-inductive or slightly inductive loads), AC-7a (Squirrel cage motor loads: starting, switching off) Rated Operational Voltage (Ue) 600V AC Electrical Durability Typically hundreds of thousands of operations at rated load. Mounting Panel Mount / Screw Mount Terminal Type Screw Clamp Agency Approvals UL Listed, CSA Certified

Technical Parameters Category Specification Model BZZ-500-503-1189 Product Type Variable Displacement Axial Piston Pump Displacement ~500 cm³/rev (cubic centimeters per revolution). This is a common interpretation of the "500" in the model number. Pressure Rating Maximum Continuous Pressure Typically in the range of 350 bar (≈ 5075 psi) or higher. Peak Pressure Typically 400 bar (≈ 5800 psi) or higher. Control Type Pressure Compensator Control (Standard). Other controls (e.g., load sensing, torque limiting) may be options. Shaft Type Standard splined or keyed shaft. Rotation Clockwise or Counter-Clockwise (as viewed from the shaft end). Port Connection SAE or metric threaded ports. Fluid Type Mineral-based or synthetic hydraulic oil. Typical Applications Mobile Equipment Main pump for excavators, cranes, etc. Industrial Machinery Presses, injection molding machines.

Technical Parameters Category Specification Model XCEL45-125 Product Type Digital Servo Drive Series XLC / XL Series Frame Size 45 Input Power 125V AC (Single-Phase or Three-Phase). Must be verified with datasheet. DC Bus Voltage Typically derived from the AC input. Continuous Output Current Specific to the "-125" variant (e.g., 5A, 10A). Requires datasheet. Peak Output Current Higher than the continuous current (e.g., 1.5 to 2 times continuous). Communication EtherCAT, CANopen (typical for this series). Control Modes Torque, Speed, Position (CSP, CSV, CST). Feedback Support Supports high-resolution encoders (e.g., 24-bit multi-turn absolute). Safety Function Integrated Safe Torque Off (STO). Key Features Advanced Control Auto-tuning, advanced filtering, friction compensation. Diagnostics Comprehensive status monitoring and fault logging.

Technical Parameters Category Specification Part Number 233-3240-003 Product Type O-Ring / Sealing Gland Industry Aerospace Standard Likely conforms to an industry standard such as AS568 (for O-ring sizes) or a specific OEM standard. Material Aerospace-grade elastomer such as Nitrile (Buna-N), Fluorocarbon (Viton), or Ethylene Propylene (EPDM). The exact material is determined by fluid compatibility requirements. Size Defined by the part number. This includes: Inside Diameter (ID) Precise measurement in inches or millimeters. Cross-Section (CS) Precise measurement in inches or millimeters. Temperature Range Specified for the material (e.g., -40°C to +120°C for Nitrile, much wider for specialized elastomers). Fluid Compatibility Certified for use with specific fluids such as: Hydraulic Fluids Skydrol, Mil-PRF-5606, HyJet Fuels Jet A, Jet B Lubricants Common aerospace lubricants.

Technical Parameters Category Specification Model SU45-800-21/26 Product Type Digital Servo Drive / Servo Amplifier Series SU Series (S-Drive) Frame Size 45 Continuous Output Current 8.0 A RMS Peak Output Current Typically 16.0 A (for short duration, e.g., 1-2 seconds). Supply Voltage (DC Bus) Typically 24 - 96 V DC (Low Voltage) or 200 - 480 V AC (High Voltage, via external rectifier). The "45" frame often corresponds to a high-voltage platform. Communication EtherCAT, PROFIBUS-DP, or other fieldbus (defined by the firmware suffix 21/26). Control Modes Torque, Speed, Position (CSP, CSV, CST). Feedback Support Supports various feedback systems (e.g., EnDat, Hiperface, Resolver) as defined by the firmware. Safety Function Integrated Safe Torque Off (STO). Key Features Advanced Control Auto-tuning, notch filters, adaptive control. Diagnostics Comprehensive status monitoring and fault logging via software.

Technical Parameters Category Specification Model XCEL45-400 Product Type Digital Servo Drive Series XLC / XL Series Frame Size 45 Input Power 400V AC (3-Phase). Must be verified with datasheet. DC Bus Voltage Typically derived from the AC input. Continuous Output Current Specific to the "-400" variant (e.g., 5A, 10A). Requires datasheet. Peak Output Current Higher than the continuous current (e.g., 1.5 to 2 times continuous). Communication EtherCAT, CANopen (typical for this series). Control Modes Torque, Speed, Position (CSP, CSV, CST). Feedback Support Supports high-resolution encoders (e.g., 24-bit multi-turn absolute). Safety Function Integrated Safe Torque Off (STO). Key Features Advanced Control Auto-tuning, advanced filtering, friction compensation. Diagnostics Comprehensive status monitoring and fault logging.
