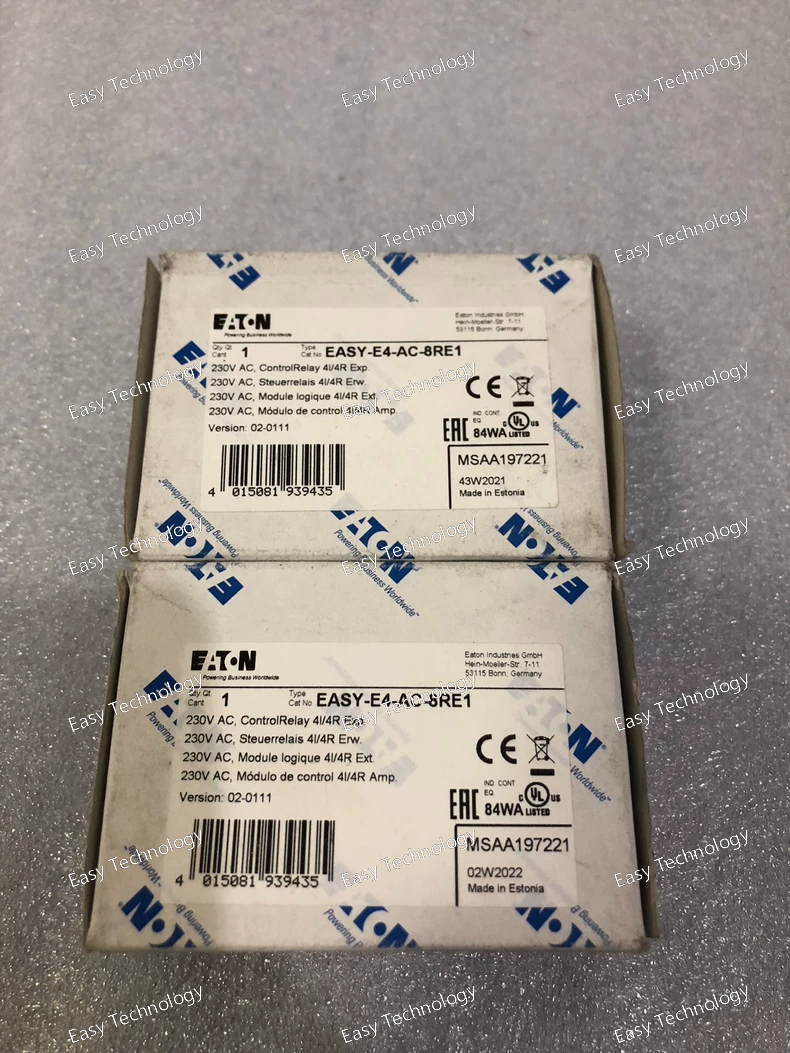

Technical Parameters Category Specification Model EASY-E4-AC-8RE1 Product Type Programmable Logic Relay (PLR) Power Supply 100-240V AC Digital Inputs 12 (Can be expanded with additional modules) Digital Outputs 8 Relay Outputs Output Type Relay (electromechanical) Output Contact Rating Typically 8A @ 250V AC Program Memory Sufficient for complex relay-based applications (e.g., several KB) Real-Time Clock Yes Communication Integrated Ethernet port (for programming, HMI connection, and networking) Programming Software EASY-SOFT Programming Language Ladder Diagram (LD), Function Block Diagram (FBD) Mounting DIN Rail Mount (35mm) Key Features Integrated Display Yes, for status monitoring and parameter setting Expandability Can be expanded with EASY-E4 expansion I/O modules Integrated Web Server Allows for remote monitoring via web browser

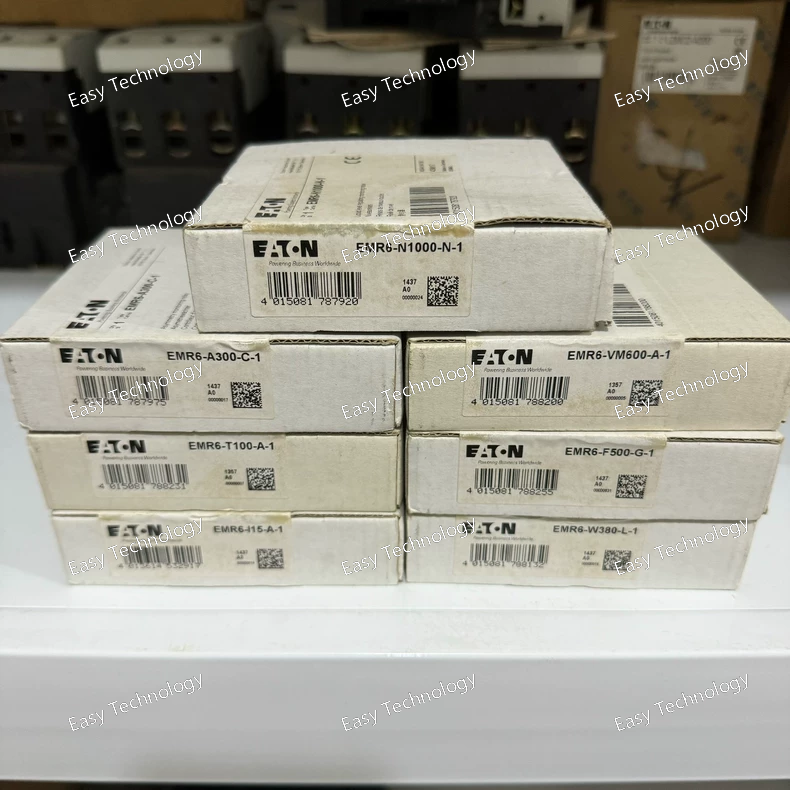

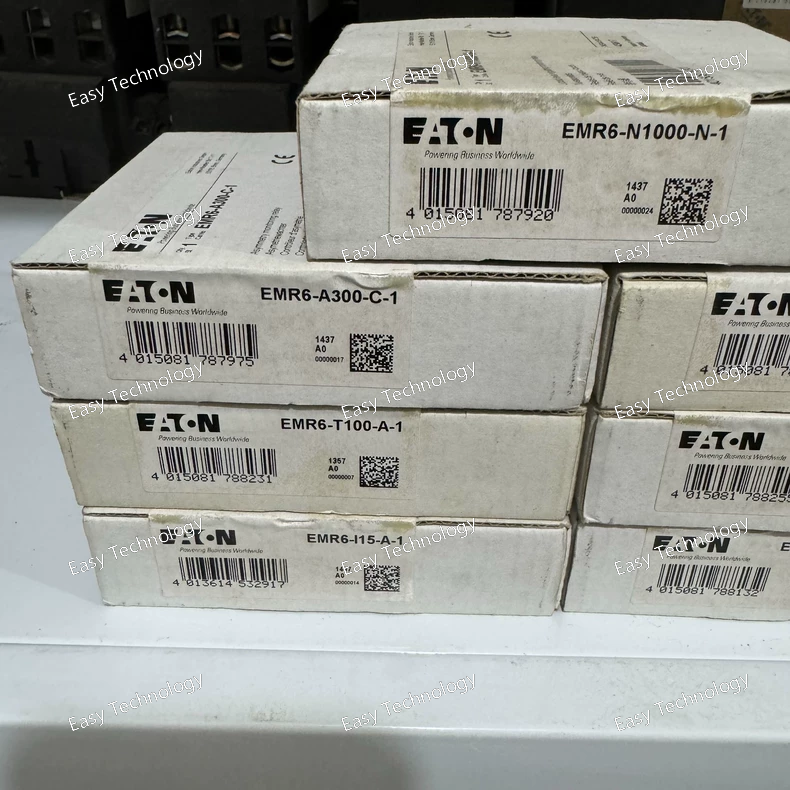

Technical Parameters Category Specification Model EMR6-T100-A-1 Product Type Solid-State Overload Relay Rated Current Frame T100 (Requires external Current Transformers for motors up to 100A) Motor Full Load Current Setting Adjustable via the integrated potentiometer, scaled according to the CT ratio. Protection Functions Overload Protection Yes (Class 10, 20, 30 selectable) Phase Unbalance Protection Yes Phase Loss Protection Yes Jam (Locked Rotor) Protection Yes Auxiliary Contacts 2 NO + 2 NC (for alarm and control signaling) Control Supply Voltage Typically 24-240V AC/DC (wide range) Status Indication LED indicators for Power, Trip, and Alarm conditions. Mounting Designed to be mounted on the corresponding Eaton contactor or on a DIN rail. Standards IEC/EN 60947-4-1, UL 508

Technical Parameters Category Specification Model EMR6-A300-C-1 Product Type Solid-State Overload Relay Rated Current Frame A300 (Requires external Current Transformers for motors up to 300A) Motor Full Load Current Setting Adjustable via the integrated potentiometer, scaled according to the CT ratio. Protection Functions Overload Protection Yes (Class 10, 20, 30 selectable) Phase Unbalance Protection Yes Phase Loss Protection Yes Jam (Locked Rotor) Protection Yes Auxiliary Contacts 2 NO + 2 NC (for alarm and control signaling) Control Supply Voltage Typically 24-240V AC/DC (wide range) Communication Option The "-C" likely indicates a communication module is pre-integrated or required (e.g., for DeviceNet, PROFIBUS-DP, or Modbus RTU). Status Indication LED indicators for Power, Trip, and Alarm conditions. Mounting Designed to be mounted on the corresponding Eaton contactor or on a DIN rail. Standards IEC/EN 60947-4-1, UL 508

Technical Parameters Category Specification Model EMR6-W380-L-1 Product Type Solid-State Overload Relay Rated Current Frame W380 (Requires external Current Transformers for motors up to 380A) Motor Full Load Current Setting Adjustable via the integrated interface, scaled according to the CT ratio. Protection Functions Overload Protection Yes (with selectable trip class) Phase Unbalance Protection Yes Phase Loss Protection Yes Jam (Locked Rotor) Protection Yes Ground Fault Protection Optional or included depending on variant. Auxiliary Contacts Multiple NO/NC contacts for alarm and control signaling. Control Supply Voltage Wide range, typically 24-240V AC/DC. Additional Features The "-L" may indicate features like an analog output (e.g., 4-20 mA) for motor current monitoring. Status Indication LED indicators for Power, Trip, and Alarm conditions. Mounting Designed for DIN rail or direct mounting. Standards IEC/EN 60947-4-1, UL 508

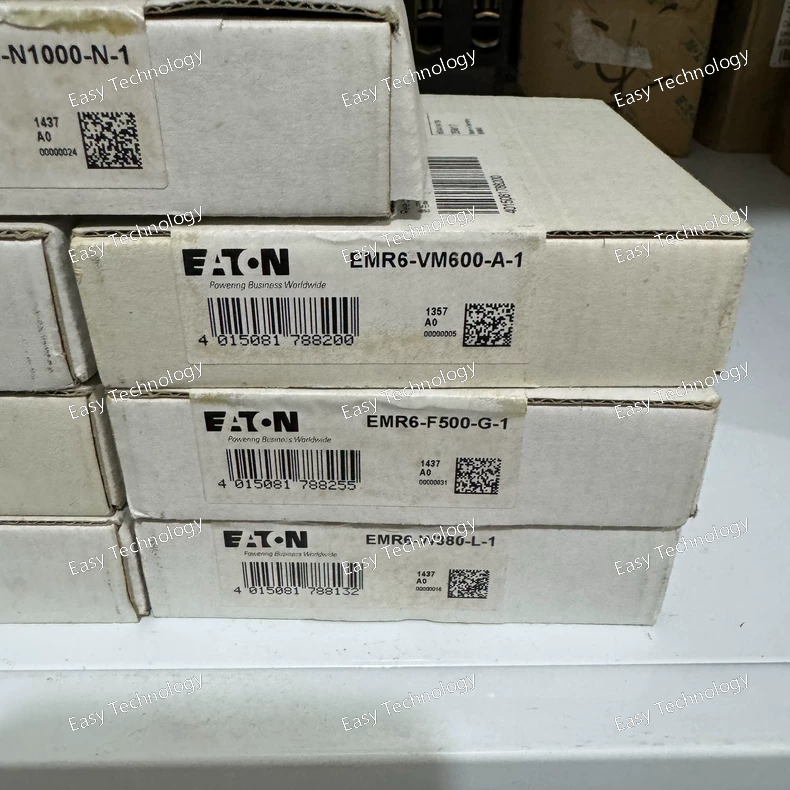

Technical Parameters Category Specification Model EMR6-VM600-A-1 Product Type Solid-State Overload Relay Rated Current Frame VM600 (Requires external Current Transformers for motors up to 600A) Motor Full Load Current Setting Adjustable via the integrated interface, scaled according to the CT ratio. Protection Functions Overload Protection Yes (with selectable trip class) Phase Unbalance Protection Yes Phase Loss Protection Yes Jam (Locked Rotor) Protection Yes Auxiliary Contacts Typically 2 NO + 2 NC for alarm and control signaling. Control Supply Voltage Wide range, typically 24-240V AC/DC. Status Indication LED indicators for Power, Trip, and Alarm conditions. Mounting Designed for DIN rail or direct mounting. Standards IEC/EN 60947-4-1, UL 508

Technical Parameters Category Specification Model EMR6-N1000-N-1 Product Type Solid-State Overload Relay Rated Current Frame N1000 (Requires external Current Transformers for motors up to 1000A) Motor Full Load Current Setting Adjustable via the integrated interface, scaled according to the CT ratio. Protection Functions Overload Protection Yes (with selectable trip class) Phase Unbalance Protection Yes Phase Loss Protection Yes Jam (Locked Rotor) Protection Yes Auxiliary Contacts Multiple NO/NC contacts for alarm and control signaling. Control Supply Voltage Wide range, typically 24-240V AC/DC. Status Indication LED indicators for Power, Trip, and Alarm conditions. Mounting Designed for DIN rail or direct mounting. Standards IEC/EN 60947-4-1, UL 508

Technical Parameters Category Specification Model M22-I2-M1 Product Type Inductive Proximity Sensor Housing Thread M22 x 1 Sensing Distance 2 mm (Nominal) Output Type Typically PNP, Normally Open (NO) (This is common for this code, must be verified) Output Configuration 3-wire Supply Voltage 10-30V DC Rated Current Typically ≤ 200 mA Connection Type Fixed Cable (M1), standard length (e.g., 2m). Housing Material Typically nickel-plated brass or stainless steel IP Rating IP67 (Dust-tight and protected against temporary immersion) Target Material Ferrous and Non-ferrous Metals (with different reduction factors)

Technical Parameters Category Specification Model TO-2-1/11 Product Type Solid-State Timing Relay Mounting Style DIN Rail (35mm) Time Range 0.05 Seconds to 100 Hours (widely adjustable) Supply Voltage Specific voltage depends on variant (e.g., 24V AC/DC, 110V AC, 230V AC). Must be verified from product label. Output Configuration 1 Changeover Contact (SPDT) Contact Rating (Output) Typically 6-8A @ 250V AC Timing Function Defined by "1/11" code, commonly ON-Delay Repeat Accuracy Typically < 1% of setting Dial Rotary knob with multi-turn adjustment Status Indication LED indicator for power and output status Operating Temperature -20°C to +60°C Agency Approvals UL Listed, CSA Certified, CE Marked

Technical Parameters Category Specification Model T0-2-15679/E Product Type Solid-State Timing Relay Mounting Style DIN Rail (35mm) Time Range Wide range (e.g., from seconds to hours), specific range defined by the order code. Supply Voltage Defined by "15679/E" code. Common voltages include 24V AC/DC, 110V AC, or 230V AC. (Must be verified from datasheet) Output Configuration Defined by order code. Typically 1 or 2 changeover contacts (SPDT). Contact Rating (Output) Typically 6-8A @ 250V AC Timing Function Defined by "15679/E" code. Common functions include ON-Delay, OFF-Delay, Interval, or Flasher. Repeat Accuracy High, typically < 1% of setting. Status Indication LED indicator for power and output status. Operating Temperature -20°C to +60°C Agency Approvals UL Listed, CSA Certified, CE Marked

Technical Parameters Category Specification Model M22-CK01D Product Type Capacitive Proximity Sensor Housing Thread M22 x 1 Sensing Distance Typically 1 to 5 mm (adjustable or fixed, depending on variant) Sensing Object Metallic and Non-Metallic materials (e.g., plastics, glass, liquids, wood) Output Type Typically PNP or NPN (Must be verified from datasheet), Normally Open (NO) Output Configuration 3-wire Supply Voltage 10-30V DC Rated Current Typically ≤ 200 mA Connection Type Fixed Cable or Quick-Disconnect (Connector) (defined by suffix) Housing Material Typically PBT or metal with sensing face in PTFE/POM for corrosion resistance IP Rating IP67 (Dust-tight and protected against temporary immersion)
