3BH012961R0001 / 5SHX2645L002 – ABB Power Electronics Module
Type: IGBT Power Stack (HiPak/StakPak series)
Function: High-power switching for industrial drives

Key Features:

Voltage Rating: 3300V

Current Rating: 2600A (peak)

Low-loss switching

Press-pack design

Applications:

ACS 6000 MV drives

HVDC power transmission

Certifications: IEC 60747, UL

3N3745W – ABB Robotics Power Supply Module
Type: DC Power Supply Unit
Function: Provides regulated power for robot control systems

Key Features:

Input: 400-480V AC (3-phase)

Output: 24V DC (20A continuous)

Redundant operation support

Diagnostic LEDs for status monitoring

Applications:

ABB IRC5 controller cabinets

Industrial robot power systems

Certifications: CE, UL, IEC 61800-5-1

3HAC036260-001/04 – ABB Robotics Drive Module
Type: Servo Drive Unit (for IRC5 robot systems)
Function: Precision motion control for robotic axes

Key Features:

High dynamic response (optimized for ABB robots)

Integrated safety functions (STO, SS1)

Multi-axis synchronization support

Compact modular design

Applications:

ABB IRB 6600/IRB 6700 robots

Material handling & assembly automation

Compatibility:

Pairs with ABB IRC5 controllers

Supports 3HAC-series motors

Certifications: CE, UL, IEC 61800-5-1

3HNA008029-011/05 – ABB Robotics Axis Computer Module
Type: Motion Control Board (for IRC5 systems)
Function: Real-time axis control for industrial robots

Key Features:

Multi-axis synchronization (up to 6 axes)

High-speed communication with servo drives

Integrated safety monitoring (SafeMove)

Hot-swappable design

Applications:

ABB IRB 4600/6700 robots

Precision assembly & material handling

Certifications: CE, UL, IEC 61508

ACS800-104-0580-7+E205+V991 – ABB Industrial Drive Package
Type: Complete Variable Frequency Drive (VFD) System
Function: Precision motor control for industrial applications

Key Features:

Power Rating: 580kW (700-900A)

Voltage: 400-480V AC (3-phase)

Integrated Options:

E205: Liquid cooling unit

V991: Brake chopper module

Safety: STO (Safe Torque Off)

Applications:

Heavy-duty pumps/compressors

Mining/steel industry equipment

Certifications: CE, UL, cULus

ACU 3HNA024871-001 – ABB Robotics Power Distribution Unit
Type: Power Distribution & Safety Module
Function: Centralized power management for ABB robot systems

Key Features:

Integrated circuit protection (fuses/breakers)

Dual-voltage distribution:

400-480V AC (motor power)

24V DC (control circuits)

Safety compliance: STO (Safe Torque Off)

Diagnostic LEDs for quick fault identification

Compatibility:

ABB IRC5 controllers

IRB 4600/6600/6700 robot arms

Certifications: CE, UL, IEC 61508 (SIL 3)

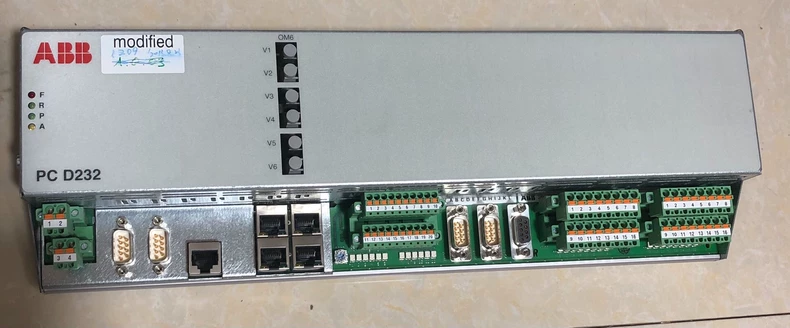

PC D232 – Industrial Interface Converter
Type: RS-232 to Digital I/O Converter
Function: Serial communication & signal conversion

Key Features:

RS-232 interface (DB9 connector)

8-channel digital I/O (24V DC)

Isolation protection (500V)

LED status indicators

Applications:

PLC communication

Industrial automation control

Certifications: CE, RoHS

HNA024871-001 – ABB Robotics Power Distribution Board
Type: Power Distribution Module (for robotic systems)
Function: Centralized power management & safety control

Key Features:

Integrated fusing/circuit protection

Multi-channel power distribution (24V DC & high-voltage)

Safety relay integration (STO, SS1)

Diagnostic LEDs for fault detection

Compatibility:

ABB IRC5 controllers

IRB 4600/IRB 6700 robot arms

Certifications: CE, UL, IEC 61508

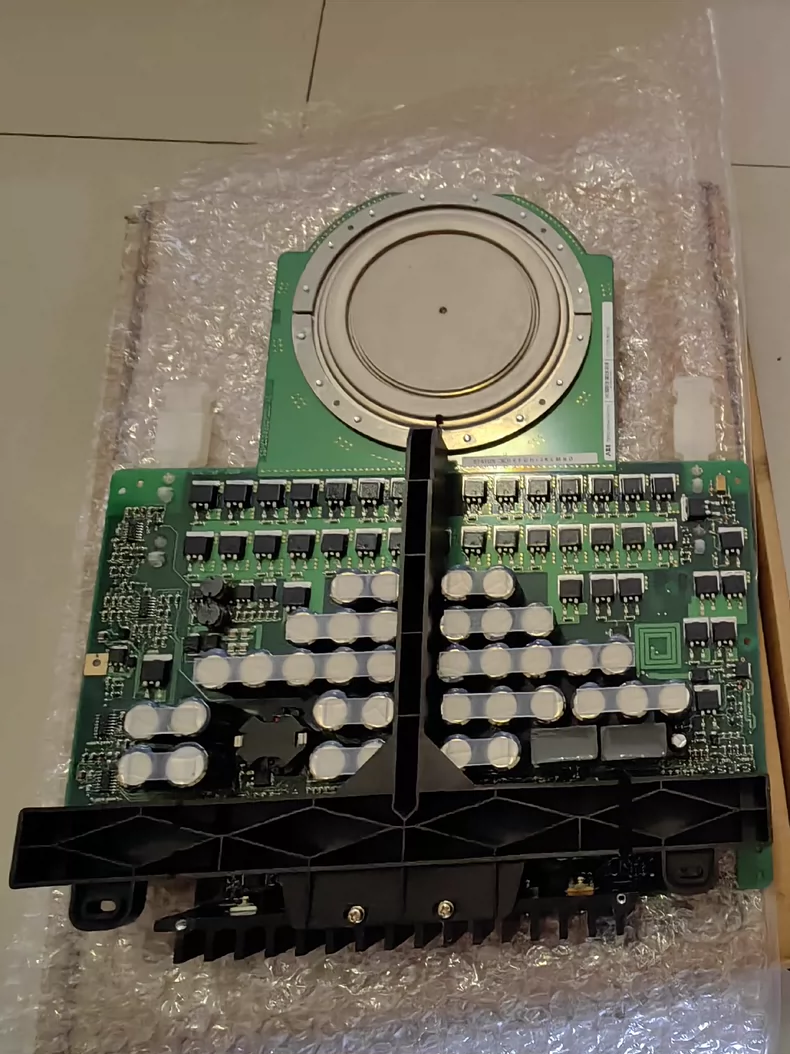

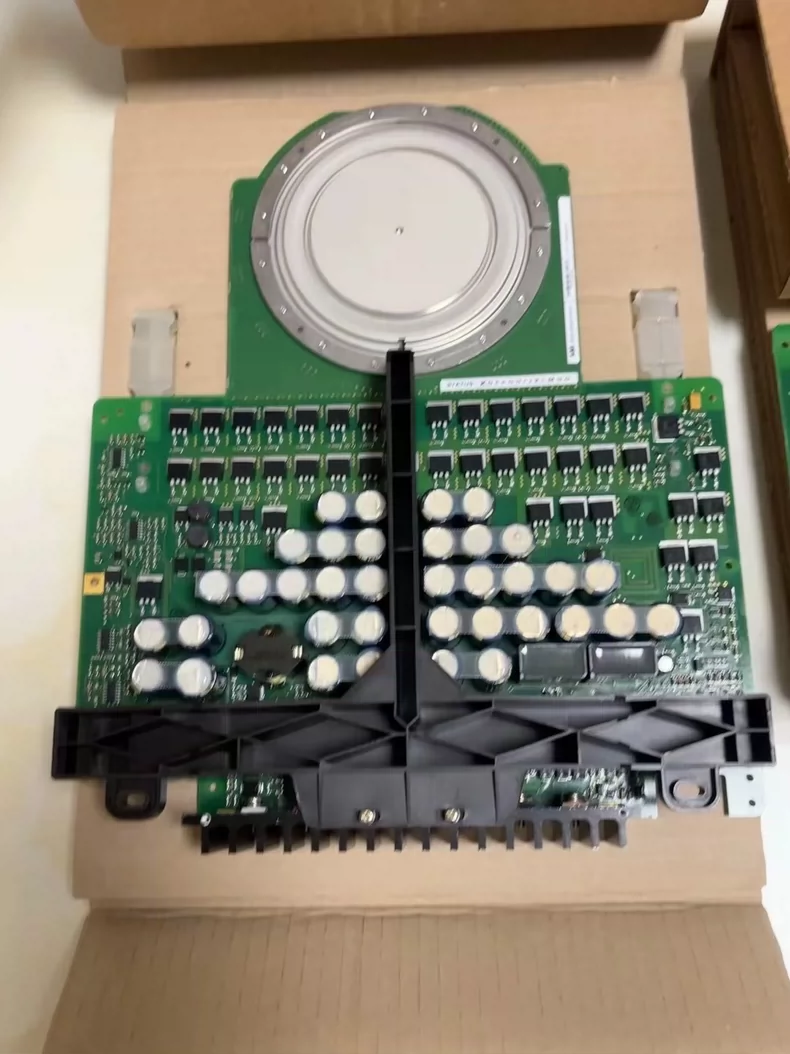

5SHY4045L0001 – ABB IGCT Power Module
Type: High-Power Semiconductor Switch
Function: Medium-voltage switching in industrial drives

Key Features:

IGCT (Integrated Gate-Commutated Thyristor) technology

Voltage Rating: 4500V

Current Rating: 4000A (peak)

Low switching losses

Applications:

HVDC power transmission

ACS 6000 medium-voltage drives

Industrial megawatt systems

Certifications: IEC 60747, UL

2097-V33PR3 – Allen-Bradley Safety Relay Module
Type: Programmable Safety Relay
Function: Machine safety control (dual-channel monitoring)

Key Features:

Safety Category: PL e / SIL 3 (ISO 13849, IEC 62061)

Inputs: 3 dual-channel (24V DC)

Outputs: 3 semiconductor (2A)

Diagnostics: LED status indicators

Applications:

Emergency stop circuits

Safety gates & light curtains

Certifications: CE, UL, TÜV
