3HNA012974-001 – ABB Robotics Power Distribution Module
Type: Power Distribution Board
Function: Centralized power management for IRC5 robot systems

Key Features:

Dual-voltage distribution:

400-480V AC (motor power)

24V DC (control circuits)

Integrated protections: Fuses/circuit breakers

Safety compliance: STO (Safe Torque Off)

Applications:

ABB IRB 4600/6600/6700 robots

Automated assembly lines

Certifications: CE, UL, IEC 61508

ACS800-01-0120-3+B056+P901 – ABB Drive System
Type: Variable Frequency Drive Package
Function: Complete motor control solution

Key Features:

Drive Unit: ACS800-01-0120-3 (120A, 55kW)

Brake Chopper (B056): 55kW braking capacity

EMC Filter (P901): For reduced interference

Applications:

Crane & hoist systems

High-inertia loads

Certifications: CE, UL, cULus

ACS880-01-430A-3 – ABB Industrial Drive
Type: Variable Frequency Drive (VFD)
Function: High-performance motor control

Key Features:

Power: 250kW (430A)

Voltage: 380-480V AC (3-phase)

DTC Control (Direct Torque Control)

Built-in EMC filter

Applications:

Heavy-duty pumps & fans

Mining conveyors

Certifications: CE, UL, cULus

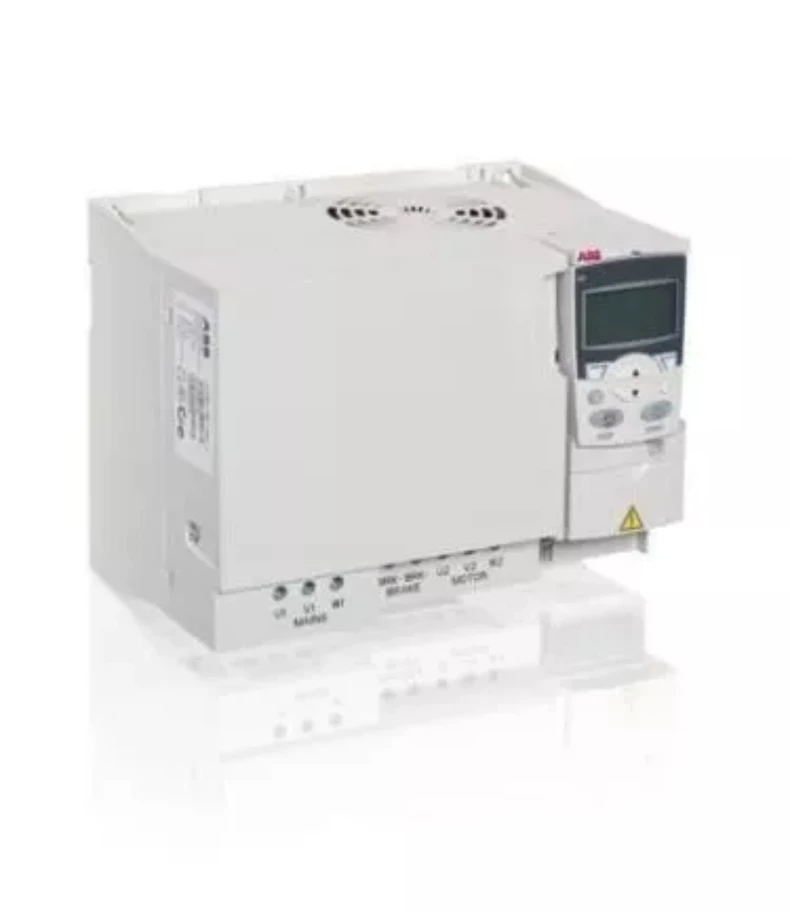

ACS355-03U-46A2-2 – ABB Drive Module
Type: Compact Variable Frequency Drive (VFD)
Function: Motor speed control for industrial applications

Key Features:

Power: 46A (22kW)

Voltage: 380-480V AC (3-phase)

Built-in EMC filter

DTC Control (Direct Torque Control)

Applications:

Pumps & fans

Conveyors & mixers

Certifications: CE, UL, cULus

3HAC057543-004 / 3HAC057284-001 – ABB Robotics Drive Modules
Type: Servo Drive Units (IRC5 System)
Function: High-performance motion control for industrial robots

Key Features:

Optimized for IRB 6700 robots

Integrated safety functions (STO, SS1)

Multi-axis synchronization

Compact modular design

Applications:

Heavy payload material handling

Automotive assembly lines

Certifications: CE, UL, IEC 61800-5-1

3HNA006493-001 / 3HNA006492-001 – ABB Robotics Drive Modules
Type: Servo Drive Units (IRC5 System)
Function: Precision motion control for industrial robots

Key Features:

High Dynamic Response (optimized for ABB robots)

Integrated Safety (STO, SS1)

Multi-axis Synchronization

Compact Design

Applications:

IRB 4600/IRB 6700 Robots

Material Handling & Assembly

Certifications: CE, UL, IEC 61800-5-1

3HNA006493-001 / 3HNA006492-001 – ABB Robotics Drive Modules
Type: Servo Drive Units (IRC5 System)
Function: Precision motion control for industrial robots

Key Features:

High Dynamic Response (optimized for ABB robots)

Integrated Safety (STO, SS1)

Multi-axis Synchronization

Compact Design

Applications:

IRB 4600/IRB 6700 Robots

Material Handling & Assembly

Certifications: CE, UL, IEC 61800-5-1

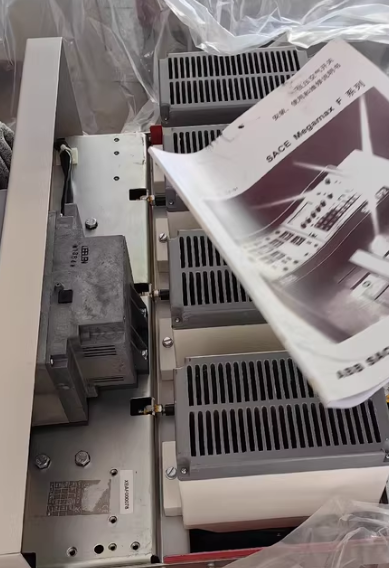

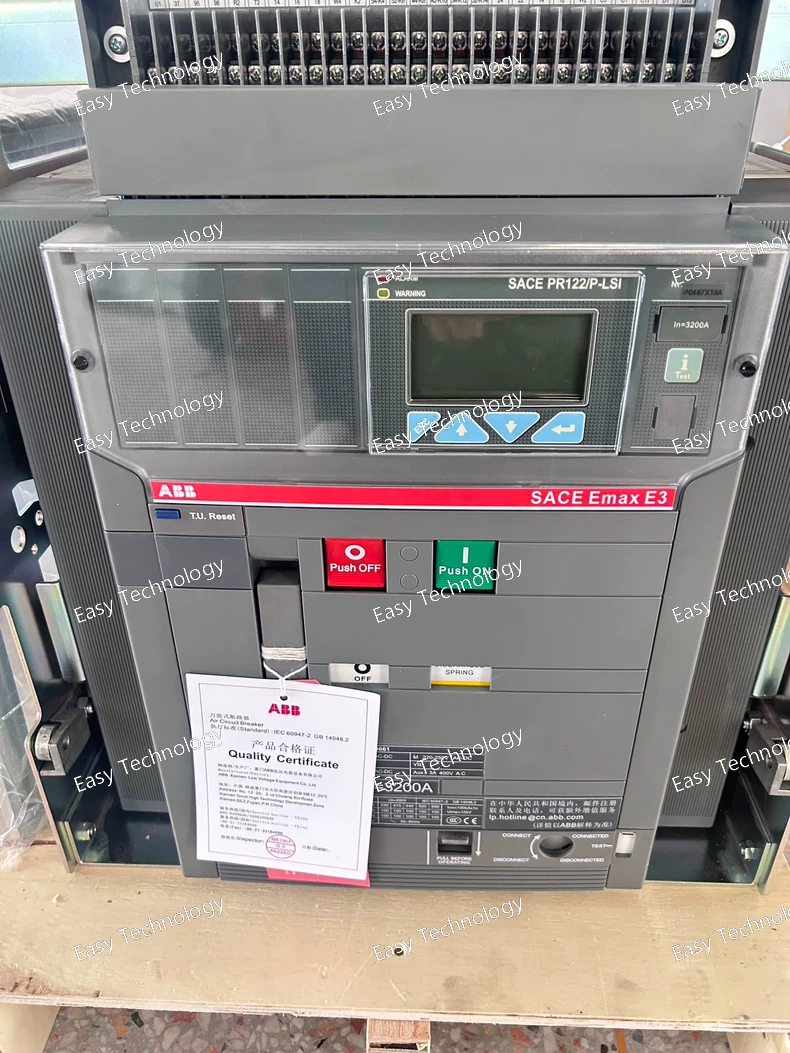

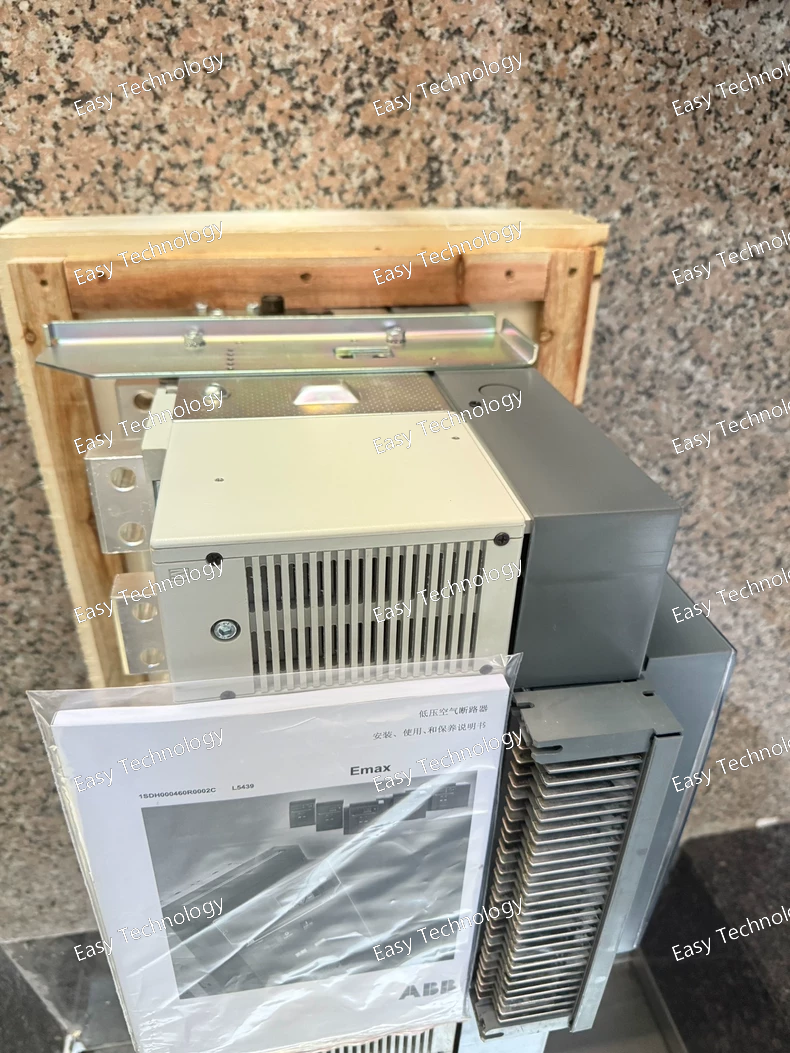

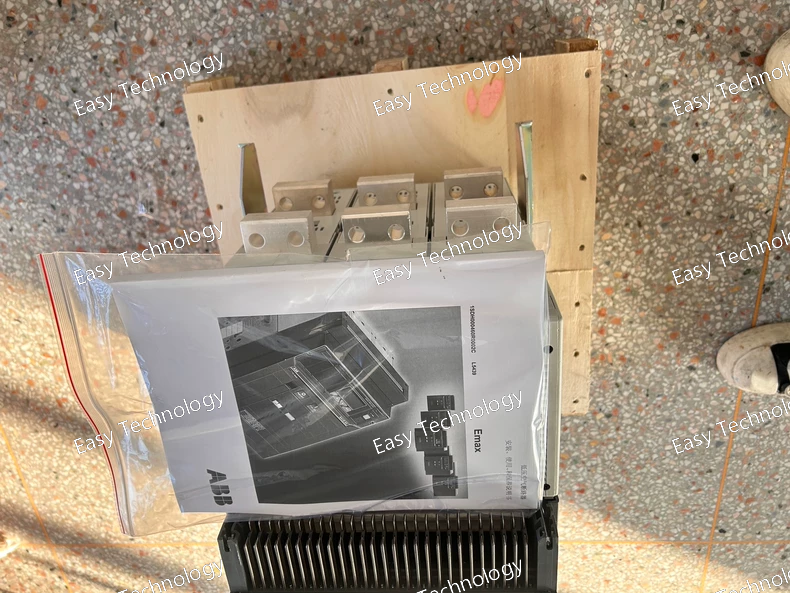

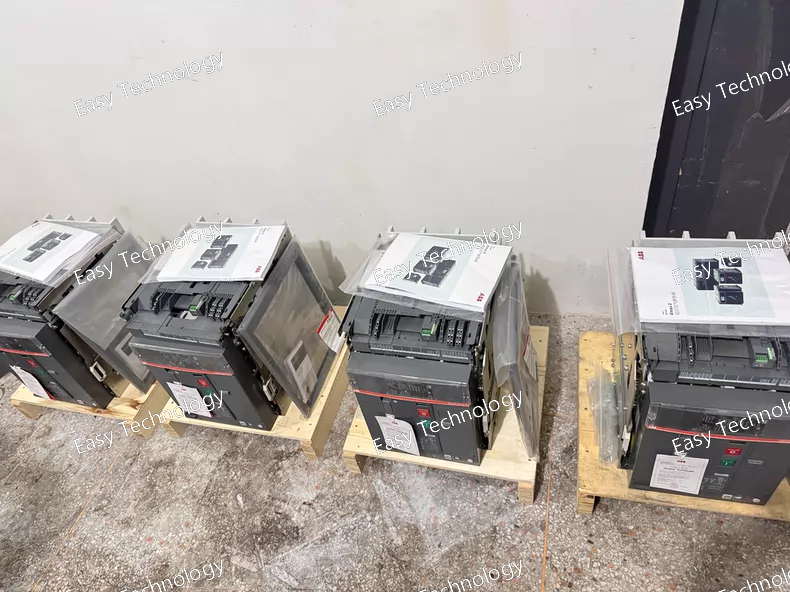

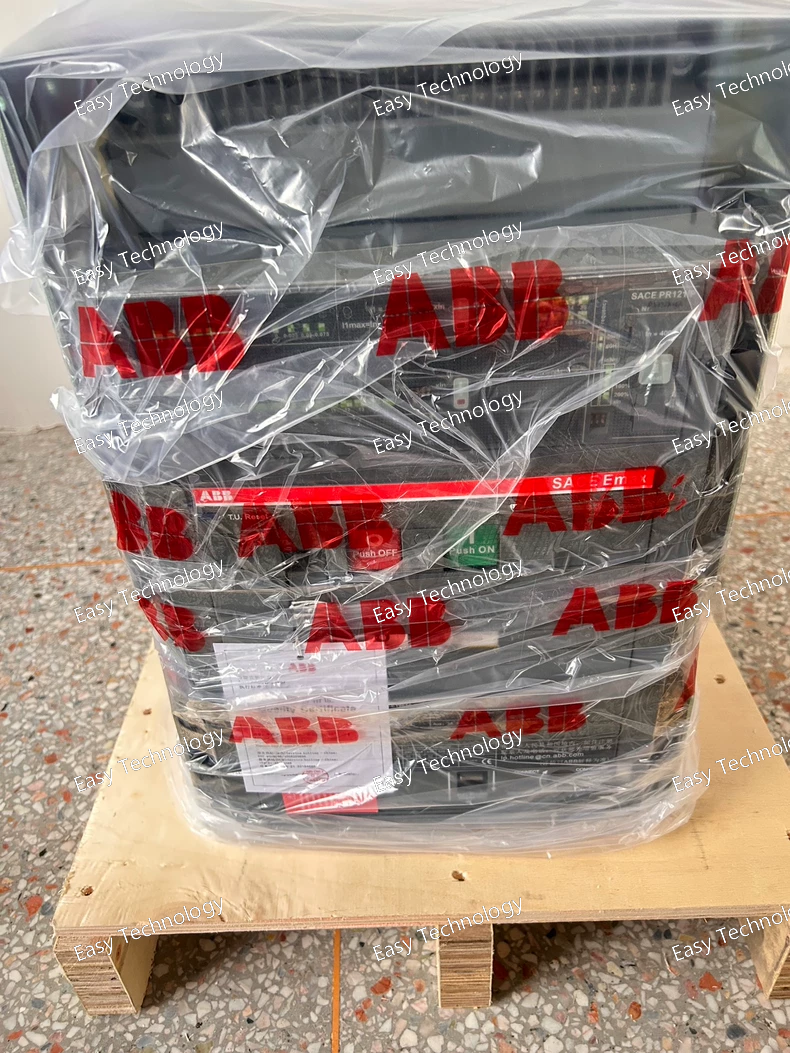

F4S3200 AR1/LI 3P – ABB Circuit Breaker
Type: Molded Case Circuit Breaker (MCCB)
Function: Overcurrent & short-circuit protection

Key Features:

Rated Current: 3200A

Breaking Capacity: 65kA (at 400V AC)

3-Pole Design

Adjustable Trip Settings

Applications:

Main power distribution

Industrial switchboards

Certifications: IEC 60947-2, UL 489

ACS880-04-505A-3 – ABB Industrial Drive
Type: Variable Frequency Drive (VFD)
Function: High-power motor control for industrial applications

Key Features:

Power Rating: 250kW

Voltage: 380–480V AC (3-phase)

DTC Control (Direct Torque Control)

Built-in EMC filter

Applications:

Heavy-duty pumps & fans

Mining & material handling

Certifications: CE, UL, cULus

ACS800-104 – ABB Industrial Drive
Type: Variable Frequency Drive (VFD)
Function: Motor speed control for industrial applications

Key Features:

Power Range: 0.75–250 kW

Voltage: 380–480V AC (3-phase)

DTC Control (Direct Torque Control)

Built-in EMC filter

Applications:

Pumps & fans

Conveyors & compressors

Certifications: CE, UL, cULus

3HNA012841-001 – ABB Robotics Power Distribution Board
Type: Power Distribution Module
Function: Centralized power management for IRC5 robot systems

Key Features:

Dual-voltage distribution:

400-480V AC (motor power)

24V DC (control circuits)

Integrated protections: Fuses/circuit breakers

Safety compliance: STO (Safe Torque Off)

Applications:

ABB IRB 4600/6600/6700 robots

Automated assembly lines

Certifications: CE, UL, IEC 61508
