Technical Specifications:

Power Rating: 7.5 kW (10 HP)

Input Voltage: 3-phase 380-480V AC (±10%), 50/60 Hz

Output Current: 18 A

Overload Capacity: 150% for 60 seconds

Control Method: Sensorless vector control (DTC)

Frequency Range: 0-500 Hz

Efficiency: >97.5%

Key Features:

Advanced Motor Control:

Automatic motor adaptation (AMA)

Torque boost function

Flying start capability

Application Macros:

Factory preset configurations (pump, fan, conveyor)

Customizable application programs

Built-in PID controller

Protection Features:

Motor thermal protection (PTC input)

Short circuit protection

Ground fault detection

Overvoltage/undervoltage protection

Standard Interfaces:

Control Terminals:

2 analog inputs (0-10V/4-20mA)

3 digital inputs

1 relay output

1 analog output (0/4-20mA)

Communication:

RS485 (Modbus RTU standard)

Optional fieldbus adapters available

Physical Characteristics:

Enclosure: IP20 (open chassis)

Dimensions: 198 × 245 × 195 mm (W × H × D)

Weight: 4.2 kg

Cooling: Convection cooling

Ambient Temperature: 0-40°C (32-104°F) without derating

Core Parameters:

Model: ACS800-104-0510-3+E205+V991

Power: 15kW/20HP

Input: 3PH 380-480VAC, 50/60Hz

Output: 31A, 0-480V

Control: DTC technology

Overload: 150% for 60s

Options Included:

E205: +4AI(2x0-10V/2x4-20mA), +4DI, +2RO, +1AO(0-20mA)

V991: Parameter backup module

Protection:

IP21, built-in EMC filter

Motor thermal/ground fault/short circuit protection

Comms:

Modbus RTU standard

Fieldbus options available

Dimensions:

245×482×227mm (W×H×D)

Weight: 12.5kg

Certifications:

CE/UL/cULus/RoHS

Technical Specifications:

Power Rating: 1.1 kW (1.5 HP)

Input Voltage:

3-phase: 380-480V AC ±10%

Frequency: 48-63 Hz

Output Current: 3.0 A

Overload Capacity: 150% for 60 seconds

Brake Chopper: Integrated (P901 option)

Control Technology: DTC (Direct Torque Control)

Key Features:

Advanced Motor Control:

Sensorless vector control

Automatic motor adaptation (AMA)

Flying start function

Application Macros:

Factory preset configurations

Customizable application programs

PID controller with sleep/wake function

Protection Features:

Motor thermal protection

Short circuit protection

Ground fault detection

Overvoltage/undervoltage protection

Standard Interfaces:

Control Terminals:

2 analog inputs (0-10V/4-20mA)

3 digital inputs

1 relay output

1 analog output

Communication:

Modbus RTU (standard)

Optional fieldbus adapters available

Physical Characteristics:

Enclosure: IP21 (open chassis)

Cooling Method: Convection cooling

Ambient Temperature: 0-40°C without derating

Mounting Options: Wall or DIN rail mounting

Technical Specifications:

Power Rating: 0.75 kW (1 HP)

Input Voltage:

3-phase: 200-240V AC (-15%/+10%)

1-phase: 200-240V AC (-15%/+10%)

Output Current: 3.6 A

Overload Capacity: 150% for 60 seconds

Brake Chopper: Integrated (P901 option)

Switching Frequency: 1-12 kHz (adjustable)

Key Features:
✔ Advanced Control Modes:

DTC (Direct Torque Control) technology

Scalar control (V/f) mode

Customizable torque curves

✔ Application-Specific Features:

Pump and fan control macros

PID controller with sleep/wake function

Flying start capability

✔ Protection Functions:

Motor thermal protection

Short circuit protection

Ground fault detection

Overvoltage/undervoltage protection

Standard Interfaces:

Control Terminals:

2 analog inputs (0-10V/4-20mA)

3 digital inputs

1 relay output

1 analog output

Communication Options:

Modbus RTU (standard)

Optional fieldbus adapters (Profibus, DeviceNet)

Physical Characteristics:

Enclosure: IP21 (open chassis)

Cooling: Convection cooling

Ambient Temperature: 0-40°C (32-104°F) without derating

Mounting: Wall or DIN rail mounting

Key Specifications:

Power Rating: 6.6 kW continuous output

Input Voltage: 3-phase 200-480V AC (±10%)

Output Current: 26 A peak (model-specific)

Control Technology: Field-oriented vector control

Feedback Interface: Supports absolute/incr. encoders (20-bit+ resolution)

Communication Protocols:

EtherCAT (IEEE 1588 time sync)

PROFINET RT/IRT

CANopen DS402

Technical Features:
✓ Advanced Control Algorithms:

Adaptive vibration suppression

Anti-resonance filtering

Torque ripple compensation

✓ Safety Functions:

STO (Safe Torque Off) SIL3/PLe

SS1/SS2 Safe Stop

SLS Safe Limited Speed

Key Features:
Rated Voltage: 12 kV (or as specified; confirm based on regional standards).

Breaking Capacity: High short-circuit interruption (e.g., 20–25 kA).

Technology: Vacuum interrupter for arc-free switching and long service life.

Operation: Spring-operated or motor-driven mechanism (dependent on model).

Protection Functions: Overcurrent, earth fault, and customizable relay logic (if equipped with digital controls).

Standards Compliance: IEC 62271, ANSI C37.04 (global certifications).

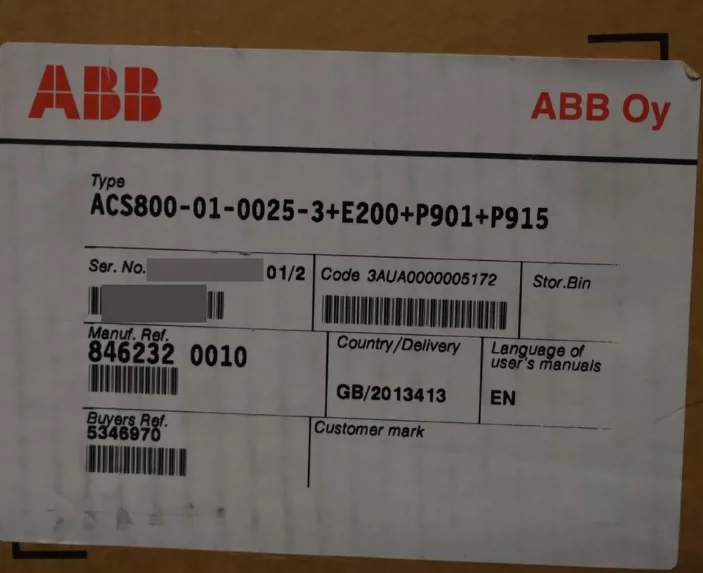

Core Components
ACS800-01-0025-3 Drive Unit

Power: 25kW (33HP)

Current: 45A

Voltage: 380-480V AC (±10%)

Control: Direct Torque Control (DTC)

Enclosure: IP21 (NEMA 1)

E200 DC Reactor

Inductance: 2.5mH

Current: 50A

Function: Reduces harmonics & improves power factor

P901 Mounting Kit

Cabinet Material: Powder-coated steel

Cooling: Forced ventilation

Protection: IP21 when installed

P915 Operator Panel

Display: Backlit LCD

Keypad: IP54 protection

Functions: Start/stop, parameter adjustment, diagnostics

Key Features
✔ Complete Plug-and-Play Solution - Ready for cabinet installation
✔ Enhanced Power Quality - With integrated DC reactor
✔ User-Friendly Operation - Full-featured control panel
✔ Space-Efficient Design - Optimized cabinet layout

Technical Specifications
Dimensions (installed): 600 × 400 × 300mm (H×W×D)

Weight: 35kg (complete system)

Ambient Temperature: 0-40°C

Certifications: CE, UL, cUL, RoHS

Core Specifications
1. Drive Unit (ACS800-04-0400-3)

Power Rating: 400kW (536HP)

Output Current: 578A

Input Voltage: 380-480V AC (±10%), 3-phase

Control Technology: Direct Torque Control (DTC)

Efficiency: >97.5%

Enclosure: IP00 (requires P901 cabinet)

2. P901 Cabinet Kit

Material: Powder-coated steel

Mounting: Floor-standing or wall-mounted

Cooling: Forced ventilation (fans included)

Protection Class: IP21 with cabinet

Cable Entry: Bottom/top (configurable)

Key Features
✔ Plug-and-Play Installation - Pre-configured mounting solution
✔ Optimized Airflow - Intelligent thermal management
✔ Service-Friendly - Front-access design
✔ Vibration-Resistant - Industrial-grade construction

Certifications
CE, UL, cUL

EN 61800-3 (EMC)

RoHS compliant

Technical Specifications
1. Drive Unit (ACS800-07-0770-3)

Rated Power: 630kW (845HP)

Output Current: 850A continuous

Input Voltage: 380-480V AC, 3-phase (±10%)

Control Method: Direct Torque Control (DTC)

Efficiency: >98% (typical)

Enclosure: IP21 (NEMA 1)

Cooling: Forced air

2. Brake Chopper (D150)

Braking Capacity: 150kW

Peak Current: 300A (for 5 seconds)

DC Link Voltage: 725V nominal

Duty Cycle: 10% ED standard

Key Features
Seamless integration between drive and brake unit

Automatic braking torque adjustment

Regenerative energy dissipation during deceleration

Built-in thermal protection

LED status indicators for quick diagnostics

Certifications & Compliance
CE Marked

UL Listed

cUL Certified

EN 61800-3 (EMC)

RoHS Compliant

Key Specifications
Electrical Parameters:

Power Rating: 130kW (175HP)

Current Output: 250A

Input Voltage: 380-480V AC (±10%)

Frequency: 50/60Hz

Control Features:

Direct Torque Control (DTC)

Built-in PID controller

0.1% speed regulation accuracy

Physical Specifications:

Dimensions: 400 × 300 × 200mm (W×H×D)

Weight: 25kg

Cooling: Forced air

Protection Class: IP20

Certifications
CE, UL, cUL

EN 61800-3 (EMC)

RoHS compliant
