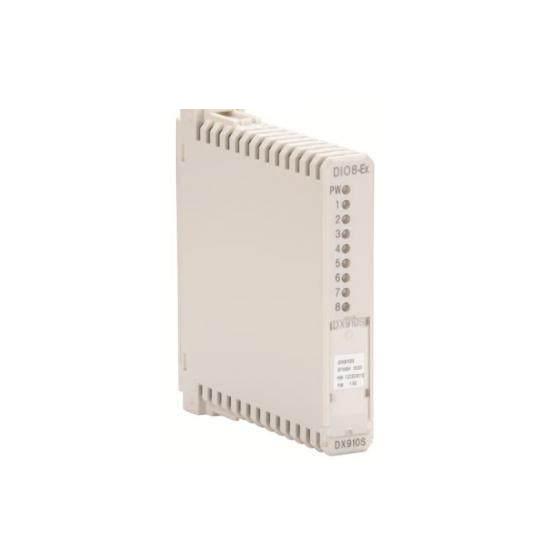

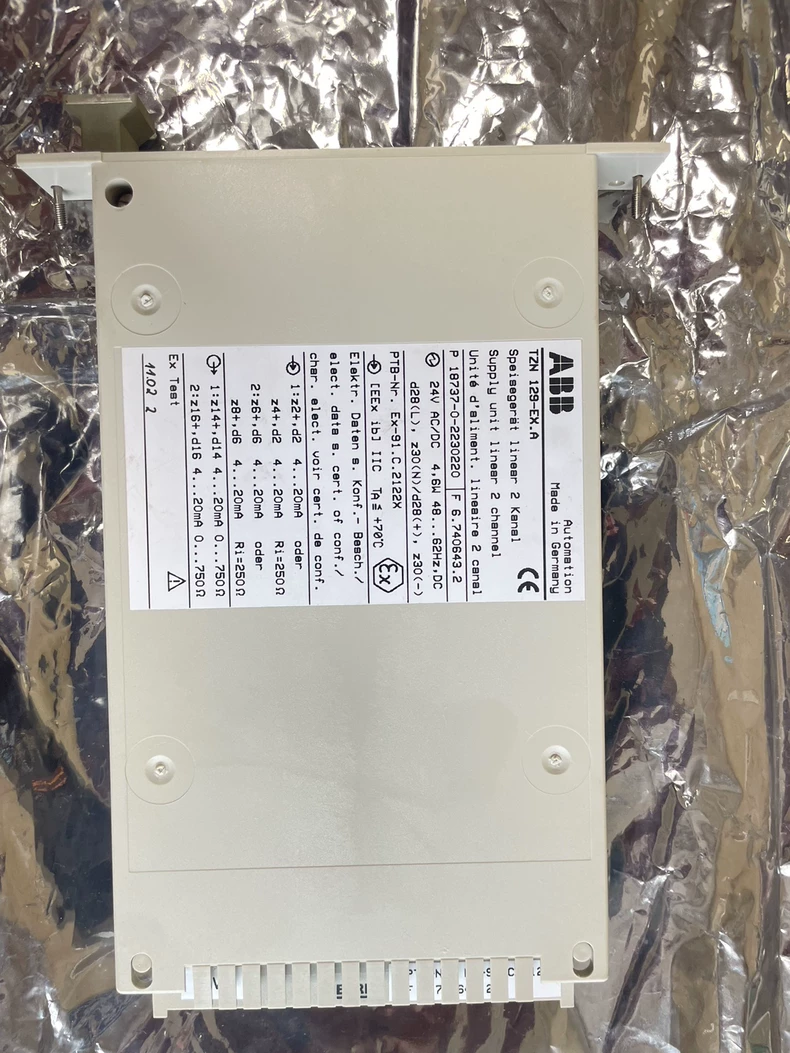

Key Features:
Hazardous Area Protection: Certified for Zone 1/21 (gas/dust) and Zone 2/22, preventing ignition risks.

Signal Isolation: Provides galvanic isolation for analog/digital signals (e.g., 4–20 mA, HART).

Robust Design: High-quality materials for industrial durability (e.g., stainless steel or rugged polycarbonate housing).

Certifications: Meets ATEX (Ex ia IIC T6), IEC 60079, and FM/CSA standards (region-dependent).

Typical Applications:
Oil & gas refineries

Chemical/petrochemical plants

Pharmaceutical and mining industries

Technical Specifications:
Input/Output: Configurable for analog/digital signals.

Protection Rating: IP20/IP66 (enclosure-dependent).

Operating Temperature: -40°C to +80°C.

Mounting: DIN-rail or panel-mounted.

Key Features:
High Reliability: Engineered for continuous operation in demanding industrial environments

Precision Control: Delivers accurate power distribution for robotic movements

Modular Design: Allows for easy installation and maintenance

Robust Construction: Built to withstand vibration, dust, and temperature variations

Typical Applications:
Industrial robotic systems (welding, painting, assembly)

Material handling automation

Foundry and machining applications

Automotive manufacturing lines

Technical Specifications:
Manufacturer: ABB Robotics

Input Voltage: Typically 200-600V AC (verify specific model)

Output Power: Designed for robot servo drive requirements

Protection Class: IP54 or higher (depending on enclosure)

Compatibility: Works with ABB IRB series robots and corresponding controllers

Key Features
✅ High Power Handling – Rated for 450A/1700V, making it suitable for heavy-duty applications.
✅ Low Switching Losses – Optimized for high-frequency operation with minimal energy loss.
✅ Robust Thermal Design – Features an advanced baseplate and low-inductance layout for efficient heat dissipation.
✅ Isolated Design – Provides electrical isolation for safe operation in high-voltage systems.
✅ Reliable Construction – Built with high-quality materials to withstand industrial conditions (vibration, humidity, temperature fluctuations).

Typical Applications
Industrial Motor Drives (e.g., CNC machines, elevators, pumps)

Renewable Energy Systems (wind turbines, solar inverters)

Traction & Rail Systems (locomotives, metro trains)

Welding Equipment & High-Power Converters

Uninterruptible Power Supplies (UPS) & HVDC Systems

Technical Specifications
Voltage Rating: 1700V

Current Rating: 450A (continuous)

Module Type: Dual/Three-phase IGBT with diode (configuration varies)

Thermal Resistance (Rth(j-c)): Low thermal resistance for better cooling efficiency

Mounting: Screw or press-fit terminals for secure connections

Operating Temperature: -40°C to +150°C (junction temperature)

Key Features
✔ Advanced Control Capabilities – Optimized for high-power converters, rectifiers, and motor drives.
✔ Real-Time Processing – Fast signal processing for dynamic power regulation.
✔ Robust Industrial Design – Built for harsh environments (high temperature, vibration, EMI resistance).
✔ Modular & Scalable – Compatible with ABB’s automation systems for flexible integration.
✔ Redundant & Fault-Tolerant – Supports high-availability systems with fail-safe mechanisms.

Typical Applications

Key Features & Benefits
✅ Ultra-Compact Design – Minimal footprint (400mm reach, 0.5kg payload) for space-constrained production lines.
✅ High Speed & Precision – 0.25s cycle time and ±0.01mm repeatability for rapid, accurate operations.
✅ Lightweight & Agile – Optimized for delicate tasks (electronics, small components).
✅ Integrated Vision Ready – Compatible with ABB PickMaster vision guidance systems.
✅ Plug-and-Play Integration – Works seamlessly with ABB OmniCore or IRC5 controllers.

Typical Applications
Electronics Assembly (PCBs, connectors)

Pharmaceutical & Medical Device Handling

Small-Part Packaging & Sorting

Lab Automation & Testing Stations

Consumer Goods (Watchmaking, Cosmetics)

Technical Specifications
Model: IRB 910SC (3HAC056112-001)

Type: 4-axis SCARA robot

Reach: 400mm

Payload: 0.5kg

Repeatability: ±0.01mm

Mounting: Bench, wall, or ceiling

Protection Rating: IP30 (standard) / IP40 (optional)

Controller: OmniCore C30 (recommended)

Key Features
High Torque Density: Delivers exceptional torque in a compact form factor

Precision Performance: ±1 arc-minute positioning accuracy (model dependent)

Robust Construction: IP65-rated protection against dust and water jets

Smooth Operation: Low cogging design for vibration-free performance

Thermal Efficiency: Optimized cooling design for continuous duty operation

Technical Specifications
Frame Size: 90mm (EN23W standard)

Power Rating: 2kW (continuous)

Speed Range: 0-3000 RPM

Torque Output: 6.4 Nm (peak)

Feedback System: High-resolution encoder (20-bit absolute)

Voltage Rating: 200V AC (3-phase)

Protection Class: IP65

Connector Type: Waterproof industrial connector

Typical Applications
CNC machine tools

Robotics and automated assembly

Packaging machinery

Semiconductor manufacturing equipment

Printing and converting systems

Key Features
High Power Density: 1.5kW output in a compact 90mm frame size (EN23W standard)

Precision Performance: ±1 arc-minute positioning accuracy

Optimized Thermal Design: Advanced cooling for continuous duty operation

Robust Construction: IP65 protection rating (dust-tight and protected against water jets)

Smooth Operation: Low cogging design minimizes vibration

Integrated Feedback: High-resolution encoder (20-bit absolute) for precise positioning

Technical Specifications
Rated Power: 1.5kW

Rated Torque: 4.77Nm

Peak Torque: 14.3Nm

Speed Range: 0-3000 RPM

Voltage Rating: 200V AC (3-phase)

Frame Size: 90mm (EN23W)

Protection Class: IP65

Insulation Class: F

Bearing Type: Double shielded ball bearings

Connector: Waterproof industrial connector

Performance Characteristics
Torque Constant: 1.2Nm/A

Rotor Inertia: 1.8×10⁻³kg·m²

Electrical Time Constant: 2.5ms

Mechanical Time Constant: 5ms

Typical Applications
Industrial robotics

CNC machinery

Packaging equipment

Semiconductor manufacturing

Printing and converting systems

Automated assembly lines

Compatibility
Designed for seamless integration with ABB's:

ACSM1 servo drives

MicroFlex e150/e180 drives

Ability Motion Studio programming environment

Can be adapted to work with third-party servo drives

Certifications and Compliance
CE marked

UL recognized

RoHS compliant

REACH compliant

Environmental Specifications
Operating Temperature: 0°C to +40°C (ambient)

Storage Temperature: -20°C to +65°C

Altitude: Up to 1000m above sea level

Humidity: 20-80% RH (non-condensing)

Key Features
✔ High Dynamic Performance – Optimized for rapid acceleration/deceleration with low rotor inertia.
✔ Precision Positioning – Integrated high-resolution encoder (20-bit absolute) for ±1 arc-minute accuracy.
✔ Robust Construction – IP65 protection (dust-proof & resistant to water jets) for harsh environments.
✔ Efficient Cooling – Advanced thermal design for continuous duty operation without overheating.
✔ Smooth Operation – Low cogging and vibration for high-precision applications.

Technical Specifications
Parameter Specification
Rated Power 0.75 kW
Rated Torque 2.39 Nm
Peak Torque 7.16 Nm
Speed Range 0–3000 RPM
Voltage Rating 200V AC (3-phase)
Frame Size 90mm (EN23W standard)
Protection Class IP65
Feedback System 20-bit absolute encoder
Bearing Type Double-shielded ball bearings
Connector Type Industrial waterproof connector
Typical Applications
Industrial Robotics (articulated arms, SCARA, delta robots)

CNC Machining (milling, grinding, laser cutting)

Packaging Automation (pick-and-place, labeling, filling)

Semiconductor Handling (wafer transfer, chip placement)

Printing & Converting (web tension control, rotary die-cutting)Certifications & Compliance
CE Marked (EU compliance)

UL Recognized (North America)

RoHS & REACH Compliant (environmental standards)

Environmental & Mechanical Data
Operating Temp. 0°C to +40°C (derating above 40°C)

Storage Temp. -20°C to +65°C

Humidity 20–80% RH (non-condensing)

Weight ~5.2 kg

Key Features
✔ High Torque & Power Density – Optimized for compact installations without sacrificing performance.
✔ Precision Feedback – Integrated high-resolution encoder (17-bit or 20-bit optional) for closed-loop control.
✔ Robust Construction – IP65 protection (dust-tight & resistant to water jets) for harsh industrial environments.
✔ Low Cogging & Vibration – Ensures smooth motion in high-precision applications.
✔ Wide Speed Range – Suitable for both low-speed high-torque and high-speed operations.

Technical Specifications
Parameter Specification
Rated Power 0.6 kW (continuous)
Rated Torque 2.0 Nm
Peak Torque 6.0 Nm
Speed Range 0–3000 RPM (higher optional)
Voltage Rating 230V AC (3-phase)
Frame Size 60mm (compact flange design)
Protection Class IP65
Feedback System Incremental/absolute encoder
Bearing Type Preloaded ball bearings
Connector Type Waterproof MS/M12 connector
Typical Applications
Industrial Robots (articulated arms, delta robots)

CNC Machinery (milling, grinding, laser cutting)

Packaging Systems (pick-and-place, labeling, filling)

Semiconductor Equipment (wafer handling, wire bonding)

Medical Automation (lab instruments, surgical robots)Certifications & Compliance
CE Certified (EMC & Low Voltage Directive)

RoHS & REACH Compliant

UL Recognition (pending model-specific approval)

Environmental & Mechanical Data
Operating Temp. -10°C to +40°C (optional high-temp version available)

Storage Temp. -20°C to +70°C

Humidity 10–90% RH (non-condensing)

Weight ~3.8 kg

Key Specifications
Rated Power: 0.3kW

Rated Torque: 1.0Nm

Peak Torque: 3.0Nm

Speed Range: 0-3000rpm

Voltage Rating: 230V AC (3-phase)

Frame Size: 60mm flange type

Protection Class: IP65 (dustproof and water jet resistant)

Performance Features
High torque density design for space-constrained applications

Low cogging torque for smooth operation at low speeds

High-resolution encoder feedback (17-bit standard)

Excellent dynamic response with low rotor inertia

Optimized thermal characteristics for continuous duty operation

Mechanical Design
Double ball bearing construction

Standard 14mm shaft diameter with keyway

Flange mounting (B5 type)

Lightweight aluminum housing

Vibration-resistant construction

Electrical Characteristics
Class F insulation

Sinusoidal back EMF waveform

Low electrical noise generation

High efficiency (>90% typical)

Environmental Specifications
Operating temperature: 0°C to +40°C

Storage temperature: -20°C to +70°C

Humidity: 20% to 80% RH (non-condensing)

Altitude: Up to 1000m above sea level

Typical Applications
Small industrial robots

Precision assembly equipment

Semiconductor handling

Medical device manufacturing

Packaging machinery

Laboratory automation
