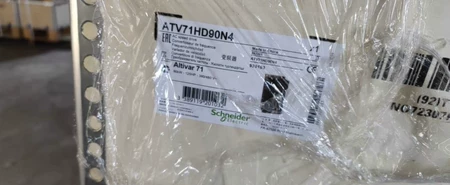

ATV71HD90N4 Category: Variable Frequency Drive (VFD)
Series: Altivar 71 (Schneider Electric) Key Specifications: • Power Rating: 90kW (120HP) • Voltage: 380-480V AC, 3-phase • Output Current: 170A • Enclosure: IP20 (N4 suffix) Main Features: • Advanced motor control (flux vector & V/F modes) • Built-in braking transistor • Embedded Modbus & optional fieldbus cards • Dynamic braking capability Typical Applications: • Heavy-duty pumps & fans • Industrial conveyors • High-power motor control Standards Compliance:
IEC 61800, UL 508

Schneider ATV61HU30N4Z VFD

30kW/40HP 380-480V 3PH

58A output

IP21 enclosure

Built-in: DC choke, STO safety

Protocols: Modbus TCP, EtherNet/IP

Schneider ATV61HD37N4Z VFD • 37kW/50HP 380-480V 3PH • 72A output • IP21 enclosure • Built-in: DC choke, braking • Protocols: Modbus TCP, EtherNet/IP • STO safety

Schneider ATV61HC11N4 VFD

11kW/15HP 380-480V 3PH

24A output

IP20 enclosure

Control: V/F + Sensorless Vector

Built-in: EMC filter, braking

Protocols: Modbus, CANopen

Schneider ATV61HC13N4 VFD

Power: 13kW (17.5HP)

Voltage: 380-480V 3-phase

Current: 27A

Control: V/F + Sensorless Vector

Features:

Built-in braking

Modbus/CANopen

IP20 enclosure

Cert: CE/UL/IEC 61800-3

Schneider ATV61HC16N4 VFD • Power: 16kW (22HP) • Voltage: 380-480V 3-phase • Current: 32A • Control: V/F & Sensorless Vector • Features: ◦ Dynamic braking ◦ Modbus/CANopen ◦ IP20 protection • Certified: CE/UL/cUL

Schneider ATV61HC25N4 VFD • 25kW/33HP 380-480V 3PH • 48A output • IP20 enclosure • Control: V/F + Sensorless Vector • Built-in: EMC filter, braking • Protocols: Modbus, CANopen

Schneider ATV71HC28N4 VFD

28kW/37HP 380-480V 3PH

53A output

IP20 enclosure

Control: V/F + Sensorless Vector

Built-in: EMC filter, braking

Protocols: Modbus, CANopen

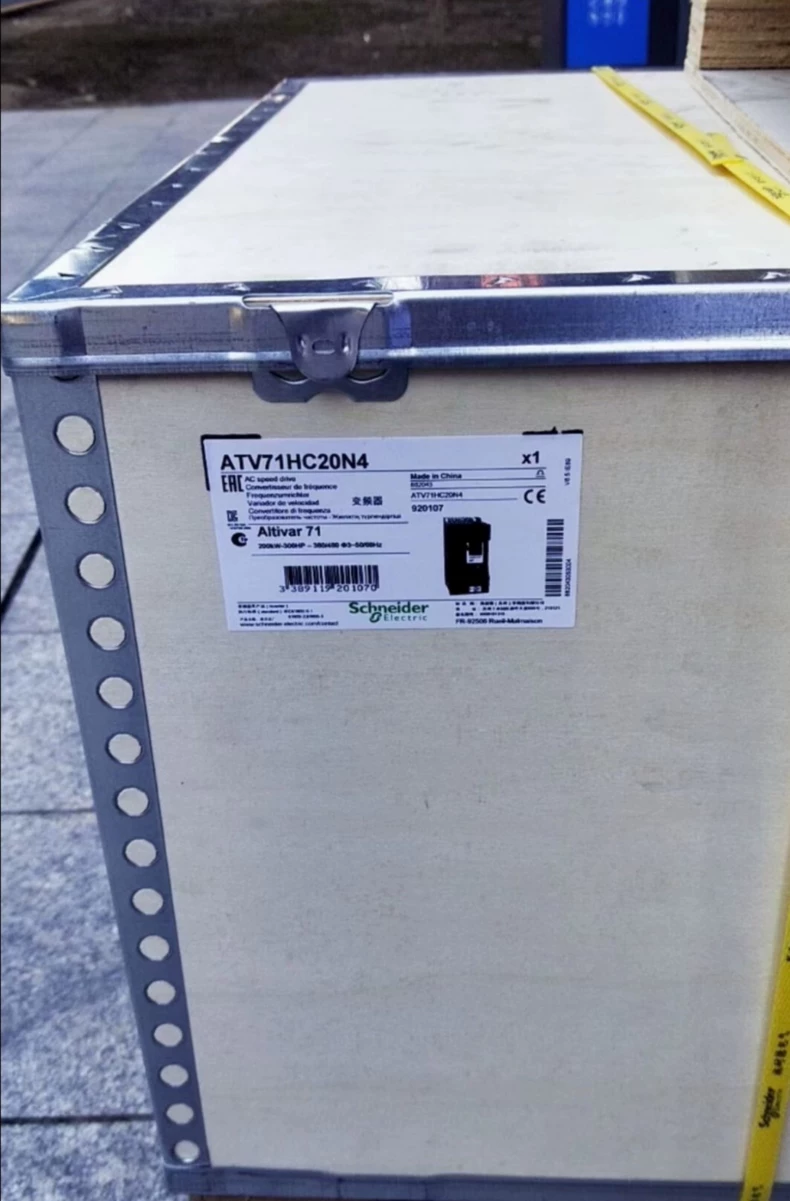

Schneider ATV71HC20N4 VFD

20kW/27HP 380-480V

38A output

IP20

Built-in: EMC filter, braking

Schneider ATV61HC40N4 400kW

400kW/690A

380-500V 3P

FVC+PID control

IP21/IP54

EMC+braking

Modbus/CANopen

HVAC/Industrial
