Schneider LC1N2501M5N AC Contactor

Rated: 690V AC, 250A (3P)


Contacts: 3NO + 1NO/1NC

Life: 1M mech./100k elec. ops

Mounting: Fixed screw

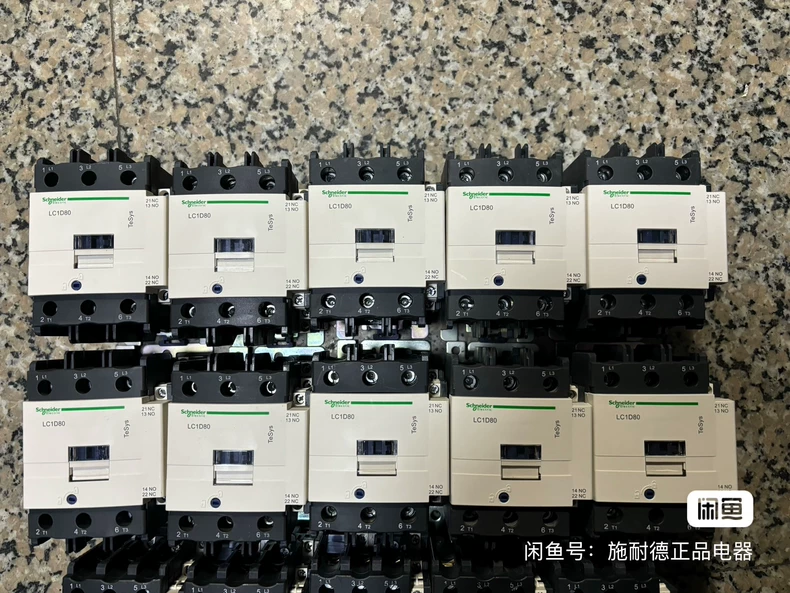

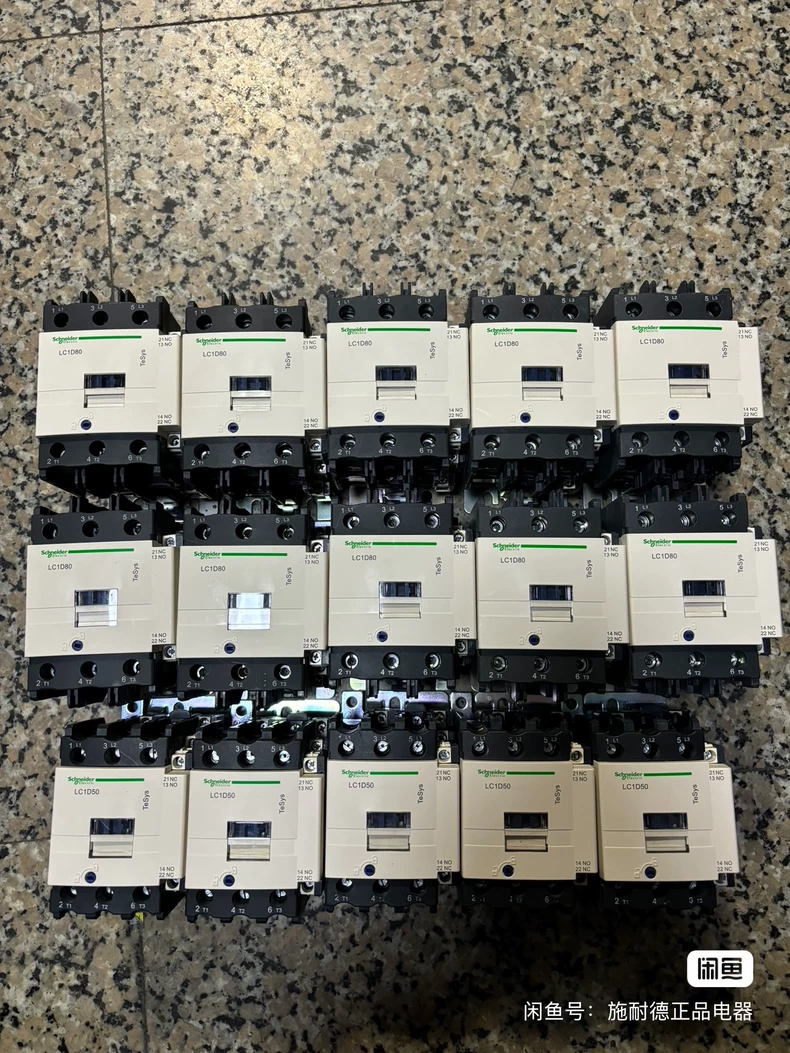

Schneider LC1D80M7C AC Contactor Specifications:

Model: LC1D80M7C

Brand: Schneider Electric

Rated Voltage: 690V AC

Current Rating: 80A (3-pole)

Coil Voltage: 220V AC

Frequency: 50/60Hz

Schneider LC1D80M7C AC Contactor – Key Specs:

Rated: 690V AC, 80A (3-pole)

Coil: 220V AC, 50/60Hz

Contacts: 3NO (main) + 1NO+1NC (aux)

Arc Quenching: Vacuum

Environment: -5°C to +60°C, ≤3000m altitude

The Schneider LC1D80M7C is an 80A 3-pole AC contactor with 690V rated voltage and 220V AC coil voltage, operating at 50/60Hz.

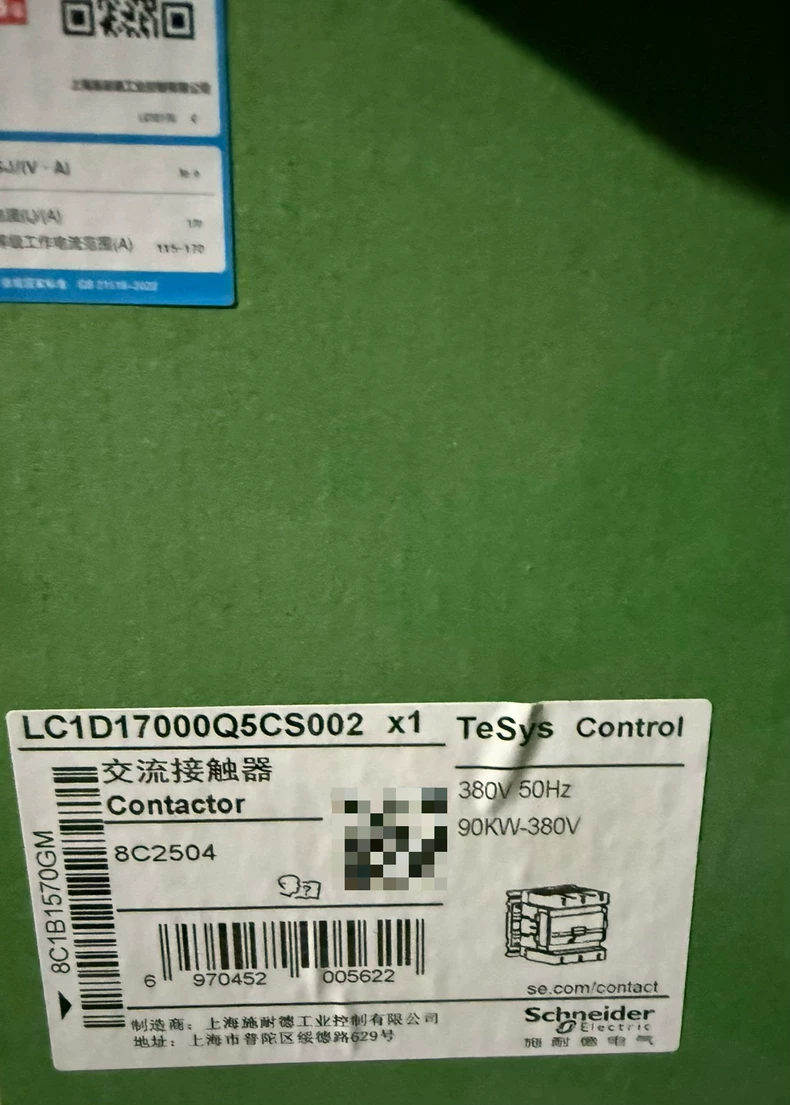

LC1D17000Q5CS002
Category: Contactor
Series: TeSys D (Schneider Electric)

Key Specifications:

Rated Current: 170A

Coil Voltage: 230V AC (Q5 indicates coil type)

Poles: 3NO (3-Pole Normally Open)

Mounting: Panel/Surface Mount

Main Features:

Heavy-duty design for high current applications

Integrated snap-on accessories (CS002 suffix indicates specific auxiliary contact configuration)

High mechanical durability: 1 million electrical operations

Suitable for frequent switching

Typical Applications:

Large motor control (pumps, compressors, etc.)

Industrial power distribution

Heavy machinery

Standards Compliance:
IEC 60947-4-1, UL 508

The Schneider LC1D65AM7C is a 3-pole AC contactor with 3NO main contacts and 1NO + 1NC auxiliary contacts, rated for 220V AC (domestic) or 300-690V AC (import) and 65A. It operates at 50/60Hz, with a temperature range of -5°C to 60°C and can function up to 3000m altitude.

Schneider LC1D09M7C Contactor

Rated Current: 9A (AC-3)

Coil Voltage: 220-240V AC (50/60Hz)

Poles: 3P

Power: 4kW (400V)

Mechanical Life: 10M ops

Terminals: Screw clamp

ATV930C13N4C Category: Variable Frequency Drive (VFD)
Series: Altivar Process 930 (Schneider Electric) Key Specifications: • Power Rating: 13kW (17HP) • Voltage: 380-480V AC, 3-phase • Output Current: 25A • Enclosure: IP20 (N4) with conformal coating (C) Main Features: • Process-optimized control: Dedicated pump/fan functions • Connectivity: Built-in Ethernet & Modbus TCP • Robust design: Coated PCB for humidity/dust resistance • Safety: Integrated STO (Safe Torque Off) Typical Applications: • Industrial pumping systems • Building ventilation • Process line conveyors Standards Compliance:
IEC 61800-3, UL 508C

ATV930D90N4C Category: Variable Frequency Drive (VFD)
Series: Altivar Process 930 (Schneider Electric) Key Specifications: • Power Rating: 90kW • Voltage: 380-480V AC, 3-phase • Output Current: 170A • Enclosure: IP20 (N4) with coating protection (C) Main Features: • Process-optimized control: Pump, fan & HVAC-specific algorithms • Built-in connectivity: Ethernet/IP, Modbus TCP, PROFINET • Protection: Coated PCB for harsh environments (C option) • Safety: STO (Safe Torque Off) compliant Typical Applications: • Water/wastewater treatment • Oil & gas process control • Heavy industrial ventilation Standards Compliance:
IEC 61800-3, UL 508C

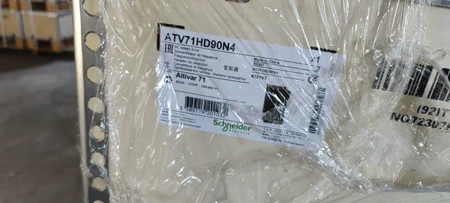

ATV71HD90N4 Category: Variable Frequency Drive (VFD)
Series: Altivar 71 (Schneider Electric) Key Specifications: • Power Rating: 90kW (120HP) • Voltage: 380-480V AC, 3-phase • Output Current: 170A • Enclosure: IP20 (N4 suffix) Main Features: • Advanced motor control (flux vector & V/F modes) • Built-in braking transistor • Embedded Modbus & optional fieldbus cards • Dynamic braking capability Typical Applications: • Heavy-duty pumps & fans • Industrial conveyors • High-power motor control Standards Compliance:
IEC 61800, UL 508
