MT10N1
Category: Molded Case Circuit Breaker (MCCB)
Manufacturer: Schneider Electric (Masterpact MT Series)

:

Rated Current: 10A

Breaking Capacity: 50kA (at 415V AC)

Tripping Unit: Micrologic 1.0 (Basic Protection)

Poles: 3P (3-phase)

Voltage Rating: Up to 690V AC

Applications:

Industrial power distribution

Motor protection circuits

Critical infrastructure

Standards: IEC 60947-2, UL 1066

MT08N1 Category: Molded Case Circuit Breaker (MCCB)
Series: Masterpact™ MT (Schneider Electric) Key Specs: • Rating: 8A • Breaking Capacity: 50kA @415V AC • Trip Unit: Micrologic™ 1.0 (basic protection) • Poles: 3P • Voltage: ≤690V AC Features: • Fixed thermal-magnetic protection • Finger-safe design • DIN rail compatible Applications: • Motor control centers • Panelboard protection • Light industrial distribution Standards: IEC 60947-2, UL 489

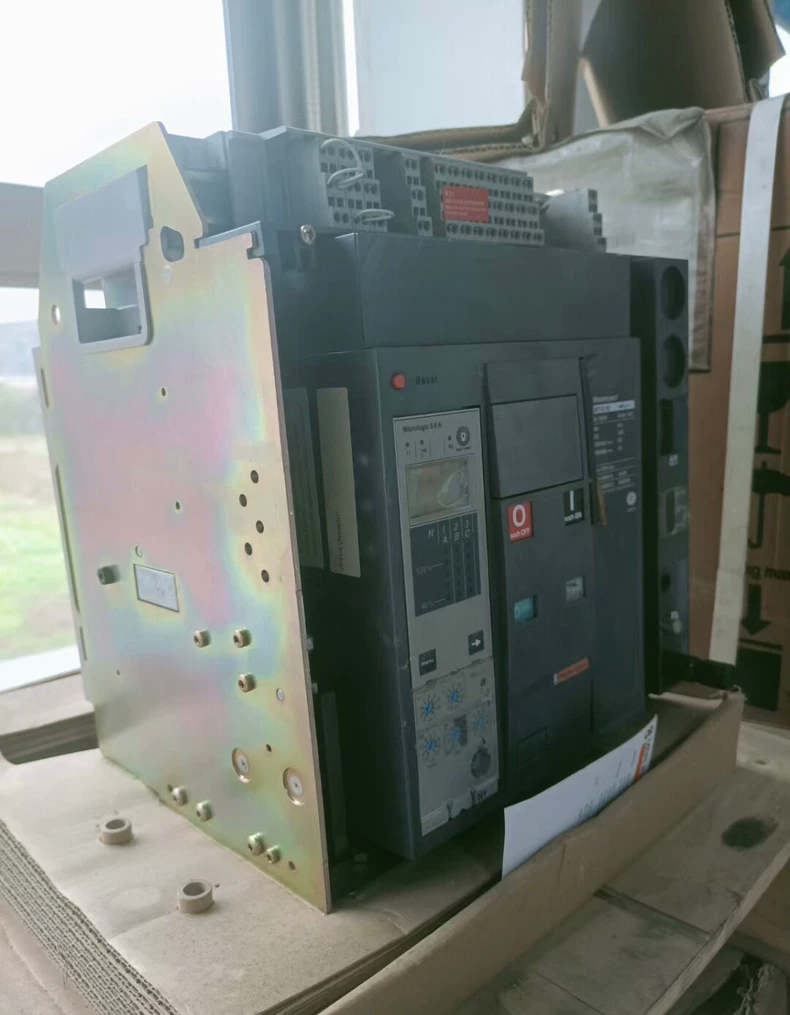

Schneider MT06N1 is an intelligent frame circuit breaker suitable for high-voltage distribution networks, characterized by strong breaking capacity and intelligent protection. The specific information is as follows:

Basic Parameters 7

Rated Current: 630A-6300A (selectable for different models) 3

Rated Voltage: 400V-690V (applicable to industrial and civilian scenarios) 5

Number of Poles: 3P (three phases)

Core Functions 7

Breaking Capacity: The N1 model has a breaking capacity of 50kA, while the H1b model can reach up to 150kA, suitable for high short-circuit current scenarios 7

Intelligent Protection: Built-in MIC2.0/5.0 control unit, supports energy management, fault monitoring, and remote monitoring

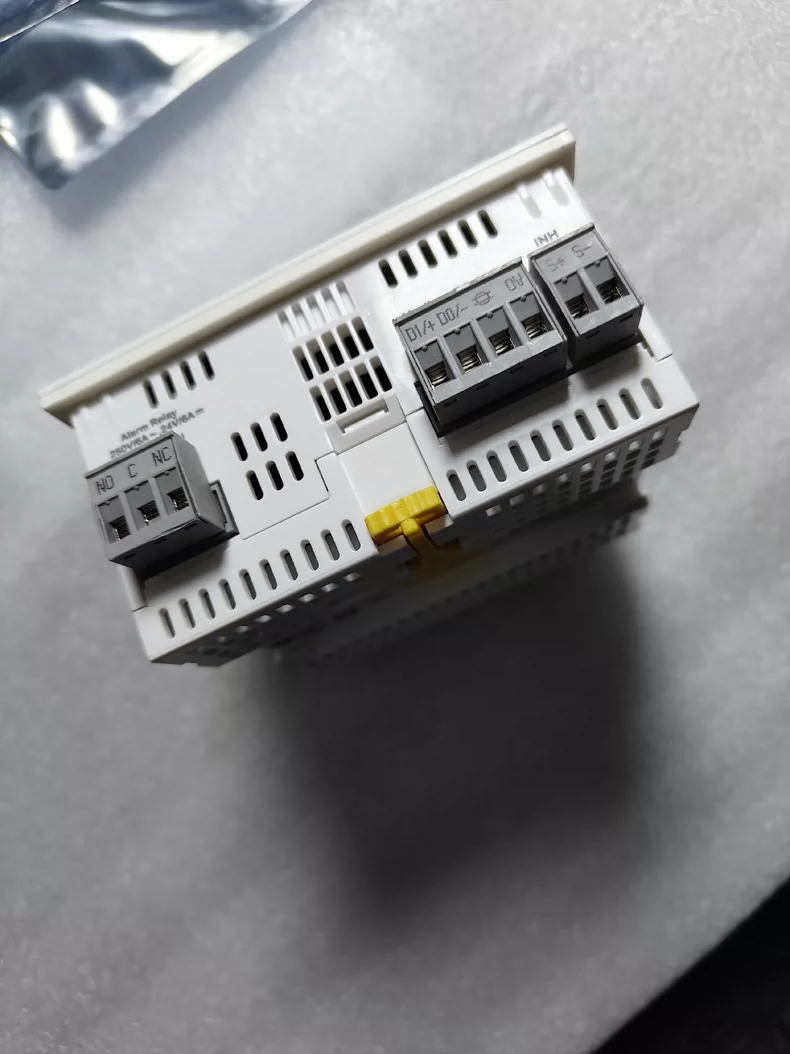

IMD-IM20 Category: Insulation Monitoring Device (IMD) : • Monitoring Range: 0-20MΩ (typical for IM20 series) • Voltage Rating: Up to 690V AC/DC • Response Time: <1s (fault detection) • Output: Relay/Alarm contacts (NO/NC) • Mounting: DIN rail (35mm) Applications: • IT power systems (ungrounded) • Medical facilities • Solar PV installations Standards: IEC 61557-8

Schneider EZD160/250 Molded Case Circuit Breaker is an electrical protection device suitable for 160-250V AC circuits. Its core functions and accessory configurations are as follows:

Basic Parameters 2

Rated Voltage: AC380-415V (applicable to products with a thickness of 68mm) 1

Rated Current: 10A (standard model) 3

Tripping Methods: Supports undervoltage trip (UVR) and shunt trip coil (SHT) control methods

The Schneider LP1K09004BD contactor is a universal type suitable for both DC and AC loads, featuring the following core characteristics:

Basic Parameters

Coil Voltage: Supports various voltage types such as 24V DC, 220V/48V/110V/125V DC.

Contact Specifications: 4P (4 poles), with the number of normally open contacts varying according to the specific model (e.g., 4 normally open, 2 normally open, etc.).

Rated Current: 20A, suitable for medium load requirements.

Schneider LC1D09M7C is a three-pole AC contactor suitable for 220V/50/60Hz power systems, with the following core features:

Basic Parameters 3

Rated Current: 9A 4

Number of Poles: 3 poles 2

Coil Voltage: 220V 4

Auxiliary Contacts: 1NO+1NC4

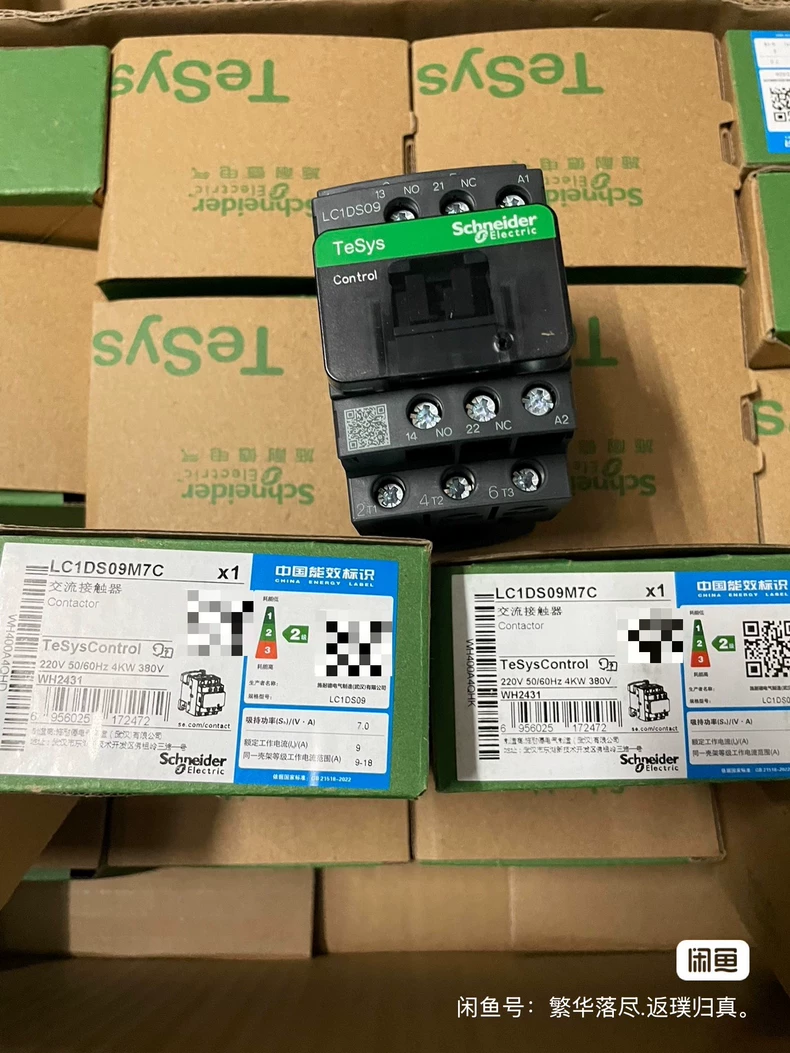

LC1DS09M7C
Category: Contactor
Series: TeSys D (Schneider Electric)

Key Specs:

Current Rating: 9A

Voltage: 24V DC coil

Poles: 3NO (3-pole normally open)

Mounting: DIN rail (35mm)

Features:

Compact design

Snap-on accessories

LED status indicator (optional)

Applications:

Motor control

Lighting systems

Industrial automation

Standards: IEC 60947-4-1

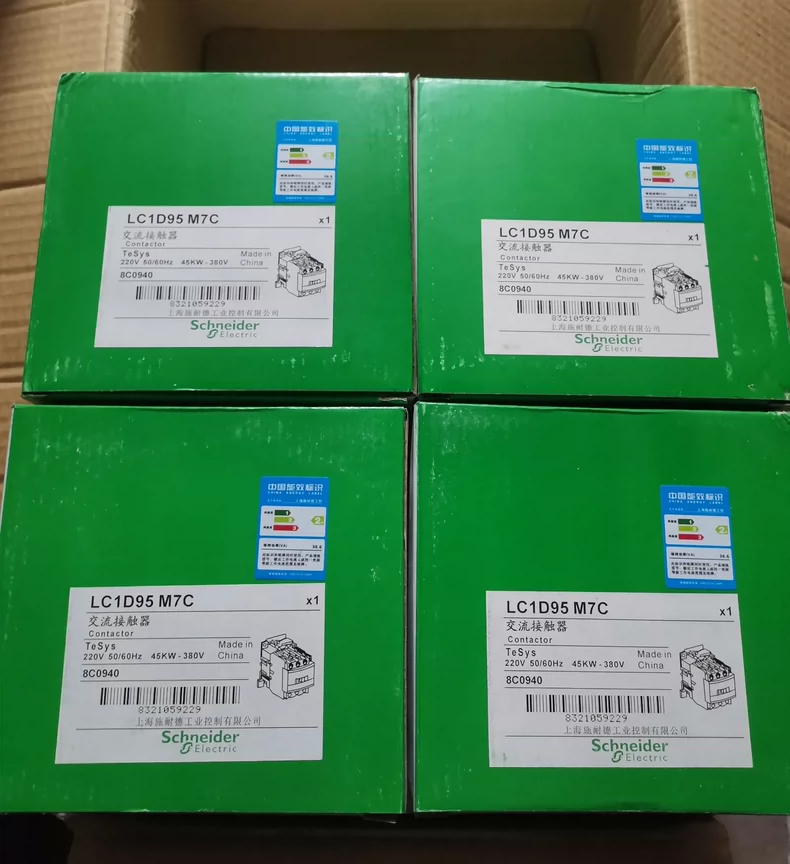

LC1D95M7C Category: Contactor
Series: TeSys D (Schneider Electric) Key Specifications: • Rated Current: 95A • Coil Voltage: 24V DC (Standard) • Poles: 3NO (3-Pole Normally Open) • Mounting: DIN Rail (35mm) Main Features: • High switching capacity (up to 690V AC) • Snap-on auxiliary contacts (max. 4NO+4NC) • Mechanical life: 10 million operations • Compact design saves panel space Typical Applications: • Heavy-duty motor control • Industrial power distribution • HVAC systems Standards Compliance:
IEC 60947-4-1, UL 508

Schneider LC1N3201M5N Contactor

32A (AC-3)

24V DC coil (M5)

1NO contact

15kW (400V)

10M mech. ops
