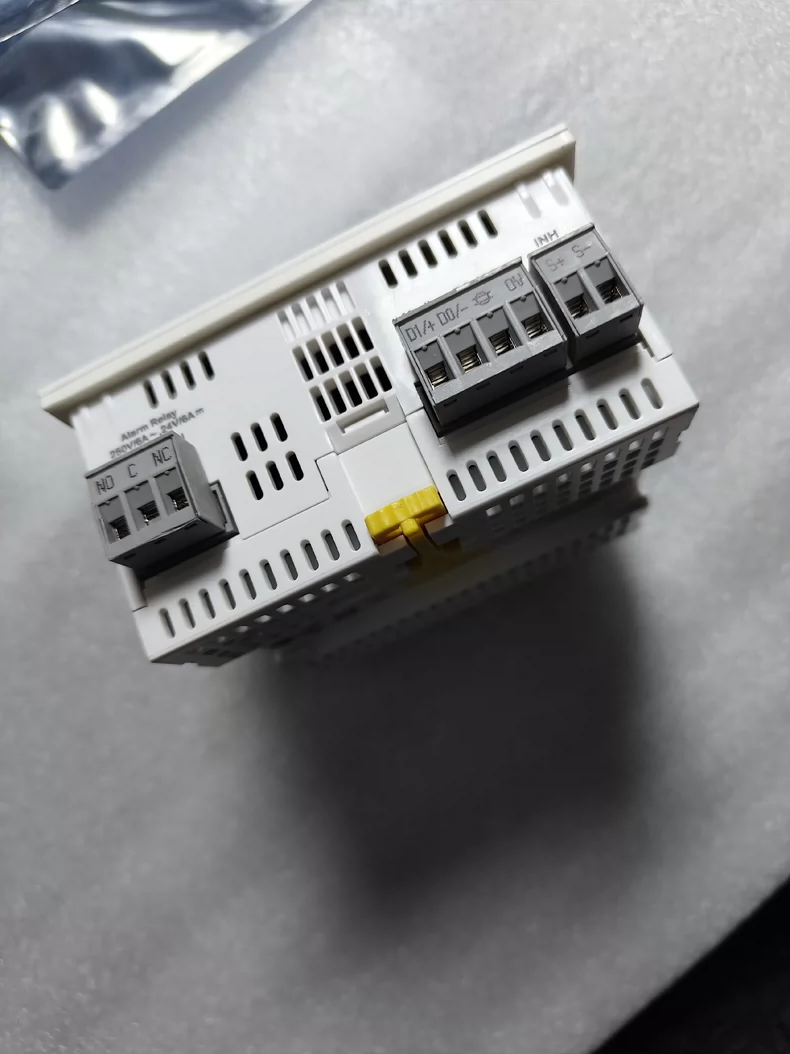

IMD-IM20 Category: Insulation Monitoring Device (IMD) : • Monitoring Range: 0-20MΩ (typical for IM20 series) • Voltage Rating: Up to 690V AC/DC • Response Time: <1s (fault detection) • Output: Relay/Alarm contacts (NO/NC) • Mounting: DIN rail (35mm) Applications: • IT power systems (ungrounded) • Medical facilities • Solar PV installations Standards: IEC 61557-8

Schneider EZD160/250 Molded Case Circuit Breaker is an electrical protection device suitable for 160-250V AC circuits. Its core functions and accessory configurations are as follows:

Basic Parameters 2

Rated Voltage: AC380-415V (applicable to products with a thickness of 68mm) 1

Rated Current: 10A (standard model) 3

Tripping Methods: Supports undervoltage trip (UVR) and shunt trip coil (SHT) control methods

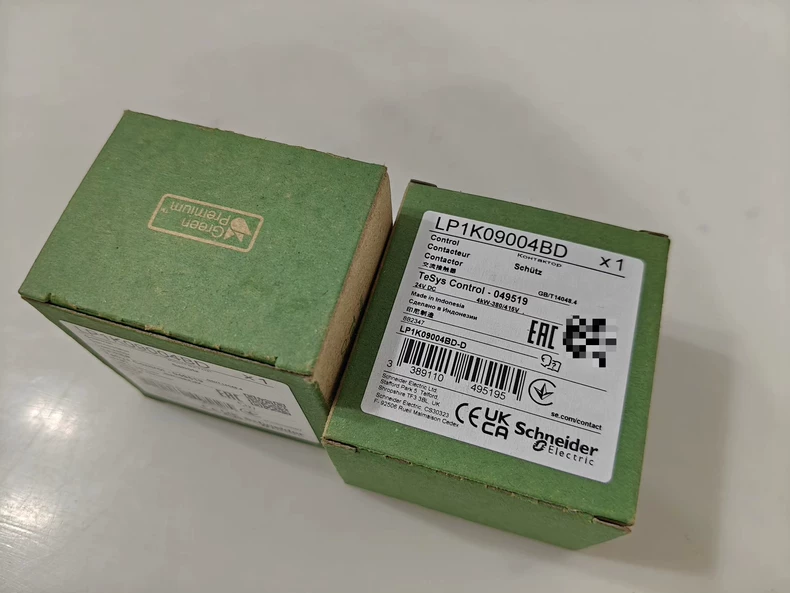

The Schneider LP1K09004BD contactor is a universal type suitable for both DC and AC loads, featuring the following core characteristics:

Basic Parameters

Coil Voltage: Supports various voltage types such as 24V DC, 220V/48V/110V/125V DC.

Contact Specifications: 4P (4 poles), with the number of normally open contacts varying according to the specific model (e.g., 4 normally open, 2 normally open, etc.).

Rated Current: 20A, suitable for medium load requirements.

Schneider LC1D09M7C is a three-pole AC contactor suitable for 220V/50/60Hz power systems, with the following core features:

Basic Parameters 3

Rated Current: 9A 4

Number of Poles: 3 poles 2

Coil Voltage: 220V 4

Auxiliary Contacts: 1NO+1NC4

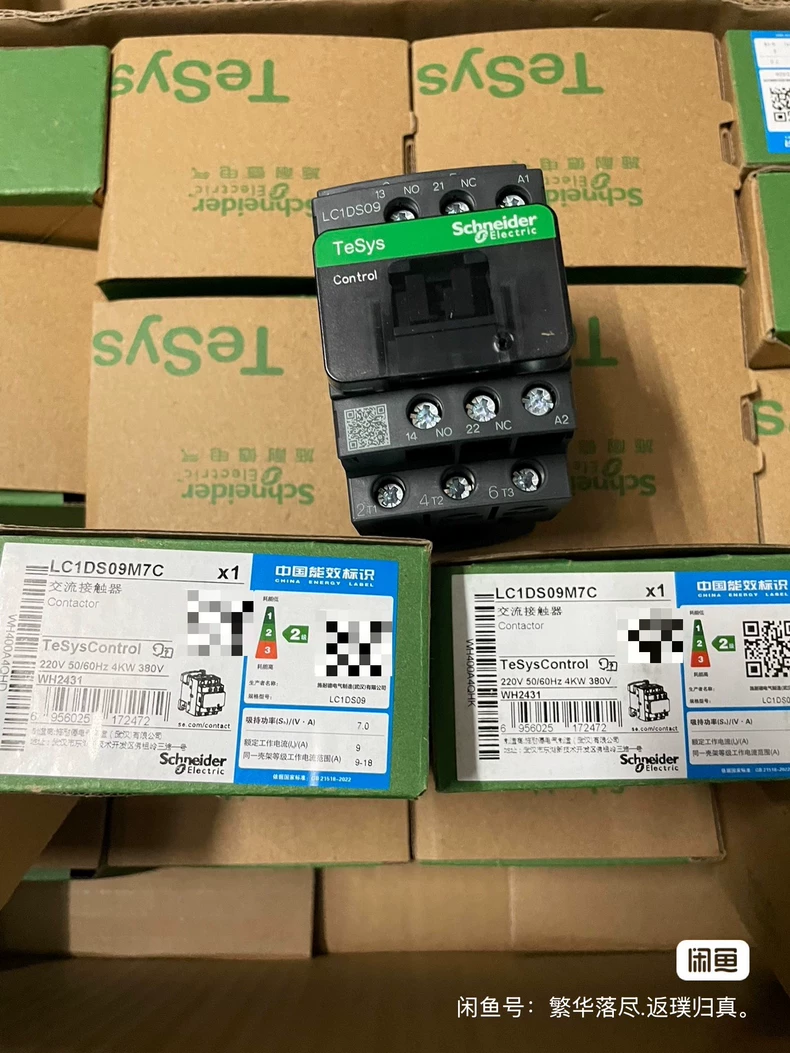

LC1DS09M7C
Category: Contactor
Series: TeSys D (Schneider Electric)

Key Specs:

Current Rating: 9A

Voltage: 24V DC coil

Poles: 3NO (3-pole normally open)

Mounting: DIN rail (35mm)

Features:

Compact design

Snap-on accessories

LED status indicator (optional)

Applications:

Motor control

Lighting systems

Industrial automation

Standards: IEC 60947-4-1

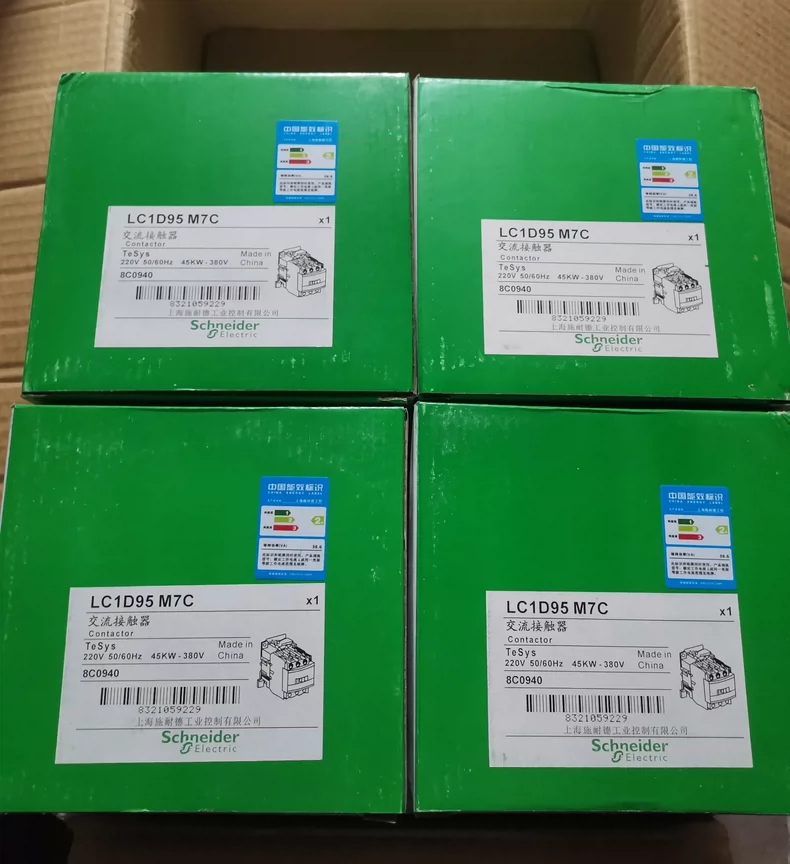

LC1D95M7C Category: Contactor
Series: TeSys D (Schneider Electric) Key Specifications: • Rated Current: 95A • Coil Voltage: 24V DC (Standard) • Poles: 3NO (3-Pole Normally Open) • Mounting: DIN Rail (35mm) Main Features: • High switching capacity (up to 690V AC) • Snap-on auxiliary contacts (max. 4NO+4NC) • Mechanical life: 10 million operations • Compact design saves panel space Typical Applications: • Heavy-duty motor control • Industrial power distribution • HVAC systems Standards Compliance:
IEC 60947-4-1, UL 508

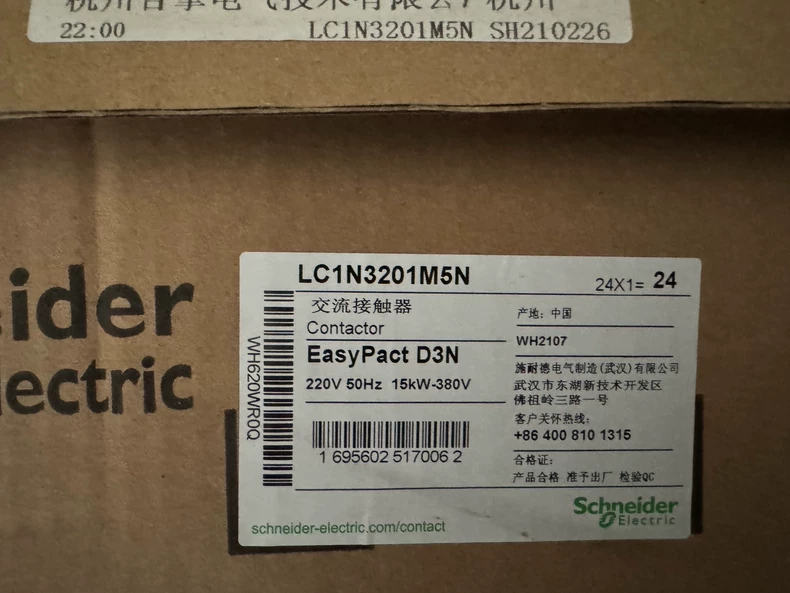

Schneider LC1N3201M5N Contactor

32A (AC-3)

24V DC coil (M5)

1NO contact

15kW (400V)

10M mech. ops

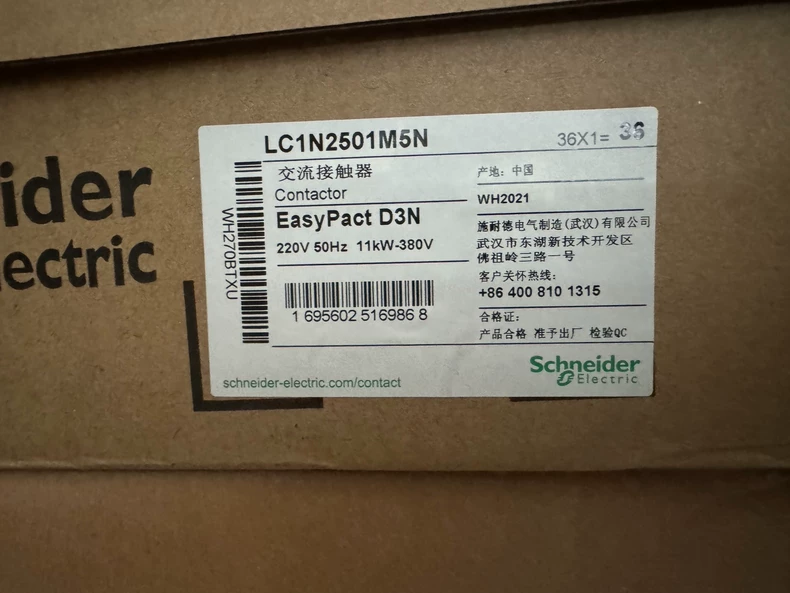

Schneider LC1N2501M5N AC Contactor

Rated: 690V AC, 250A (3P)


Contacts: 3NO + 1NO/1NC

Life: 1M mech./100k elec. ops

Mounting: Fixed screw

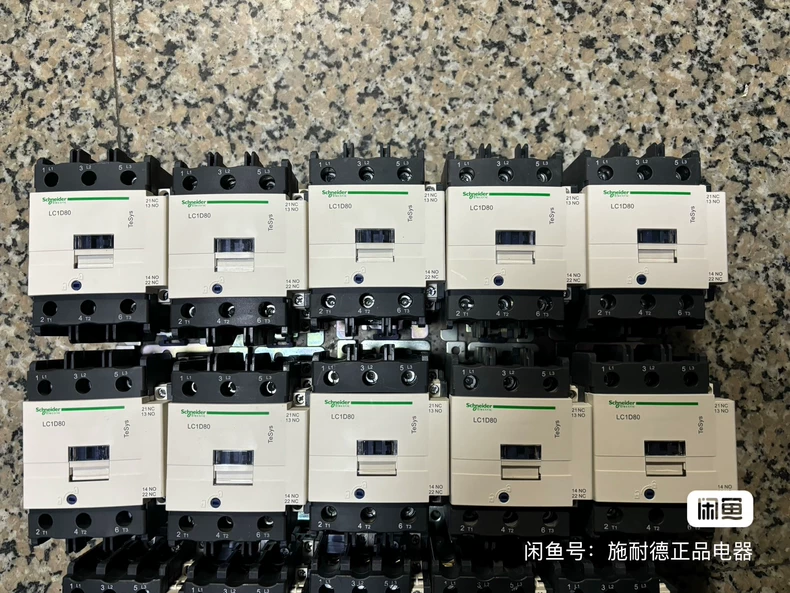

Schneider LC1D80M7C AC Contactor Specifications:

Model: LC1D80M7C

Brand: Schneider Electric

Rated Voltage: 690V AC

Current Rating: 80A (3-pole)

Coil Voltage: 220V AC

Frequency: 50/60Hz

Schneider LC1D80M7C AC Contactor – Key Specs:

Rated: 690V AC, 80A (3-pole)

Coil: 220V AC, 50/60Hz

Contacts: 3NO (main) + 1NO+1NC (aux)

Arc Quenching: Vacuum

Environment: -5°C to +60°C, ≤3000m altitude
