Parameter Specification Product Model MTL7761PAC Product Line Eaton MTL Signal Conditioners & Isolators Function Dual-channel, 2-Wire Transmitter Isolator & Power Supply Input Signal Accepts and powers two independent 2-wire, 4-20 mA transmitters. Output Signal Two independent, isolated 4-20 mA DC signals. Input/Output Isolation Galvanic Isolation between input, output, and power supply. Power Supply AC Input (e.g., 100-240V AC, specific range MUST be verified from datasheet). Connection Plug-in terminal blocks (inferred from "P") for easy wiring and maintenance. Intrinsic Safety (IS) Approval Yes. Certified for use in Hazardous Areas (e.g., ATEX, IECEx). Entity Parameters (MUST be verified for design): - Vmax (Ui): e.g., 28 V - Imax (Ii): e.g., 93 mA - Pi: e.g., 0.65 W - Ci: e.g., 0 μF - Li: e.g., 0 mH Non-Incendive (NI) Approval Yes (for applicable standards like FM/CSA). Line Fault Detection Yes. Accuracy Typically better than ±0.1% of span. Mounting DIN-Rail Mount (35 mm) Operating Temperature -20°C to +60°C

Parameter Specification Product Model MTL5561 Product Line Eaton MTL5500+ Series Signal Conditioners & Isolators Function Dual-channel, 2-Wire Transmitter Isolator & Power Supply Input Signal Accepts and powers two independent 2-wire, 4-20 mA transmitters from a hazardous area. Output Signal Two independent, isolated 4-20 mA DC signals. Input/Output/Power Isolation Galvanic Isolation (Typically 1.5 kV AC or higher) Power Supply Typically 20-30 V DC Intrinsic Safety (IS) Approval Yes. Certified for use in Hazardous Areas (e.g., ATEX, IECEx). Entity Parameters (MUST be verified from datasheet): - Vmax (Ui): e.g., 28 V - Imax (Ii): e.g., 93 mA - Pi: e.g., 0.65 W - Ci: e.g., 0 μF - Li: e.g., 0 mH Non-Incendive (NI) Approval Yes (for applicable standards like FM/CSA). Line Fault Detection Yes, can detect open and short circuits in the field wiring. Accuracy Typically better than ±0.1% of span. Mounting DIN-Rail Mount (Standard 35 mm) Operating Temperature -20°C to +60°C Compliance & Certifications ATEX, IECEx, FM, CSA, etc.

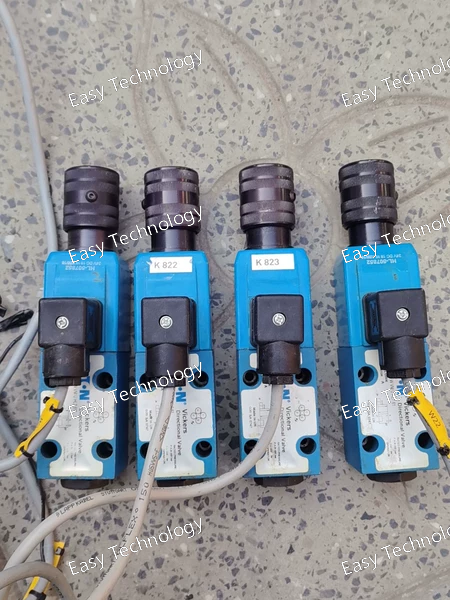

Parameter Specification Product Model DG4V-3-8B-LW-V-M-U-H-L-761 Product Line Eaton DG4V Proportional Valves Valve Type 4-way, 3-position proportional directional valve Service Rating (Size) 03 (Nominal flow ~10 US gpm / 38 Lpm) Maximum Operating Pressure Typically 350 bar (5000 psi) Solenoid Type Wet Pinion Solenoid (LW) Coil Voltage 12 V DC Spool Feedback LVDT (H) for precise closed-loop control Manual Override Yes (U) Electrical Connector Specific type (M) Seal Material Buna-N (L)

Technical Parameters Category Specification Model DRAQ127-220-R Product Type HMI + PLC All-in-One Panel PC Display Screen Size 7 inches (diagonal) Resolution 800 x 480 pixels (WVGA) Touchscreen Projected Capacitive (PCAP) / Multi-touch Processor (CPU) Intel Atom E3845, Quad-core, 1.6 GHz Memory (RAM) 4 GB DDR3L (soldered) Storage 32 GB eMMC (onboard) Operating System Windows 10 IoT Enterprise (pre-installed) Power Supply 220V AC (typically 100-240V AC wide range) Communication Ports Ethernet 2 x Gigabit Ethernet (10/100/1000 Mbps) USB 4 x USB 2.0 ports Serial (COM) 2 x RS-232/422/485 (software-configurable) Expansion 1 x Mini PCIe slot (for additional modules like Wi-Fi/4G) PLC Functionality Integrated runtime for Eaton's PLC software (e.g., XSoft-CODESYS) Protection Rating IP65 (front panel) - Dust-tight and protected against water jets Operating Temperature Typically -20°C to +60°C (confirm specific rating in official datasheet)

Technical Parameters Category Specification Model T5-4-8903/I5-SI Product Type 4-Quadrant Digital DC Drive Input Power Supply Voltage Typically 400V AC, 3-Phase (Confirm based on "4-" prefix and region) Frequency 50/60 Hz Output Power Armature Output 15 HP / 11 kW (This is a common rating for this frame size, e.g., 8903) DC Armature Voltage Typically 0-500 V DC Field Supply Typically 0-300 V DC (for motor field excitation) Control Control Type Digital, 4-Quadrant (Regenerative) Speed Regulation Typically < 1% of base speed (with tachometer) Typically 2-5% of base speed (armature voltage feedback, IR comp) Interface Digital Keypad with Display Communication Optional communication modules (e.g., DeviceNet, Profibus, Modbus) Features Diagnostics Comprehensive fault logging and status monitoring Protections Overcurrent, Overvoltage, Undervoltage, Overload, Heatsink Overtemperature, Field Loss, etc. Programming Via keypad or PC software (e.g., Eaton's Drive Setup Software) Enclosure Typically supplied as a chassis unit for panel mounting (IP00). Requires an external enclosure for protection.

Technical Parameters Category Specification Model MTL5575 Product Type Safety Relay Module / Safety Loop Monitor Typical Safety Standard IEC 61508, IEC 61511 (SIL 2 capable) Input Channels Typically one or two Dual-channel inputs (for monitoring E-Stop circuits etc.) Input Type Dry contacts (volt-free contacts) from safety devices. Outputs 3 C/O (Changeover) relays - 2 "Auxiliary" and 1 "Safety". Contact Rating Typically 8 A, 250 V AC / 5 A, 30 V DC (resistive) Supply Voltage 24 V DC (nominal), with a wide operating range (e.g., 19-32 V DC). Key Features Fault Detection Yes. Automatically detects cross faults, earth faults, and loss of supply. Reset Modes Manual, Automatic, or Monitored reset (selectable). Status Indication LED indicators for Power, Inputs, and Faults. Safety Integrity Level Suitable for SIL 2 applications (as per specific safety manual). Operating Temperature -40°C to +70°C (standard for industrial MTL products). Mounting Standard 35 mm DIN rail. Safety Function Upon a valid input signal or detected fault, it de-energizes the safety relay, breaking the circuit to the controlled device.

Technical Parameters Category Specification Model MTL5044 Product Type Foundation Fieldbus H1 Power Conditioner & Repeater Compliance Designed to meet Foundation Fieldbus H1 standards. Network Topology Supports trunk-and-spur topology. Primary Function Signal Conditioning, Repeater, and Power Supply for the fieldbus segment. Signal Repeater Yes. Regenerates the digital signal, extending the network range. Number of Ports Typically 4 isolated fieldbus ports, allowing it to create a network hub. Power Supply Requires an external 24V DC power source (input). Provides conditioned power to the fieldbus. Key Features Segment Protection Includes short-circuit protection for each output port. Diagnostics LED status indicators for power, network activity, and faults. Isolation Provides galvanic isolation between ports and from the power supply. Typical Use Case Used in conjunction with intrinsic safety barriers (e.g., MTL5043) to build a complete FISCO / Entity approved Fieldbus system in hazardous areas. Mounting Standard DIN rail mount. Operating Temperature -40°C to +70°C (standard for industrial MTL products).

Technical Parameters Category Specification Model MTL5841 Product Type Configurable Safety Relay / Safety Controller Safety Standards IEC 61508, IEC 62061, ISO 13849, NFPA 79 Safety Level SIL 3 (IEC 61508) / PL e (ISO 13849) Input Channels Typically 2 or 4 configurable input channels for safety devices (e.g., dual-channel). Input Type Monitors dry contacts (volt-free) or solid-state signals from safety devices. Outputs 2 or 3 safety relay outputs (force-guided contacts). Contact Rating (Output) Typically 6 A, 250 V AC / 5 A, 30 V DC Supply Voltage 24V DC (with a wide range, e.g., 19.2 - 30V DC) Configuration Via DIP switches or PC software (e.g., MTL SRS-2 Software), depending on the variant. Key Features Function Library Pre-configured for functions like E-Stop, Safety Gate, Two-Hand Control, etc. Fault Detection Yes. Automatically detects cross faults, short circuits, and loss of supply. Reset Modes Manual, Automatic, or Monitored reset (configurable). Status Indication Comprehensive LED indicators for Power, Input Status, Output Status, and Faults. Diagnostics Extensive diagnostic capabilities for easy troubleshooting. Mounting 35 mm DIN rail. Operating Temperature -25°C to +55°C / -40°C to +70°C (depending on variant)

Technical Parameters Category Specification Model MTL5081 Product Type 2-Wire Loop-Powered Isolator Input Signal 4-20 mA (standard process current signal) Output Signal 4-20 mA (isolated replica of the input) Power Supply Loop-Powered. Operates from the signal loop itself, typically requiring a minimum loop voltage (e.g., 12-30 V DC) at the input. Isolation Galvanic Isolation between input and output circuits. A typical isolation rating is 1500 V AC. Key Features Ground Loop Elimination Yes. Prevents stray ground currents from affecting the signal. Noise Suppression Provides common-mode noise rejection. Intrinsic Safety When used with an associated intrinsic safety barrier, it can be part of a loop for hazardous areas. Accuracy Typically ±0.1% to ±0.2% of span. Load Capacity The maximum output load (e.g., 500-750 Ω) is limited by the available loop supply voltage. Mounting Standard 35 mm DIN rail. Operating Temperature -20°C to +60°C

Technical Parameters Category Specification Model SL7/4-FW Product Type Three-Phase Multi-Function Power Meter Inputs Voltage 3-Phase + Neutral. Typical nominal voltages: 230/400V AC, 277/480V AC, etc. Current Via external Current Transformers (CTs). Standard secondary inputs: 1A or 5A. Measured Parameters Basic Volts (V), Amps (I), Frequency (Hz) Power Active, Reactive, Apparent Power (kW, kvar, kVA) Energy Import/Export Active and Reactive Energy (kWh, kvarh) Power Quality Power Factor (PF), THD, Demand Communication Protocol** Modbus TCP/IP (via integrated Ethernet port) Port RJ45 Ethernet Display Built-in LCD or LED display for local readout of parameters. Key Features Data Logging Typically includes historical data and demand profiling. Alarms Configurable setpoints for alarm relays. Auxiliary Supply Requires a separate auxiliary power supply (e.g., 80-270V AC/DC or 24V DC). Mounting Panel-mounted, designed for a standard cutout.
