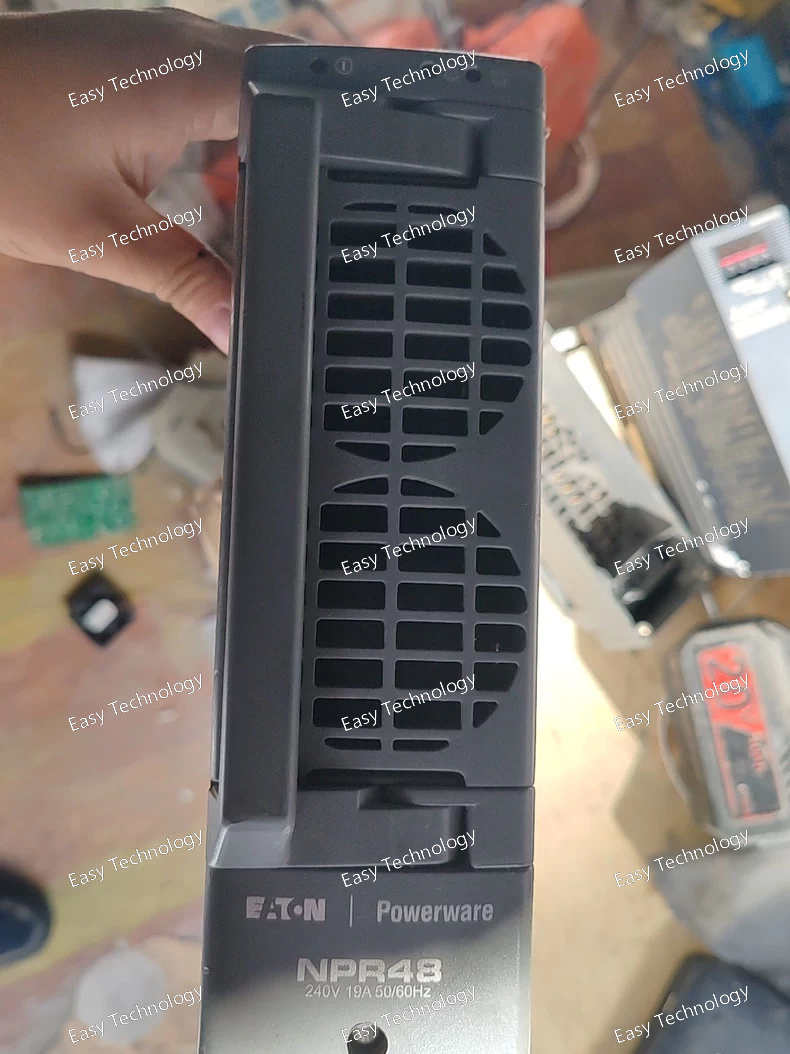

Parameter Specification Product Model NPR48 Product Line Eaton NPR Series Power Supply Output Voltage 48 V DC Output Current ~2.1 A (typical, 100W output) Output Power 100 W (typical) Input Voltage Range 85-264 V AC (universal input) Efficiency >89% (typical) Operating Temperature -25°C to +70°C Cooling Method Convection cooling Protections Overload, overvoltage, short-circuit Safety Standards UL/EN/IEC 62368-1, CE marked

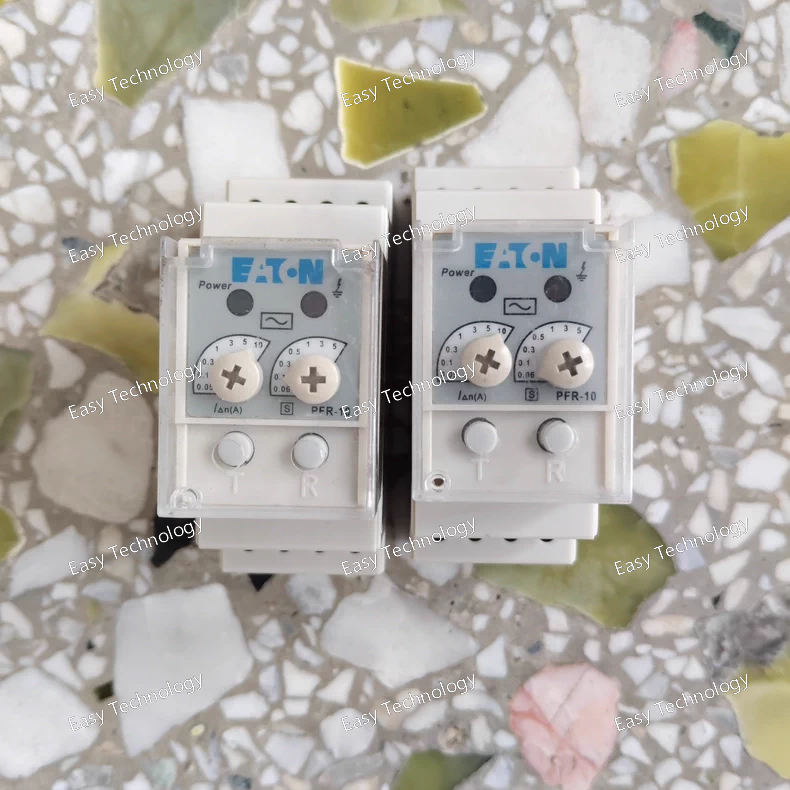

Parameter Specification Product Model PFR-10 Product Line Eaton PFR Series (Power Filter Reactor) Rated Current 10 A Phase Configuration Single Phase Rated Voltage Typically 480 V AC or 600 V AC (verify via datasheet) Frequency 50/60 Hz Inductance Tolerance ±10% (typical) Insulation Class Class F or H (heat-resistant) Cooling Method Air-cooled, dry-type Mounting Method Chassis or panel mounting Standards Compliance UL, CSA, CE (region-dependent)

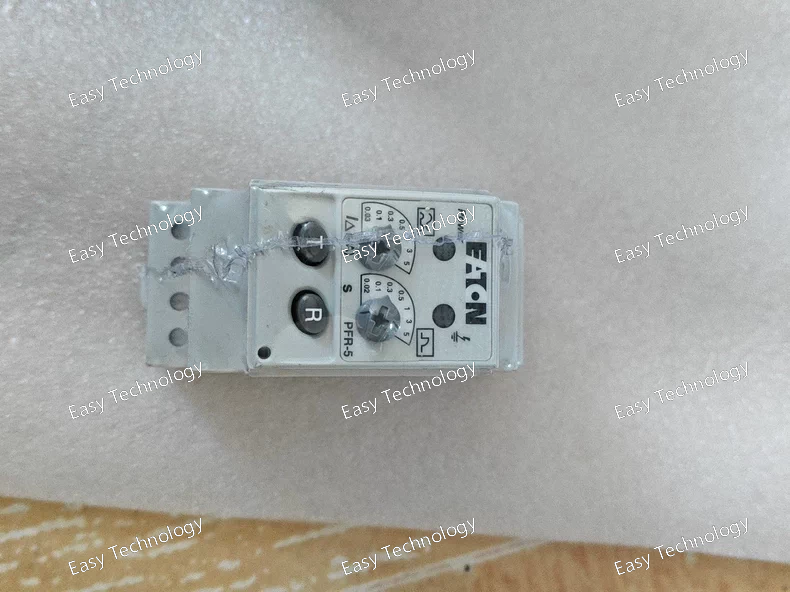

Parameter Specification Product Model PFR-5 Product Line Eaton PFR Series (Power Filter Reactor) Rated Current 5 A Phase Single Phase Rated Voltage Typically 480 V AC or 600 V AC (verify via datasheet) Frequency 50/60 Hz Inductance Tolerance ±10% (typical) Insulation Class Class F or H (heat-resistant) Cooling Method Air-cooled, dry-type Mounting Chassis or panel mounting Standards Compliance UL, CSA, CE (region-dependent)

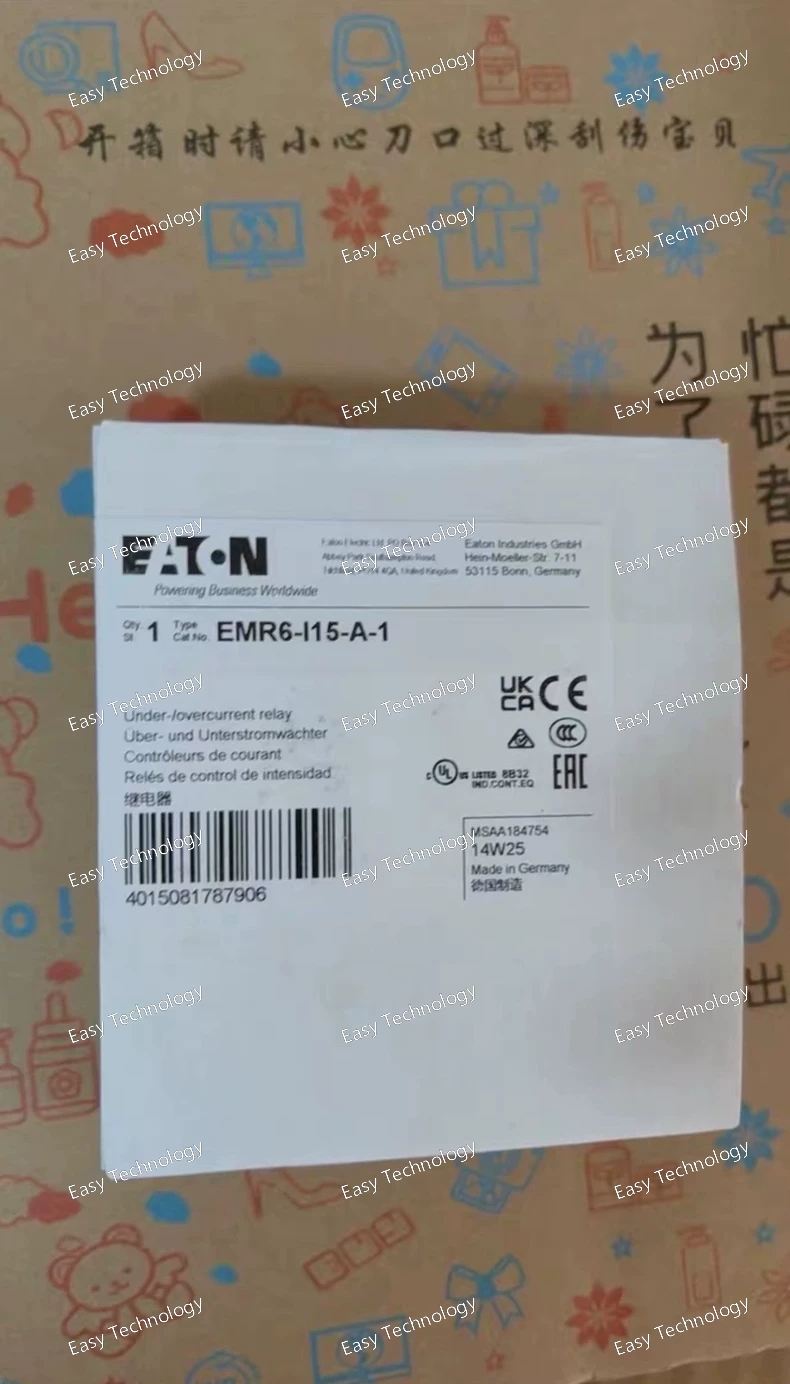

Parameter Specification Product Model EMR6-I15-A-1 Product Line Eaton EMR6 Electronic Overload Relay Rated Operational Voltage Up to 690 V AC Motor Current Range I15 Frame (e.g., 0.15–25 A, set via rating plug) Protection Functions - Overload (L) - Short-Circuit (S) - Phase Loss/Unbalance - Ground Fault (G) Tripping Class Selectable (e.g., Class 5–30) Auxiliary Contacts 1 NC (95–96) + 1 NO (97–98) Reset Mode Manual Reset (inferred from "-1") Mounting Tool-free attachment to Eaton contactors (e.g., DIL series) Standards Compliance IEC/EN 60947-4-1, UL 508

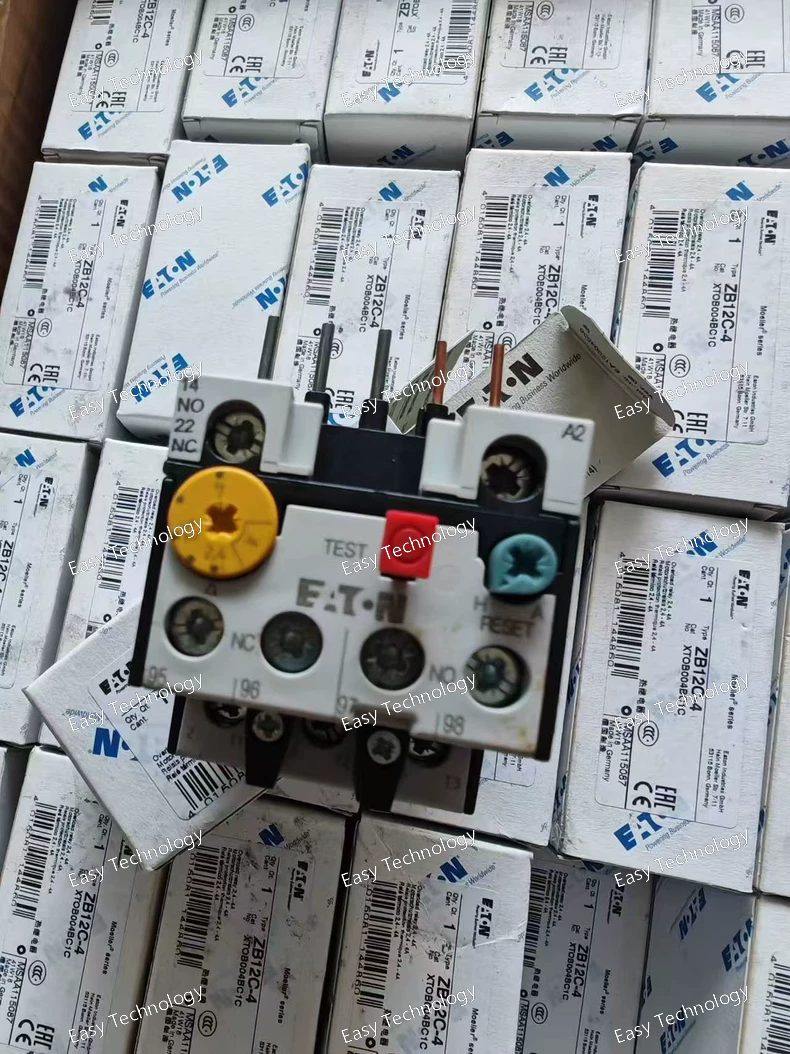

Parameter Specification Product Model ZB12C-4 2.4-4A Product Line Eaton ZB12 Series MCB Rated Current (Iₙ) 4 A (calibrated from 2.4-4A range) Tripping Characteristic C-Curve (5–10 × Iₙ) Rated Breaking Capacity (I�cn) 4.5 kA (at 230/400 V AC) Rated Operational Voltage (Uₑ) 230/400 V AC Number of Poles 1 Pole (1P) Standards Compliance IEC/EN 60898-1 Mounting Method DIN Rail Mount (35 mm) Terminal Type Screw Clamp

Parameter Specification Product Model ZB12C-4 2.4-4A Product Line Eaton ZB12 Miniature Circuit Breaker (MCB) Number of Poles 1 Pole (1P) Rated Current (In) 4 A Tripping Characteristic C-Curve (Instantaneous tripping between 5 to 10 times In) Rated Breaking Capacity (Icn) 4.5 kA Rated Operational Voltage (Ue) 240/415 V AC Standards IEC/EN 60898-1 Mounting DIN Rail Mount (35 mm)

Parameter Specification Product Model ZB32C-6 4-6A Product Line Eaton ZB32 Miniature Circuit Breaker (MCB) Number of Poles 1 Pole (1P) Rated Current (In) 6 A Tripping Characteristic C-Curve (Instantaneous tripping between 5 to 10 times In) Rated Breaking Capacity (Icn) 6 kA Rated Operational Voltage (Ue) 230/400 V AC Standards IEC/EN 60898-1 Mounting DIN Rail Mount (35 mm)

Parameter Specification Manufacturer / Series Eaton, N-Series (Safety Switches) Model Number NS2-250-NA Product Type Safety Switch / Disconnect Switch Pole Configuration 2-Pole Rated Current 250 Amps Voltage Rating 240V AC HP Rating Typically 60 HP at 240V AC (Verifiy from datasheet) Operation Toggle Handle (accesible through a door) Type General Duty / Heavy Duty Fuse Compatibility Designed for use with Class J, R, or T fuses. It is a non-fusible switch. Mounting Flush Mounting Standards Compliance UL 98, CSA C22.2

Parameter Specification Manufacturer / Series Eaton, PDG Series (Electronic Motor Protector) Model Number PDG33M0400B2NN Product Type Electronic Motor Protector / Intelligent Overload Relay Rated Current 400 A (The operational current range is set via the unit) Setting Range Adjustable, typically covering a wide range up to 400A (e.g., 100-400A). Must verify from datasheet. Rated Voltage Typically up to 690V AC Protection Functions Comprehensive, including: • Electronic Overload (with Thermal Memory) • Phase Loss / Unbalance • Undercurrent / Jam Protection • Locked Rotor • Earth Fault (Ground Fault) Control Outputs Relay outputs for signaling faults, warnings, and controlling the contactor. Communication Integrated communication ports (e.g., Modbus, DeviceNet, Profibus) for integration into control systems. Power Supply Requires a separate control voltage (e.g., 24V DC or 110-230V AC). Mounting DIN Rail Mount Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2

Parameter Specification Manufacturer / Series Eaton, NZM Series Model Number NZMB2-A125-NA Product Type Miniature Circuit Breaker (MCB) Pole Configuration 2-Pole Rated Current (In) 125 A Trip Curve Characteristic B Characteristic (General Purpose) Rated Operational Voltage (Ue) 230/400V AC Rated Insulation Voltage (Ui) 500V AC Rated Frequency 50/60 Hz Breaking Capacity (Icu) 10 kA at 230/400V AC (IEC 60898) / 25 kA at 400V AC (IEC 60947-2) * Standards Compliance IEC 60898-1, IEC 60947-2 Mounting Fixed Mounting (on DIN Rail TH35-7.5) Electrical Life 6,000 cycles Mechanical Life 20,000 cycles Ambient Temperature -25°C to +70°C (Derating above 40°C) Torque Specification Typically 2.0 - 2.5 N·m
