Parameter Specification Manufacturer / Series Eaton, NZM Series Model Number NZM1-AF80-NA Product Type Arc Fault Detection Device (AFDD) Pole Configuration 1-Pole Rated Current (In) 80 A Rated Voltage 230V AC Rated Frequency 50/60 Hz Breaking Capacity (Icn) 10 kA (IEC 60898-1) / 25 kA (IEC 60947-2) * Arc Detection Yes (Detects both series and parallel arc faults) Standards Compliance IEC 62606 (General requirements for AFDDs), IEC 60898-1 Mounting Fixed Mounting (on DIN Rail TH35-7.5) Additional Features Typically includes a test button and an indicator for arc fault tripping.

Parameter Specification Manufacturer / Series Eaton (Often part of the Moeller or DIL product line) Model Number LZM3-4-A400 Product Type Thermal Overload Relay Pole Configuration 3-Pole Rated Operational Current (Ith) 400 A Setting Current Range Adjustable, typically within a range such as 250 - 400 A (The exact range must be verified from the datasheet) Trip Class Class 10 (Standard for general purpose motors) Ambient Temperature Compensation Yes (Standard in most LZM relays) Standards Compliance IEC/EN 60947-4-1, UL 508, CSA C22.2 Mounting Snap-on attachment to a compatible contactor (e.g., Eaton DILM series) Auxiliary Contacts The "-4-" likely specifies a configuration with 1 NO (Normally Open) + 1 NC (Normally Closed) Reset Mode Manual reset (Automatic reset may be available as an option) Ambient Temperature -25°C to +60°C

Parameter Specification Manufacturer / Series Eaton, PDC Series (Combination Motor Controller) Model Number PDC23G0250TAAS Product Type Combination Motor Controller (Soft Starter + Protector) Rated Current 250 Amps Motor Power Rating Approximately 125 HP / 93 kW (at 460V AC) - Exact HP depends on voltage; verify from datasheet. Voltage Rating Typically 200-575V AC, 3-Phase, 50/60 Hz Short-Circuit Withstand High, typically 65 kA or 100 kA (Must verify from datasheet) Control Method Digital, microprocessor-based solid-state soft starting Key Features • Integrated Molded Case Switch (Disconnect) • Solid-State Soft Start/Stop • Advanced Motor Protection (Overload, Phase Loss, etc.) • Diagnostic Capabilities Communication Integrated communication capabilities (e.g., DeviceNet, Modbus) are typically standard. Mounting Fixed Mounting Standards Compliance UL 508, IEC 60947-4-2, CSA C22.2

Parameter Specification Manufacturer / Series Eaton, NZM Series Model Number NZMB1-A100-NA Product Type Miniature Circuit Breaker (MCB) Pole Configuration 1-Pole Rated Current (In) 100 A Trip Curve Characteristic B Characteristic (General Purpose) Rated Operational Voltage (Ue) 230/400V AC Rated Insulation Voltage (Ui) 500V AC Rated Frequency 50/60 Hz Breaking Capacity (Icu) 10 kA at 230/400V AC (IEC 60898) / 25 kA at 400V AC (IEC 60947-2) * Standards Compliance IEC 60898-1, IEC 60947-2 Mounting Fixed Mounting (on DIN Rail TH35-7.5) Electrical Life 6,000 cycles Mechanical Life 20,000 cycles Ambient Temperature -25°C to +70°C (Derating above 40°C) Torque Specification Typically 2.0 - 2.5 N·m

Parameter Specification Manufacturer / Series Eaton, NZM Series Model Number NZM1-AF60-NA Product Type Arc Fault Detection Device (AFDD) Pole Configuration 1-Pole Rated Current (In) 60 A Rated Voltage 230V AC Rated Frequency 50/60 Hz Breaking Capacity (Icn) 10 kA (IEC 60898-1) / 25 kA (IEC 60947-2) * Arc Detection Yes (Detects both series and parallel arc faults) Standards Compliance IEC 62606 (General requirements for AFDDs), IEC 60898-1 Mounting Fixed Mounting (on DIN Rail TH35-7.5) Additional Features Typically includes a test button and an indicator for arc fault tripping.

Parameter Specification Manufacturer / Series Eaton, NZM Series Model Designation NZM4-XR Product Type Drawout Mounted Air Circuit Breaker (ACB) Mounting Style Drawout (Can be racked in/out) Frame Size NZM4 Frame Rated Current (In) Up to 3200 A or 4000 A (Depending on specific configuration) Rated Operational Voltage (Ue) 690V AC Rated Insulation Voltage (Ui) 1000V AC Breaking Capacity (Icu/Ics) Extra High (e.g., 100 kA, 120 kA, or 150 kA at 415V AC). This is the defining feature of the "XR" version and must be verified from the datasheet. Trip Unit Electronic Trip Unit (e.g., PR221, PR222, PR223 series) Protection Functions Adjustable L-S-I-G (Long-Time, Short-Time, Instantaneous, Ground Fault) Standards Compliance IEC 60947-2

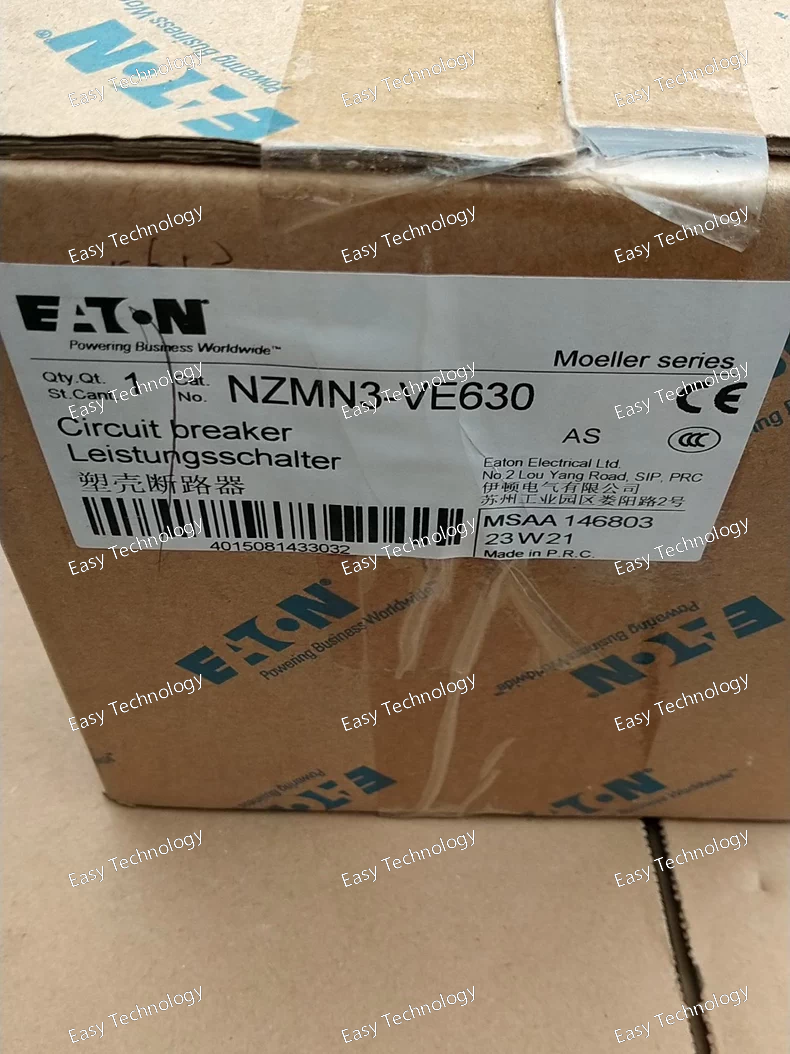

Parameter Specification Manufacturer / Series Eaton, NZM Series Model Number NZMN3-VE630 Product Type Molded Case Circuit Breaker (MCCB) with Electronic Trip Unit Pole Configuration 3-Pole Rated Current (In) 630 A (The rated current is set via the trip unit) Trip Unit Type Electronic ("V" - Versatile) Rated Operational Voltage (Ue) 400/415V AC Rated Insulation Voltage (Ui) 690V AC Adjustable Protections L (Long-Time), S (Short-Time), I (Instantaneous) Breaking Capacity (Icu) Very High (e.g., 70kA, 100kA, or 150kA at 400V AC). Must be verified from the datasheet. Current Limiting Class Class 3 (Very high current-limiting capability, as per IEC 60947-2) Power Supply Self-powered from the current path (No external AUX power required for basic trip function) Mounting Fixed Mounting Standards Compliance IEC 60947-2 Communication Capability Optional communication modules (e.g., for Modbus, Profibus) can typically be added.

Parameter Specification Manufacturer / Series Eaton, PDC Series (Combination Motor Controller) Model Number PDC13N0100MSAJ Product Type Combination Motor Controller (Soft Starter + Protector) Rated Current 100 Amps Motor Power Rating Approximately 50 HP / 37 kW (at 460V AC) - Exact HP depends on voltage; verify from datasheet. Voltage Rating Typically 200-575V AC, 3-Phase, 50/60 Hz Short-Circuit Withstand High, typically 65 kA or 100 kA (Must verify from datasheet) Control Method Digital, microprocessor-based solid-state soft starting Key Features • Integrated Molded Case Switch (Disconnect) • Solid-State Soft Start/Stop • Advanced Motor Protection (Overload, Phase Loss, etc.) • Diagnostic Capabilities Communication Integrated communication capabilities (e.g., DeviceNet, Modbus) are typically standard. Mounting Fixed Mounting Standards Compliance UL 508, IEC 60947-4-2, CSA C22.2

Parameter Specification Manufacturer / Series Eaton, IZMX Series Model Number IZMX16H3-V16W Product Type 1-Pole + N RCBO (MCB with Integrated RCD) Pole Configuration 1P + N Rated Current (In) 16 A Trip Curve C Characteristic (5-10 x In) Rated Voltage 230V AC Residual Current (IΔn) 30 mA RCD Type Type A (Sensitive to both AC and pulsating DC residual currents) Breaking Capacity (Icn) 10 kA (High Performance) Standards Compliance IEC 61009-1, IEC 60898-1

Parameter Specification Manufacturer / Series Eaton, QC Series Model Number QC3020HT Product Type Heavy-Duty Power Factor Correction Capacitor Rated Output 20 kVAR (Kilo Volt-Ampere Reactive) Rated Voltage Typically 480V AC or 525V AC (Must verify from datasheet) Frequency 50/60 Hz Duty Rating Heavy Duty (HT) - Suitable for environments with harmonic distortion Connection 3-Phase Dielectric Fluid Typically non-PCB, biodegradable fluid Protection Features Overpressure disconnector, internal discharge resistors Mounting Suitable for cabinet or frame mounting Standards Compliance UL 810, IEC 60831
