Parameter Specification Product Model A22-RWK3R Product Line Eaton A22 Series Actuator Type Mushroom head, red Contact Configuration 1 NC (Normally Closed) (typical for emergency stop) Operation Type Maintained (latching) with twist-to-release reset Rated Operational Current 5 A at 250 V AC Illumination Voltage e.g., 24 V DC (depends on variant) Mounting Hole Diameter 22.5 mm Protection Rating IP65 (front panel) Terminal Type Screw terminals Operating Temperature -25°C to 55°C Safety Standards IEC 60947-5-1, UL 508

Parameter Specification Product Model A22-RWK1V Product Line Eaton A22 Series Actuator Type Mushroom head, red Contact Configuration 1 NO (Normally Open) (typical for "1V" variant) Rated Operational Current 5 A at 250 V AC Illumination Voltage e.g., 24 V DC (depends on "1V" specification) Mounting Hole Diameter 22.5 mm Protection Rating IP65 (front panel) Terminal Type Screw terminals Operating Temperature -25°C to 55°C Mechanical Life >1 million operations

Parameter Specification Product Model NSP20M4385 TNSR Product Line Eaton NSP Series Circuit Breakers Rated Current 20 A Number of Poles 3 Poles Rated Voltage 480 V AC (50/60 Hz) Breaking Capacity 10 kA (at 480 V AC) Trip Type Thermal-magnetic Mounting DIN-rail (35 mm) Standards Compliance IEC 60947-2, UL 489

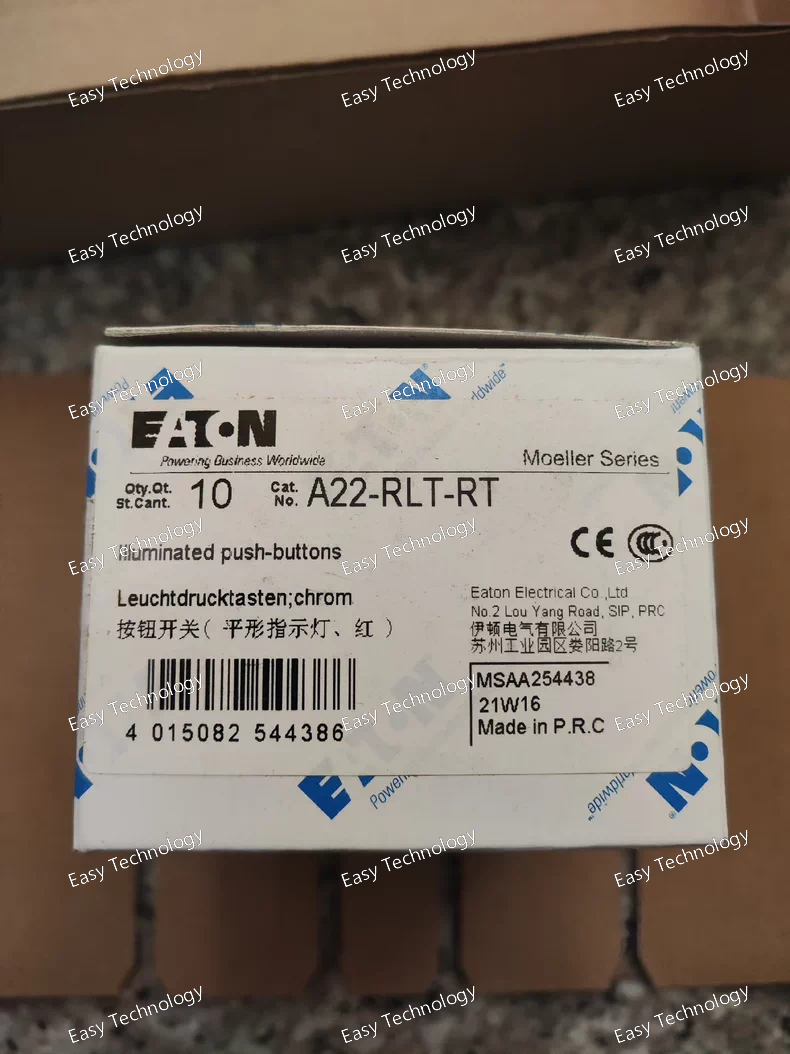

Parameter Specification Product Model A22-RLT-RT Product Line Eaton A22 Series Lens Shape & Color Round, red Operation Type Momentary Contact Configuration 1 NC (Normally Closed) or 1 NO (Normally Open) (depends on "RT" variant) Rated Current 5 A at 250 V AC Mounting Hole Diameter 22.5 mm Protection Rating IP65 (front panel) Illumination Voltage e.g., 24 V DC, 120 V AC (requires separate lamp/LED module) Terminal Type Screw terminals Operating Temperature -25°C to 55°C

Parameter Specification Product Model M22-DL-G Product Line Eaton M22 Series Product Type Illuminated Pushbutton Lens Shape & Color Square, green Operation Type Momentary Contact Configuration Depends on contact block (sold separately) Rated Current Up to 5 A (depends on contact block) Mounting Hole Diameter 22.5 mm Protection Rating IP67 Illumination Voltage e.g., 24 V DC, 120 V AC (requires separate lamp holder/LED module) Terminal Type Screw terminals Operating Temperature -25°C to 55°C

Parameter Specification Product Model M22-CK01 Product Line Eaton M22 Series Accessories Product Type Control Knob Compatibility M22 series rotary devices (e.g., selector switches, potentiometers) Shaft Hole Diameter 6 mm (standard for M22 series) Material Thermoplastic (e.g., PA66) Color Black (typical) Mounting Press-fit onto shaft Operating Temperature -25°C to 85°C

Parameter Specification Product Model A22-RWK3R Product Line Eaton A22 Series Actuator Type Mushroom head, red Contact Configuration 1 NC (Normally Closed) (typical for E-stop function) Rated Operational Current 5 A at 250 V AC Voltage Rating Up to 250 V AC Illumination Voltage e.g., 24 V DC, 120 V AC (requires separate lamp/LED module) Mounting Hole Diameter 22.5 mm Protection Rating IP65 (front panel) Terminal Type Screw terminals Operating Temperature -25°C to 55°C Mechanical Life >1 million operations

Parameter Specification Product Model M22-D-G-X1/KC1 Product Line Eaton M22 Series Actuator Type Knob (D), Black Lens Color Green Contact Configuration 1 NO + 1 NC (inferred from KC1) Switch Operation Maintained (latching) Rated Operational Current 4 A at 250 V AC Mounting Hole Diameter 22 mm Protection Rating IP67 Terminal Type Screw terminals Operating Temperature -25°C to 55°C

Parameter Specification Product Model PKE65/AK Product Line Eaton PKE Series UPS Topology Online double-conversion (VFI) Rated Power Capacity 65 kVA / 58.5 kW (at 230 V AC) Input Voltage Range 304–478 V AC (3-phase, auto-sensing) Input Frequency Range 50/60 Hz (auto-sensing) Output Voltage 230/400 V AC (±1% steady state) Output Frequency 50/60 Hz (±0.1% in battery mode) Battery Runtime Configurable (typical 5–30 minutes with external battery modules) Efficiency >96% at full load Communication Interfaces Ethernet, RS-232, USB, dry contacts Form Factor Tower (optional rack-mount kit) Operating Temperature 0–40°C Standards Compliance IEC 62040-3, CE, UL, RoHS

Parameter Specification Product Model K3DG/P 1818069 Product Line Eaton K3DG Series Panel Instruments Display Type Digital LCD or LED Measured Parameters Voltage, current, power, frequency (configurable) Input Types Voltage: 0–600 V AC/DC, Current: 0–5 A AC (via CT) Power Supply 85–265 V AC/DC (typical) Accuracy ±0.5% of reading (typical) Mounting Panel cutout (standard DIN 96x48 mm) Operating Temperature -10°C to 55°C Protection Rating IP65 (front panel) Communication Optional RS-485 Modbus RTU
