Key Parameters
Category Specification

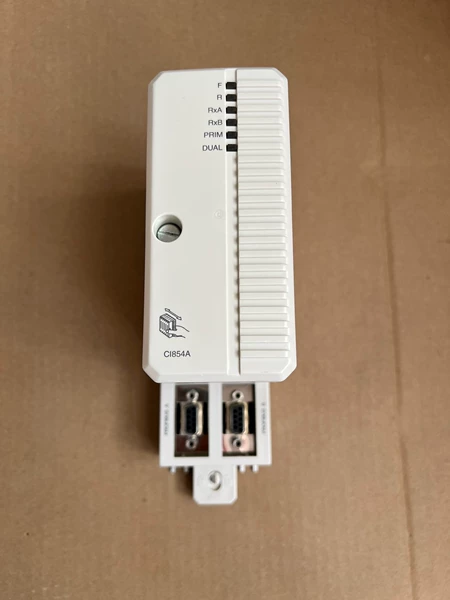

Model CI854AK01 / 3BSE030220R1
Interface PROFIBUS DP-V1 (IEC 61158)
Role Master
Baud Rate 9.6 kbps – 12 Mbps (auto-sensing)
Connector 9-pin D-sub (RS-485)
Isolation 500V galvanic
I/O Capacity 244 bytes (max.)
Power 24V DC (backplane)
Temp. Range -25°C to +60°C
Certifications CE, UL
Features:

Hot-swappable (redundant setups)

LED diagnostics

AC 800M/800xA compatible

Typical Use: Process automation, motor control, remote I/O.

Key Features
✔ Dual-CPU Redundancy – Hot standby for continuous operation (99.999% availability)
✔ Powerful Processing – 800 MHz CPU with 512 MB RAM
✔ Extensive I/O Support – Connects to S800, S900, and Profibus/Fieldbus modules
✔ Industrial Robustness – Operates in -40°C to +70°C environments
✔ Cybersecurity – Supports role-based access & encryption (IEC 62443 compliant)
✔ Seamless Integration – Fully compatible with ABB System 800xA

Technical Specifications
Parameter Specification

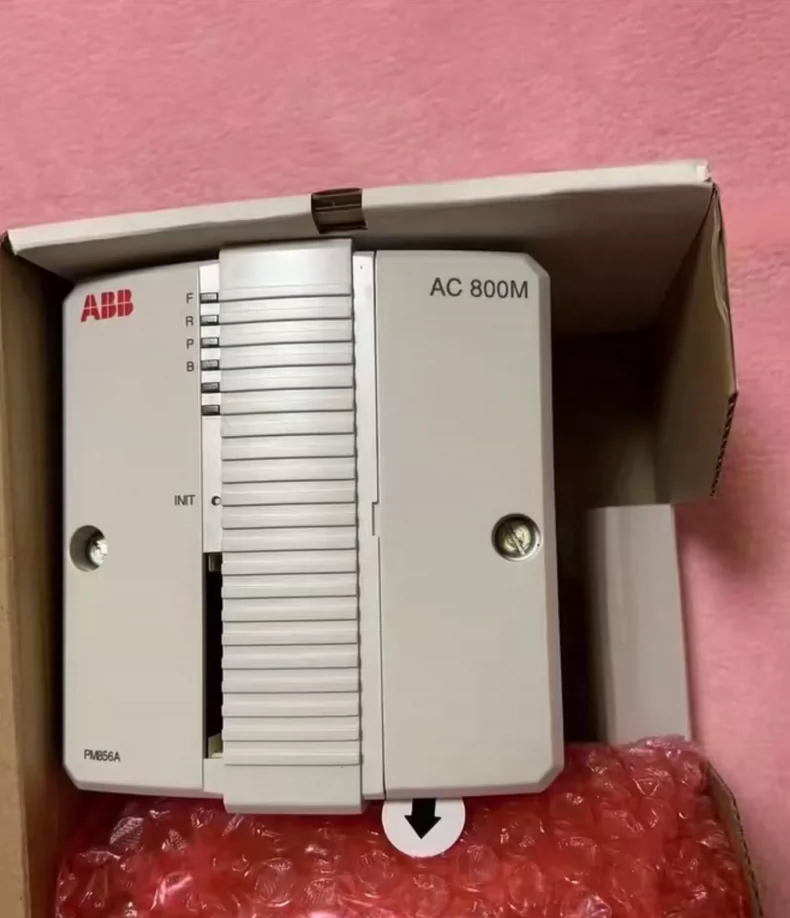

Model Number PM856AK01 (3BSE066490R1)
CPU 800 MHz PowerPC
Memory 512 MB RAM / 128 MB Flash
Redundancy Yes (1:1 hot standby)
Communication Ethernet, PROFIBUS, Modbus TCP, OPC UA
I/O Capacity Up to 250,000 I/O points (system-wide)
Power Supply 24V DC (redundant inputs)
Certifications CE, UL, ATEX (optional)
Typical Applications
Oil & Gas (refineries, offshore platforms)

Power Plants (turbine control, SCADA)

Chemical/Petrochemical (batch processing)

Pharmaceuticals (GMP-compliant automation)

Water Treatment (pump station control)

Key Features
✔ Dual-CPU Redundancy - 1:1 hot standby configuration for 99.999% availability
✔ Powerful Processing - 1.1 GHz dual-core CPU with 1 GB RAM for complex control tasks
✔ Extensive Connectivity - Supports PROFIBUS, Modbus TCP, OPC UA, and Ethernet/IP
✔ Cybersecurity - IEC 62443 compliant with role-based access control
✔ Wide Temperature Range - Operates in -40°C to +70°C harsh environments
✔ Large Capacity - Supports up to 500,000 I/O points system-wide

Technical Specifications
Parameter Specification
Model Number PM866AK01 (3BSE076939R1)
Processor 1.1 GHz dual-core
Memory 1 GB RAM / 256 MB Flash
Redundancy Yes (1:1 hot standby)
Communication Ethernet, PROFIBUS DP/PA, Modbus TCP, OPC UA
I/O Capacity Up to 500,000 I/O points (system-wide)
Power Supply 24V DC (redundant inputs)
Certifications CE, UL, ATEX (optional)
Typical Applications
Oil & Gas (refineries, pipelines, offshore platforms)

Power Generation (turbine control, SCADA systems)

Chemical Processing (batch and continuous processes)

Pharmaceutical (GMP-compliant manufacturing)

Water/Wastewater (pump control, treatment plants)

System Integration
Compatible with:

ABB S800/S900 I/O modules

PROFIBUS DP/PA and Foundation Fieldbus devices

ABB System 800xA DCS

Configuration Tools:

Control Builder Professional

ABB Ability™ Edge Gateway for IIoT connectivity

Key Features
Industrial-grade Ethernet connectivity

Dual 10/100BASE-TX RJ45 ports

Supports redundant network configurations

DIN rail mounting for easy installation

LED status indicators for network monitoring

Compatible with ABB AC 800M controllers

Technical Specifications
Parameter Specification
Model Number RLM01 (3BDZ00398R1)
Ethernet Standard IEEE 802.3 10/100BASE-TX
Ports 2 x RJ45 (auto MDI/MDI-X)
Protocols Supported TCP/IP, UDP, ICMP
Power Supply 24V DC (via controller backplane)
Operating Temperature -25°C to +60°C
Relative Humidity 5% to 95% (non-condensing)
Certifications CE, UL, cUL
Typical Applications
Process automation systems

Power generation and distribution

Oil & gas facilities

Water treatment plants

Manufacturing automation

The ABB DO810 (3BSE008510R1) is a high-density digital output module designed for ABB's S800 I/O system, compatible with AC 800M controllers and System 800xA distributed control systems. This rugged industrial module provides reliable switching capabilities for automation applications.

Key Features
16 isolated digital input channels

24V DC voltage sensing (sinking/sourcing configurable)

High-density design for space-efficient cabinet installation

Hot-swappable for easy maintenance (in compatible systems)

Advanced diagnostics with per-channel LED indicators

Industrial-grade construction (-25°C to +60°C operation)

Technical Specifications
Parameter Specification
Manufacturer P/N 3BSE008508R1
Input Type 24V DC (dry/wet contact)
Input Current 3-5mA typical
Isolation 500V between channels
Response Time <1ms
Power Consumption 1.2W typical
Connection Screw terminal block
Protection Class IP20 (panel-mounted)
Certifications CE, UL, ATEX (optional)
Typical Applications
Process automation (sensor monitoring, limit switches)

Manufacturing systems (machine status inputs)

Power generation (breaker status monitoring)

Safety systems (emergency stop circuits)

Building automation (door/window sensors)

Key Features
✔ PROFIBUS DP-V1 Master Functionality (IEC 61158 compliant)
✔ High-Speed Communication (9.6 kbps to 12 Mbps auto-negotiation)
✔ Dual-Channel Redundancy Support for mission-critical applications
✔ Hot-Swappable Design for easy maintenance
✔ Advanced Diagnostics with comprehensive LED status indicators
✔ Robust Industrial Design (-25°C to +60°C operation)

Technical Specifications
Parameter Specification
Manufacturer P/N 3BSE018135R1
Interface Type PROFIBUS DP-V1
Connector 9-pin D-sub (RS-485)
Protocol DP-V1 (supports cyclic/acyclic data)
Baud Rate 9.6 kbps - 12 Mbps
Isolation 500V galvanic isolation
Power Supply 24V DC via backplane
Certifications CE, UL, ATEX (optional)
Typical Applications
Process Automation (oil & gas, chemical plants)

Power Generation (turbine control systems)

Manufacturing Automation (production lines)

Water Treatment (pump station control)

Mining Operations (conveyor systems)

Key Features
✔ Dual-CPU Redundancy - 1:1 hot standby configuration for 99.999% availability
✔ Powerful Processing - 1.1 GHz dual-core CPU with 1 GB RAM for complex control tasks
✔ Extensive Connectivity - Supports PROFIBUS DP/PA, Modbus TCP, OPC UA, and Ethernet/IP
✔ Cybersecurity - IEC 62443 compliant with advanced security features
✔ Industrial Robustness - Operates in -40°C to +70°C harsh environments
✔ Large Capacity - Supports up to 500,000 I/O points system-wide

Technical Specifications
Parameter Specification
Model Number PM866K01 (3BSE050198R1)
Processor 1.1 GHz dual-core
Memory 1 GB RAM / 256 MB Flash
Redundancy Yes (1:1 hot standby)
Communication Ethernet, PROFIBUS DP/PA, Modbus TCP, OPC UA
I/O Capacity Up to 500,000 I/O points (system-wide)
Power Supply 24V DC (redundant inputs)
Certifications CE, UL, ATEX (optional)
Typical Applications
Oil & Gas (refineries, pipelines, offshore platforms)

Power Generation (turbine control, SCADA systems)

Chemical Processing (batch and continuous processes)

Pharmaceutical (GMP-compliant manufacturing)

Water/Wastewater (pump control, treatment plants)

Key Features
✔ PROFINET IO Controller (Conformance Class B)
✔ Dual-port switch for line topology (100 Mbps Fast Ethernet)
✔ Real-time communication (PROFINET IRT supported)
✔ Cybersecurity features (IEC 62443 compliant)
✔ Hot-swappable design (in redundant configurations)
✔ Advanced diagnostics with LED status indicators
✔ Industrial ruggedness (-25°C to +60°C operation)

Technical Specifications
Parameter Specification
Manufacturer P/N 3BSE092693R1
Interface Type PROFINET IO Controller
Ports 2 x RJ45 (100BASE-TX)
Protocols PROFINET IO, TCP/IP, UDP, ICMP
Real-time Class IRT (Isochronous Real-Time)
Cycle Time ≤1ms (configurable)
Power Supply 24V DC via backplane
Certifications CE, UL, ATEX (optional)
Typical Applications
Factory Automation (automotive production lines)

Process Industries (batch control systems)

Packaging Machinery (high-speed equipment)

Material Handling (conveyor systems)

Energy Systems (power distribution control)

Key Features
✔ Dual-CPU Redundancy

1:1 hot standby configuration

Automatic switchover (<100ms)

99.999% availability for critical processes

✔ Powerful Processing Capability

800 MHz PowerPC processor

512 MB RAM for complex control strategies

Supports 250,000 I/O points (system-wide)

✔ Industrial Communication

Dual Ethernet ports (10/100 Mbps)

Supports PROFIBUS DP, Modbus TCP, OPC UA

Optional PROFINET, FF HSE communication

✔ Robust Industrial Design

Operating temperature: -40°C to +70°C

Vibration and shock resistant

IP20 protection (higher protection optional)

✔ Cybersecurity

IEC 62443 compliant

Role-based access control

Secure firmware updates

Technical Specifications
Parameter Specification
Processor 800 MHz PowerPC
Memory 512 MB RAM / 128 MB Flash
Redundancy 1:1 hot standby
I/O Capacity Up to 250,000 points
Communication Ethernet, PROFIBUS DP, Modbus TCP
Power Supply 24V DC (redundant)
Certifications CE, UL, ATEX (optional)
Typical Applications
Oil & Gas (refineries, pipelines)

Power Generation (turbine control)

Chemical Processing (batch reactors)

Pharmaceutical (GMP manufacturing)

Water Treatment (SCADA systems)
