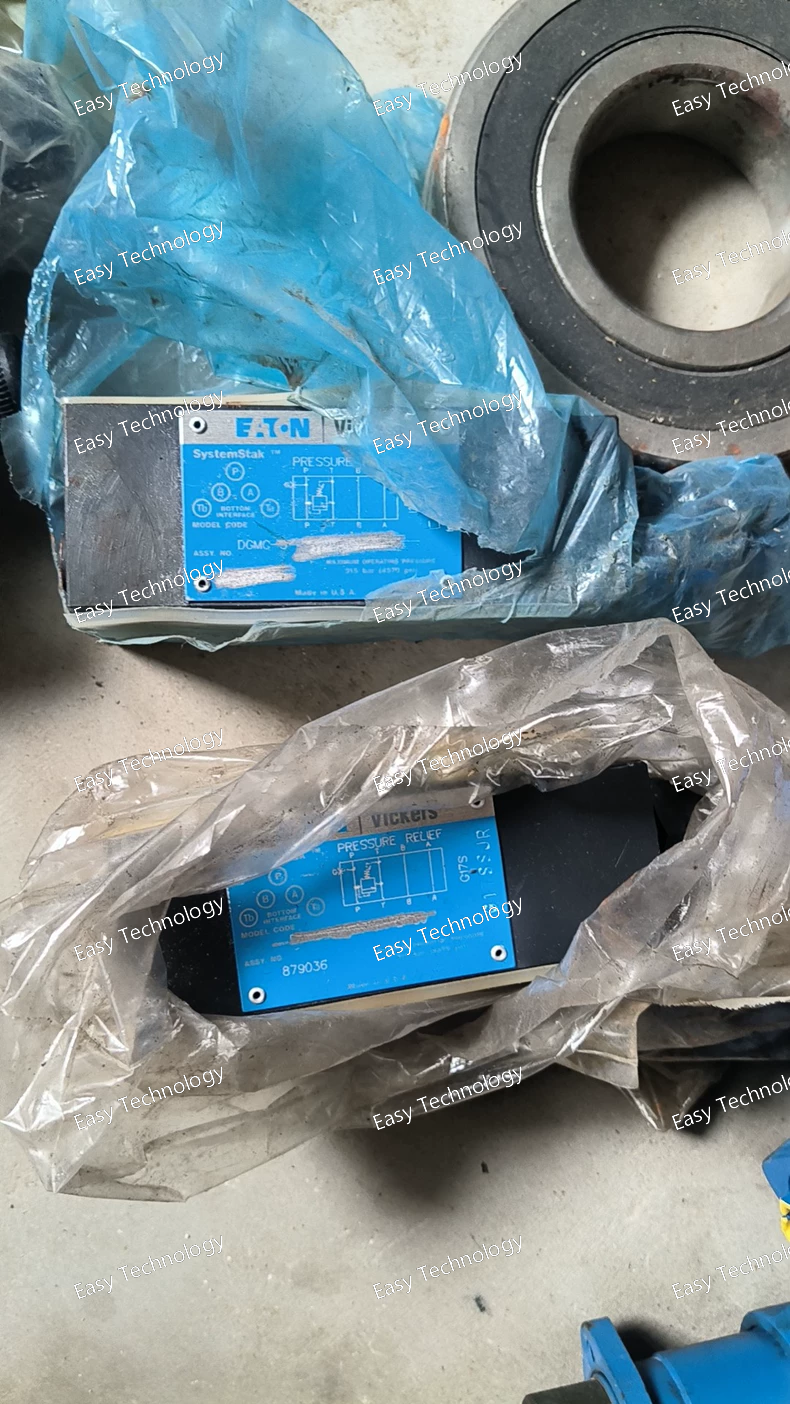

Parameter Description / Value Notes Product Line Eaton DGMC Directional Control Valve Motor Control Sections Porting Size 3 (NG03 / CETOP 3 / NFPA D01) Matches the size of the directional valve it is stacked with. Relief Valve Setting AT (35 bar / 500 psi) The cracking pressure setting for the cross-over relief valves. This is a fixed setting, not adjustable. Neutral Bypass Type CW Standard neutral bypass configuration for freewheeling. Design Variant 41 Specific design version or manufacturing code. General Performance Data Maximum Operating Pressure 350 bar (5,075 psi) Relief Valve Capacity Full pump flow Bypass Flow Capacity Full pump flow Mounting "Sandwiched" between directional valve and subplate

Parameter Description / Value Notes Product Line Eaton 1CEL Industrial Solenoid Coil Series Coil Diameter 90 mm Standard industry size. Electrical Connection F (DIN 43650 Form A, 4-pin) Standard "Euro" connector. Power Rating & Standard 30S 30 Watts, conforming to a common industrial standard. Operating Voltage DC Designed for Direct Current. The specific voltage (e.g., 12 VDC, 24 VDC) is typically indicated by a separate label on the coil itself, not in this base part number. Duty Cycle 100% (Continuous) Can be energized indefinitely without overheating. Insulation Class Class H (180°C) High-temperature capability. Ingress Protection (IP) IP69K Highest level of protection: dust-tight and protected against high-pressure, high-temperature steam-jet cleaning. Ambient Temperature Range -40°C to +130°C (-40°F to +266°F) Suitable for extreme environments. Housing Material Stainless Steel (typically AISI 304) Provides corrosion resistance. Weight Approx. 1.2 kg (2.6 lbs）

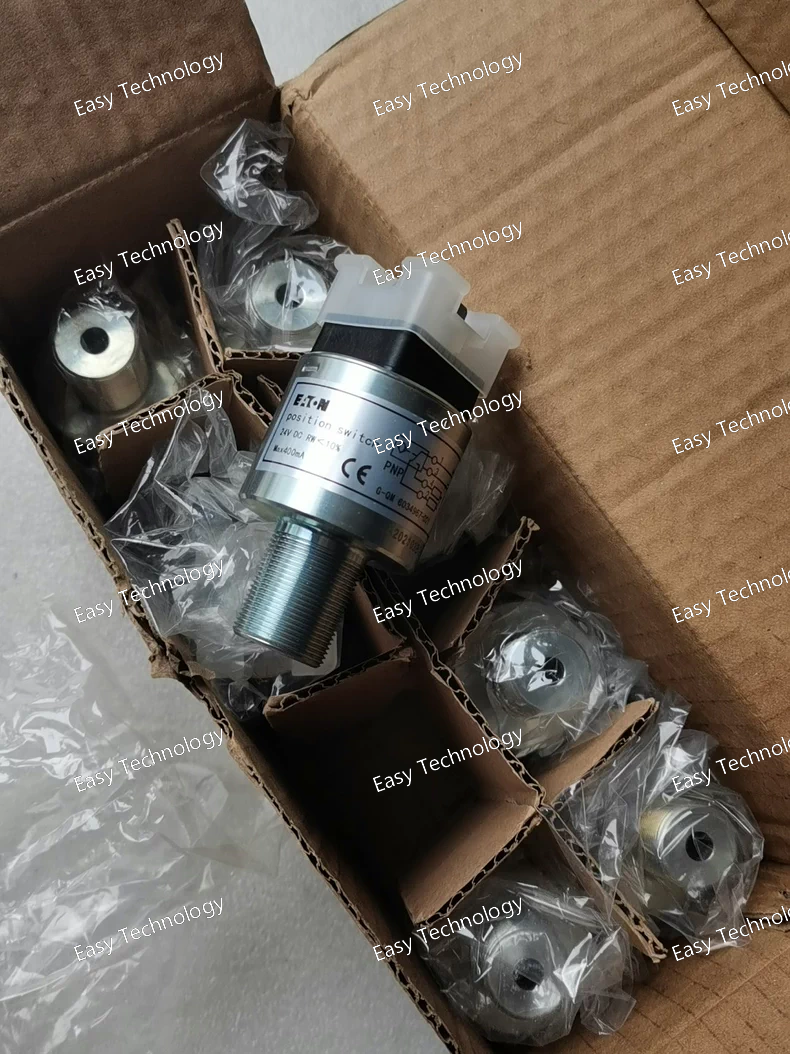

Key Specifications Item Parameter / Description Product Type Hydraulic system sensor (4V3S9‑type) Connection / Interface DIN 43650 (ISO 4400) style connector Output Signal Type PNP electrical output (digital switching) Intended Use Monitoring valve / hydraulic system status; providing electrical feedback to control systems or PLC Mounting / Compatibility Designed to integrate with Eaton/Danfoss hydraulic valve systems / manifolds capable of accepting 4V3S9‑series sensors Construction Industrial‑grade sensor housing (for hydraulic environment) Typical Application Hydraulic control loops — e.g. detect valve actuation, confirm spool/valve position, system diagnostics / interlocks

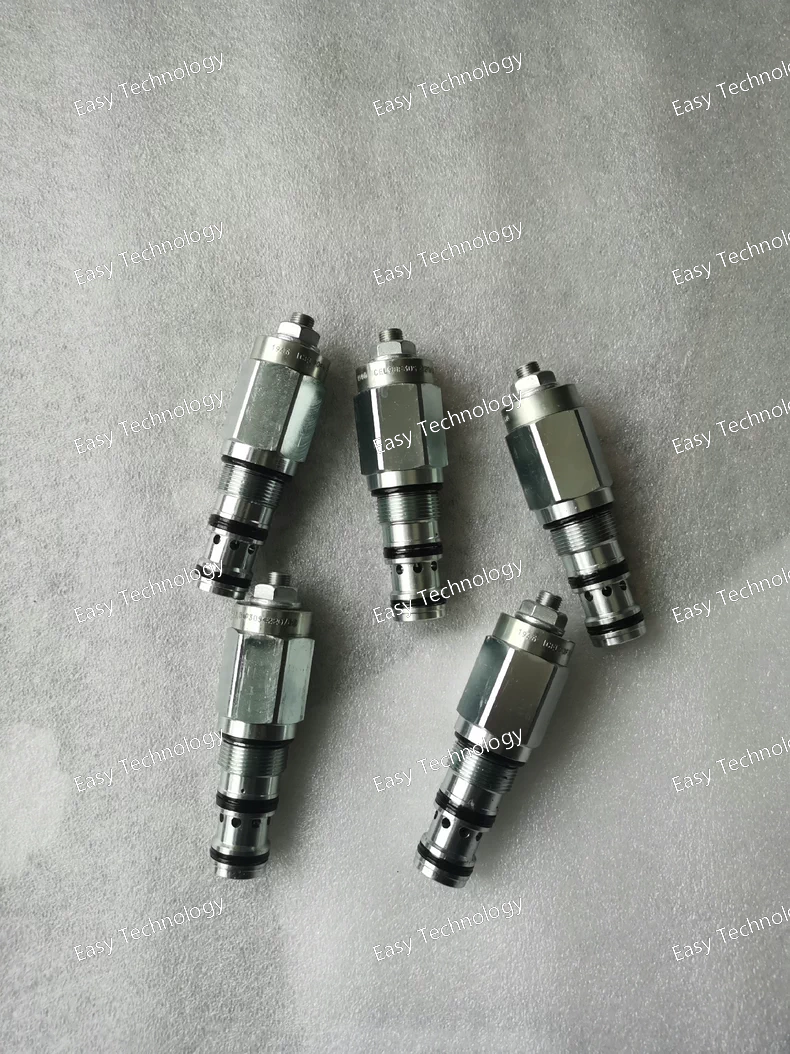

Key Parameters Item Value / Description Valve type Cartridge valve insert (directional) Size (Nominal) NG 16 Function / Normal State Normally open directional valve insert Maximum Pressure (Ports P, A, B) 350 bar (≈ 5000 psi) Flow Rate (max) 255 L/min (≈ 67 US gpm) Cracking Pressure 5.80 bar (≈ 85 psi) Seal Material Buna‑N (standard) Fluid Compatibility Petroleum‑based hydraulic oils Required Fluid Cleanliness 18/16/13 micron Temperature Range (Fluid / Ambient) –20 °C to +70 °C (–4 °F to +158 °F) Gauge / Port Thread SAE Insert Ratio 1:2 Valve Insert Type Directional Leakage Standard (per manufacturer standard) Intended Use Slip‑in cartridge manifold or subplate hydraulic systems requiring directional control

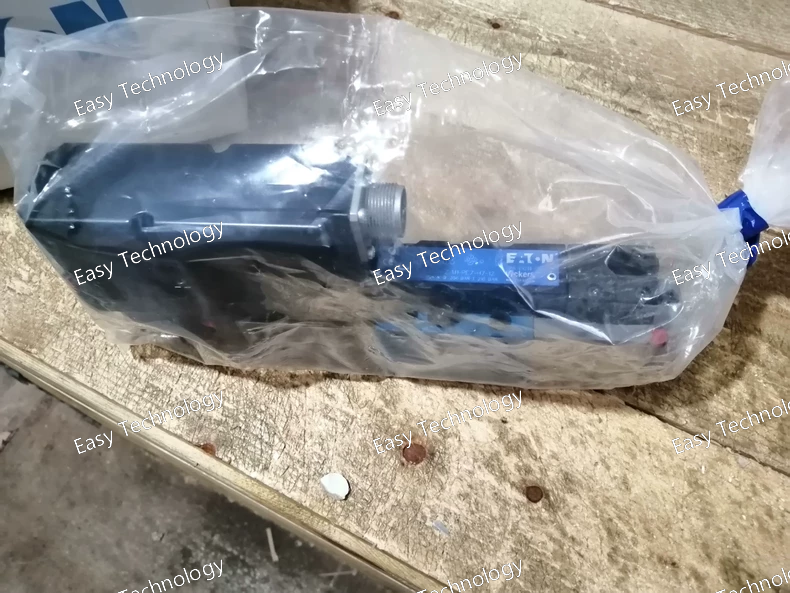

Key Parameters Item Parameter / Description Valve Type Proportional directional control valve (integrated electronics) Interface / Size ISO 4401‑03 / NFPA D03 / CETOP 3 (NG6) Spool Type & Return “2C” spool, spring‑centered (“all ports blocked” center) Rated Flow 20 L/min (≈ 5.3 US gpm) for A‑port or B‑port flow Rated Pressure (P, A, B ports) 350 bar (≈ 5000 psi) Tank Port Pressure Rating 210 bar (≈ 3000 psi) Supply Voltage 24 V DC Maximum Current 3 A Command / Input Signal ±10 V voltage command, with ±10 V feedback output Metering Type Meter‑in / Meter‑out flow metering Seal Material Fluorocarbon (suitable for anti‑wear hydraulic oils) Fluid Compatibility Anti‑wear hydraulic oils (and compatible fluids) Fluid Cleanliness Requirement 17/15/12 micron (or better) filtration Mounting Type Subplate / manifold mount Operating Temperature Range (ambient) –40 °C to +85 °C (–40 °F to +185 °F) Valve Stage Single‑stage, symmetric flow capability Valve Function 4/3‑way proportional directional valve

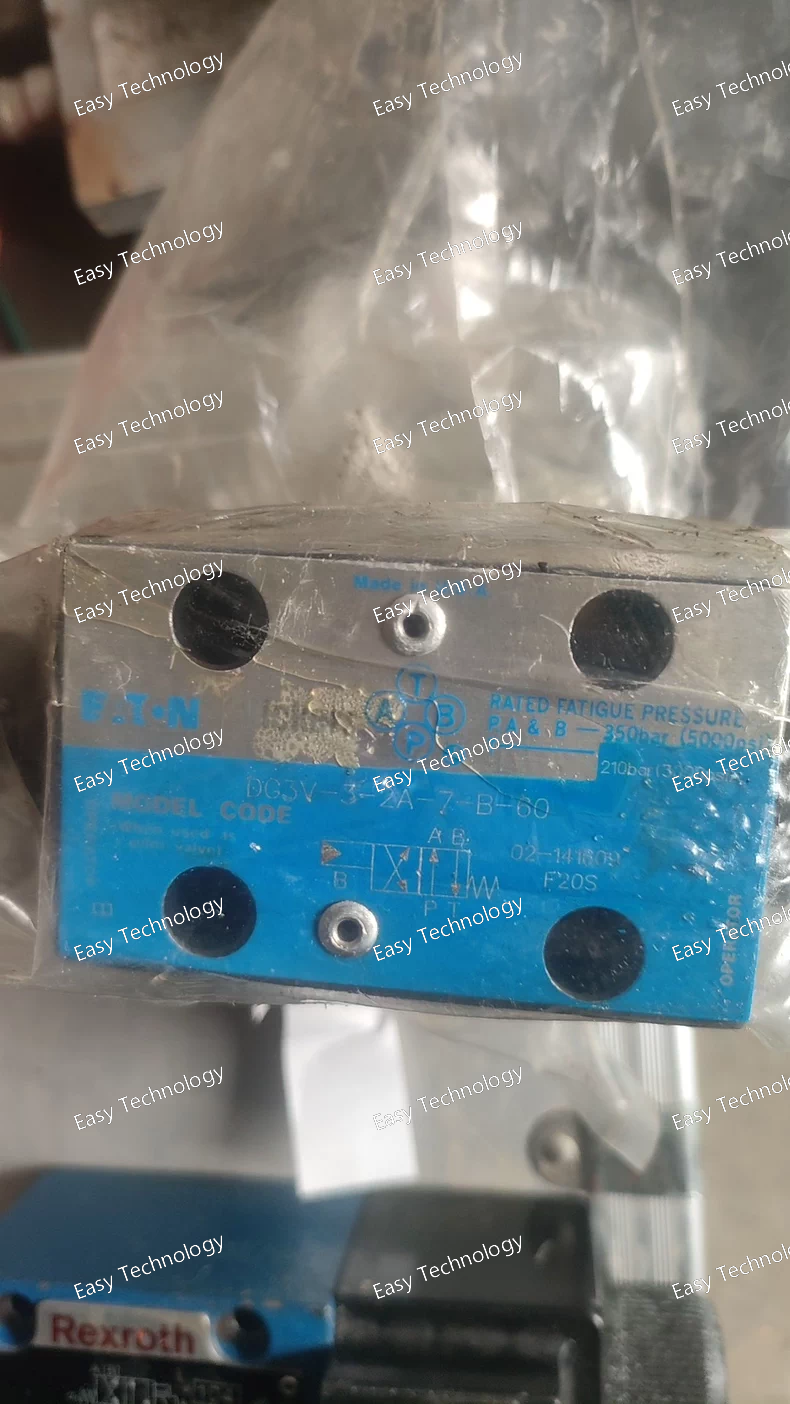

Key Parameters Item Specification / Description Valve Type Directional control valve (hydraulically operated) Series / Size Interface DG3V-3, ISO 4401‑03 / CETOP 3 / NFPA D03 (NG6 / D03) Spool / Center / Return Spool type “2A”; spring‑offset end-to-end (spring return) configuration (center return when pilot removed) Maximum Operating Pressure (P, A, B ports) 350 bar (≈ 5000 psi) Tank Port (T) Rating 210 bar (≈ 3000 psi) Maximum Flow Rate Up to 38 L/min (≈ 10 US gpm) under nominal conditions Fluid / Oil Compatibility Petroleum‑based hydraulic oils Recommended Fluid Cleanliness 19/17/14 µm (or better) Seal Material Buna‑N (standard) Mounting / Installation Subplate / manifold mounted Temperature Range (ambient / fluid) –20 °C to +70 °C (–4 °F to +158 °F) Valve Stage Single‑stage hydraulic actuation Port / Interface Type ISO 4401‑03 subplate interface (standard bolt‑on)

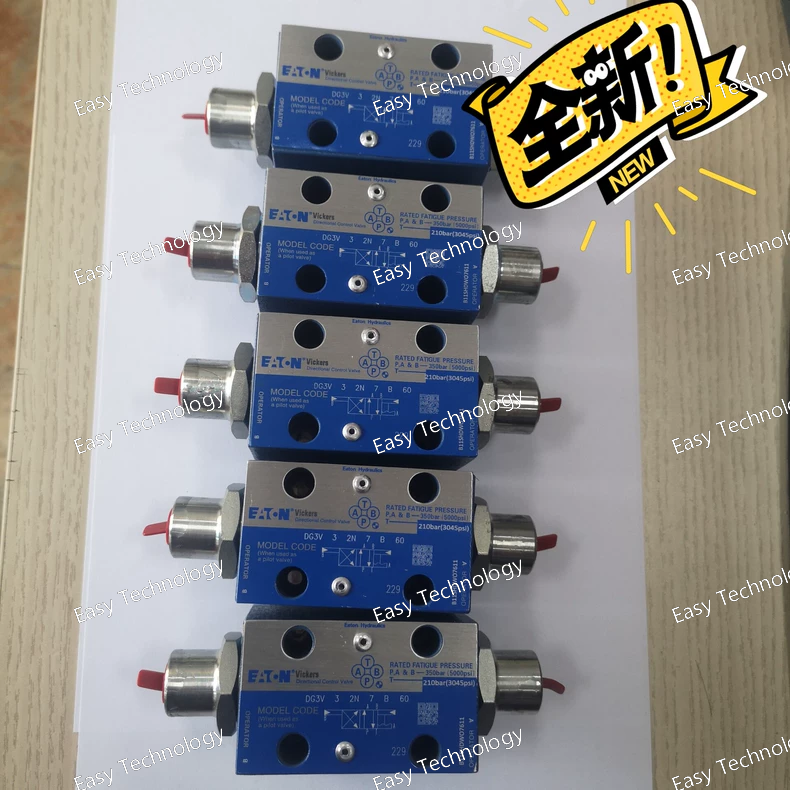

Parameter Description / Value Notes Product Line Eaton DG3V First Generation Directional Valve Porting Size 3 (NG03 / CETOP 3 / NFPA D01) Standard subplate interface Spool Type 2N A "B" type spool with negative overlap (underlap). This provides a small fixed pilot flow at center for stability and is common for industrial applications. Actuator Type 7B Single Solenoid with Spring Centered/Return and Mechanical Detent. • Position 1: Solenoid energized (spring return when de-energized). • Position 2: Spring-centered neutral. • Position 3: Mechanical detent (latched position, requires opposite solenoid signal to release). Maximum Operating Pressure 350 bar (5,075 psi) Maximum Flow Rate Approx. 19 L/min (5 US gpm) Dependent on spool and pressure drop. Voltage Not specified in base model Requires a separate solenoid coil (e.g., 24 VDC, 110 VAC) specified by a part number like 6034967-001. Solenoid Connector Not specified in base model Typically a DIN 43650 Form A connector when a coil is attached. Center Position Determined by Spool (e.g., 2N) The "2N" spool typically has a specific center configuration (often "Y" type, allowing the actuator to float). Weight Approx. 2.5 kg (5.5 lbs)

Parameter Description / Value Notes Product Line Eaton DGMC Directional Control Valve Motor Control Sections Porting Size 5 (NG05 / CETOP 5 / NFPA D02) Matches the size of the directional valve it is stacked with (e.g., DG4V-5). Relief Valve Type PT (Adjustable Cross-Line Relief) P for adjustable relief, T for the specific pressure range and design. Neutral Bypass Type GH A specific configuration for neutral bypass (freewheeling) and internal flow paths. Design Variant B-30 Specific design version, manufacturing, or adjustment range code. General Performance Data Maximum Operating Pressure 350 bar (5,075 psi) Adjustable Relief Pressure Range e.g., 40 - 250 bar (580 - 3625 psi) *This is a critical detail that must be confirmed from the technical datasheet for the exact -B-30 suffix.* Relief Valve Capacity Full pump flow Bypass Flow Capacity Full pump flow Mounting "Sandwiched" between directional valve and subplate

Parameter Description / Value Notes Product Line Eaton DG4V Second Generation Type Proportional Directional Control Valve 4-way, 3-position Porting Size NG03 (CETOP 3 / NFPA D01) Standard subplate interface Maximum Operating Pressure 350 bar (5,075 psi) Maximum Flow Rate Approx. 19 L/min (5 US gpm) *Dependent on spool and pressure drop (e.g., Δp = 10 bar).* Spool Type 2C (B-spool with critical center overlap) Industrial spool for precise actuator control. Center Position M (Closed Center / All Ports Blocked) In the center (neutral) position, all work ports (A, B) and the pressure port (P) are blocked, and the tank port (T) is open. This holds an actuator in place. Solenoid Type Proportional Solenoid Wet armature design Feedback Type Integrated LVDT The spool has a built-in LVDT for closed-loop position control. Electrical Connector U (DIN 43650 Form A, 4-pin) Standard industrial connector for valve power and feedback. Electronics Type H5 External amplifier required. The valve itself has no onboard control electronics. External Amplifier Input Signal Typically ±10 VDC or 4-20 mA Defined by the external amplifier model used (e.g., EEM-XXX-XXX). External Amplifier Supply Voltage Typically 24 VDC Defined by the external amplifier model. EN124 European Norm 124 This indicates the valve conforms to specific European standards, likely related to its solenoid connector, which is a EN 175301-803 Form C (3-pin) connector, commonly used in mobile equipment.

Parameter Description / Value Notes Product Line Eaton DG4V Second Generation Type Proportional Directional Control Valve 4-way, 3-position Porting Size NG03 (CETOP 3 / NFPA D01) Standard subplate interface Maximum Operating Pressure 350 bar (5,075 psi) Maximum Flow Rate Approx. 19 L/min (5 US gpm) *Dependent on spool and pressure drop (e.g., Δp = 10 bar).* Spool Type 2C (B-spool with critical center overlap) Provides a good compromise between low leakage and control resolution. Center Position M (Closed Center / All Ports Blocked) In the center (neutral) position, all work ports (A, B) and the pressure port (P) are blocked, and the tank port (T) is open. This holds an actuator in place. Solenoid Type Proportional Solenoid Wet armature design Electrical Connector U (DIN 43650 Form A, 4-pin) Standard industrial connector Integrated Electronics H7 On-board amplifier card for open-loop control Input Signal ±10 VDC or 4-20 mA Selectable via internal dip-switches Supply Voltage (to amplifier) 12-30 VDC For the H7 amplifier Coil Voltage Derived from internal amplifier Typically 12-24 VDC pulsed Hysteresis < 3% Typical for open-loop proportional valves Repeatability < 2% Typical for open-loop proportional valves IP Rating IP65 (with connector properly installed) Dust-tight and protected against water jets Hydraulic Fluid Mineral-based hydraulic oil to ISO 11158 Fluid Viscosity Range 10 to 400 cSt (50 to 2000 SUS) Operating Temperature Range -20°C to +70°C (-4°F to +158°F)
