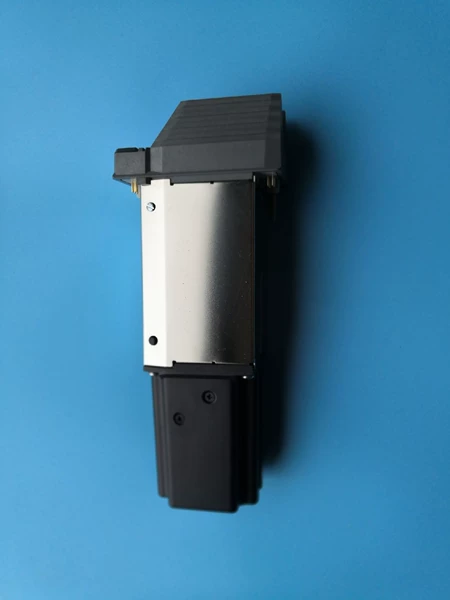

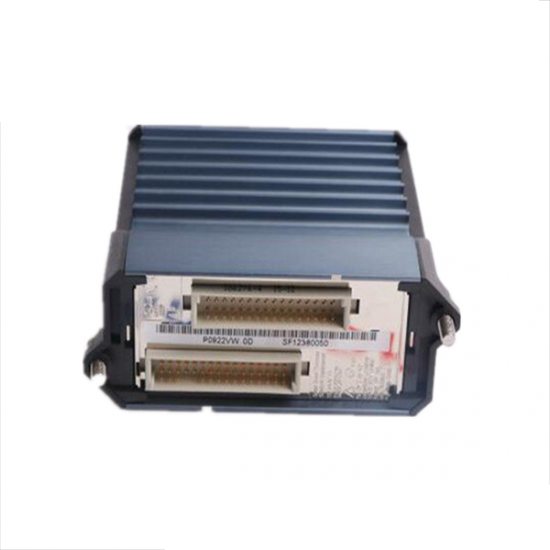

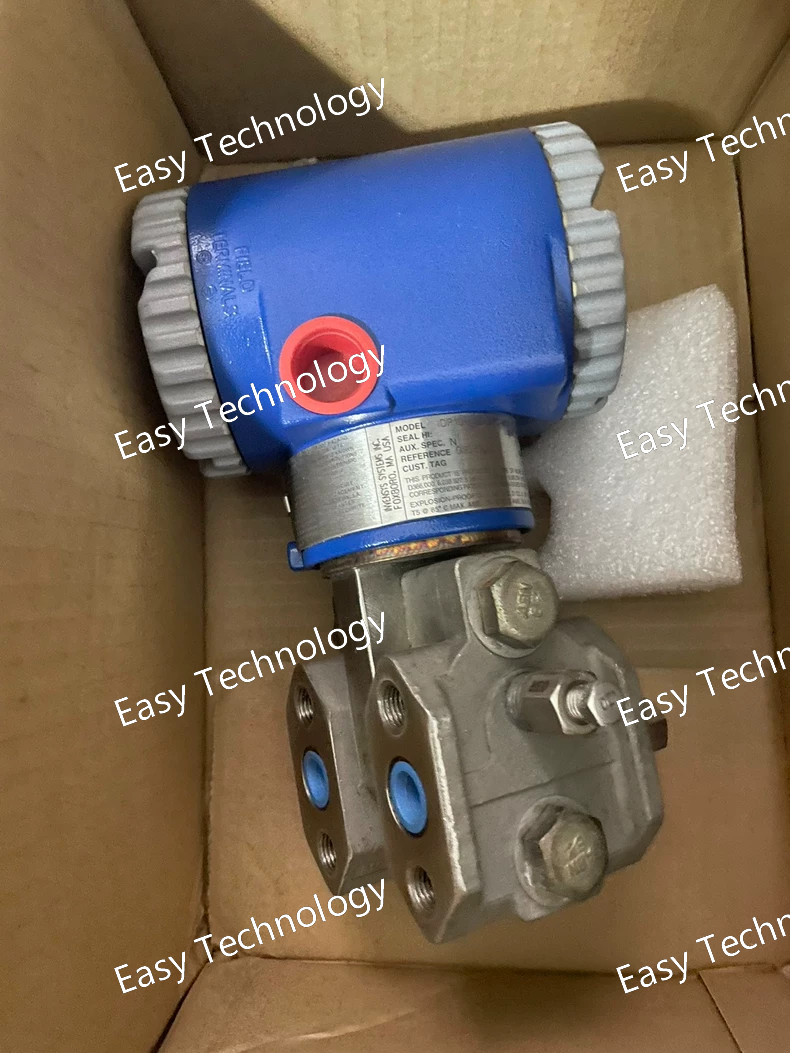

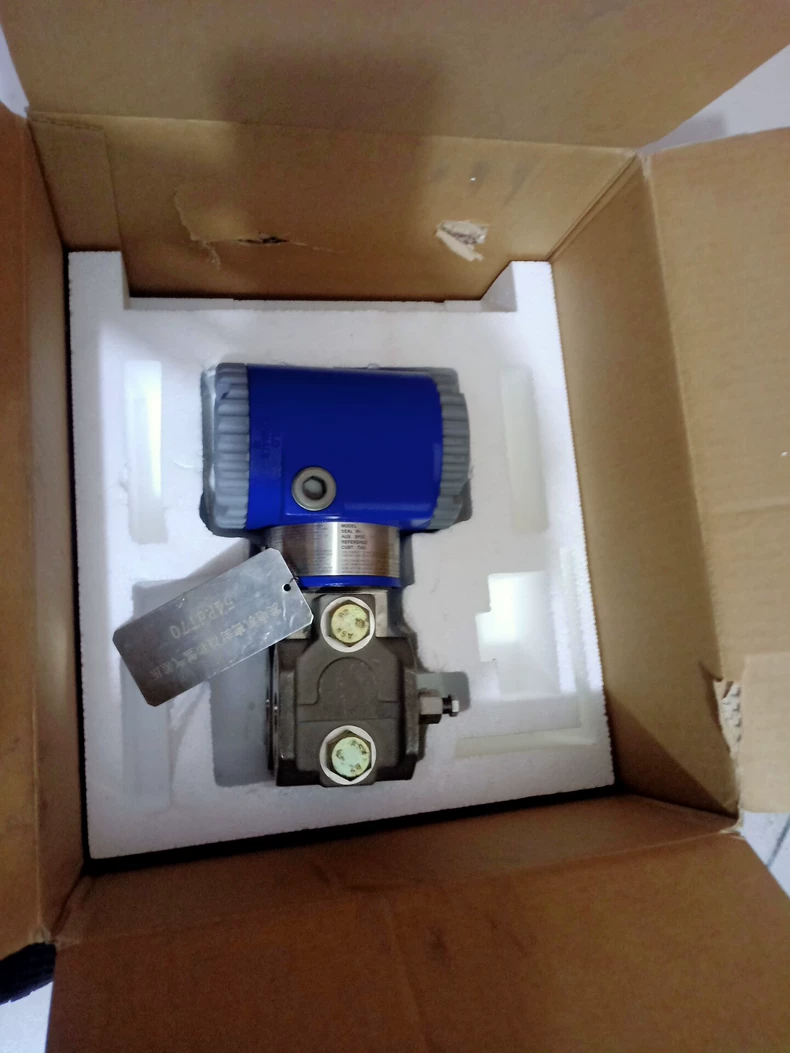

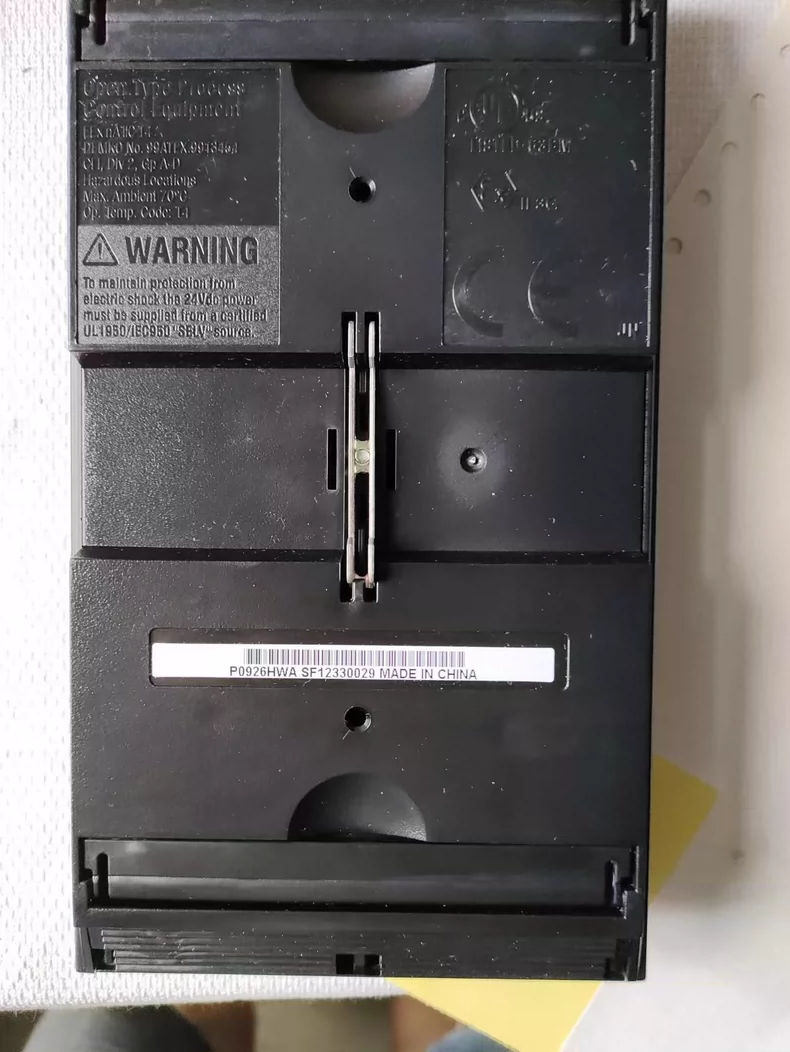

Model Number IDP10-A22821C-M1V Product Line Foxboro I/A Series® Module Type Single-Channel, Isolated Analog Input Conditioner General Description A microprocessor-based, isolated signal conditioning module for the I/A Series DCS. It provides a single channel of analog input signal conditioning with high isolation. Input Specifications Supported Input Signals • 4 to 20 mA DC (2-wire or 4-wire transmitter) • 0 to 20 mA DC • 0 to 10 V DC • Potentiometer (Ohms) Input Impedance • Current Inputs: 50 Ohms (nominal) • Voltage Inputs: > 1 MΩ Burnout Protection User-selectable via software: • Up-scale (e.g., 22 mA) • Down-scale (e.g., 3.8 mA) • Off Isolation Channel-to-Channel: Not applicable (single channel). Channel-to-System (Field-to-Logic): 1500 VAC RMS continuous. This is a key safety feature. Output Specifications Output to System A digital value representing the input signal, communicated over the FBI bus to the host controller. Resolution Typically 16-bit or higher, ensuring high measurement accuracy. Refresh Rate Dependent on the FBI bus cycle time and system configuration. Power Supply Operating Voltage Powered by the +5V and ±15V supplies from the PSS baseplate. Loop Power (for 2-wire transmitters) Typically 24 VDC nominal, with limited current capacity (e.g., ~30 mA). Environmental & Physical Operating Temperature -40°C to +70°C (-40°F to +158°F) Storage Temperature -40°C to +85°C Relative Humidity 0 to 95% (non-condensing) Mounting Installs into a dedicated Foxboro PSS series baseplate (e.g., PSS11, PSS21, PSS31). Status Indicators (LEDs) Typically includes LEDs for Power (PWR) and Fault (FLT) status. Standards & Compliance EMC Immunity Designed to meet industrial standards for immunity to Electrostatic Discharge (ESD), Radiated RF fields, and Electrical Fast Transients (EFT).

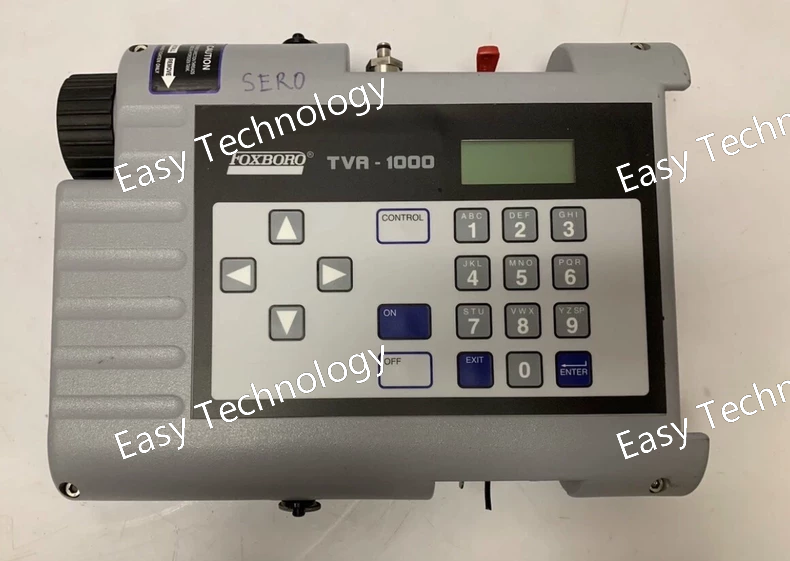

Detection Principle Photoionization Detection (PID) Measurement Range 0-1 ppm to 0-10,000 ppm (selectable ranges, e.g., 0-10/100/1000 ppm) UV Lamp Energy Standard 10.6 eV (other options: 11.7 eV) Accuracy ±2% of reading or ±1% of full scale (whichever is greater) Response Time (T90) Typically < 3 seconds Sample Method Diffusion or pumped (integrated sample pump) Output Signals - Analog: 4-20 mA DC, isolated - Alarms: 2+ SPDT relay outputs Power Supply 24 V DC (18-30 V DC range) Display Backlit LCD (concentration, status, alarms) Enclosure Rating IP66/IP67 (dust-tight, water-resistant) Operating Temperature -20°C to +50°C Calibration Field-configurable with standard calibration gases Safety Certifications ATEX, IECEx, FM (Zone 1/Division 1 hazardous areas)

Model Code B-FXSUN-XROHS P0915FU Input Signal Type: Frequency / Tachometer Waveform: Sine Wave or Square Wave Amplitude Range: 200 mV RMS to 60 V RMS (typical) Frequency Range: 0.5 Hz to 12,000 Hz (12 kHz) Output Signal Type: 4-20 mA DC, 2-wire Load: Maximum 600 Ω (at 24V DC supply) Characteristic: Linear with input frequency. Power Supply Voltage Range: 20-30 V DC Power Consumption: Typically < 5 W Isolation Rating: 1500 V AC (between Input, Output, and Power Supply) Accuracy Typical: ±0.1% of span Response Time Configurable: Typically adjustable from 50 ms to 5.0 seconds. Safety Certifications Intrinsic Safety: Certified for Class I, Division 1, Groups A, B, C, D; Zone 0 by agencies such as FM, CSA, ATEX, and IECEx. Environmental Compliance RoHS: Compliant with the Restriction of Hazardous Substances directive. Operating Temperature -20°C to +70°C Mounting Standard 35 mm DIN Rail

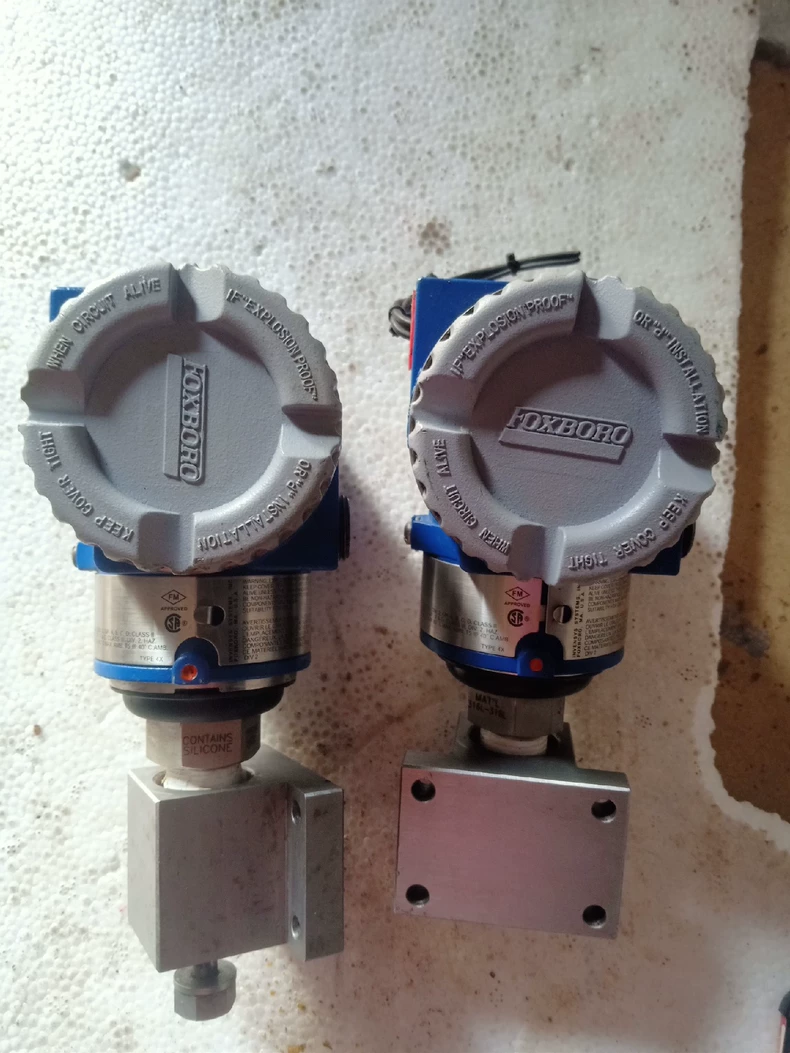

Model Foxboro P0971WV DNBT Type Pressure Transmitter (Gauge/Absolute) Measurement Range 0-3000 psi (e.g., "71" may indicate 0-3000 psi range) Output Signal 4-20 mA DC with HART® Protocol Accuracy ±0.065% of span (typical for 823 series) Power Supply 10.5-42 V DC (loop-powered) Process Connection 1/2" NPT Female or flanged Wetted Materials Diaphragm: 316L Stainless Steel or Hastelloy; Seals: Viton® or PTFE Housing Rating NEMA 4X (IP66) Ambient Temperature -40°C to +85°C (-40°F to +185°F) Process Temperature -40°C to +120°C (-40°F to +248°F) Protocol HART® 7 Adjustable Turndown Up to 100:1 Certifications ATEX, IECEx, SIL 2/3, DNBT (e.g., non-incendive or DIN rail) Mounting DIN rail or direct mounting (as per "DNBT" suffix)

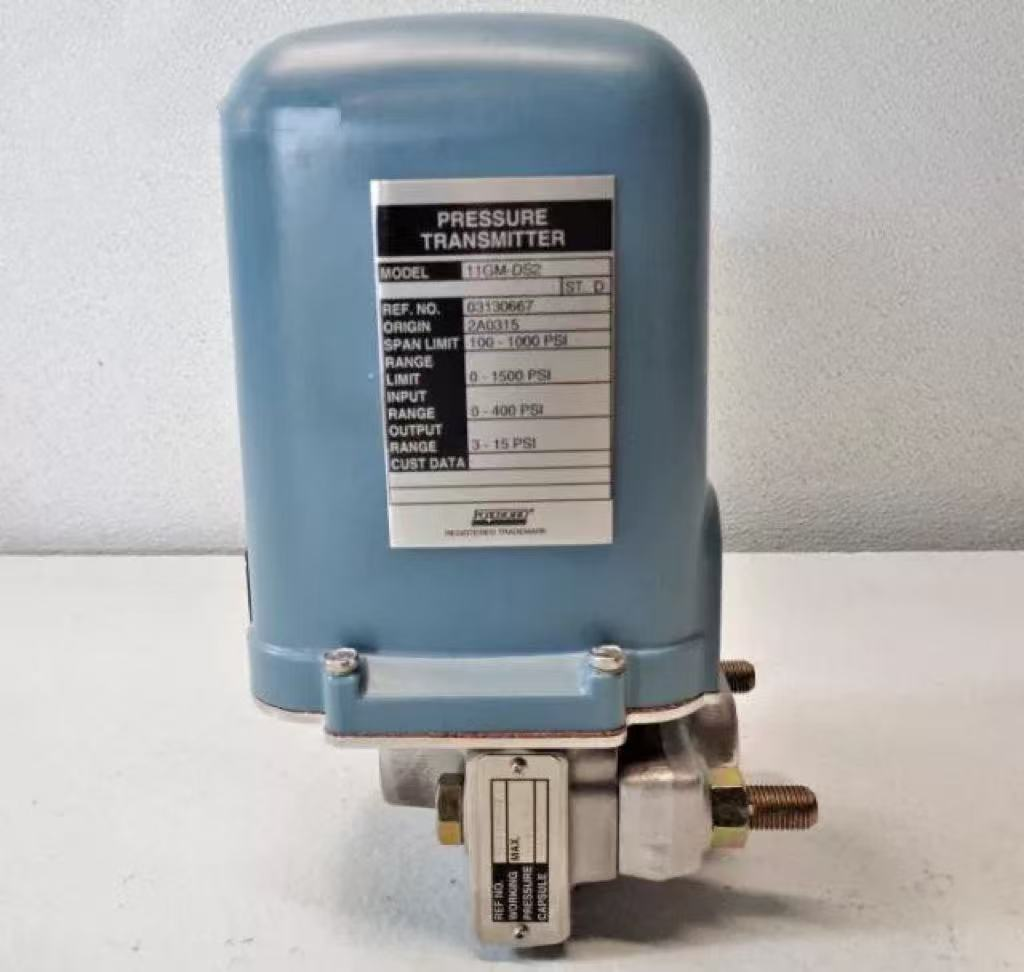

Model Foxboro P0916FL Type Gauge Pressure Transmitter Measurement Range 0-1000 psi (e.g., "16" may indicate 0-1000 psi range) Output Signal 4-20 mA DC with HART® Protocol Accuracy ±0.065% of span (typical for 823 series) Power Supply 10.5-42 V DC (loop-powered) Process Connection 1/2" NPT Female Wetted Materials Diaphragm: 316L Stainless Steel; Seals: Viton® (FKM) Housing Rating NEMA 4X (IP66) Ambient Temperature -40°C to +85°C (-40°F to +185°F) Process Temperature -40°C to +120°C (-40°F to +248°F) Protocol HART® 7 Adjustable Turndown Up to 100:1 Stability ±0.1% of URL per year Certifications ATEX, IECEx, SIL 2/3 (depending on configuration)

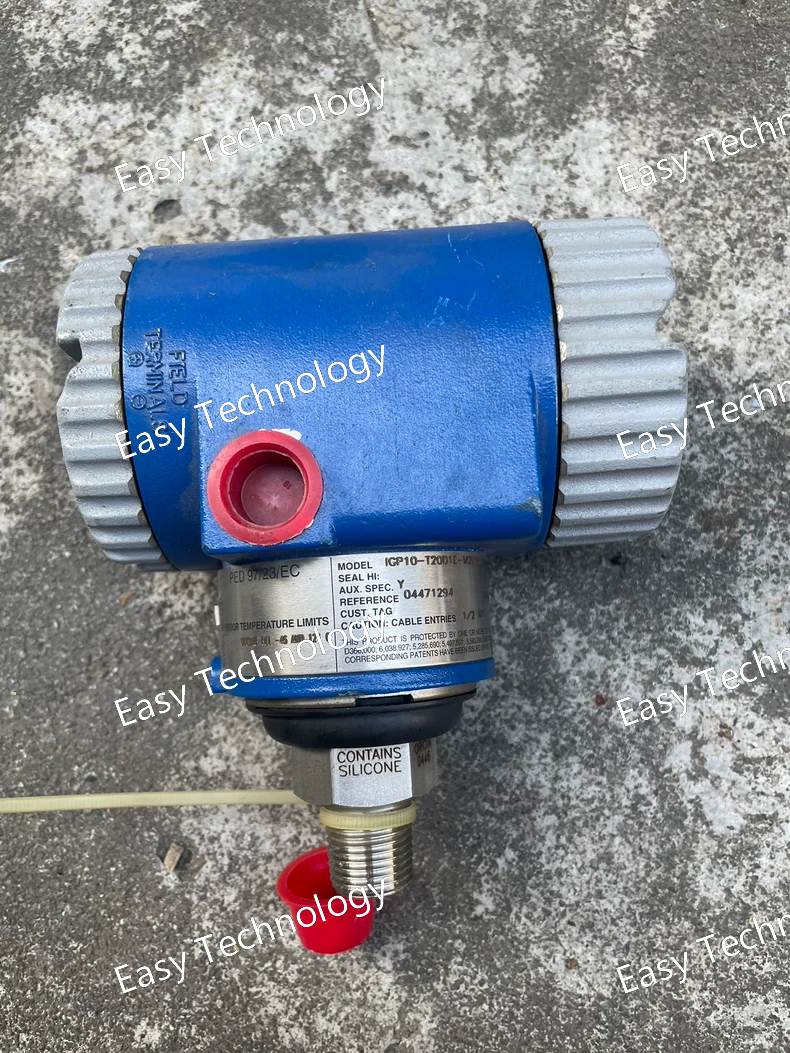

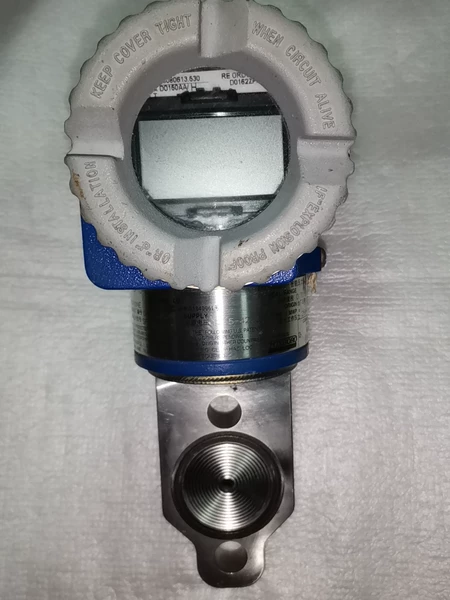

Model Foxboro ICP10-T2001E-M2L1A3T Type Pressure Transmitter (Gauge/Absolute) Measurement Range 0-200 psi (e.g., "T200" may indicate 0-200 psi range) Output Signal 4-20 mA DC with HART® Protocol Accuracy ±0.25% of span (typical for ICP10 series) Power Supply 12-42 V DC (loop-powered) Process Connection 1/2" NPT Female (standard) Wetted Materials 316L Stainless Steel diaphragm and body Housing Rating NEMA 4X (IP66) Ambient Temperature -40°C to +85°C (-40°F to +185°F) Process Temperature -40°C to +120°C (-40°F to +248°F) Protocol HART® 7 Adjustable Turndown Up to 10:1 Certifications CE, RoHS (may vary by region) Electrical Connection 1/2" NPT conduit (as indicated by suffix)

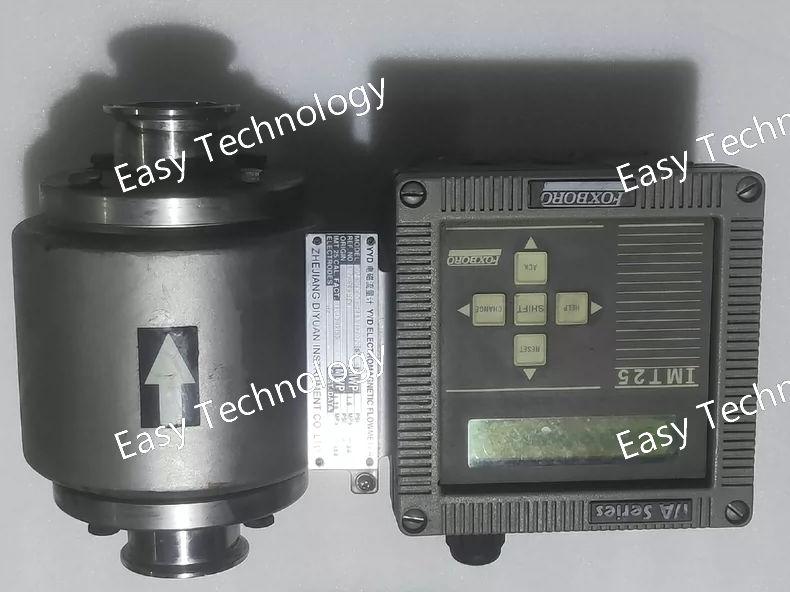

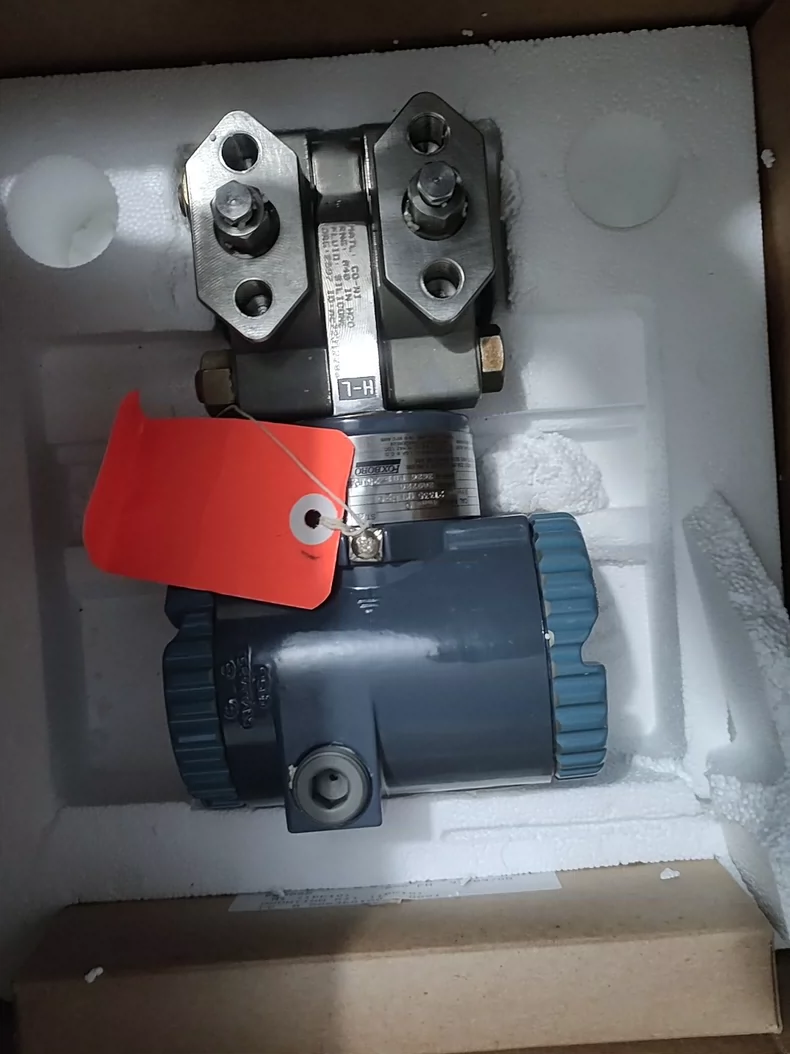

Model Foxboro IMT25-IEBTB10N-B Type Multi-Variable Pressure Transmitter (DP, Static Pressure, Temperature) Measurement Range Differential Pressure (DP): 0-10 inH₂O (e.g., "10N" indicates 10 inH₂O span) Static Pressure: Up to 3600 psi (dependent on model variant) Temperature: Integrated RTD or via external sensor Output Signal 4-20 mA DC with HART® or FOUNDATION™ Fieldbus digital protocol Accuracy DP: ±0.04% of span; Static Pressure: ±0.1% of URL; Flow: ±0.5% of rate (typical) Power Supply 10.5-42 V DC (loop-powered for HART); 9-32 V DC (Fieldbus) Process Connection 1/2" NPT or flanged (e.g., 1/4" NPT for HP/LP sides) Wetted Materials Hastelloy C-276 diaphragm and seals (standard for corrosive environments) Housing Rating NEMA 4X (IP66) Ambient Temperature -40°C to +85°C (-40°F to +185°F) Process Temperature -40°C to +120°C (-40°F to +248°F) Protocol HART® 7 or FOUNDATION™ Fieldbus Adjustable Turndown Up to 100:1 Certifications SIL 2/3, ATEX, IECEx, CE Special Features Integrated flow computation, diagnostics, temperature compensation

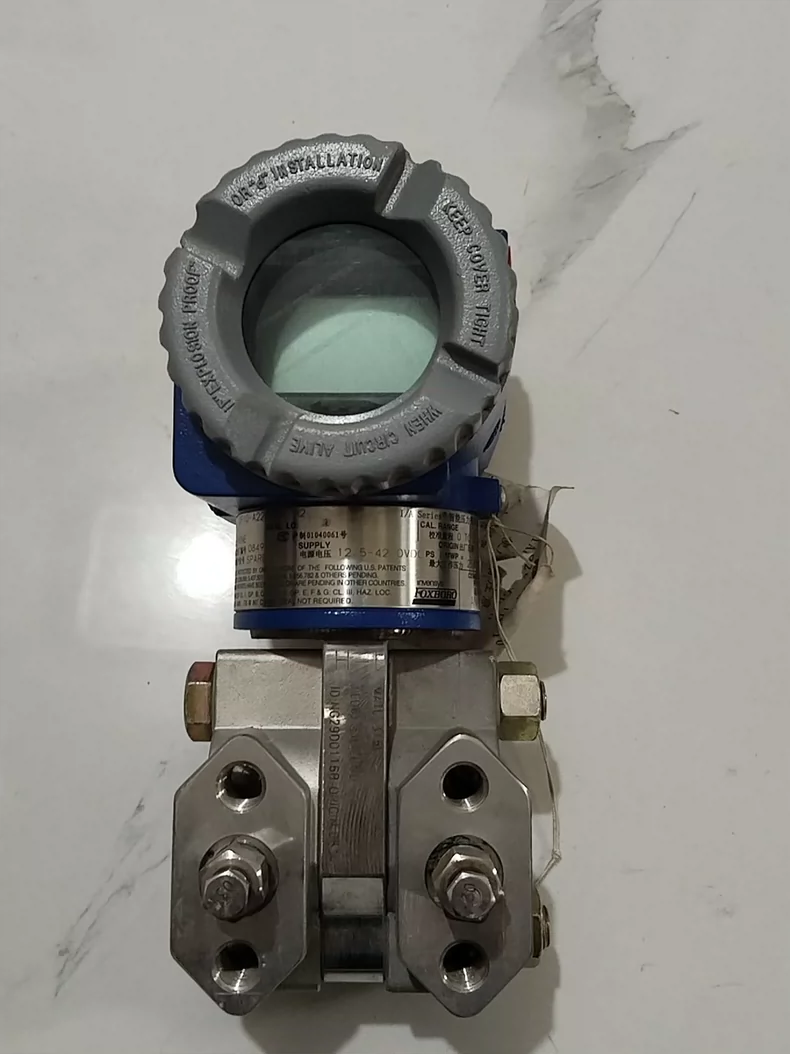

Model Foxboro IMT25-PEATB10N-B Type Multi-Variable Pressure Transmitter (DP, Static Pressure, Temperature) Measurement Range Differential Pressure (DP): 0-10 inH₂O (e.g., "10N" indicates 10 inH₂O span) Static Pressure: Up to 3600 psi (dependent on model variant) Temperature: Integrated RTD or via external sensor Output Signal 4-20 mA DC with HART® or FOUNDATION™ Fieldbus digital protocol Accuracy DP: ±0.04% of span; Static Pressure: ±0.1% of URL; Flow: ±0.5% of rate (typical) Power Supply 10.5-42 V DC (loop-powered for HART); 9-32 V DC (Fieldbus) Process Connection 1/2" NPT or flanged (e.g., 1/4" NPT for HP/LP sides) Wetted Materials Hastelloy C-276 diaphragm and seals (standard for corrosive environments) Housing Rating NEMA 4X (IP66) Ambient Temperature -40°C to +85°C (-40°F to +185°F) Process Temperature -40°C to +120°C (-40°F to +248°F) Protocol HART® 7 or FOUNDATION™ Fieldbus Adjustable Turndown Up to 100:1 Certifications SIL 2/3, ATEX, IECEx, CE Special Features Integrated flow computation, diagnostics, temperature compensation

Model Foxboro BY3R873RS-BTWFGZ Type Pressure Transmitter (e.g., Gauge/Absolute/Differential) Measurement Range Customized (e.g., 0-1000 psi or other; "BTW" may indicate range code) Output Signal 4-20 mA DC with HART® Protocol Accuracy ±0.065% to ±0.1% of span (typical for 873 series) Power Supply 10.5-42 V DC (loop-powered) Process Connection 1/2" NPT or flanged (material: stainless steel or alloy) Wetted Materials Likely 316L Stainless Steel or Hastelloy (e.g., "FGZ" may specify materials) Housing Rating NEMA 4X (IP66) Ambient Temperature -40°C to +85°C (-40°F to +185°F) Process Temperature -40°C to +120°C (-40°F to +248°F) Protocol HART® 7 Certifications ATEX, IECEx, SIL 2/3 (depending on configuration) Calibration Factory calibrated to customer specifications

Model Foxboro HHT-AAEFNB Style-B Type Handheld Terminal (HHT) / Configurator Compatibility Foxboro field instruments (e.g., pressure/flow transmitters) Communication Protocols HART® (primary), potentially FOUNDATION™ Fieldbus or other protocols Display LCD screen (likely backlit for low-light environments) Keypad Sealed, ruggedized keys for use in harsh conditions Power Supply Rechargeable battery (e.g., Li-ion or NiMH) with AC adapter Battery Life 8-12 hours (typical per charge) Connectivity Electrical connections: 4-20 mA loop integration via test leads or connectors Operating Temperature -10°C to 50°C (14°F to 122°F) (field-use range) Enclosure Rating IP54 or higher (dust and water resistant) Software Features Device configuration, calibration, diagnostics, loop tests, data logging Certifications ATEX, IECEx (if rated for hazardous areas) Dimensions & Weight Compact and lightweight for portability (e.g., ~200-300g)
