Technical Parameters Parameter Category Specification / Value Brand Eaton Product Series PF1M Product Model PF1M-25/2/003 Product Type Type 1 + Type 2 Combined SPD Rated Voltage (Uc) 230/400 V AC Nominal System Voltage 230 V AC (Single-Phase + N) Protection Mode 1-Pole + Neutral (1P+N) (L-PE, N-PE) Lightning Impulse Current (Iimp - 10/350 µs) 12.5 kA per pole Max. Discharge Current (Imax - 8/20 µs) 25 kA per pole Voltage Protection Level (Up) ≤ 2.0 kV Response Time < 100 ns Backup Overcurrent Protection Required (specific rating per local regulations and installation manual) Status Indication Visual Indicator (Green: OK; Red: End-of-Life) Remote Signalling Contact 1 Changeover Contact (SPDT) Special Feature Thermal Disconnector Mounting Mounting Plate (for panel mounting) Connection Screw Terminal Approvals / Certifications CE, IEC 61643-11

Technical Parameters Parameter Category Specification / Value Brand Eaton Product Series PLD9 Product Model PLD9-32/1N/C/003 Product Type Type 2 / Class II Surge Protective Device (SPD) Rated Voltage (Uc) 230/400 V AC Nominal System Voltage 230 V AC (Single-Phase + N) Protection Mode 1-Pole + Neutral (1P+N) (L-PE, N-PE) Max. Discharge Current (Imax - 8/20 µs) 32 kA per mode Nominal Discharge Current (In - 8/20 µs) 15 kA Voltage Protection Level (Up) ≤ 1.5 kV Response Time < 25 ns Backup Overcurrent Protection (Recommended) 25 A gG/gL (or per local regulations) Status Indication Visual Indicator (Green: OK; Red: End-of-Life) Remote Signalling Contact 1 Changeover Contact (SPDT) Mounting 35 mm DIN Rail (EN 60715) Connection Screw Terminal Approvals / Certifications CE, IEC 61643-11

Technical Parameters Parameter Category Specification / Value Brand Eaton Product Series PLD9X Product Model PLD9X-10/1N/C/03-A Product Type Type 2 / Class II Surge Protective Device (SPD) Rated Voltage (Uc) 230/400 V AC Nominal System Voltage 230 V AC (Single-Phase + N) Protection Mode 1-Pole + Neutral (1P+N) (L-PE, N-PE) Max. Discharge Current (Imax - 8/20 µs) 10 kA per mode Nominal Discharge Current (In - 8/20 µs) 5 kA Voltage Protection Level (Up) ≤ 1.5 kV Response Time < 25 ns Backup Overcurrent Protection (Recommended) 16 A gG/gL (or per local regulations) Status Indication Visual Indicator (Green: OK; Red: End-of-Life) Remote Signalling Contact 1 Changeover Contact (SPDT) Mounting 35 mm DIN Rail (EN 60715) Connection Screw Terminal Approvals / Certifications CE, IEC 61643-11

Technical Parameters Parameter Category Specification / Value Brand Eaton Product Series PLD9 Product Model PLD9-25/1N/C/003 Product Type Type 2 / Class II Surge Protective Device (SPD) Rated Voltage (Uc) 230/400 V AC Nominal System Voltage 230 V AC (Single-Phase + N) Protection Mode 1-Pole + Neutral (1P+N) (L-PE, N-PE) Max. Discharge Current (Imax - 8/20 µs) 25 kA per mode Nominal Discharge Current (In - 8/20 µs) 12.5 kA Voltage Protection Level (Up) ≤ 1.5 kV Response Time < 25 ns Backup Overcurrent Protection (Recommended) 20 A gG/gL (or per local regulations) Status Indication Visual Indicator (Green: OK; Red: End-of-Life) Remote Signalling Contact 1 Changeover Contact (SPDT) Mounting 35 mm DIN Rail (EN 60715) Connection Screw Terminal Approvals / Certifications CE, IEC 61643-11

Technical Parameters Parameter Category Specification / Value Brand Eaton Product Series PFL10 Product Model PFL10-10/1N/C/003 Product Type Type 2 / Class II Surge Protective Device (SPD) Rated Voltage (Uc) 230/400 V AC Nominal System Voltage 230 V AC (Single-Phase + N) Protection Mode 1-Pole + Neutral (1P+N) (L-PE, N-PE) Max. Discharge Current (Imax - 8/20 µs) 10 kA per mode Nominal Discharge Current (In - 8/20 µs) 5 kA Voltage Protection Level (Up) ≤ 1.5 kV Response Time < 25 ns Backup Overcurrent Protection (Recommended) 16 A gG/gL (or per local regulations) Status Indication Visual Indicator (Green: OK; Red: End-of-Life) Remote Signalling Contact 1 Changeover Contact (SPDT) Mounting 35 mm DIN Rail (EN 60715) Connection Screw Terminal Approvals / Certifications CE, IEC 61643-11

Technical Parameters Parameter Category Specification / Value Brand Eaton Product Series PFL9 Product Model PFL9-16/1N/C/003 Product Type Type 2 / Class II Surge Protective Device (SPD) Rated Voltage (Uc) 230/400 V AC Nominal System Voltage 230 V AC (Single-Phase + N) Protection Mode 1-Pole + Neutral (1P+N) (L-PE, N-PE) Max. Discharge Current (Imax - 8/20 µs) 16 kA per mode Nominal Discharge Current (In - 8/20 µs) 8 kA Voltage Protection Level (Up) ≤ 1.5 kV Response Time < 25 ns Backup Overcurrent Protection (Recommended) 16 A gG/gL (or per local regulations) Status Indication Visual Indicator (Green: OK; Red: End-of-Life) Remote Signalling Contact 1 Changeover Contact (SPDT) Mounting 35 mm DIN Rail (EN 60715) Connection Screw Terminal Approvals / Certifications CE, IEC 61643-11

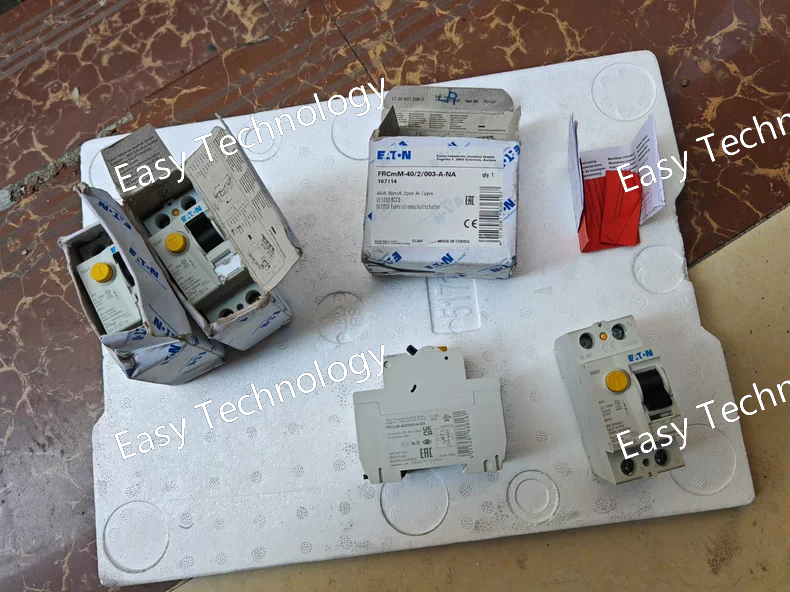

Technical Parameters Parameter Category Specification / Value Brand Eaton Product Series FRCMM Product Model FRCMM-40/2/003-A-NA Product Type Type 1 + Type 2 Combined SPD Rated Voltage (Uc) 230/400 V AC Nominal System Voltage 230 V AC (Single-Phase + N) Protection Mode 1-Pole + Neutral (1P+N) (L-PE, N-PE) Lightning Impulse Current (Iimp - 10/350 µs) 20 kA per pole Max. Discharge Current (Imax - 8/20 µs) 40 kA per pole Voltage Protection Level (Up) ≤ 2.0 kV Response Time < 100 ns Backup Overcurrent Protection Required (per local regulations) Status Indication Visual Indicator Remote Signalling Contact 1 Changeover Contact (SPDT) Special Feature Thermal Disconnector Mounting Mounting Plate Connection Screw Terminal Approvals / Certifications UL 1449 4th Edition, IEC 61643-11

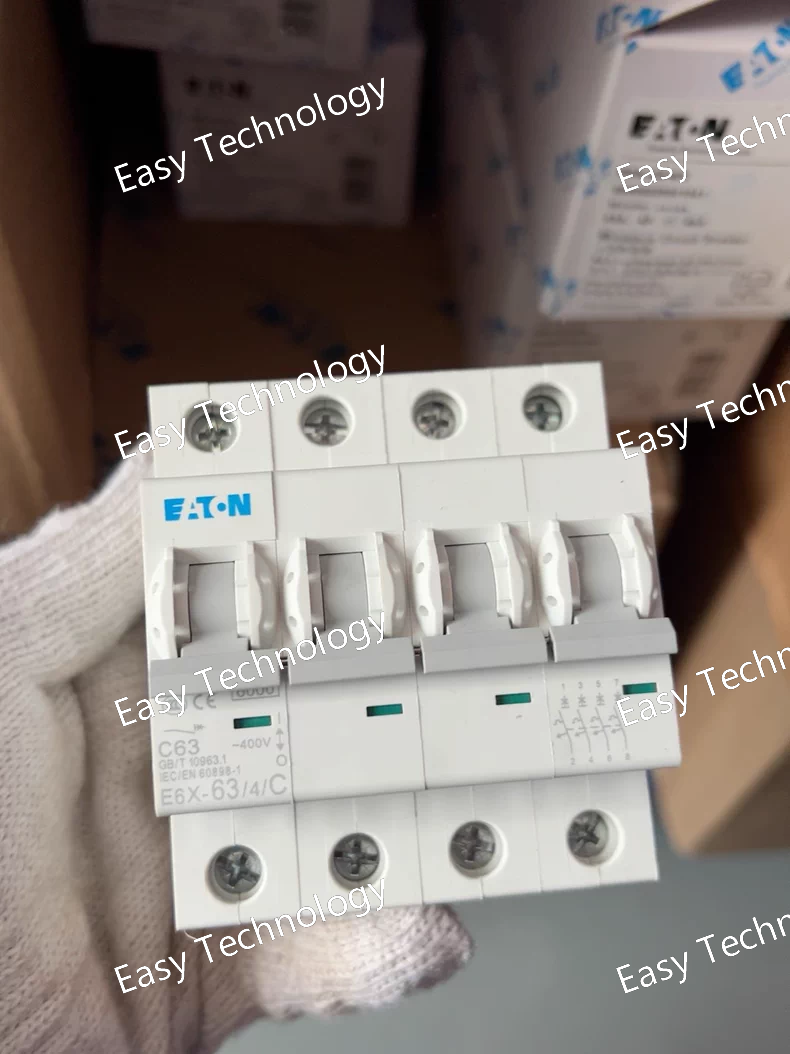

Technical Parameters Parameter Category Specification / Value Brand Eaton Product Series E6X Product Model E6X-63/4/C Product Type Type 2 / Class II Surge Protective Device (SPD) Rated Voltage (Uc) 230/400 V AC Nominal System Voltage 400 V AC (Three-Phase + N) Protection Mode 3-Poles + Neutral (3P+N) (L1-PE, L2-PE, L3-PE, N-PE) Max. Discharge Current (Imax - 8/20 µs) 63 kA per pole Nominal Discharge Current (In - 8/20 µs) 30 kA Voltage Protection Level (Up) ≤ 2.0 kV Response Time < 25 ns Backup Overcurrent Protection Required (specific rating per local regulations and installation manual) Status Indication Visual Indicator (Green: OK; Red: End-of-Life) Remote Signalling Contact Not Available Special Feature Thermal Disconnector Mounting DIN Rail Mounting (35 mm) Connection Screw Terminal Approvals / Certifications CE, IEC 61643-11

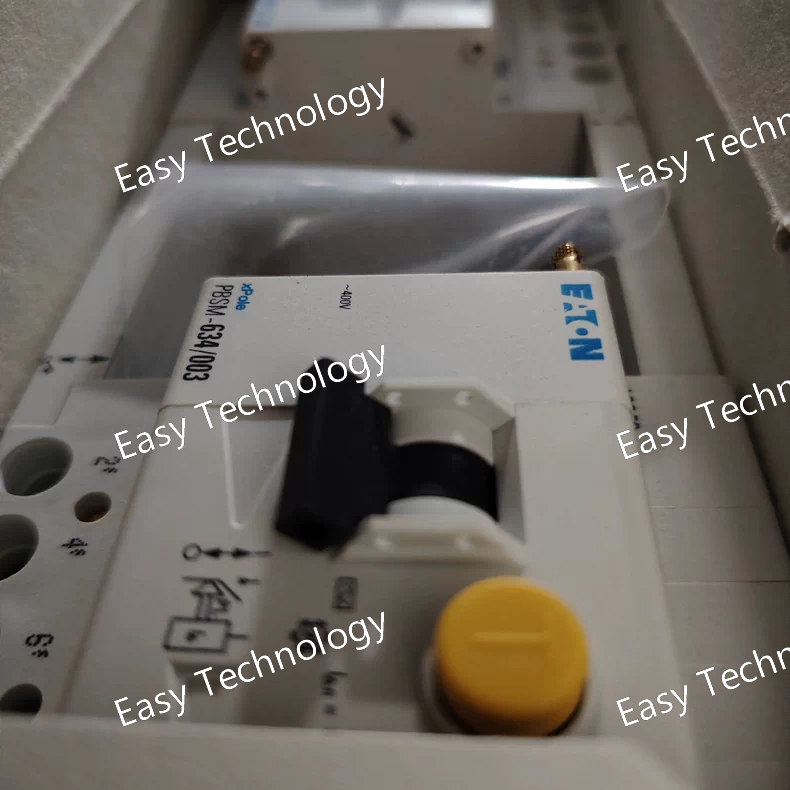

Technical Parameters Parameter Category Specification / Value Brand Eaton Product Series PBSM Product Model PBSM-634/003-CN Product Type Type 2 / Class II Surge Protective Device (SPD) Rated Voltage (Uc) 230/400 V AC Nominal System Voltage 400 V AC (Three-Phase + N) Protection Mode 3-Poles + Neutral (3P+N) (L1-PE, L2-PE, L3-PE, N-PE) Max. Discharge Current (Imax - 8/20 µs) 34 kA per pole Nominal Discharge Current (In - 8/20 µs) 17 kA Voltage Protection Level (Up) ≤ 2.0 kV Response Time < 25 ns Backup Overcurrent Protection Required (specific rating per local regulations and installation manual) Status Indication Visual Indicator (Green: OK; Red: End-of-Life) Remote Signalling Contact 1 Changeover Contact (SPDT) Special Feature Thermal Disconnector Mounting DIN Rail Mounting (35 mm) Connection Screw Terminal Approvals / Certifications CE, IEC 61643-11, CCC

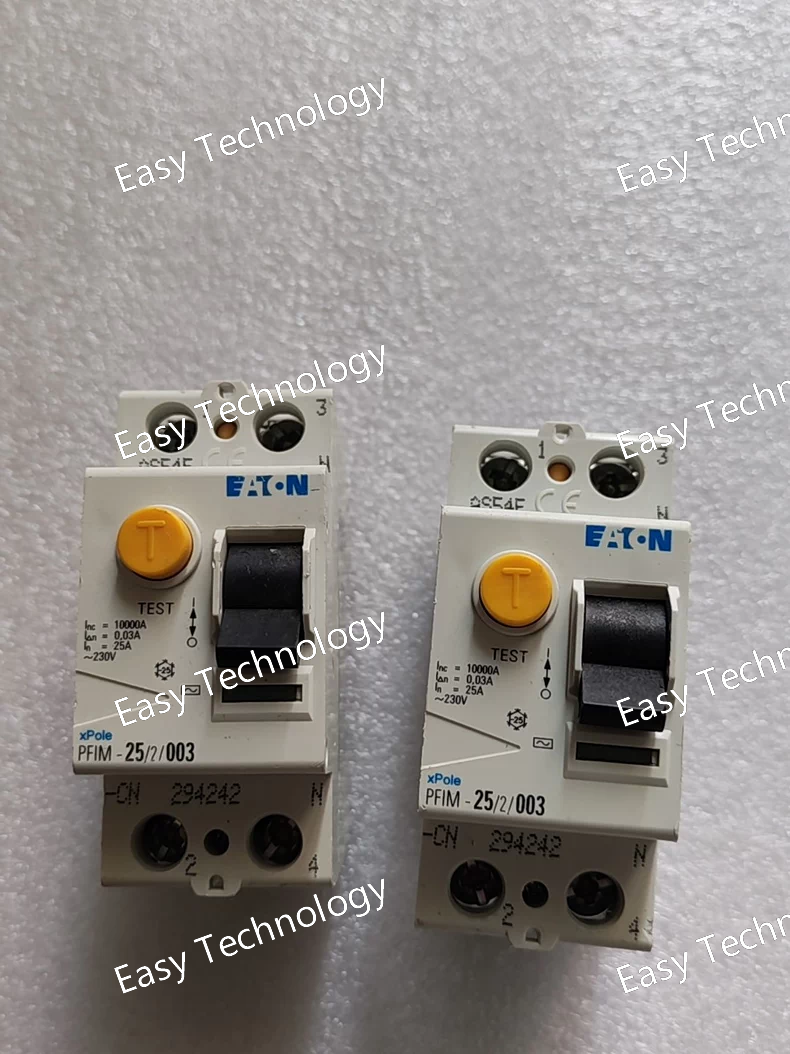

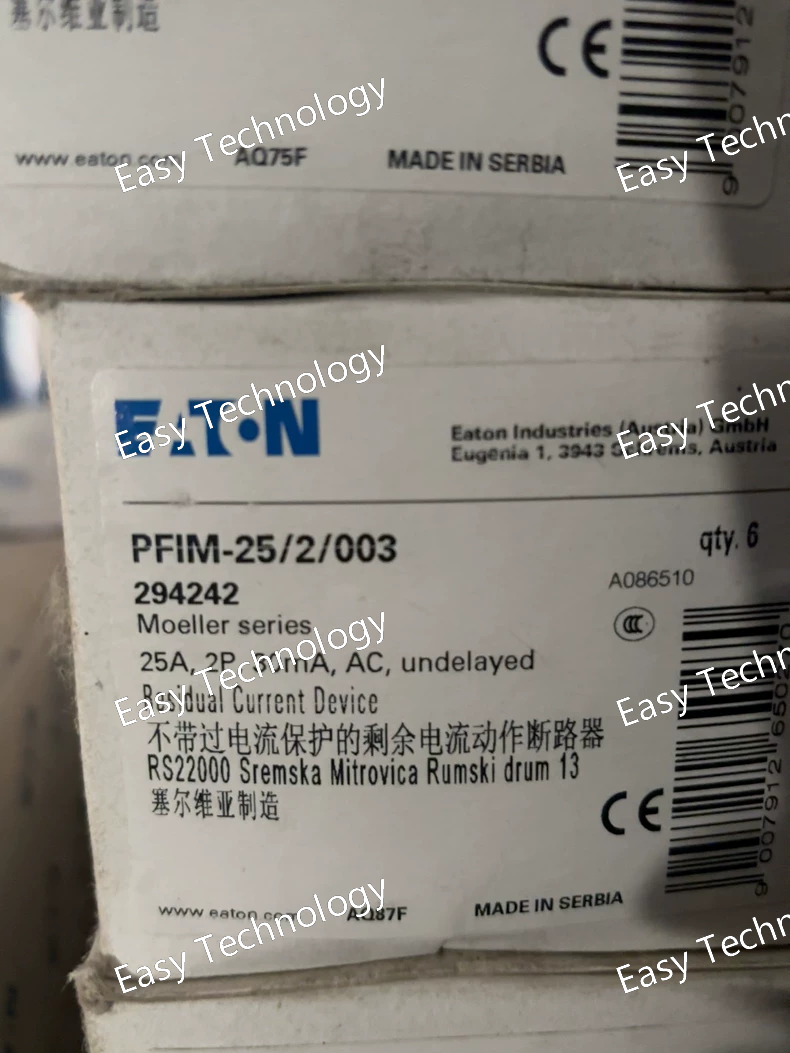

Technical Parameters Parameter Category Specification / Value Brand Eaton Product Series PFIM Product Model PFIM-25/2/003 Product Type Type 1 + Type 2 Combined SPD Rated Voltage (Uc) 230/400 V AC Nominal System Voltage 230 V AC (Single-Phase + N) Protection Mode 1-Pole + Neutral (1P+N) (L-PE, N-PE) Lightning Impulse Current (Iimp - 10/350 µs) 12.5 kA per pole Max. Discharge Current (Imax - 8/20 µs) 25 kA per pole Voltage Protection Level (Up) ≤ 2.0 kV Response Time < 100 ns Backup Overcurrent Protection Required (specific rating per local regulations and installation manual) Status Indication Visual Indicator (Green: OK; Red: End-of-Life) Remote Signalling Contact 1 Changeover Contact (SPDT) Special Feature Thermal Disconnector Mounting Mounting Plate (for panel mounting) Connection Screw Terminal Approvals / Certifications CE, IEC 61643-11
