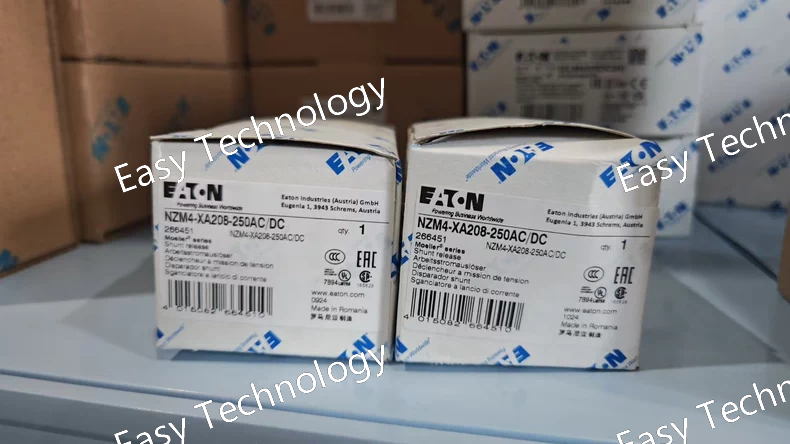

Technical Data Parameter Specification Product Type Shunt Release (MX - Opening Coil) Compatible Series NZM4 Molded Case Circuit Breakers Rated Control Supply Voltage (Us) 208 - 250 V AC/DC Power Consumption Approx. 150 VA / 100 W (at 230V AC/DC) Typical value, confirm with datasheet Function Electrically trips the circuit breaker when the control voltage is applied. Duty Cycle Intermittent (Short-time). The coil must not be continuously energized. Mounting Factory-installed or field-mounted on compatible NZM4 breakers. Connection Screw terminals for control wiring. Standards IEC 60947-1, IEC 60947-2

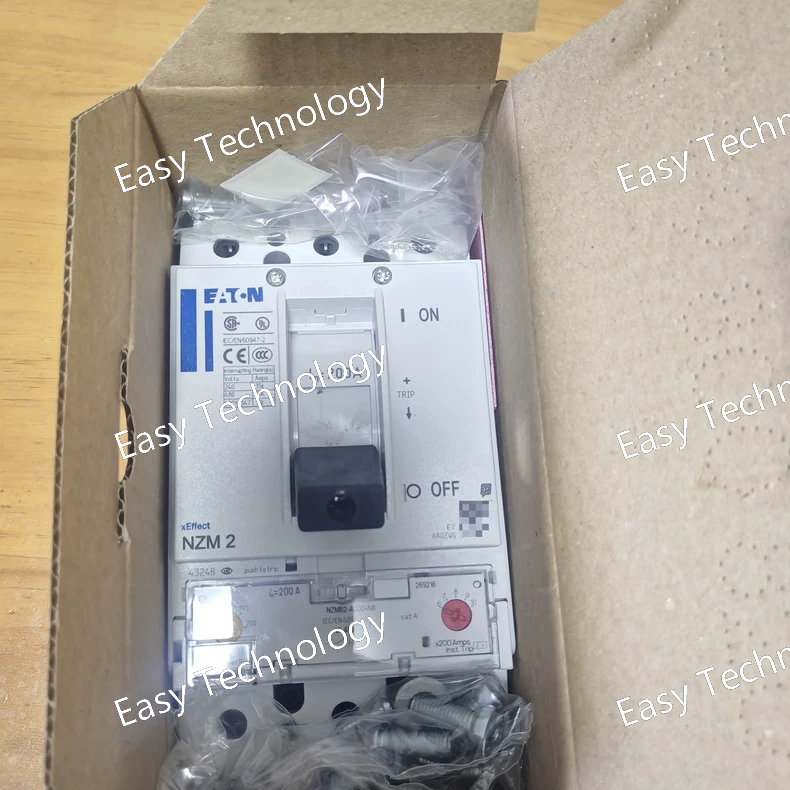

Technical Data Parameter Specification Product Type Auxiliary Contact Block (Accessory) Compatible Series NZM2 Molded Case Circuit Breakers Contact Configuration 2 NO (Two Normally Open contacts) Rated Operational Voltage (Ue) Up to 415 V AC / 125 V DC Rated Thermal Current (Ith) 10 A Utilization Category AC-15: Control of AC electromagnetic loads (e.g., contactor coils). DC-13: Control of DC electromagnetic loads. Mechanical Life Aligns with the breaker's mechanical life (typically 10,000+ operations) Electrical Life > 100,000 operations (at rated load) Connection Screw clamp terminals Mounting Snap-on mounting to the side of the NZM2 breaker.

Technical Data Parameter Specification Product Type Fixed Mounting Kit / Base Frame Compatible Series NZM4 Molded Case Circuit Breakers Compatible Breaker Frame Size 800 A (AF - Ampere Frame) Mounting Style Fixed Mounting Function Provides a secure mechanical mounting and electrical connection point for a fixed-mounted NZM4-VE800 circuit breaker. Connection Designed for busbar or cable connection to the breaker's terminals. Material Typically constructed from robust, insulated material.

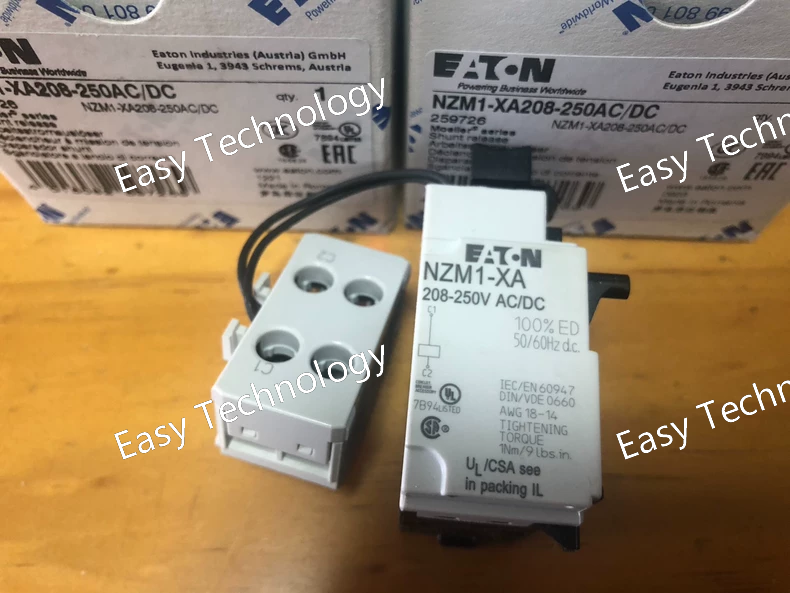

Technical Data Parameter Specification Product Type Shunt Release (MX - Opening Coil) Compatible Series NZM1 Molded Case Circuit Breakers Rated Control Supply Voltage (Us) 208 - 250 V AC/DC Power Consumption Approx. 70 VA / 45 W (at 230V AC/DC) Typical value, confirm with datasheet Function Electrically trips the circuit breaker when the control voltage is applied. Duty Cycle Intermittent (Short-time). The coil must not be continuously energized. Mounting Factory-installed or field-mounted on the side of compatible NZM1 breakers. Connection Screw terminals for control wiring. Standards IEC 60947-1, IEC 60947-2

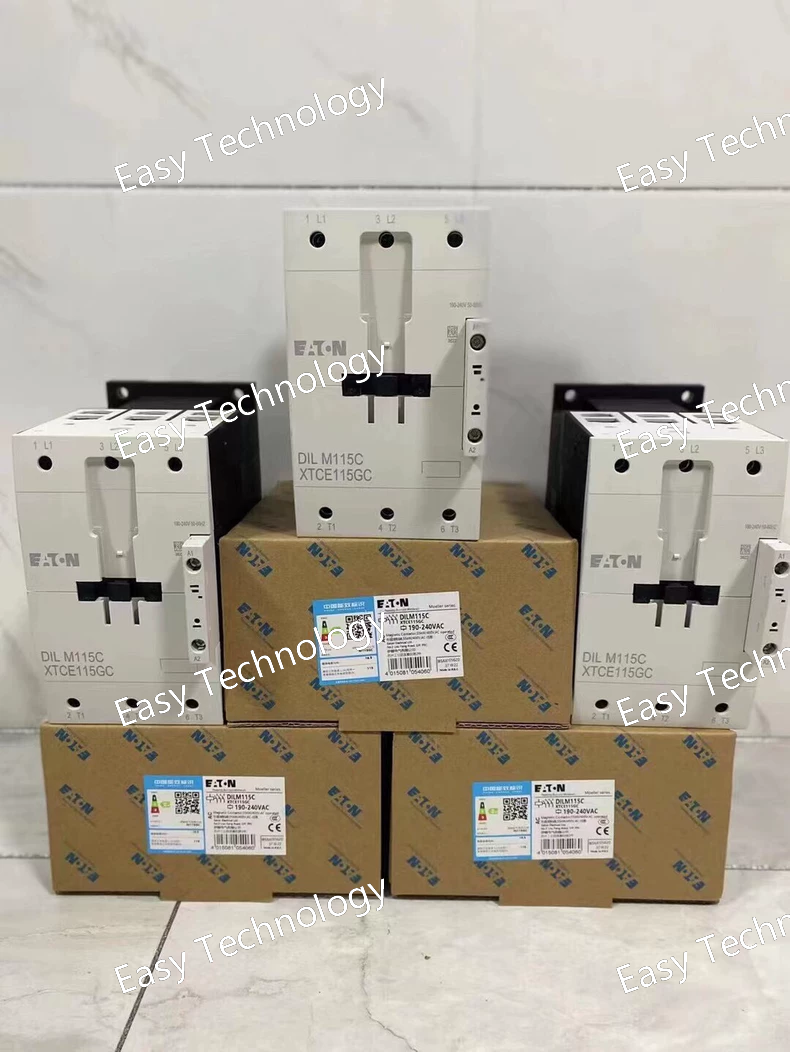

Technical Data Parameter Specification Product Series DILM (Line Contactors) Product Type AC Power Contactor Rated Operational Current (Ie) 250 A at AC-1, 400V Rated Operational Voltage (Ue) Up to 690 V AC Control Coil Voltage 220-240 V AC, 50/60 Hz Power Consumption Approx. 110 VA (Pick-up) / 18 VA (Holding) Typical values, confirm with datasheet Poles 4 Poles (3 main poles + 1 S-pole) Auxiliary Contacts Integrated: 2 NO + 2 NC (as specified by /22) Rated Power 132 kW (175 HP) at 400V, AC-3 duty (for 3-pole motor switching) Utilization Category AC-1: Non-inductive or slightly inductive loads. AC-3: Squirrel-cage motors: Starting, switching off during running. Electrical Life > 1.0 million operations (AC-3) Mechanical Life > 10 million operations Terminal Connection Screw clamp Mounting Fixed Mounting (typically via base plate) Standards IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14

Technical Data Parameter Specification Product Series DILM (Line Contactors) Product Type Reversing Contactor (Two interlocked contactors) Rated Operational Power 11 kW (15 HP) at 400V, AC-3 duty Rated Operational Current (Ie) 25 A at AC-3, 400V Rated Operational Voltage (Ue) Up to 690 V AC Control Coil Voltage 24 V DC Power Consumption Approx. 8 W (Holding) Typical value, confirm with datasheet Main Poles 2 x 3 Poles (Normally Open) Auxiliary Contacts Integrated interlocking contacts (typically 1 NO + 1 NC per side) for the control circuit. Interlocking Electrical and mechanical interlocking to prevent simultaneous closure of both contactors. Utilization Category AC-3: For squirrel-cage motors: Starting, switching off during running. Electrical Life > 1.5 million operations (AC-3) Mechanical Life > 10 million operations Mounting DIN Rail (35 mm) Standards IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14

Technical Data Parameter Specification Product Series DILM (Line Contactors) Product Type Reversing Contactor (Two interlocked contactors) Rated Operational Power 7.5 kW (10 HP) at 400V, AC-3 duty Rated Operational Current (Ie) 16 A at AC-3, 400V Rated Operational Voltage (Ue) Up to 690 V AC Control Coil Voltage 24 V DC Power Consumption Approx. 8 W (Holding) Typical value, confirm with datasheet Main Poles 2 x 3 Poles (Normally Open) Auxiliary Contacts Integrated interlocking contacts (typically 1 NO + 1 NC per side) for the control circuit. Interlocking Electrical and mechanical interlocking to prevent simultaneous closure of both contactors. Utilization Category AC-3: For squirrel-cage motors: Starting, switching off during running. Electrical Life > 1.5 million operations (AC-3) Mechanical Life > 10 million operations Mounting DIN Rail (35 mm) Standards IEC/EN 60947-4-1, UL 508, CSA C22.2 No. 14

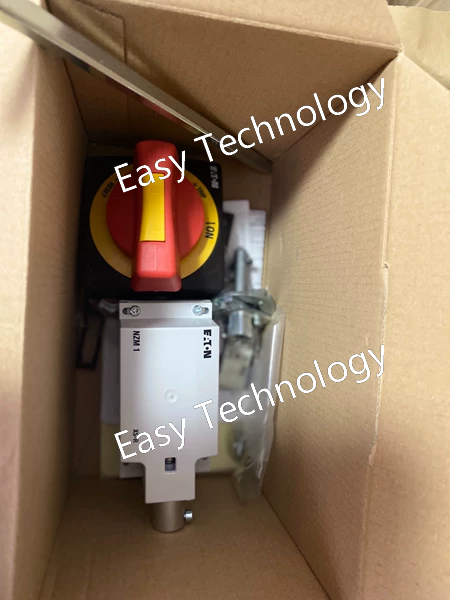

Technical Data Parameter Specification Product Series NZM1 (Molded Case Circuit Breaker) Product Type Electronic Trip Molded Case Circuit Breaker Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V Rated Current (In) Determined by the X-Series Rating Plug. The specific current rating is set by installing the appropriate plug (e.g., NZM1/2-XV100 for 100A). The range is defined by the breaker's frame size. Poles 3 Poles (Standard for this model) Mounting Style Fixed Mounting Trip Unit Type Electronic Trip Unit (Communication-ready) Protection Functions LSIG • L - Long-time Delay (Overload) • S - Short-time Delay (Short-circuit) • I - Instantaneous (Short-circuit) • G - Ground-fault Rated Ultimate Breaking Capacity (Icu) The exact value depends on the specific NZM1 frame size and voltage. (e.g., For an NZM1 frame size P, it could be 36kA at 415V AC). Communication Capability Ready for communication. Requires a separate communication adapter module (e.g., for Modbus, Profibus DP). Standards IEC 60947-1, IEC 60947-2 Electrical Durability 5,000 cycles (at rated current) Mechanical Durability 10,000 cycles

Technical Data Parameter Specification Product Series NZM1 (Molded Case Circuit Breaker) Product Type Electronic Trip Molded Case Circuit Breaker Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V Rated Current (In) Determined by the X-Series Rating Plug. The specific current rating is set by installing the appropriate plug (e.g., NZM1/2-XV100 for 100A). The range is defined by the breaker's frame size. Poles 3 Poles (Standard for this model) Mounting Style Fixed Mounting Trip Unit Type Electronic Trip Unit (Communication-ready) Protection Functions LSIG • L - Long-time Delay (Overload) • S - Short-time Delay (Short-circuit) • I - Instantaneous (Short-circuit) • G - Ground-fault Rated Ultimate Breaking Capacity (Icu) The exact value depends on the specific NZM1 frame size and voltage. (e.g., For an NZM1 frame size P, it could be 36kA at 415V AC). Communication Capability Ready for communication. Requires a separate communication adapter module (e.g., for Modbus, Profibus DP). Standards IEC 60947-1, IEC 60947-2 Electrical Durability 5,000 cycles (at rated current) Mechanical Durability 10,000 cycles

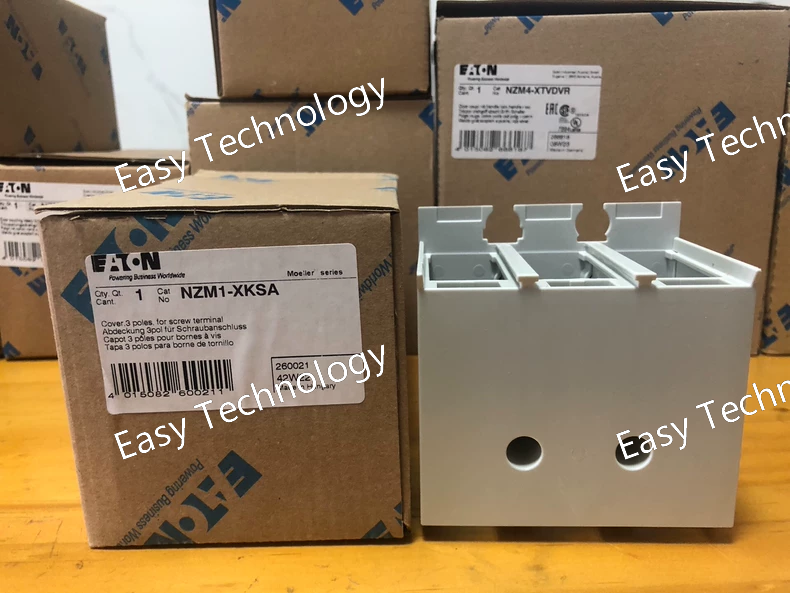

Technical Data Parameter Specification Product Type Undervoltage Release (UVR) - Accessory Compatible Series NZM1 Molded Case Circuit Breakers Rated Control Supply Voltage (Us) 24 - 240 V AC/DC (Wide range, auto-sensing) Note: This is a common specification for the 'XKSA' model. Always verify the nameplate. Tripping Delay Typically 1 - 3 seconds (to avoid nuisance tripping on brief dips). Function Automatically trips the breaker when voltage drops below the threshold. Prevents the breaker from being closed if the control voltage is insufficient. Mounting Factory-installed or field-mounted on the side of compatible NZM1 breakers. Connection Screw terminals for control wiring. Standards IEC 60947-1, IEC 60947-2
