Parameter Specification Product Series Eaton A22 Model Number A22-EFR Description 22mm Emergency Stop Push Button Operator, Mushroom Head, Red/Yellow Operator Type Emergency Stop (Mushroom Push Button) Head Color Red with Yellow Base Ring Head Type Mushroom (Large, prominent head for easy and rapid activation) Contact Action Maintained (Once pressed, it stays pressed until manually reset) Reset Mechanism Manual Rotational Reset (Turn the mushroom head to release it from the latched position) Rated Operational Current Note: This depends on the contact block used. The A22-EFR is the operator. Common safety contact blocks are rated at: 10A @ 250VAC / 5A @ 440VAC / 10A @ 125VDC Mounting 22mm round hole, panel-mounted from the front with a supplied nut. Protection Degree IP65 (when properly mounted on panel - dust-tight and protected against water jets) Material Thermoplastic (Head and Body) Safety Standards Complies with international machinery safety standards such as IEC 60947-5-1 and IEC 60947-5-5. System Feature Modular design. The A22-EFR operator must be paired with a compatible A22 contact block (e.g., A22-T-, A22-TA-, A22-TB

Parameter Specification Product Series Eaton A22 Model Number A22-BE3C Description 22mm Selector Switch, 2-Position Maintained, 1NO+1NC Operator Type Selector Switch (Rotor) Knob Color Black Number of Positions 2 Contact Action Maintained (Stays in selected position) Contact Configuration 1 Normally Open (1NO) + 1 Normally Closed (1NC) (This is typically achieved with a common terminal (C), where C->NO closes in one position, and C->NC opens in the same position, and vice-versa in the other position.) Rated Operational Current 10A @ 250VAC / 5A @ 440VAC / 10A @ 125VDC Rated Insulation Voltage 500VAC Dielectric Strength 2000VAC for 1 minute Electrical Life 500,000 cycles (min.) Mechanical Life 10,000,000 cycles (min.) Terminals Screw Terminals Mounting 22mm round hole, panel-mounted from the front with a supplied nut. Protection Degree IP65 (when properly mounted on panel - dust-tight and protected against water jets) Material Thermoplastic (Knob and Body) Standards & Certifications CE, UL508, CSA C22.2 No.14, CCC, and others for global markets. System Feature Modular design. The switch operator (A22-BE3C) can be mounted on various A22 contact blocks and combined with other accessories.

Parameter Specification Product Series Eaton A22 Model Number A22-EK10C Description 22mm Push Button Switch, Momentary, 1NO, Red Operator Type Push Button Button Color Red Button Shape Concave (Recessed) Contact Configuration 1 Normally Open (1NO / 1 Form A) Contact Action Momentary (returns to normal position when released) Rated Operational Current 10A @ 250VAC / 5A @ 440VAC / 10A @ 125VDC Rated Insulation Voltage 500VAC Dielectric Strength 2000VAC for 1 minute Electrical Life 500,000 cycles (min.) Mechanical Life 10,000,000 cycles (min.) Terminals Screw Terminals Mounting 22mm round hole, panel-mounted from the front with a supplied nut. Protection Degree IP65 (when properly mounted on panel - dust-tight and protected against water jets) Material Thermoplastic (Button Cap and Body) Standards & Certifications CE, UL508, CSA C22.2 No.14, CCC, and others for global markets. System Feature Modular design, compatible with the extensive A22 series of contact blocks, LED indicators, and enclosures.

Parameter Specification Product Series Eaton A22 Model Number A22-EK01C Description 22mm Push Button Switch, Momentary, 1NO Operator Type Push Button Button Color Black Button Shape Concave (Recessed) Contact Configuration 1 Normally Open (1NO / 1 Form A) Contact Action Momentary (returns to normal position when released) Rated Operational Current 10A @ 250VAC / 5A @ 440VAC / 10A @ 125VDC Rated Insulation Voltage 500VAC Dielectric Strength 2000VAC for 1 minute Electrical Life 500,000 cycles (min.) Mechanical Life 10,000,000 cycles (min.) Terminals Screw Terminals Mounting 22mm round hole, panel-mounted from the front with a supplied nut. Protection Degree IP65 (when properly mounted on panel - dust-tight and protected against water jets) Material Thermoplastic (Button Cap and Body) Standards & Certifications CE, UL508, CSA C22.2 No.14, CCC, and others for global markets. System Feature Modular design, compatible with the extensive A22 series of contact blocks, LED indicators, and enclosures.

Parameter Specification Product Series Eaton Wiring Devices / Commercial Grade Model Number Y22-10T Description 20A Quiet Toggle Switch, Single-Pole Color Ivory (Light Brown) Actuation Type Toggle Lever Control Type Single-Pole (SP) Rated Voltage 120V AC / 277V AC Rated Current 20 Amps Rated Load General Use: 20A Resistive Motor Load (HP): 2 HP at 120V/240V; 3 HP at 277V Wiring Single-Pole. Side-wiring only (no back-wire). Terminals Two side screw terminals. Requires looping wire on screws. Mounting Standard wall box Faceplate Sold separately; requires a standard single-gang wall plate. Material Thermoplastic Body and Toggle Certifications UL Listed (US) and CSA Certified (Canada) Special Features Quiet Switch: Mechanism designed for quieter operation. Commercial Grade: Built for higher durability and longer life than residential-grade switches. Typical Use Controlling lighting fixtures, outlets (if switched), and ventilation fans from one location.

Parameter Specification Product Series Aspire™ / Home Model Number Y22-RLTR-RT/K10/F/LED-R Description Rotary Dimmer with Locator LED and Push Switch Color Red Control Type Single-Location Dimming Actuation Rotary Knob with Push-On/Push-Off Function Locator LED Yes, Red Rated Voltage 220 ~ 240 VAC, 50/60 Hz Rated Load LED/CFL: 10W - 150W* Incandescent/Halogen: 60W - 600W Mains Voltage Halogen: 60W - 500W *Minimum load for stable LED dimming is 10W. Dimming Technology Leading-Edge / TRIAC Dimming Dimming Range 100% to <10% (Wide range, dependent on load compatibility) Wiring Single-Pole Terminals Screw Terminals Mounting Standard wall box Faceplate Sold separately; requires a standard single-gang wall plate. Material Thermoplastic (Body), Knob Certifications CE, CCC, or other region-specific certifications for 220V markets. Key Features F (Favorites Setting): Set a preset light level by pulling and turning the knob. The switch turns on to this level. K10: Minimum load for LEDs (10W). RT: Red color.

Parameter Specification Product Series Aspire™ / Home Model Number Y22-RLTR-GN/K10/F/LED-G Description Rotary Dimmer with Locator LED and Push Switch Color Green Control Type Single-Location Dimming Actuation Rotary Knob with Push-On/Push-Off Function Locator LED Yes, Green Rated Voltage 220 ~ 240 VAC, 50/60 Hz Rated Load LED/CFL: 10W - 150W* Incandescent/Halogen: 60W - 600W Mains Voltage Halogen: 60W - 500W *Minimum load for stable LED dimming is 10W. Dimming Technology Leading-Edge / TRIAC Dimming Dimming Range 100% to <10% (Wide range, dependent on load compatibility) Wiring Single-Pole Terminals Screw Terminals Mounting Standard wall box Faceplate Sold separately; requires a standard single-gang wall plate. Material Thermoplastic (Body), Knob Certifications CE, CCC, or other region-specific certifications for 220V markets. Key Features F (Favorites Setting): Allows you to set a preset light level by pulling and turning the knob. The switch will always turn on to this preset level. K10: Minimum load specification for LEDs (10W). GN: Green color

Parameter Specification Product Series Aspire™ / Home Model Number Y22-RLTR-WS/K10/F/LED-W Description Rotary Dimmer with Locator LED and Push Switch Color White Control Type Single-Location Dimming Actuation Rotary Knob with Push-On/Push-Off Function Locator LED Yes, White Rated Voltage 220 ~ 240 VAC, 50/60 Hz Rated Load LED/CFL: 10W - 150W* Incandescent/Halogen: 60W - 600W Mains Voltage Halogen: 60W - 500W *Minimum load for stable LED dimming is 10W. Dimming Technology Leading-Edge / TRIAC Dimming Dimming Range 100% to <10% (Wide range, dependent on load compatibility) Wiring Single-Pole Terminals Screw Terminals Mounting Standard wall box Faceplate Sold separately; requires a standard single-gang wall plate. Material Thermoplastic (Body), Knob Certifications CE, CCC, or other region-specific certifications for 220V markets. Key Features F (Favorites Setting): Allows you to set a preset light level by pulling and turning the knob. The switch will always turn on to this preset level. K10: Minimum load specification for LEDs (10W). WS: White color.

Parameter Specification Product Series Aspire™ Model Number Y22-LCLED6-W Description Single-Pole, LED Illuminated Decorator Switch Color White Actuation Type Touch Sensitive / Electronic Rocker Control Type Single Location (1 switch controls 1 light) LED Indicator Yes, Blue/White Glow LED Function Configurable as Locator Light (ON in darkness) or Pilot Light (ON when load is OFF) Rated Voltage 120 VAC, 60 Hz Rated Load Incandescent / Halogen: 600W max. LED / CFL: 150W max. Wiring Single-Pole (Requires Neutral Wire) Terminals Quickwire push-in & side screw terminals Mounting Standard wall box Faceplate Sold separately; requires a standard single-gang wall plate. Material Thermoplastic Certifications UL Listed (or cUL) Compatibility Compatible with most LED, CFL, incandescent, and halogen bulbs. Note: For some low-wattage LEDs, a minor glow when off might occur.

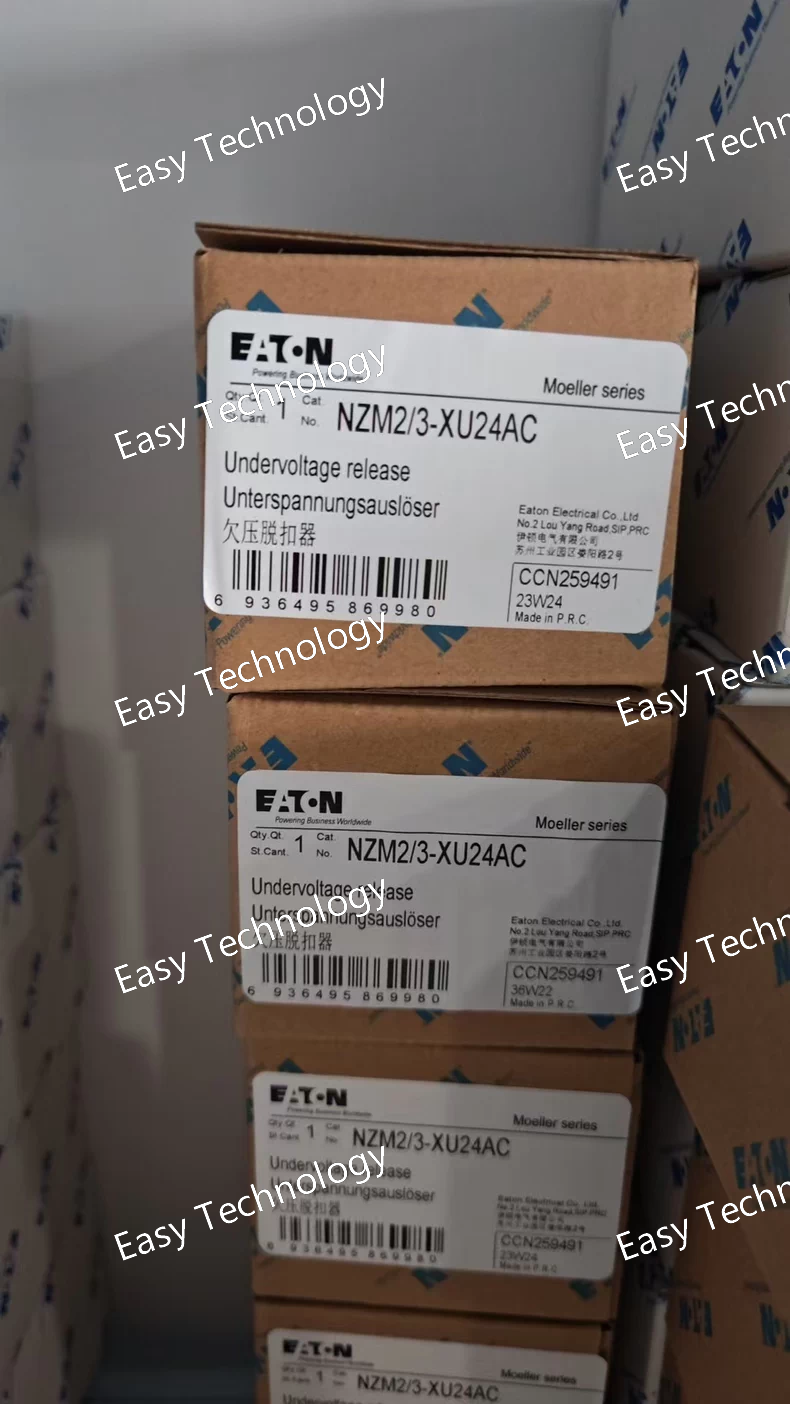

Technical Data Parameter Specification Product Type Undervoltage Release (UVR) - Accessory Compatible Series NZM2 and NZM3 Molded Case Circuit Breakers Rated Control Supply Voltage (Us) 24 V AC Tripping Delay Typically 1 - 3 seconds (to avoid nuisance tripping on brief voltage dips). Function Automatically trips the breaker when voltage drops below the threshold. Prevents the breaker from being closed if the control voltage is absent or too low. Duty Cycle Continuous (Can be powered continuously unlike a shunt release). Mounting Factory-installed or field-mounted on the side of compatible NZM2/NZM3 breakers. Connection Screw terminals for control wiring. Standards IEC 60947-1, IEC 60947-2
