Parameter Specification Notes / Explanation Model Series CV1 Port Size 1/8" NPT "16" in the model number typically corresponds to 1/8" Number of Ports 5 (1-Pressure, 2-Exhaust, 2-Work ports A & B) Number of Positions 3 Actuation Type Solenoid Operated, Air Pilot Spool/Center Position Closed Center (All Ports Blocked) This is the "P" type in the model code Voltage Must be specified Common options: 12 VDC, 24 VDC, 120 VAC, 240 VAC Operating Pressure Range 30 - 120 psi (2 - 8 bar) Typical for pneumatic valves Maximum Flow (Cv factor) ~ 0.5 Response Time ~ 20 - 50 ms Duty Cycle 100% Continuous Mounting Style Sub-base / Manifold Mount ISO 5599-1 standard Seal Material Standard: Nitrile (Buna-N) Coil Connection Conduit or DIN Form A With LED indicator

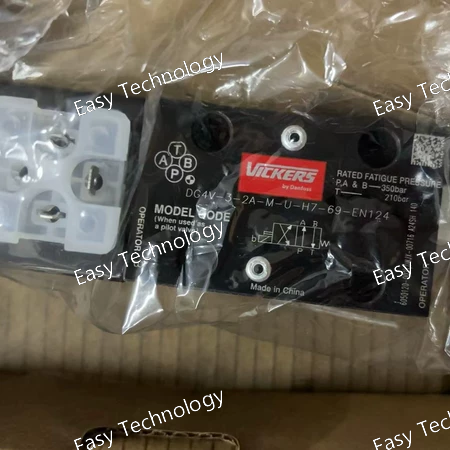

Parameter Specification Notes Manufacturer / Series Eaton DG4V / DG3V D03 / NG6 interface Model Number DG4V-3-2A-M-U-H7-69-EN124 Valve Type Directional Control Valve Number of Ways / Positions 4-Way, 3-Position Porting Size D03 (NG6) ISO 4401 standard Port Thread 7/16"-20 UNF Common for D03 size Actuation Type Solenoid Operated, Spring Return Solenoid Type Single Solenoids (2x) Wet-pin, DC versions Center Position 2A: All Ports Blocked (Closed Center) "A", "B", and "P" to "T" are blocked. Spool Type "-69" Specific metering and performance characteristics for PTO/EN124 applications. Electrical Connection -H7: DIN 43650 Form A IP65-rated connector with LED indicator and manual override. Voltage Options Typically 12 VDC or 24 VDC Must be specified when ordering. Maximum Operating Pressure 350 bar (5,000 psi) Maximum Flow Rate ~ 20 L/min (5.3 US gpm) Dependent on spool type and pressure drop. Fluid Viscosity Range 10 to 380 cSt (50 to 1800 SUS) Fluid Type Mineral-based hydraulic oils, synthetics Compatible with standard hydraulic fluids. Temperature Range -20°C to +80°C (-4°F to +176°F) For hydraulic fluid. Compliance / Standard EN124 European standard for controls of vehicle PTOs. Seal Material Nitrile (NBR) Standard. Other options (e.g., FKM) may be available.

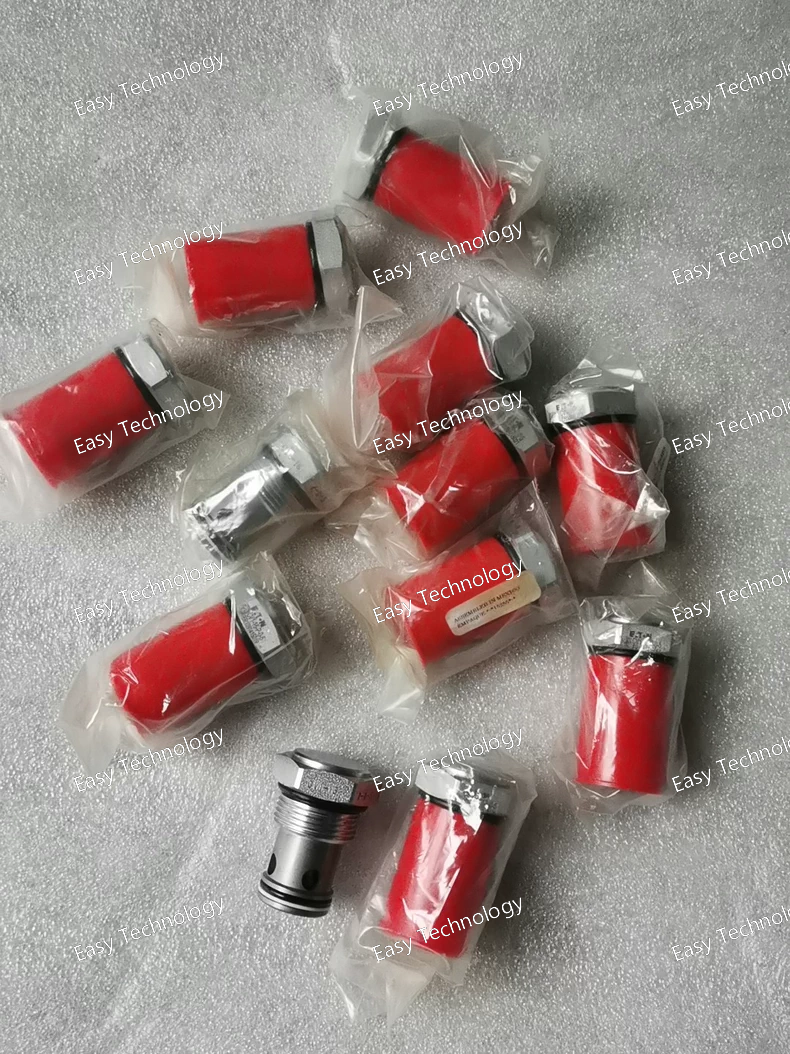

Parameter Specification Notes / Interpretation Manufacturer / Series Eaton CGR Cartridge Check Valve, Pilot Operated Model Number CGR-02-F-K-30 Valve Type Pilot-Operated Check Valve Cartridge Style CETOP C-02-2 ISO 7368 standard cavity. Critical for installation. Port Size #12 SAE O-ring Adjustment Type K-30: Cracking Pressure Adjustment Features an external screw for setting the pilot cracking pressure. Pilot Ratio 4:1 (typical for CGR-02) The pilot pressure required is approximately (System Pressure / Pilot Ratio). Maximum Operating Pressure 350 bar (5,000 psi) Maximum Pilot Pressure 210 bar (3,000 psi) Cracking Pressure Adjustment Range 1.7 to 14 bar (25 to 200 psi) The range over which the pilot opening pressure can be set. Flow Capacity Up to 75 L/min (20 US gpm) Dependent on pressure drop. Seal Material Nitrile (NBR) Standard. Other options like Fluorocarbon (FKM) may be available. Body Material Steel

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton CGR Cartridge Check Valve, Pilot Operated Model Number CGR-02-FK-30 Functionally identical to CGR-02-F-K-30. Valve Type Pilot-Operated Check Valve Cartridge Style CETOP C-02-2 ISO 7368 standard cavity. Critical for correct installation. Port Size #12 SAE O-ring Adjustment Type FK-30: External Cracking Pressure Adjustment Features an external screw for setting the pilot cracking pressure. Pilot Ratio 4:1 (typical for CGR-02) e.g., With 200 bar system pressure, ~50 bar pilot pressure is needed to open. Maximum Operating Pressure 350 bar (5,000 psi) Maximum Pilot Pressure 210 bar (3,000 psi) Cracking Pressure Adjustment Range 1.7 to 14 bar (25 to 200 psi) The range over which the pilot opening pressure can be set. Flow Capacity Up to 75 L/min (20 US gpm) Dependent on pressure drop. Seal Material Nitrile (NBR) Standard. Body Material Steel

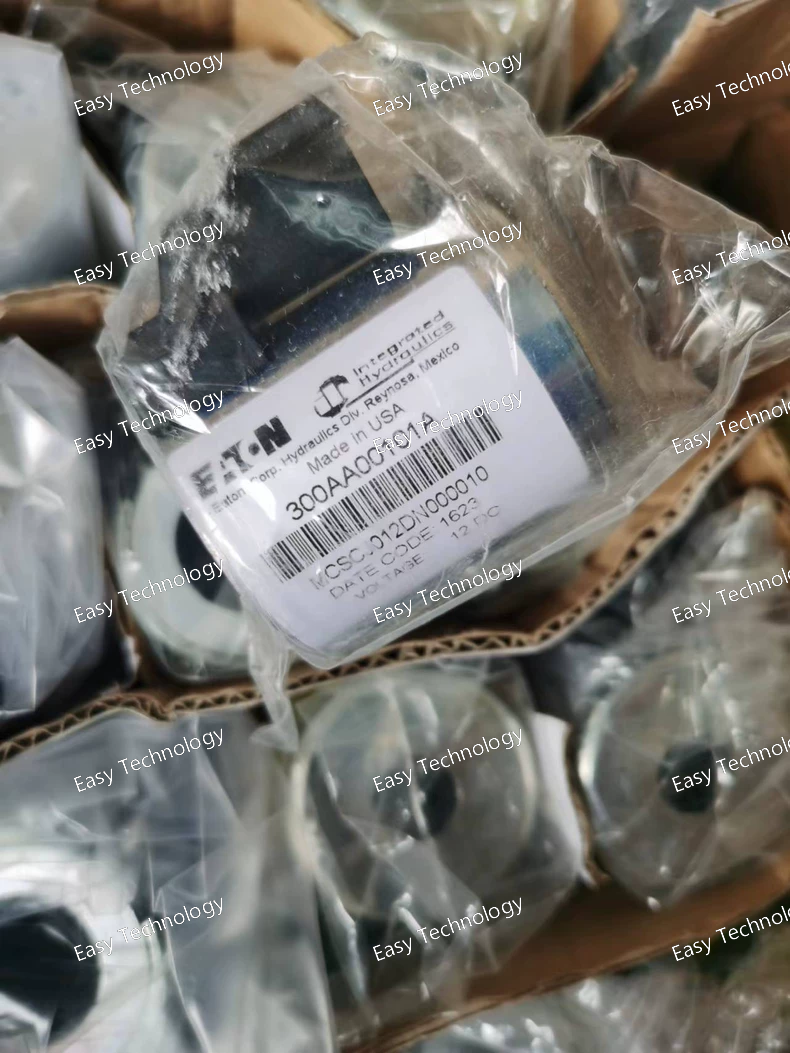

Eaton 300AA00101A Apex? Series Stacked Sectional Control Valve for Lift Trucks This model is an Apex? series, stacked sectional, load-holding directional control valve specifically designed for the hydraulic systems of lift trucks and other material handling equipment. The "300AA00101A" is a complete assembly that typically includes multiple valve sections (spools) stacked together to control various functions such as lift, tilt, and auxiliary attachments.

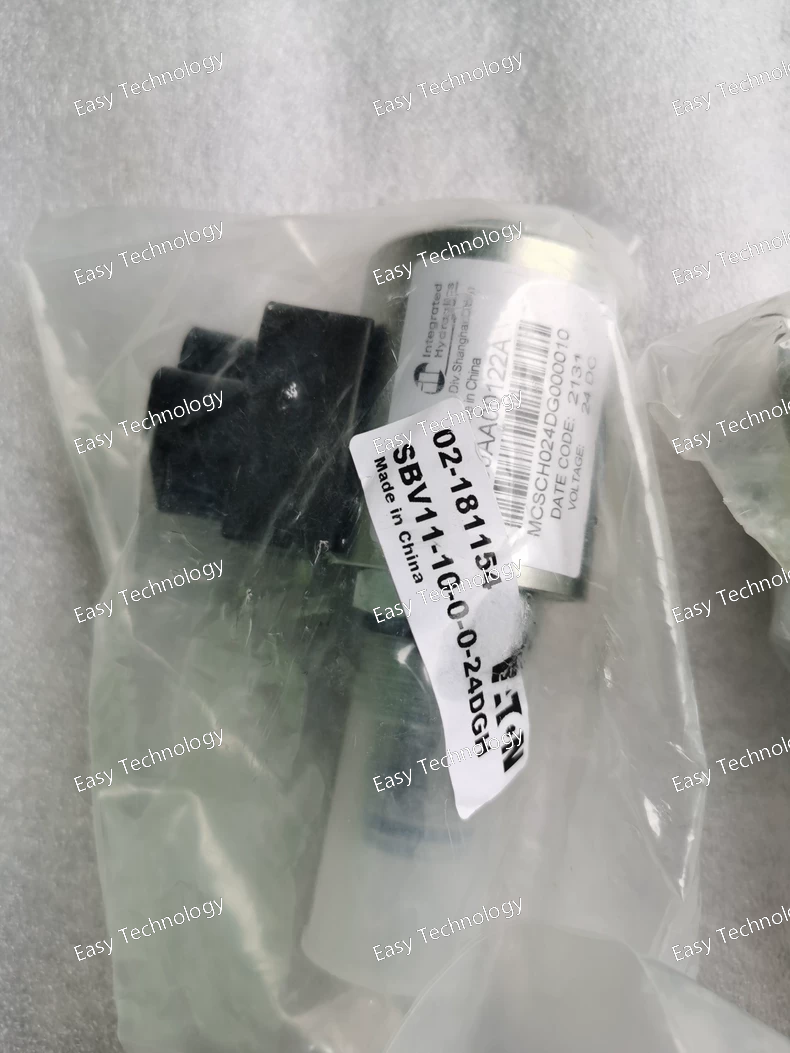

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton Synflex SBV11 Model Number SBV11-10-C-0-0-24 Valve Type 2/2 Way, Direct-Acting Solenoid Valve Default Position Normally Closed (NC) Sealing Design Ball and Seat For zero-leakage performance. Mounting Style Manifold Mounting (Cartridge Style) ISO 7789 / DIN 24342 A type C10 cavity. Port Size C10 (Manifold Interface) Maximum Operating Pressure 420 bar (6,100 psi) Maximum Flow Rate ~ 19 L/min (5 US gpm) Dependent on pressure drop. Voltage / Coil Type 24 VDC The "-24" suffix specifies the voltage. Coil Connection DIN 43650 Form A Standard IP65 soleniod connector. Fluid Compatibility Mineral-based hydraulic oils, HFA, HFB, HFC, water-glycol Suitable for a wide range of fluids. Temperature Range -20°C to +60°C (Fluid) Seal Material Fluorocarbon (FKM) Standard for broad fluid compatibility. Nitrile (NBR) is also common. Body Material Steel

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton Synflex SBV11 Model Number SBV11-10-0-0-24 Valve Type 2/2 Way, Direct-Acting Solenoid Valve Default Position Normally Closed (NC) Sealing Design Ball and Seat For zero-leakage performance. Mounting Style Manifold Mounting (Cartridge Style) ISO 7789 / DIN 24342 A type C10 cavity. Port Size C10 (Manifold Interface) Maximum Operating Pressure 210 bar (3,000 psi) This is a key difference from the "-C-" version. Maximum Flow Rate ~ 19 L/min (5 US gpm) Dependent on pressure drop. Voltage / Coil Type 24 VDC The "-24" suffix specifies the voltage. Coil Connection DIN 43650 Form A Standard IP65 soleniod connector. Fluid Compatibility Mineral-based hydraulic oils, HFA, HFB, HFC, water-glycol Suitable for a wide range of fluids. Temperature Range -20°C to +60°C (Fluid) Seal Material Fluorocarbon (FKM) Standard for broad fluid compatibility. Nitrile (NBR) is also common. Body Material Steel

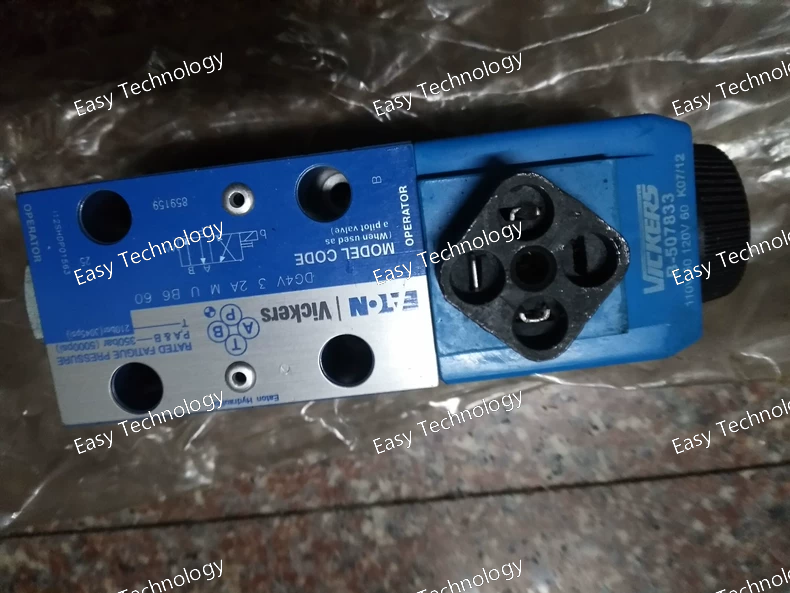

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton DG4V D03 / NG6 interface Model Number DG4V-3-2A-M-U-B6-60 Valve Type Directional Control Valve Number of Ways / Positions 4-Way, 3-Position Porting Size D03 (NG6) ISO 4401 standard Port Thread 7/16"-20 UNF Common for D03 size Actuation Type Solenoid Operated, Spring Centered Solenoid Type Single Solenoids (2x) Wet-pin, DC versions Center Position 2A: All Ports Blocked (Closed Center) "A", "B", "P", and "T" are all blocked. Ideal for holding loads. Spool Type -60: Critical Center with Bypass This is a key detail. The "-60" spool provides blocked center functionality for load holding, but includes internal leakage paths for pressure relief during transition, which reduces shock and hammer. Electrical Connection -B6: DIN 43650 Form B IP69K-rated connector, submersible, with manual override. Voltage Options -B6: Typically 12 VDC The "-B6" suffix specifically denotes a 12 VDC coil. Maximum Operating Pressure 350 bar (5,000 psi) Maximum Flow Rate ~ 19 L/min (5 US gpm) Dependent on spool type and pressure drop. Fluid Viscosity Range 10 to 380 cSt (50 to 1800 SUS) Fluid Type Mineral-based hydraulic oils, synthetics Compatible with standard hydraulic fluids. Temperature Range -20°C to +80°C (-4°F to +176°F) For hydraulic fluid. Seal Material Nitrile (NBR) Standard. Other options (e.g., FKM) may be available.

Technical Specifications Parameter Specification / Description Notes Manufacturer / Series Eaton MCM (Modular Control Manifold) Model Number DGMC-3-AT-CW-41 Product Type Integrated Hydraulic Manifold Block Port Size (P, A, B, T) D03 (NG6) The "-3-" denotes the interface size, ISO 4401. Port Thread 7/16"-20 UNF Common for D03 size. Internal Cartridge Valves Cavities for CETOP-style cartridges The specific types are defined by the suffix codes. Maximum Operating Pressure 350 bar (5,000 psi) Typical for this series. Maximum Flow Rate ~ 38 L/min (10 US gpm) Dependent on internal restrictions.

Technical Specifications Parameter Specification Notes / Interpretation Manufacturer / Series Eaton DG4V D03 / NG6 interface Model Number DG4V-3-2C-M-U-H7-60 Valve Type Directional Control Valve Number of Ways / Positions 4-Way, 3-Position Porting Size D03 (NG6) ISO 4401 standard Port Thread 7/16"-20 UNF Common for D03 size Actuation Type Solenoid Operated, Spring Centered Solenoid Type Single Solenoids (2x) Wet-pin, DC versions Center Position 2C: Tandem Center (Float) P → T, and A & B blocked. Unloads pump and allows actuator to float. Spool Type -60: Critical Center with Bypass Provides the "blocked A&B" function with internal leakage paths to reduce shock during shifting. Electrical Connection -H7: DIN 43650 Form A IP65-rated connector with LED indicator and manual override. Voltage Options Typically 12 VDC or 24 VDC Must be specified when ordering. The H7 connector is used for various voltages. Maximum Operating Pressure 350 bar (5,000 psi) Maximum Flow Rate ~ 19 L/min (5 US gpm) Dependent on pressure drop. Fluid Viscosity Range 10 to 380 cSt (50 to 1800 SUS) Fluid Type Mineral-based hydraulic oils, synthetics Compatible with standard hydraulic fluids. Temperature Range -20°C to +80°C (-4°F to +176°F) For hydraulic fluid. Seal Material Nitrile (NBR) Standard. Other options (e.g., FKM) may be available.
