Key Features:

Capacity: 50kVA/45kW

Topology: VFI (Voltage and Frequency Independent)

Runtime: Configurable with EBM (External Battery Module)

Efficiency: 94% (ECOnversion mode)

Standards: IEC 62040-3, UL 1778

Key Features:

Tripping Current (IΔn): 30mA (fixed)

Breaking Capacity: 6kA

Mechanical Life: 20,000 cycles

Terminals: Screw-type (up to 25mm² wire)

Standards: IEC 61008-1, CE

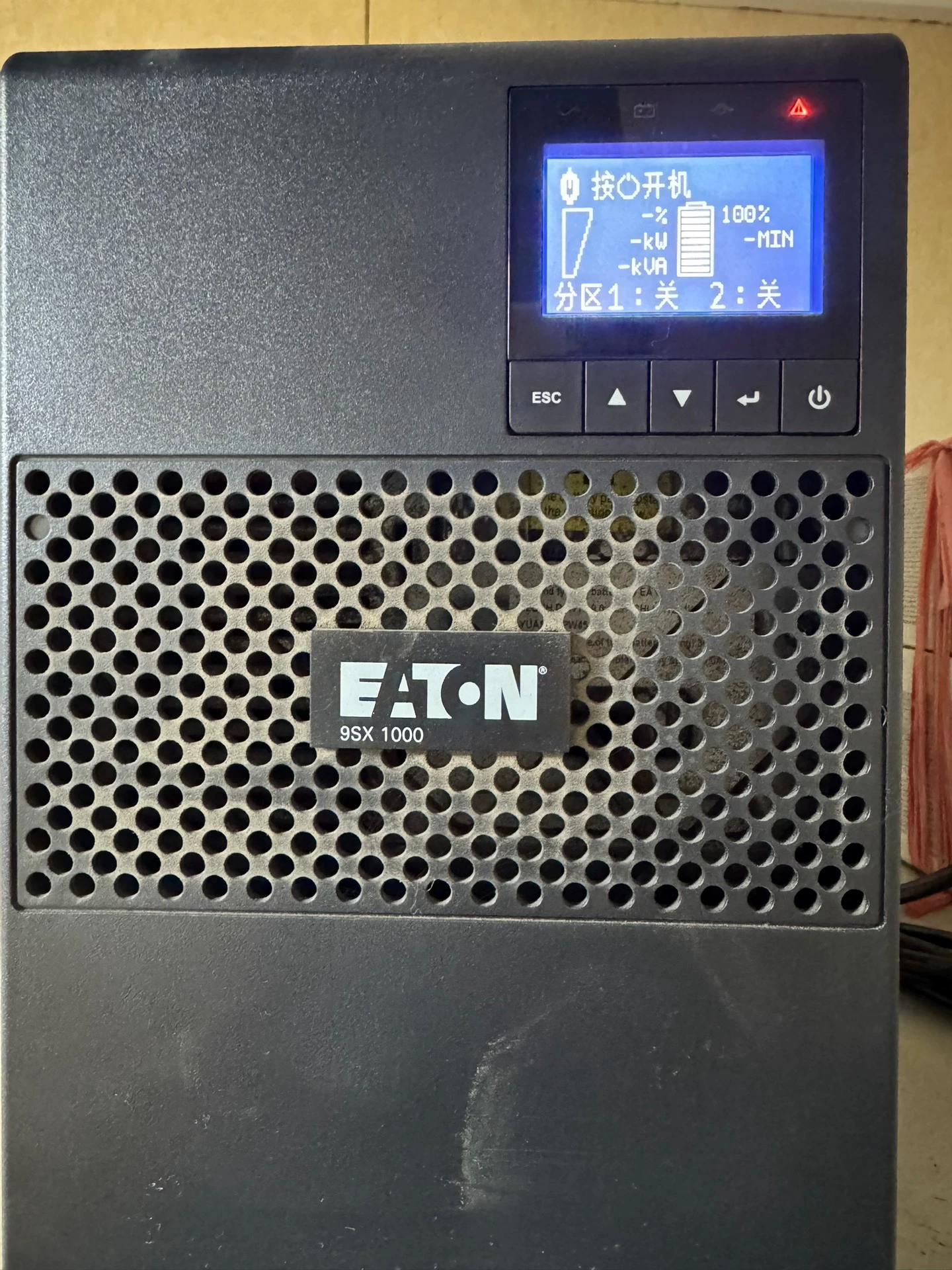

Eaton 9SX1000 - Uninterruptible Power Supply (UPS) - Brief Description
Key Features:
Capacity: 1000VA/900W (Line-Interactive)

Input Voltage: 100-120V AC (Single Phase)

Output Voltage: Pure Sine Wave (120V ±5%)

Battery: Sealed Lead-Acid (SLA), Hot-Swappable

Runtime: Variable (Depends on load; expandable with extra battery packs)

Efficiency: >95% (High-Efficiency Mode)

Transfer Time: <10ms (Automatic Voltage Regulation - AVR)

Display: LCD Panel (Status, load, battery level)

Protection: Surge, overload, short-circuit, deep discharge

Communication: USB/Serial (Eaton Intelligent Power Software)

Applications:
Critical IT equipment (PCs, servers, networking devices)

Home office & small business backup power

Point-of-sale (POS) systems & medical devices

Certifications: UL, CE, FCC, RoHS

Key Features:
Function: Safety monitoring relay (dual-channel)

Inputs: 2 safety circuits (e.g., E-Stop, light curtains)

Outputs: 2 NO (normally open) safety contacts

Rated Voltage: 24V DC/AC

Safety Standards: EN ISO 13849-1 (PL e), IEC 62061 (SIL 3)

Mounting: DIN rail (35mm)

Applications:
Machine safety systems

Emergency stop circuits

Guard door monitoring

Key Features:
Input: 24V DC (18-32V range)

Output: 20A total (configurable per channel)

Channels: Modular, with electronic fuse protection

Mounting: DIN rail (TS35)

Protection: Reverse polarity, overload & short-circuit

Compliance: UL 508, IEC 60947, CE, RoHS

Applications: Industrial control panels, PLC systems, 24V DC power distribution.

Key Features:
Type: Single-pole (1P) or multi-pole MCB

Rated Current: Up to 32A (specific range depends on model)

Breaking Capacity: Typically 6 kA (at 230/400V AC)

Tripping Curve: Type B, C, or D (standard IEC curves)

Voltage Rating: 230V AC (1P) / 400V AC (3P)

Standards: Complies with IEC 60898-1

Applications:
Residential & commercial electrical distribution

Protection against overloads & short circuits

Key Features:
Rated Current: 32A (adjustable or fixed, depending on model)

Poles: 3P (3-phase)

Breaking Capacity (Icu): Up to 50 kA (at 415V AC, depending on variant)

Voltage Rating: 400/415V AC (50/60 Hz)

Tripping Characteristics:

Thermal-Magnetic Trip: Overload & short-circuit protection

Adjustable Settings: Some models allow trip current adjustment

Mounting: Fixed or plug-in (depends on version)

Standards Compliance: IEC 60947-2, CE, UL (check specific certifications)

Applications:
Industrial power distribution

Motor protection

Commercial electrical panels

Eaton APR48 – Power Rectifier Module
Type: High-efficiency DC power rectifier (typically for telecom/power systems)

Input Voltage: 85-300V AC (wide range)

Output Voltage: 48V DC (adjustable range, e.g., 42-58V)

Output Current: Up to 50A (model-dependent)

Efficiency: >90% (typical)

Key Features:

Hot-swappable design

Active power factor correction (PFC >0.99)

LED status indicators

Overvoltage/overcurrent protection

Applications:

Telecom base stations

Industrial power backup systems

Renewable energy systems

Eaton M22-PV – Proximity Sensor / Push Button
Type: Inductive proximity sensor or illuminated push button (depends on variant).

Mounting: Standard M22 threaded barrel (typical for industrial sensors).

Voltage Range: Commonly 10-30V DC (for proximity sensors) or 24-240V AC/DC (for push buttons).

Output Type:

PNP (sourcing) / NPN (sinking) (proximity sensor).

SPST/DPST contacts (push button).

Sensing Distance: Up to 8mm (for inductive sensors).

IP Rating: IP67 (dust/water-resistant).

Applications: Machine automation, conveyor systems, control panels.

Eaton PL9-C6 – Lighting Contactor
Type: DIN rail-mounted lighting contactor (1-pole, 6A).

Rated Voltage: 230V AC (50/60 Hz).

Rated Current: 6A (resistive load) / 3A (motor load).

Control Voltage: Typically 24V DC or 230V AC (check coil variant).

Applications: Switching lighting circuits, HVAC controls, small motor loads.

Features:

Mechanical Lifespan: ≥100,000 cycles.

Electrical Lifespan: ≥50,000 cycles (at rated load).

Screw Terminals: Easy wiring (up to 2.5 mm²).

LED Indicator: Status monitoring (optional, depends on model).

Standards: IEC 60947, EN 60669 (compliance varies).
