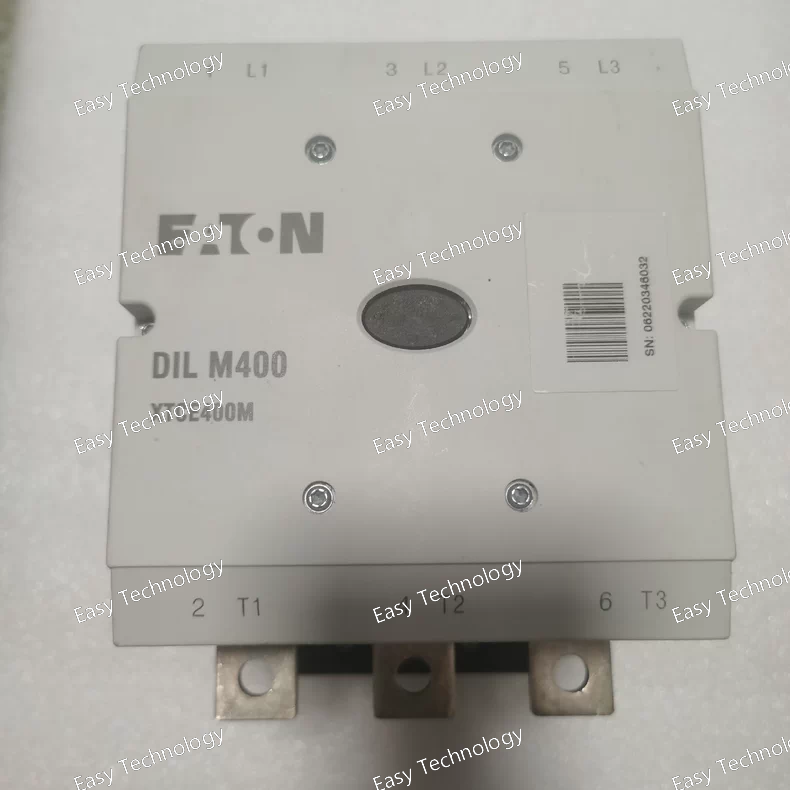

Eaton XTCE400M – Heavy-Duty Auxiliary Contact Block for Large Frame Contactors The Eaton XTCE400M is a side-mounting, high-capacity auxiliary contact block specifically engineered for use with Eaton's largest DIL series contactors, primarily those in the DILM400 frame size. It provides additional, robust contacts for control and signaling circuits in industrial motor control applications that utilize ultra-heavy-duty contactors.

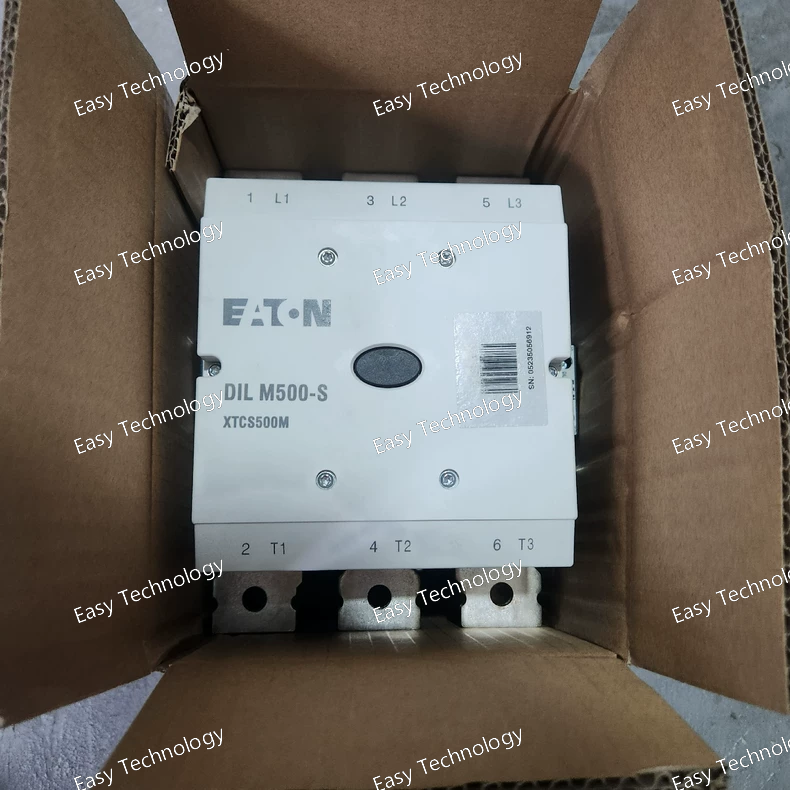

Eaton DILM500-S 220-240V – High-Power Contactor with Integrated Surge Suppressor The Eaton DILM500-S 220-240V is a three-pole, AC-operated power contactor from the high-capacity end of the DILM series. It is engineered for switching and controlling extremely large three-phase AC motors and heavy industrial loads.

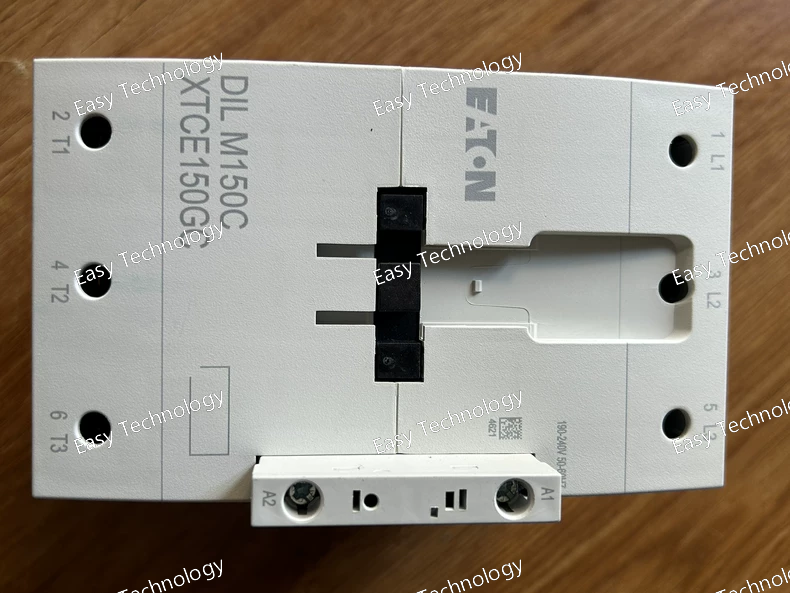

Eaton XTCE150GC – Auxiliary Contact Block with Gold-Plated Contacts The Eaton XTCE150GC is a side-mounting auxiliary contact block from the XTCE series, designed for use with Eaton DIL series contactors of the corresponding frame size (typically DILM150). The model suffix “GC” is the key identifier, indicating that this block is equipped with Gold-Plated Contacts.

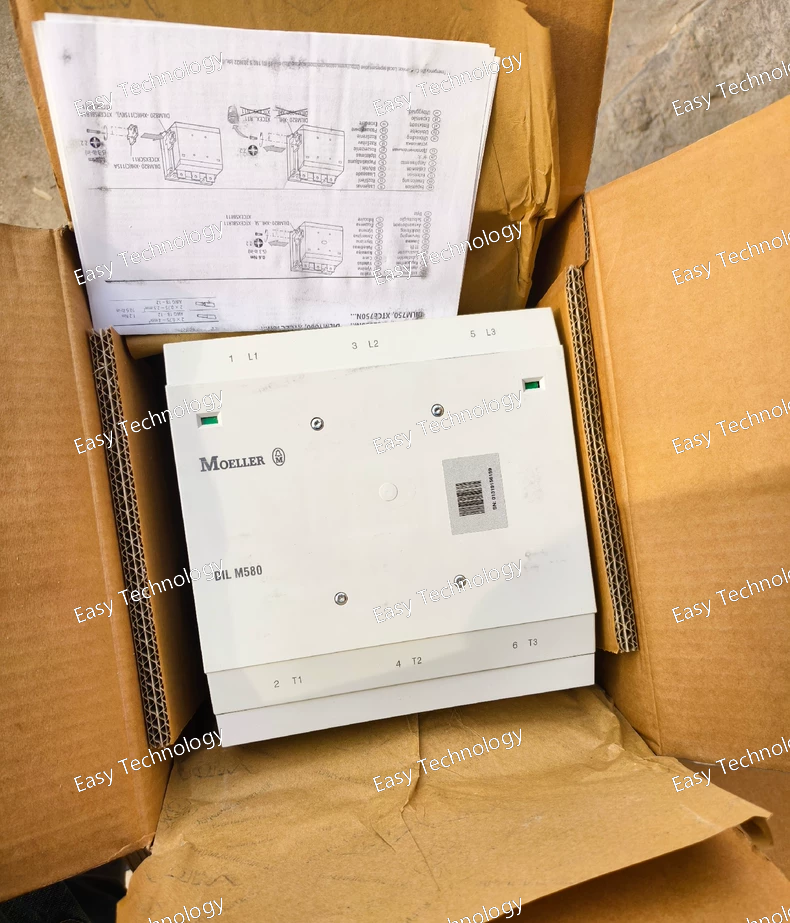

Eaton DILM580 110-250VAC/DC – High-Current Universal Coil Power Contactor The Eaton DILM580 110-250VAC/DC is a three-pole, high-power contactor from the DILM series, featuring a versatile universal (AC/DC) operating coil. This design is engineered to provide maximum flexibility in control circuit design for applications requiring the switching of extremely high currents.

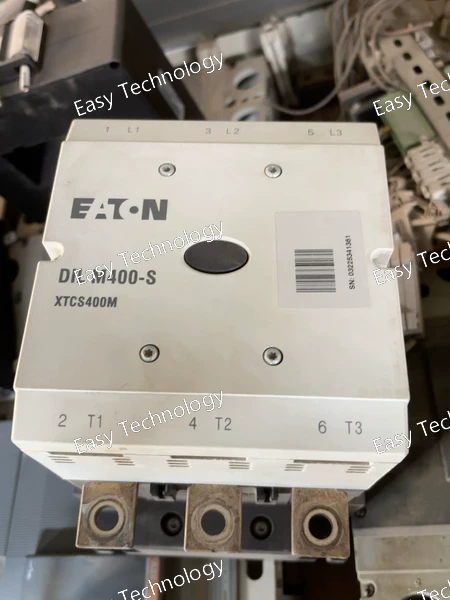

Eaton XTCS400M – Auxiliary Contact Block with Integrated Surge Suppressor The Eaton XTCS400M is a side-mounting auxiliary contact block from the specialized XTCS series, designed for use with large-frame Eaton contactors, primarily the DILM400 and similar models. The key distinguishing feature of this module is the integrated surge suppressor, denoted by the “S” in its model suffix.

Eaton DILM500/22 (RA250) – High-Power AC Contactor with Integrated Auxiliary Contacts The Eaton DILM500/22 (RA250) is a three-pole, AC-operated power contactor from the high-capacity end of the DILM series. It is engineered for switching and controlling extremely large three-phase AC motors and heavy industrial loads, and comes with a pre-configured set of auxiliary contacts.

Eaton DGMX13-P-P-B-W-B-40-EN-13 – Multi-Function Hydraulic Manifold Block (ISO 4401 Size 13) The Eaton DGMX13-P-P-B-W-B-40-EN-13 is a highly integrated, cartridge-style manifold block from the DGMX series, designed for building complex hydraulic control systems in a compact, leak-resistant package. The model string is a detailed code that specifies every aspect of its configuration.

The Eaton XTCEC14P is a programmable, multi-function electronic timer module from the XTCE series of accessories. It is designed to mount directly onto compatible Eaton contactors (primarily of the DILM or DILA series), transforming a standard contactor into a contactor with a built-in timing function.

Possible Parameters:
Type:

Proximity Sensor / Solid-State Relay / Control Unit

(Exact function varies—check manufacturer label)

Input/Output Ratings:

Voltage: 12–24V DC or 100–240V AC (common ranges)

Current: ≤2A (for relays) or N/A (for sensors)

Operation Mode:

PNP/NPN (for sensors)

NO/NC (Normally Open/Normally Closed for relays)

Protection & Compliance:

IP67 (dust/waterproof if ruggedized)

CE, RoHS (typical certifications)

Connection:

Screw terminals or M8/M12 connector (sensors)

DIN rail mount (for modules)

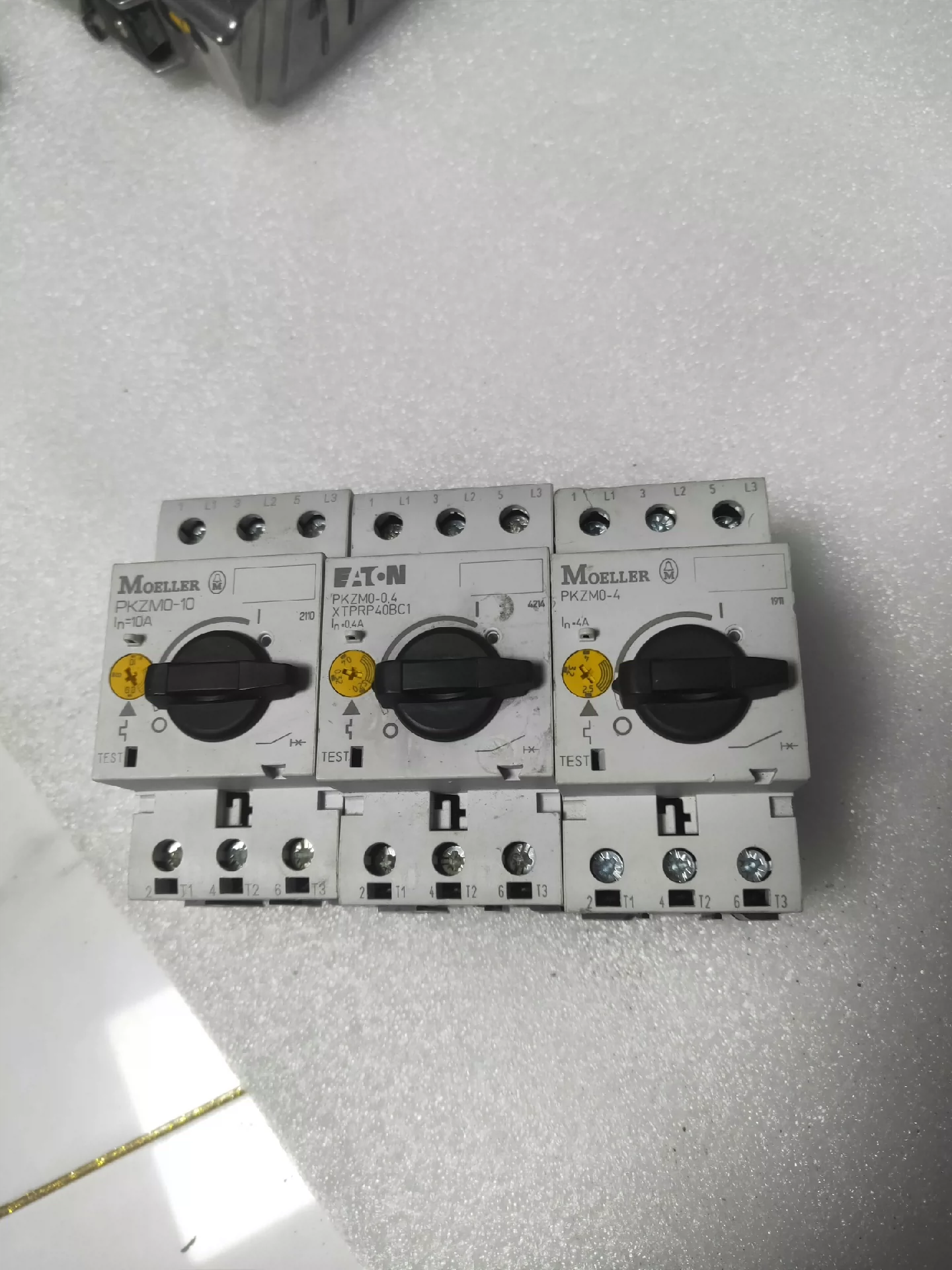

PKZM0-10 – Motor protection circuit breaker (or compact circuit protector) with:

Rated current: 10A

Type: PKZ series (likely thermal-magnetic trip, for overload/short-circuit protection)

Typical use: Safeguarding motors, pumps, or small industrial equipment.
