Category Parameter Specification / Typical Value Input Characteristics Input Voltage 100 - 240 VAC (Wide Range) Input Frequency 50 / 60 Hz Output Characteristics Output Voltage 24 V DC Rated Output Current ~1.0 A (at 24V) Rated Output Power 25 W Efficiency Typically > 80% Communication Interface (I2) Protocol IO-Link Functionality • Remote monitoring of output parameters (U, I, P, T) • Diagnostic data (e.g., overload events, short-circuit events) • Parameter setting Protection & Safety Overload Protection Electronic, auto-recovery Overvoltage Protection Electronic, auto-recovery Short-Circuit Protection Yes Environmental & Mechanical Operating Temperature -25 °C to +70 °C (with derating) Cooling Method Fanless (Convection) Mounting Standard 35 mm DIN Rail Connections Screw Terminals (for Power) & IO-Link Port (for Communication)

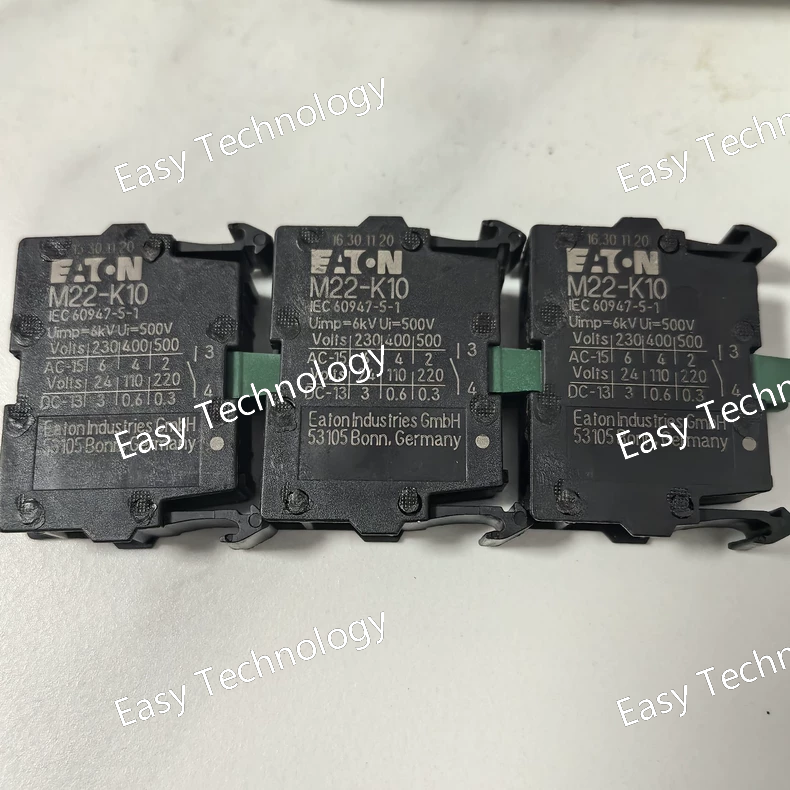

Category Parameter Specification / Typical Value Electrical Characteristics Contact Configuration 1 NO (One Normally Open Contact) Rated Operational Voltage (Ue) Up to 500V AC / 600V DC Rated Impulse Withstand Voltage (Uimp) 6 kV Rated Thermal Current (Ith) 10 A Utilization Category (AC) AC-15: Control of electromagnetic loads (>72 VA) Utilization Category (DC) DC-13: Control of DC electromagnets Mechanical & Switching Electrical Life > 1,000,000 cycles (at rated operational current) Mechanical Life > 5,000,000 cycles Degree of Protection (with actuator) IP65 (Front panel) General Data Mounting Hole Diameter 22.5 mm (ISO Standard) Connection Type Screw Clamp Terminals Actuator Dependency Requires a separate M22 series pushbutton actuator (e.g., a colored button cap) Material Thermoplastic housing Standards IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14

Category Parameter Specification / Typical Value Function & Compatibility Function DC OK / Power Good Signal Compatible Series Eaton P1 Series and P3 Series Power Supplies Mounting Snap-on or direct attachment to the compatible power supply unit Signal Contact Characteristics Contact Type Floating Changeover Contact (SPDT) - 1 NO (Normally Open) + 1 NC (Normally Closed) Contact Rating (Max.) Typically 240V AC, 2A or 30V DC, 2A (Resistive load) Operation State Relay is energized when DC output voltage is normal. Electrical Characteristics Supply Voltage Self-powered from the host power supply (no external wiring required) Response Time Typically a few tens to hundreds of milliseconds (to avoid nuisance tripping on short dips) General Data Connection Type Screw Terminals for the signal contact output Status Indication Usually an LED indicator to show the "DC OK" status Operating Temperature -25 °C to +60 °C (or as per the host PSU specification) Standards Relevant parts of IEC/EN 60947, UL 508

Category Parameter Specification / Typical Value Input Characteristics Input Voltage 100 - 240 VAC (Wide Range, Auto-Sensing) Input Frequency 50 / 60 Hz Inrush Current Limiting Yes (NTC Thermistor) Output Characteristics Output Voltage Likely 24 V DC (Must be verified with datasheet) Rated Output Current ~1.3 A (if output is 24V) Rated Output Power 32 W Efficiency Typically > 81% Ripple and Noise < 150 mVpp Redundancy Function (EA) Redundancy Capability Yes, designed for parallel operation Key Component Integrated OR-ing diode to prevent reverse current Protection & Safety Overload Protection Electronic, auto-recovery Overvoltage Protection Electronic, auto-recovery Short-Circuit Protection Yes Standards CE, cULus Listed Environmental & Mechanical Operating Temperature -25 °C to +70 °C (with derating above 60°C) Cooling Method Fanless (Convection) Mounting Standard 35 mm DIN Rail Protection Rating IP20 Connections Screw Terminals

Category Parameter Specification / Typical Value General Characteristics Product Type Illuminated Selector Switch Actuator Actuator Color Black Positions 2 Positions (e.g., ON-OFF, ON-ON) Illumination Yes Lens Material Polycarbonate or similar thermoplastic Electrical (for Illumination) Lamp Voltage (Typical) 24V AC/DC or other voltages (depends on the specific lamp or LED module used) Lamp Type Typically uses a standard T5 wedge base bulb or an equivalent LED module Mechanical & Physical Mounting Snap-fit onto compatible E50 series contact blocks Mounting Hole Diameter 22.5 mm (Standard) Degree of Protection (Front Panel) IP65 (Dust-tight and protected against water jets) Mechanical Life Several hundred thousand cycles Compatibility Required Base Must be used with one or more E50 series contact blocks (e.g., E52-*, E53-*) to create a functional switch.

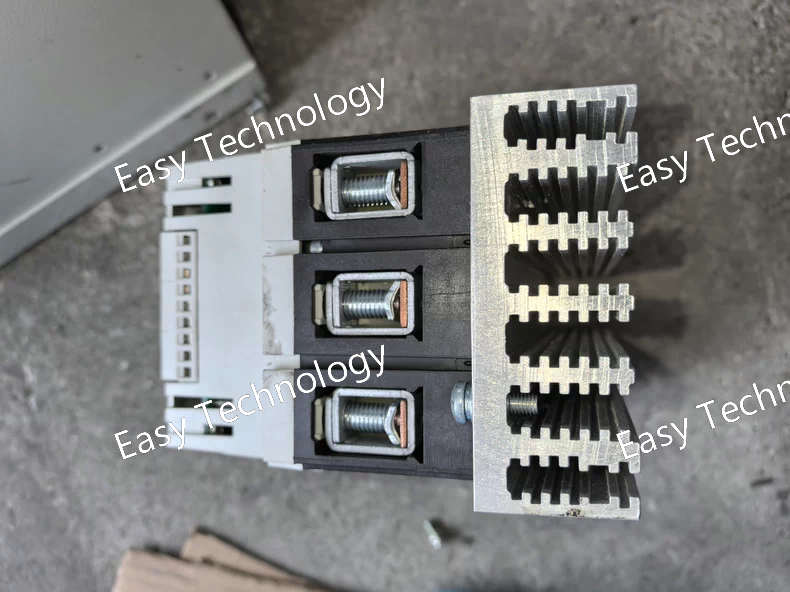

Category Parameter Specification / Typical Value Electrical Ratings Rated Voltage 340 VAC (3~ + PE) Rated Current 30 A Frequency 50/60 Hz Test Standards Safety Standards UL 60939, IEC 60939, EN 60939 EMC Standards Designed to meet CISPR 11/32, EN 55011/55032 Filter Performance Insertion Loss > 50 dB (Typical at 1 MHz) > 40 dB (Typical at 100 kHz) Leakage Current Line to Ground Typically < 10 mA (per phase) General Data Number of Phases 3-Phase + Protective Earth (PE) Connection Type Heavy-Duty Screw Terminals (MXL likely indicates this) Mounting Through-hole or bracket mounting (panel mount) Operating Temperature -25 °C to +100 °C Housing Material Metal case (typically aluminum) for effective shielding

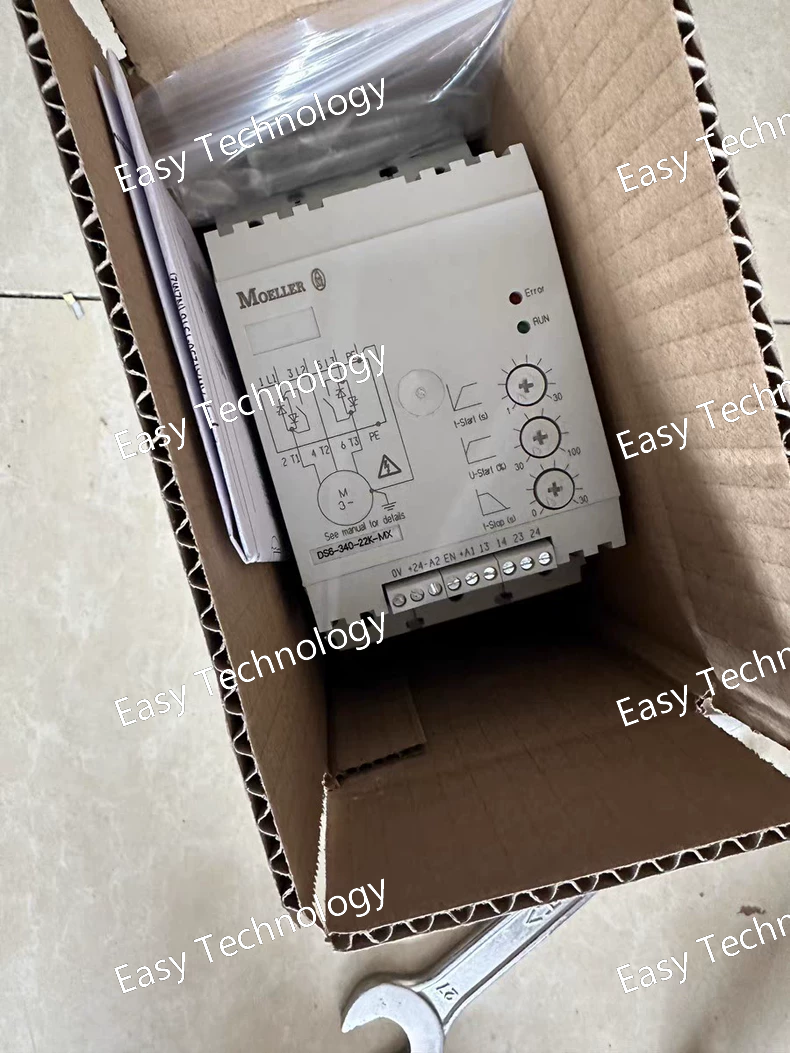

Category Parameter Specification / Typical Value Electrical Ratings Rated Voltage 340 VAC (3~ + PE) Rated Current 30 A Frequency 50/60 Hz Test Standards Safety Standards UL 60939, IEC 60939, EN 60939 EMC Standards Designed to meet CISPR 11/32, EN 55011/55032 Filter Performance Insertion Loss > 50 dB (Typical at 1 MHz) > 40 dB (Typical at 100 kHz) Leakage Current Line to Ground Typically < 10 mA (per phase) General Data Number of Phases 3-Phase + Protective Earth (PE) Connection Type Screw Terminals (Specific type defined by "MX") Mounting Through-hole or bracket mounting (panel mount) Operating Temperature -25 °C to +100 °C Housing Material Metal case (typically aluminum) for effective shielding

Category Parameter Specification / Typical Value General Characteristics Module Type Digital Input (DI) Number of Channels Typically 4 or 8 channels (Must verify with datasheet) Connection Technology M12 Connectors (likely 4-pin) Input Characteristics Input Voltage 24 V DC (Nominal) Input Type Sinking/Sourcing (PNP/NPN compatible) - Universal "1" Signal Level Typically 15...30 V DC "0" Signal Level Typically -3...5 V DC Input Current per Channel Typically 2...5 mA Electrical Isolation Channel-to-Channel Yes, typically isolated Channel-to-Bus Yes, typically isolated Performance Update Time < 1 ms per channel (typical) Status Indication LED per channel (for input status) and module status General Data Backplane Bus Proprietary (for XSystem EC platform) Supply Voltage (from backplane) 24 V DC Operating Temperature 0 °C to +55 °C Standards IEC 61131-2, UL 508

Category Parameter Specification / Typical Value General Characteristics Module Type Relay Output Number of Channels Typically 4 channels (Must verify with datasheet) Connection Technology M12 Connectors Output Characteristics Output Type Electromechanical Relay - Dry Contact (SPDT or NO/NC) Contact Rating (Max.) Typically 2A @ 250V AC or 2A @ 30V DC (per channel) Electrical Isolation Galvanic isolation between PLC logic and load (via relay) Load Compatibility Load Types AC or DC loads (within rating), resistive, inductive, lamp loads Control & Indication Control Signal 24V DC from the PLC backplane Status Indication LED per channel (indicating output state) General Data Backplane Bus Proprietary (for XSystem platform) Supply Voltage (from backplane) 24 V DC (for logic) Operating Temperature 0 °C to +55 °C Electrical Life > 100,000 cycles (at rated load) Mechanical Life > 10,000,000 cycles Standards IEC 61131-2, UL 508

Category Parameter Specification / Typical Value General Characteristics Module Type Digital Input (DI) Number of Channels Typically 4 channels Connection Technology M12 Connectors (likely 4-pin) Input Characteristics Input Voltage 24 V DC (Nominal) Input Type Sourcing (PNP) / High-side switching "1" Signal Level Typically 15...30 V DC (High-level input) "0" Signal Level Typically -3...5 V DC (Low-level input) Input Current per Channel Typically 2...10 mA Electrical Isolation Channel-to-Channel Yes, typically isolated Channel-to-Bus Yes, typically isolated Performance Update Time < 1 ms per channel (typical) Filter Time Configurable (e.g., 0.1/0.5/1/3 ms) to suppress noise Status Indication LED per channel (for input status) General Data Backplane Bus Proprietary (for XSystem platform) Supply Voltage (from backplane) 24 V DC Operating Temperature 0 °C to +55 °C Protection Rating (with connector) IP67 Standards IEC 61131-2, UL 508
