Technical Specifications:

Output Current: 414A

Voltage Range: 380-500V AC, 3-phase (±10%)

Power Range: 250-315kW (voltage dependent)

Control Technology: Advanced Direct Torque Control (DTC)

Overload Capacity: 150% for 60 seconds

Efficiency: >98% (typical full-load)

Cooling Method: Liquid or forced air cooling (configurable)

Protection Class: IP00 (requires cabinet installation)

Key Features:
✔ Superior Control Performance:

±0.1% speed accuracy (with encoder)

Full torque production at zero speed

Built-in adaptive PID controller

✔ Advanced Connectivity:

Multiple fieldbus options (Profibus, Ethernet/IP, Modbus)

Integrated safety functions (STO, SS1, SLS)

Condition monitoring capabilities

✔ Robust Construction:

Designed for 24/7 operation

-40°C to +55°C operating range (with derating)

Low harmonic distortion design

Certifications & Compliance:

CE, UL, cULus listed

IEC 61800-5-1 compliant

Meets EMC Directive 2014/30/EU

Key Specifications
Output Current: 246A

Voltage Range: 380–480V AC (±10%), 3-phase

Power Range: 132–160kW (depending on voltage)

Control Method: Direct Torque Control (DTC)

Overload Capacity: 150% for 60 seconds

Efficiency: >98% (typical)

Cooling Options: Air or liquid cooling (configurable)

Protection Class: IP00 (cabinet installation required)

Advanced Features
✔ Precision Control:

±0.1% speed accuracy (with encoder feedback)

Full torque at zero speed

Built-in PID controller for process automation

✔ Smart Connectivity & Safety:

Multiple fieldbus options (Profibus DP, Modbus RTU, Ethernet/IP)

Integrated Safe Torque Off (STO) for functional safety

Predictive maintenance via condition monitoring

✔ Robust & Reliable:

Wide operating temperature range (-40°C to +55°C with derating)

Heavy-duty design for 24/7 industrial use

Low harmonic distortion with optional filters

Certifications & Compliance
CE, UL, cULus

IEC 61800-5-1 (safety standards)

EMC compliant (2014/30/EU)

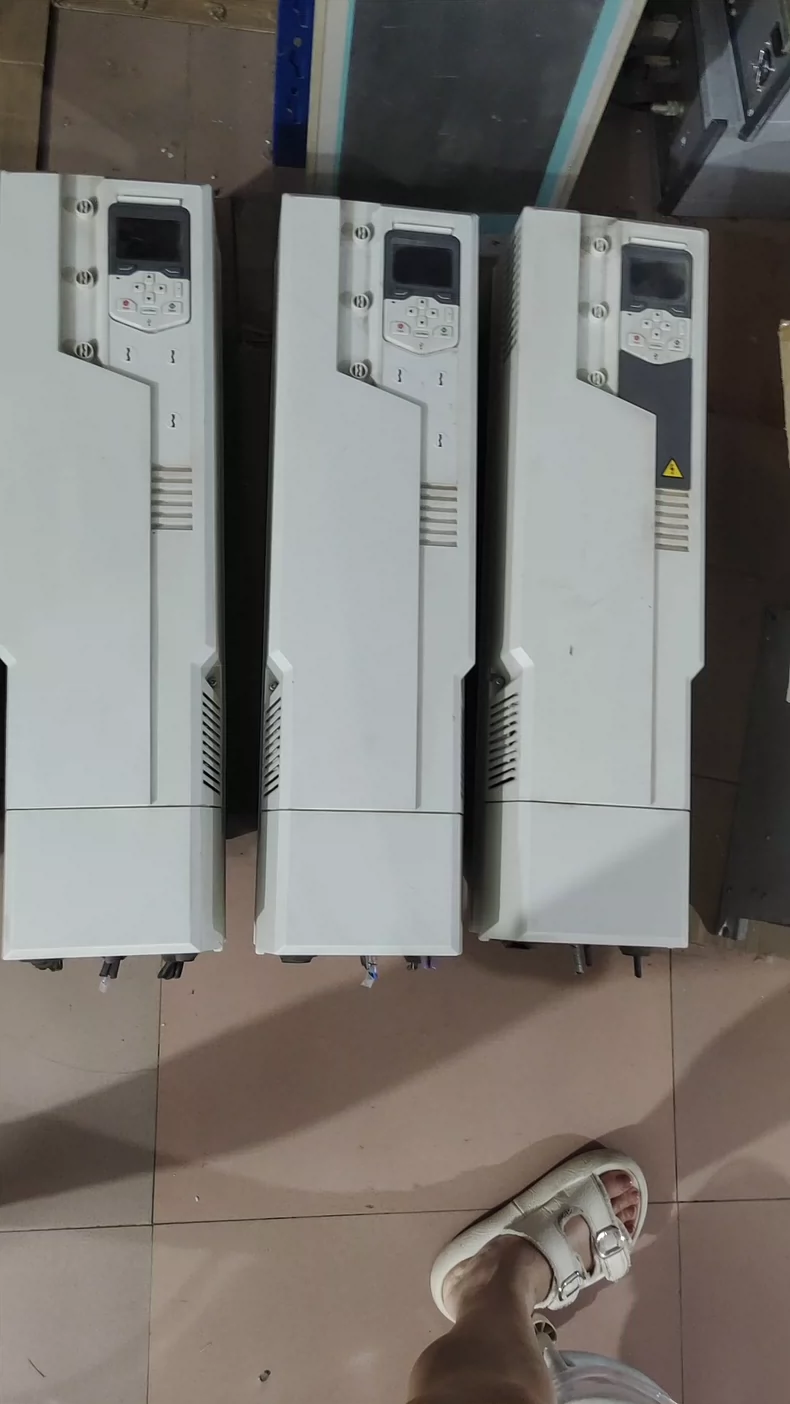

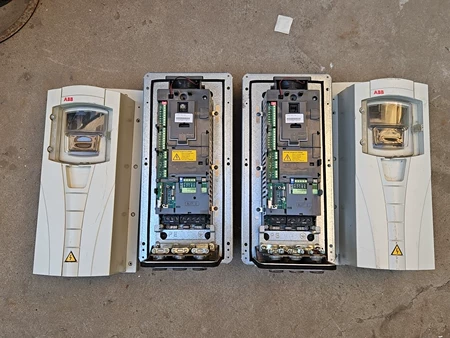

Key Specifications:

Rated Output:

Current: 88A

Voltage: 380-480V AC, 3-phase

Power: 45kW (at 400V)

Control Characteristics:

Flux-optimized DTC control

Speed range: 1:100 (without encoder)

Torque boost capability

Standard Features:
✔ User Interface:

Integrated control panel with LCD display

Multilingual menu navigation

✔ Connectivity:

Built-in Modbus RTU

Optional fieldbus adapters (Profibus, Ethernet/IP)

2 analog & 3 digital inputs, 2 relay outputs

✔ Protection Functions:

Motor thermal protection

Overcurrent/overvoltage protection

Earth fault detection

Physical Specifications:

Enclosure: IP21 (NEMA 1)

Cooling: Fan cooled

Ambient Temperature:

0°C to +40°C (full output)

Up to +50°C with derating

Dimensions: 278 x 460 x 235mm (WxHxD)

Certifications & Compliance:

CE, UL, cUL

RoHS compliant

Meets IEC 61800-5-1

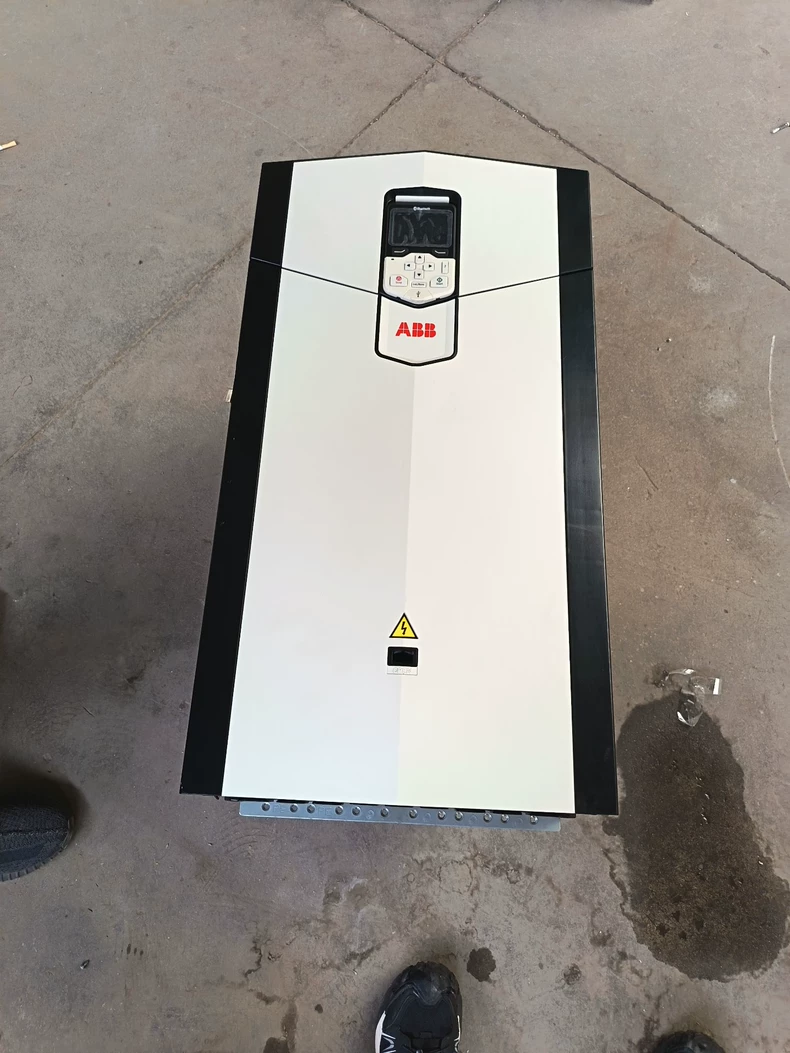

Key Specifications:

Drive Module: ACS880-01-363A-3

Output current: 363A

Voltage range: 380-480V AC (±10%)

Power range: 200-250kW (depending on voltage)

Enclosure: D150

Protection class: IP21 (standard)

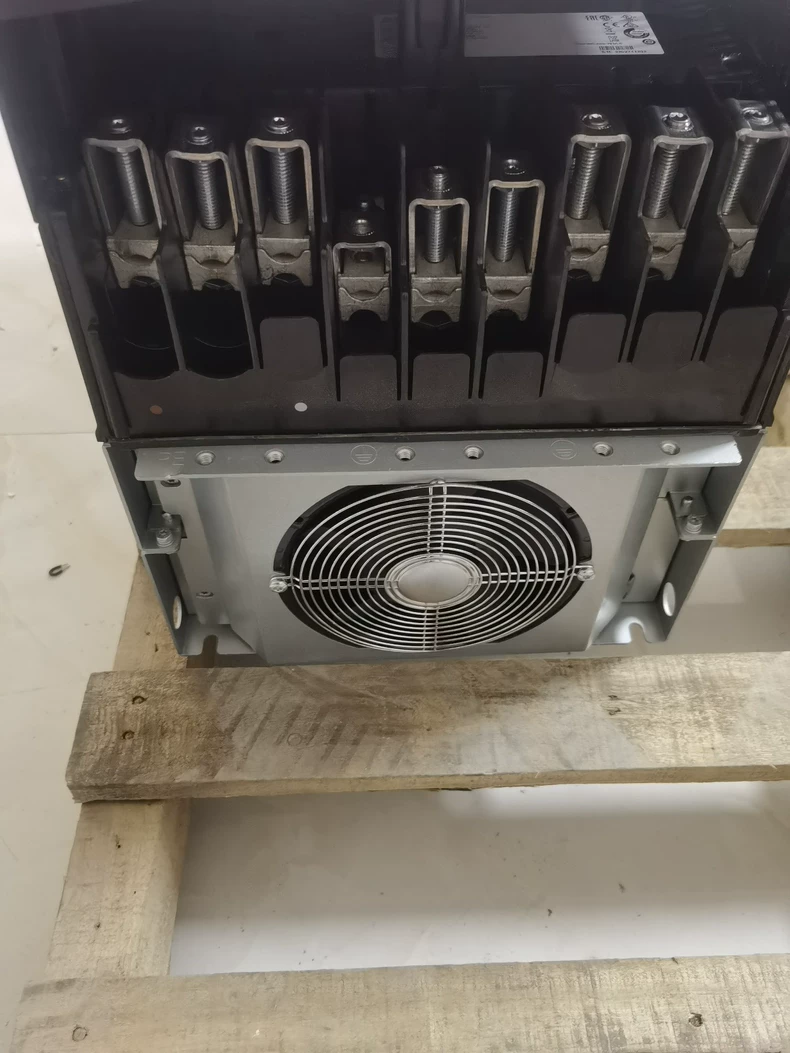

Cooling method: Forced air cooling

Built-in disconnect switch

Technical Features:
✔ Advanced Control:

DTC (Direct Torque Control) technology

0.1 Hz speed control without encoder

±0.3% speed accuracy

✔ System Integration:

Multiple fieldbus options (Profibus, Modbus, Ethernet/IP)

Built-in EMC filter

Integrated brake chopper (optional)

✔ Protection & Safety:

STO (Safe Torque Off) safety function

Overload capacity: 150% for 60 seconds

Short circuit protection

Environmental Specifications:

Operating temperature: 0°C to +40°C

Storage temperature: -40°C to +70°C

Relative humidity: <95% (non-condensing)

Altitude: Up to 1000m without derating

Certifications:

CE, UL, cUL, EAC

Complies with IEC 61800-5-1

Key Specifications:

Power Rating: 246A output current

Voltage Class: 380-480V AC, 3-phase

Power Range: 132-160kW (depends on voltage)

Control Technology: DTC (Direct Torque Control)

Enclosure Type: IP00 (cabinet installation)

Communication Protocols:
• Standard: Modbus RTU
• Optional: Profibus DP, Ethernet/IP, DeviceNet

Protection Features:
• Overcurrent/overvoltage protection
• Motor thermal protection
• Short circuit protection

Cooling Method: Liquid or air cooling (configurable)

Ambient Temperature: 0°C to +40°C (up to +50°C with derating)

Certifications: CE, UL, cUL

Features:
• True industrial-grade reliability for 24/7 operation
• Integrated safety functions (STO, SS1)
• Advanced heat management system
• Modular design for easy maintenance
• Compatible with ABB drive system accessories

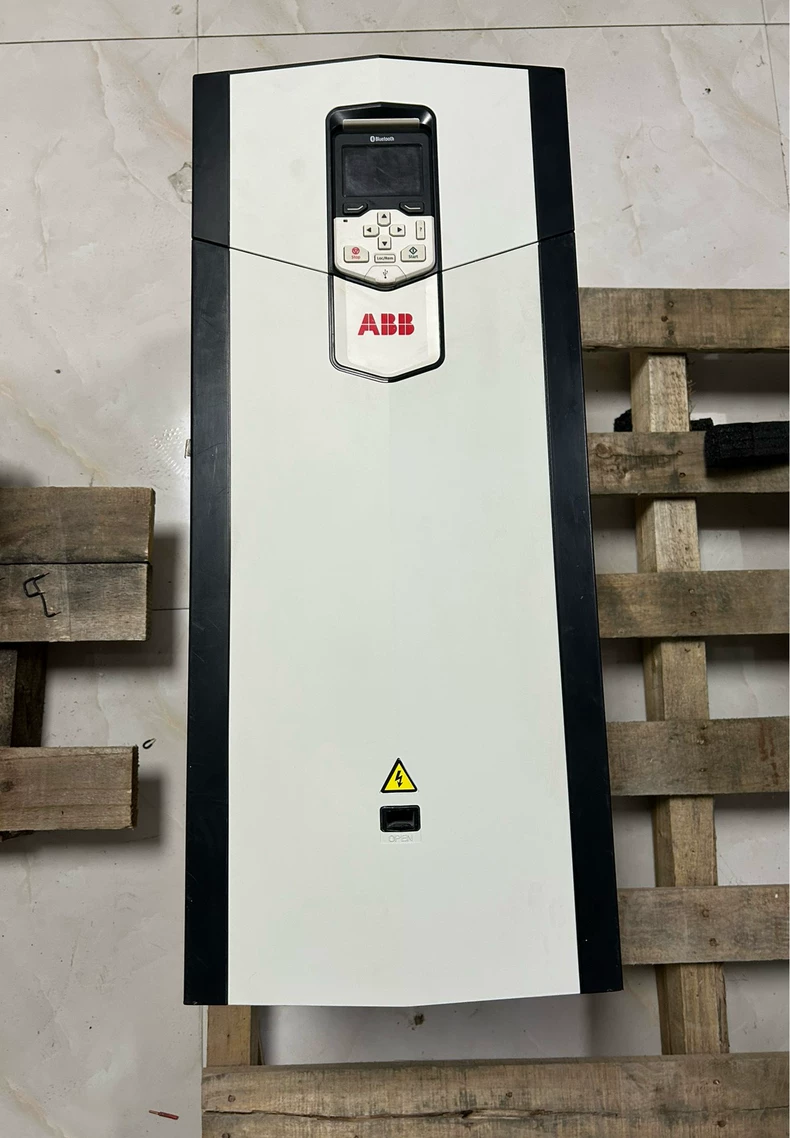

Key Features & Specifications
1. Power & Performance
Output Current: 363 A

Rated Power: ~250–315 kW (depends on motor voltage, e.g., 315 kW at 400V, 250 kW at 500V)

Input Voltage: 380–500V AC (±10%), 3-phase, 50/60 Hz

Output Frequency: 0–500 Hz (adjustable)

2. Motor Control Technology
ABB Direct Torque Control (DTC) – Provides high torque accuracy (±0.1%) without needing an encoder (sensorless operation).

Supports induction (IM) & permanent magnet (PM) motors.

Dynamic braking (with optional brake resistor for deceleration control).

3. Compact & Robust Design
Wall-mounted (IP21 enclosure) – Saves panel space while protecting against dust and dripping water.

Forced air cooling (built-in fan) for stable operation under heavy loads.

Modular design – Easy maintenance with plug-in I/O and optional expansion modules.

4. Smart Connectivity & Integration
Built-in Ethernet & fieldbus support (PROFIBUS, Modbus, CANopen via optional adapters).

ABB Ability™ compatible – Enables remote monitoring, predictive maintenance, and data analytics.

Drive Composer PC tool – Simplifies parameter tuning, diagnostics, and firmware updates.

5. Safety & Protection
Safe torque-off (STO) – SIL3-certified safety function to prevent unintended starts.

Overload, short-circuit, and overheating protection – Ensures long-term reliability.

CE, UL, cUL, and IEC 61800-5-1 compliance – Meets global industry standards.

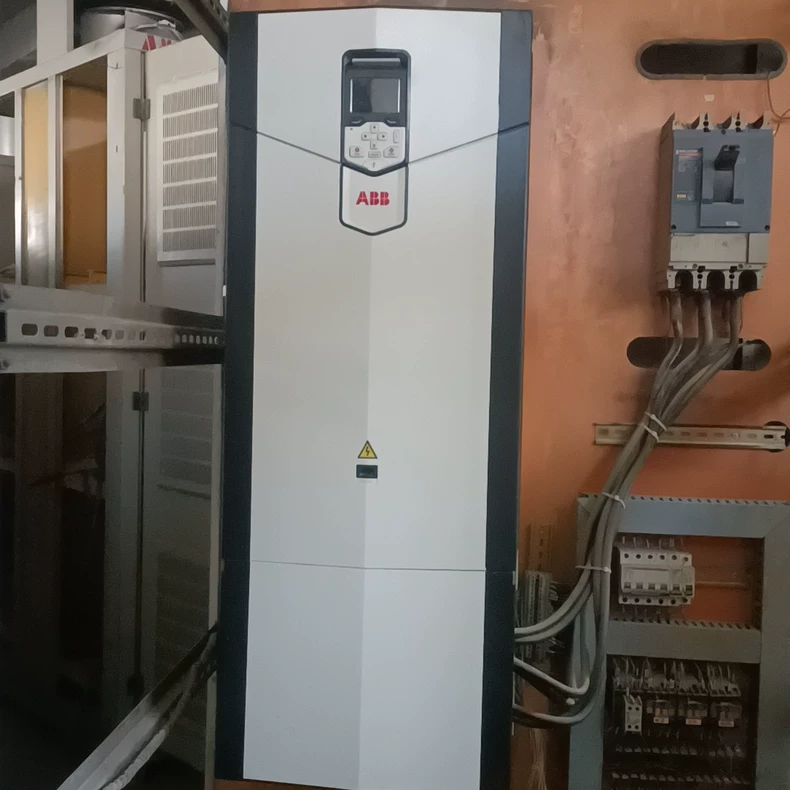

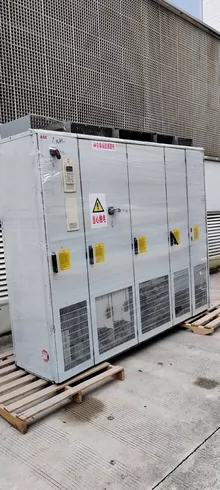

Key Features & Specifications:
Power & Performance

Rated Power: 450 kW (603 HP)

Output Current: Depends on voltage (e.g., ~780A at 400V, ~390A at 690V)

Input Voltage: 380–690V AC, 3-phase, 50/60Hz

Output Frequency: 0–300 Hz (configurable)

Advanced Motor Control

Direct Torque Control (DTC): Ensures fast torque response (±0.1% speed accuracy) without needing an encoder (sensorless control).

Supports induction motors (IM) and synchronous motors (SM).

Energy Efficiency & Savings

Regenerative braking capability (with optional brake chopper/unit).

Optimized for IE3/IE4 high-efficiency motors, reducing energy consumption.

Robust Design & Cooling

Air-cooled (IC 411) or liquid-cooled (LC) options available.

Enclosure: IP21 (standard) or IP54 (optional) for dust/moisture protection.

Smart Connectivity & Control

Fieldbus Protocols: PROFIBUS, Modbus, CANopen, Ethernet/IP (via optional adapters).

ABB Drive Composer: PC tool for parameterization, monitoring, and diagnostics.

PLC Embedded Control (optional, reducing external hardware needs).

Protection & Safety

Built-in safeguards: Overcurrent, overvoltage, motor overload, short-circuit, and ground fault protection.

Complies with CE, UL, cUL, and IEC standards.

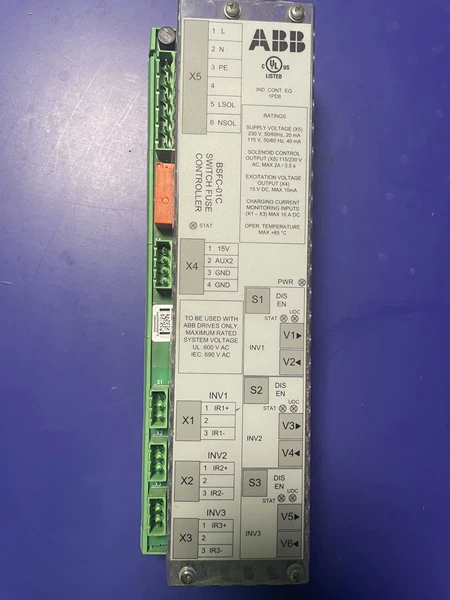

Key Features:
Functionality

Acts as a gate driver board, I/O module, or power supply unit (exact role depends on the drive configuration).

Facilitates communication between the drive’s control system and power stages.

Compatibility

Designed for seamless integration with ABB’s modular drive platforms (e.g., ACS880 multi-drive systems).

May interface with liquid-cooled (LC) or air-cooled units.

Robust Design

Engineered for industrial environments with resistance to electrical noise, vibration, and temperature fluctuations.

Typically rated for 24V DC control voltage (verify specifics in datasheet).

Safety & Compliance

Meets ABB’s stringent quality standards and relevant industry certifications (e.g., CE, UL).

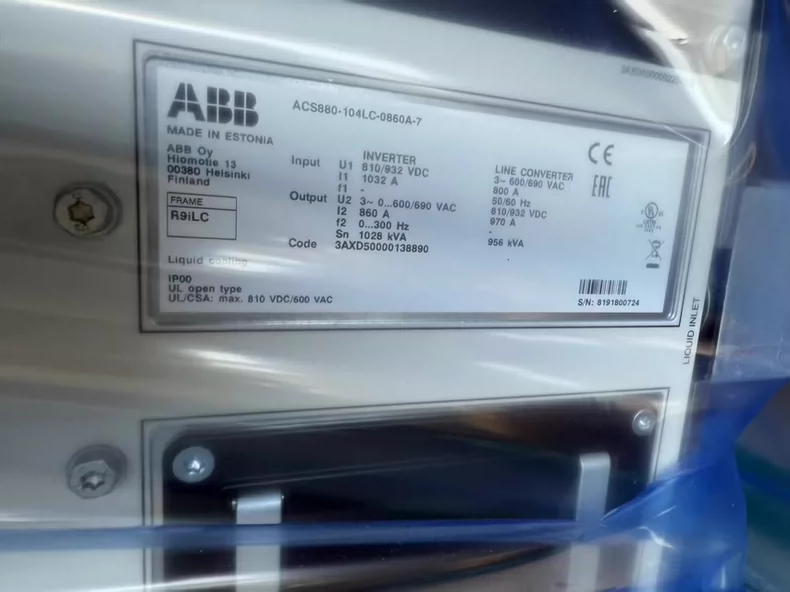

Key Features:
Liquid Cooling Technology

Utilizes advanced liquid cooling to reduce heat dissipation, enabling higher power density and compact installation compared to air-cooled alternatives.

Ideal for environments with limited ventilation or high ambient temperatures.

Power Range & Performance

Output current: 860 A

Voltage range: 380–500 V (3-phase)

Designed for dynamic torque control and precise speed regulation, supporting complex industrial processes.

Modular & Scalable Design

Part of the ACS880-104LC system, allowing parallel integration of multiple drive units for synchronized operation.

Supports common DC bus configurations to optimize energy sharing and regeneration.

Robust Protection & Safety

Built-in safeguards against overloads, short circuits, and overheating (IP00 enclosure, with optional protective kits).

Complies with international standards (e.g., IEC, UL, CE).

Smart Control & Connectivity

Features ABB’s Direct Torque Control (DTC) for superior motor performance.

Compatible with ABB Ability™ for remote monitoring, predictive maintenance, and integration into Industry 4.0 systems.

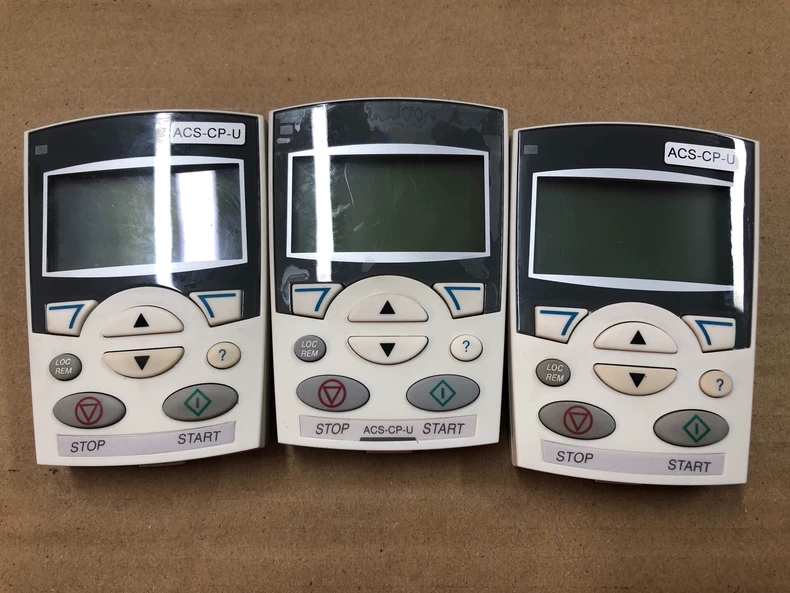

ACS-CP-U (ABB Control Panel Unit)
Type: Universal control panel

Compatibility: ACS800, ACS880, and other ABB drives

Display: LCD with multi-language support

Keypad: Membrane or tactile (model-dependent)

Protection Class: IP54 (standard)

Mounting: Cabinet door or drive-integrated

Functions:

Parameter programming

Real-time monitoring

Fault diagnostics

Local/remote control

Typical Use: Industrial motor control systems.
