Harmonic Mitigation: Reduces current THD to ≤8%
Plug-and-Play: Pre-configured for Altivar drives
Compact Design: Space-saving for control panel
Overload Protection: Built-in thermal protection
Industrial Durability: Vibration-resistant constructio

Overload Protection: Thermal switch (140°C) prevents overheating
Robust Construction: Aluminum housing for efficient heat dissipation
Easy Installation: Direct connection to drive's braking terminals
Wide Compatibility: Works with ATV31/61/71/310/312/320 drives

High Performance Control: Advanced sensorless vector control for precise speed/torque regulation
Energy Efficient: Auto-adaptive energy-saving algorithms
Robust Design: Industrial-grade components for reliable operation
User-Friendly Interface: LCD display with multilingual support
Built-in EMC Filter: Complies with IEC 61800-3 EMC standards
Safety Features: Safe Torque Off (STO) option available

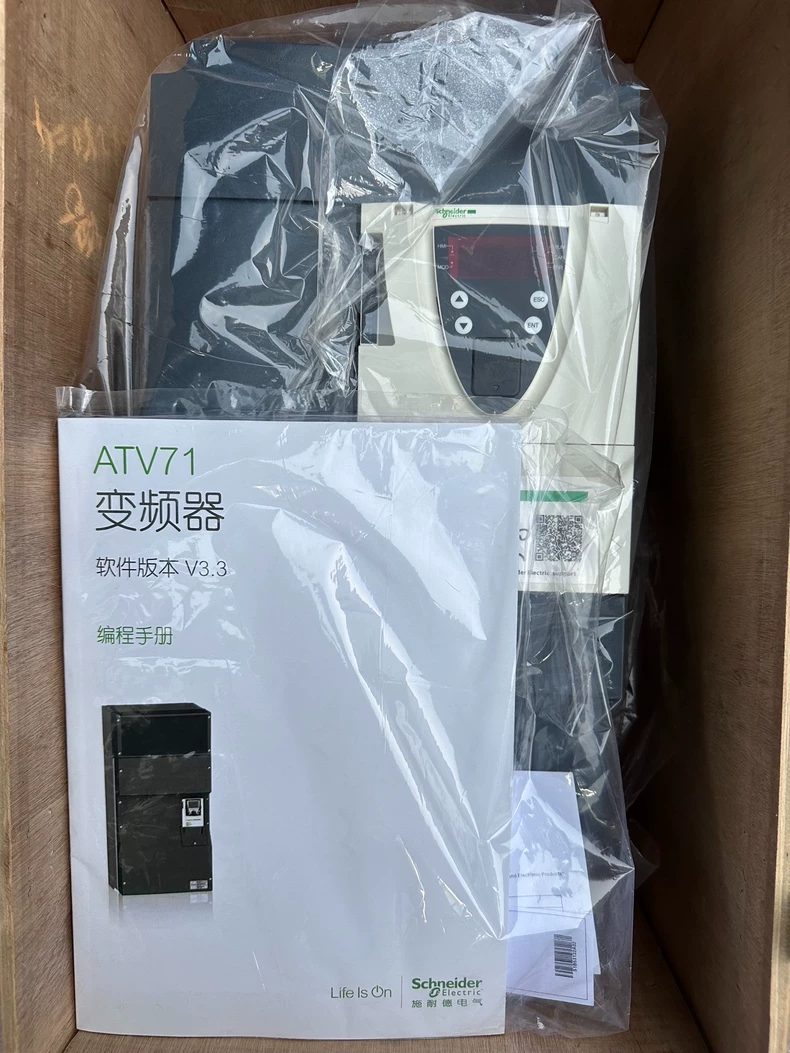

Variable speed drive, Altivar 71, 45kW, 60hp, 380 to 480V, 63.7dB, EMC filter, without graphic terminal, CANopen, Modbus
ATV71HD45N4Z

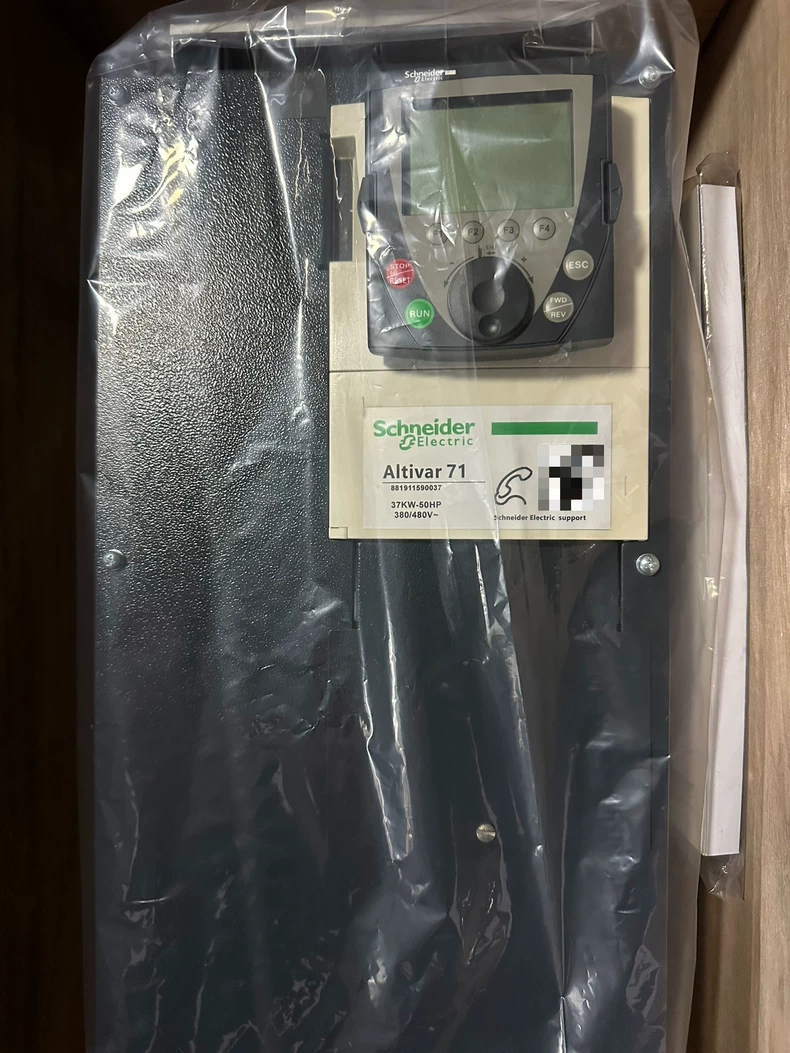

variable speed drive, Altivar 71, 37kW, 50hp, 480V, EMC filter, graphic terminal
ATV71HD37N4

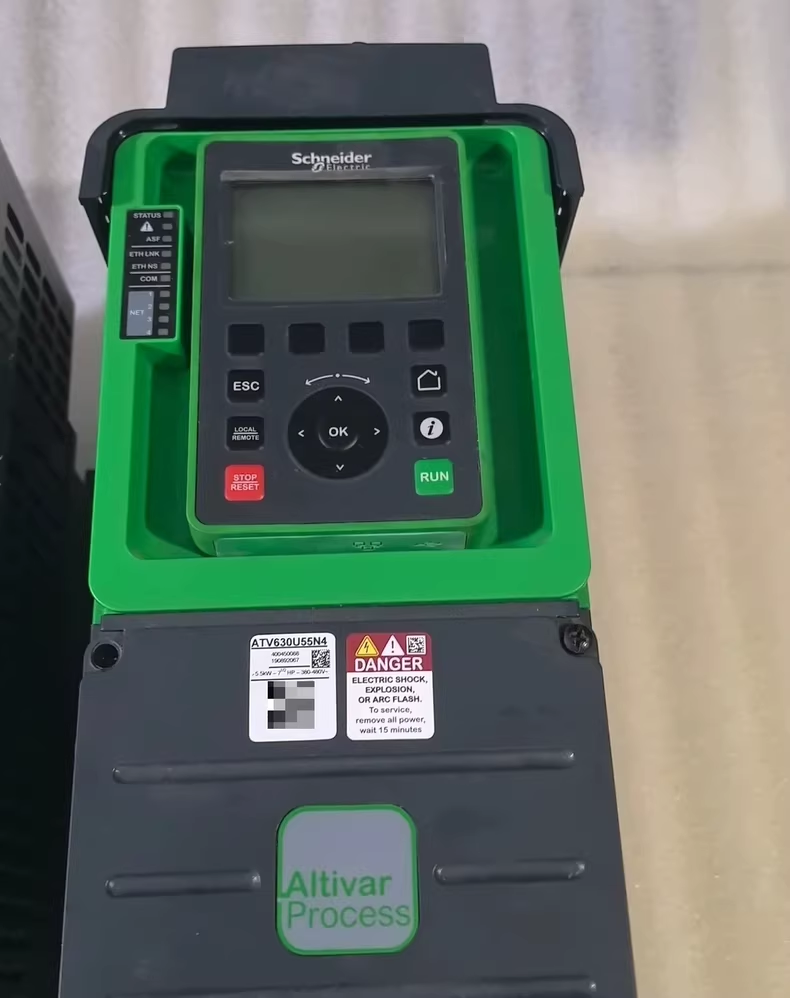

Variable Speed Drive, Altivar Process ATV600, ATV630, 5.5kW, 7.5hp, 380 to 480V, IP21, UL type 1
ATV630U55N4

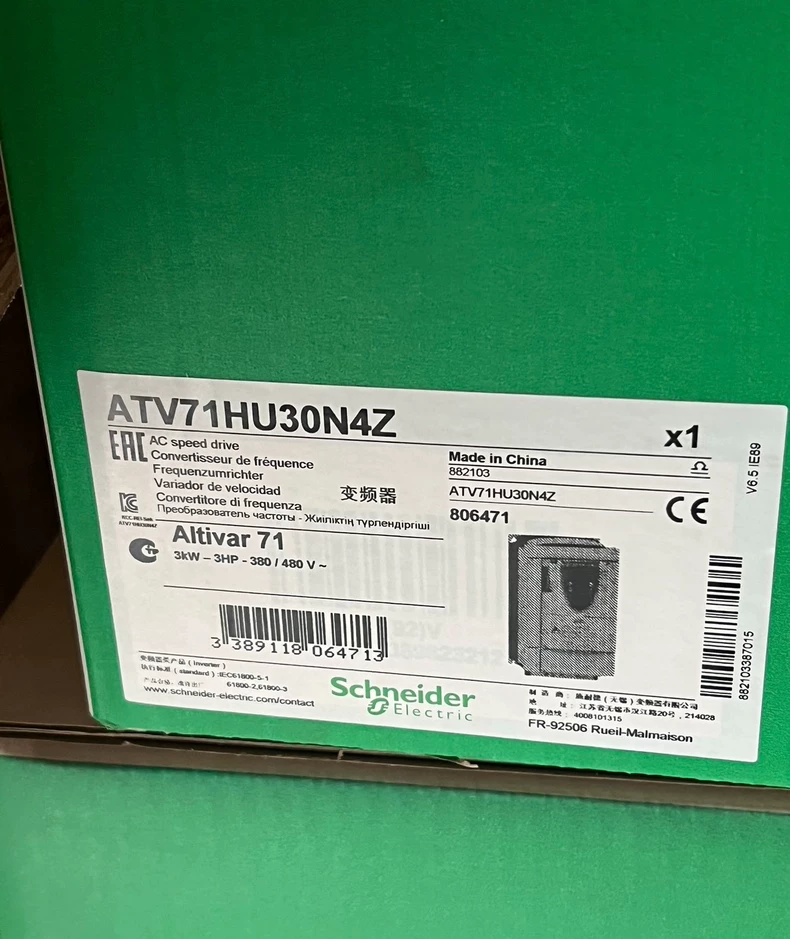

Variable speed drive, ATV71, 3kW, 4HP, 380 to 480V, 54.5dB, EMC filter, without graphic terminal, CANopen, Modbus

High Dynamic Control: Advanced flux vector for precise speed/torque regulation

Energy Optimization: Adaptive motor tuning reduces energy consumption

Integrated Safety: SIL3/PLe compliant Safe Torque Off (STO)

Multi-Network Support: Modbus, CANopen, Ethernet/IP, Profibus (optional)

Graphic Display: Multilingual interface with application macros

The Schneider Electric Altivar 630 (ATV630C) is a series of high-performance variable frequency drives (VFDs) designed for controlling motors in industrial and commercial applications. The series offers precise motor control, energy savings, and enhanced operational efficiency. The ATV630C supports a wide range of motor types, including asynchronous and synchronous motors, and is suitable for applications such as HVAC systems, pumps, fans, conveyors, and compressors.

:
Power Range: From 0.75 kW to 160 kW (1 HP to 215 HP).

Control Methods: Includes V/f, sensorless vector, and closed-loop vector control.

Energy Efficiency: Advanced energy-saving algorithms and dynamic braking.

Communication: Built-in Modbus RTU, optional Ethernet/IP, Profibus, and other protocols.

Protection: Overcurrent, overvoltage, thermal, and fault protection.

User Interface: Easy-to-use keypad with optional color touchscreen.

Customization: Flexible programming via EcoStruxure™ Machine Expert software.

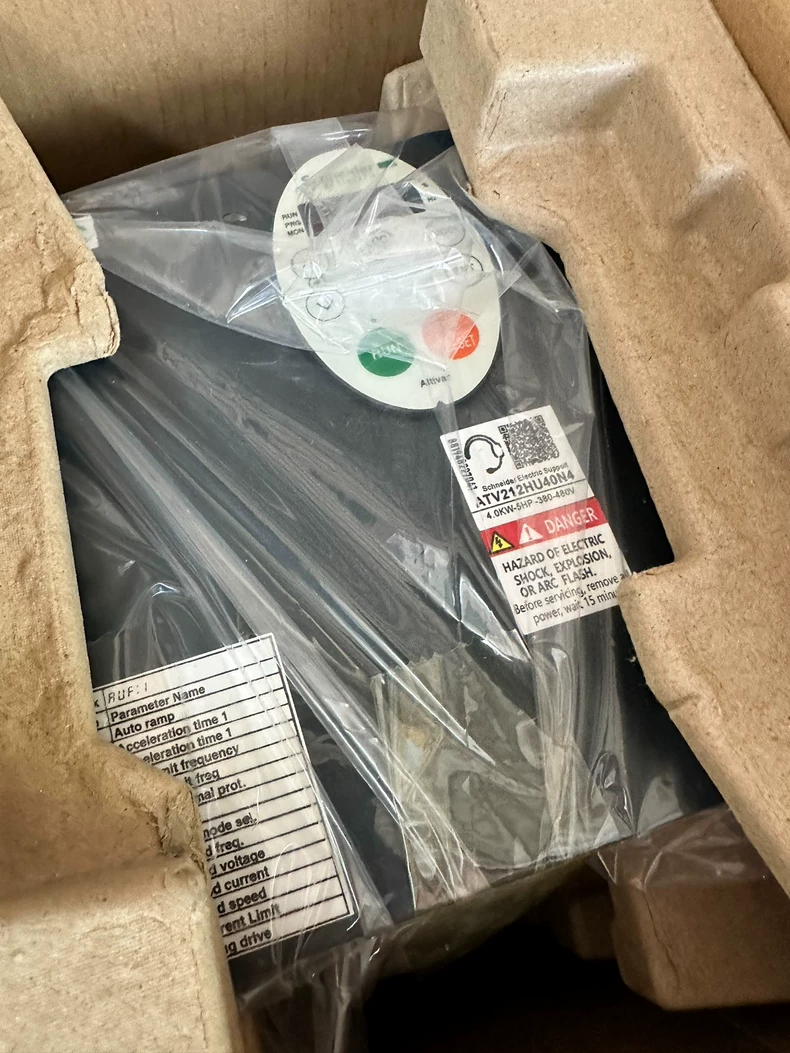

The Schneider Electric Altivar 212 (ATV212HU40N4) is a compact and versatile variable frequency drive (VFD) designed for controlling small to medium-sized motors in applications such as pumps, fans, conveyors, and HVAC systems. This drive offers efficient motor control, energy savings, and flexibility, making it ideal for industrial, commercial, and residential use.
