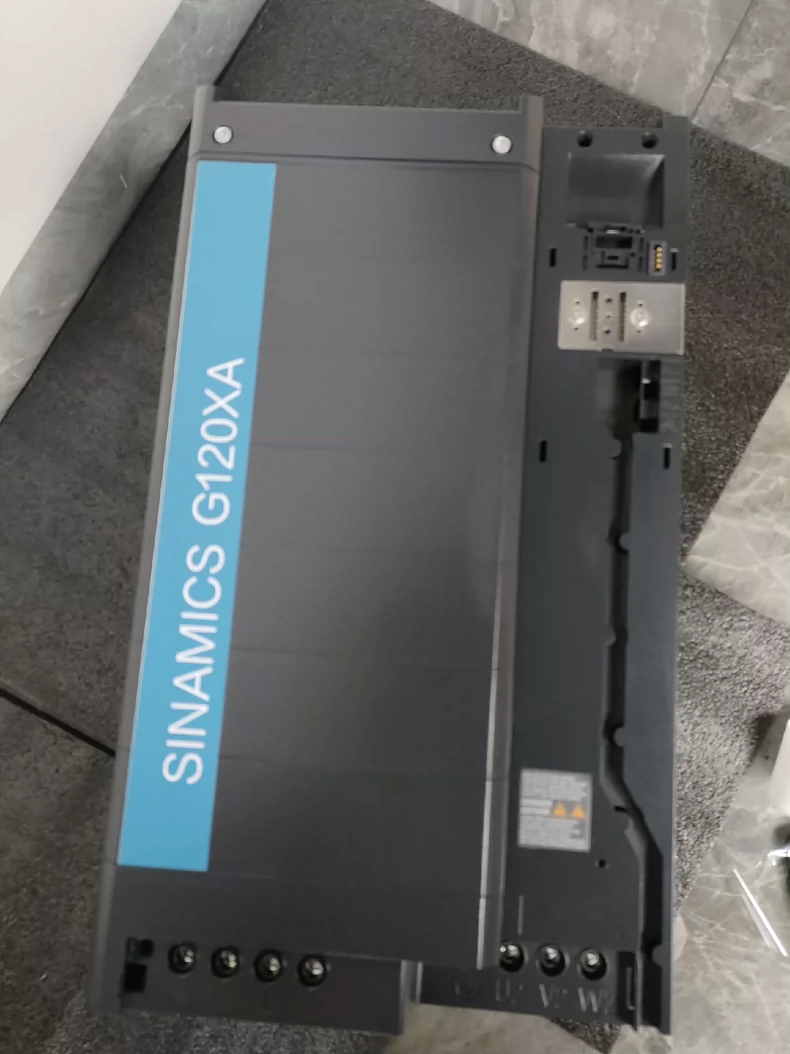

SIEMENS 6SL3220-1YD40-0UB0 – SINAMICS G120 PM240-2 Power Module

Core Specifications:

Power Rating: 11kW (400V AC 3-phase)

Output Current: 22A continuous

Input Voltage: 380-480V AC ±10% (47-63Hz)

Technology:

Sensorless vector control

Built-in Class A EMC filter

Integrated brake chopper

Key Features:

Cooling: Fan-cooled design

Protection: IP20 enclosure rating

Safety: Safe Torque Off (STO) function

Communication:

Basic I/O (2DI/1AI/1Relay)

RS485 (USS/MODBUS RTU)
*PROFIBUS/PROFINET via CU250S-2*

Physical Specifications:

Dimensions: Compact booksize design

Weight: Approx. 8.5kg

Ambient Temp: 0°C to +40°C (up to +50°C with derating)

Certifications:

CE, UL, cUL listed

Marine (DNV GL) & Rail (EN 50155) options available

Typical Applications:

Industrial fans & pumps

Conveyor systems

Basic material handling

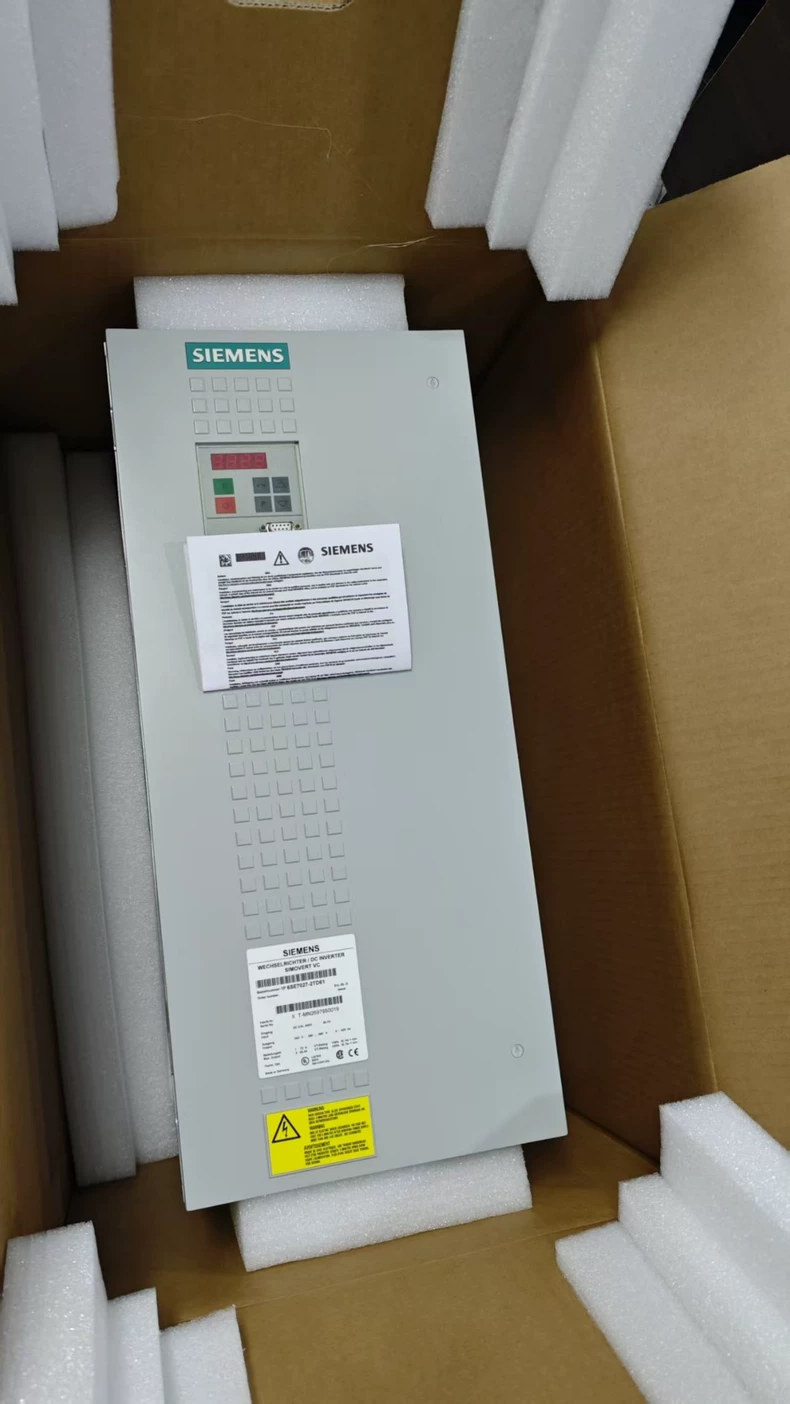

SIEMENS 6SE7027-2TD61-Z – MICROMASTER 440 (MM440) Frequency Inverter

7.5kW drive (380-480V AC input / 16A output)

V/f & sensorless vector control

Built-in PID, brake chopper & RS485

IP20 protection, fan-cooled

SIEMENS 6AV2124-0MC01-0AX0 – SIMATIC KTP400 Basic PN HMI

4.3" resistive touchscreen (480×272)

PROFINET & USB 2.0 connectivity

24V DC powered, IP65 front protection

WinCC Basic runtime (TIA Portal)

Compact HMI for S7-1200/1500 PLC systems

SIEMENS 6FX2007-1AE04 – DRIVE-CLiQ Cable

4m shielded cable with 90° angled RJ45 connectors

M12 screw-lock for secure connection

100Mbps data rate for SINAMICS drives/motors

Flexible use (-30°C to +80°C)

IP20 rated

SIEMENS 6SL3352-1AE38-4EA1 – SINAMICS S120 Control Unit CU320-2 PN

Multi-axis controller for S120 drives (6 axes)

Dual-PROFINET + PROFIBUS DP connectivity

DRIVE-CLiQ interface for motor/sensor integration

Safety Integrated (STO/SS1/SBC via PROFIsafe)

24V DC powered, IP20 protection

SIEMENS 6SL3130-6TE23-6AA3 – SINAMICS S120 Double Motor Module

Liquid-cooled dual drive (30kW x2 / 72A x2)

510-720V DC link input (for S120 power systems)

DRIVE-CLiQ controlled + STO safety

High overload capacity (150%/60s)

Booksize IP20 chassis

Built for high-power multi-axis automation like presses & extruders.

SIEMENS 6SL3120-2TE13-0AA4 – SINAMICS S120 Double Motor Module

Compact dual-drive module (5.5kW x2 / 14A x2)

510-720V DC link input (for S120 systems)

Integrated DRIVE-CLiQ & STO safety

Forced air cooling, IP20 protection

Booksize design for space-saving cabinet installation

Ideal for multi-axis applications like robotics and conveyors.

SIEMENS 6SL3040-1LA00-0AA0 – SINAMICS S120 Smart Line Module (SLM)

55kW Active Line Module (380-480V AC input)

120A continuous output with regenerative capability

Integrated brake chopper for energy dissipation

DRIVE-CLiQ interface for CU320 control

Forced air cooling, IP20 protection

Booksize design for cabinet installation

Ideal for regenerative drive systems in industrial automation.

SIEMENS 6SL3000-0BE28-0AA0 – SINAMICS S120 Motor Module

55kW liquid-cooled motor drive (120A continuous)

510-720V DC input (for S120 DC link systems)

DRIVE-CLiQ controlled (requires CU320-2/CU310-2)

Integrated Safety (STO) & overload protection

IP20 chassis for cabinet installation

Designed for high-dynamic servo applications in industrial automation.

SIEMENS 6SN1123-1AA00-0KA1 – SINAMICS S120 Basic Line Module (BLM)

16 kW power module (380-480V AC input)

30A continuous output, non-regenerative

Integrated brake chopper for dynamic braking

DRIVE-CLiQ interface for CU320 control

Forced air cooling, IP20 protection

Booksize design for compact cabinet installation

Essential for SINAMICS S120 drive systems in industrial automation.
