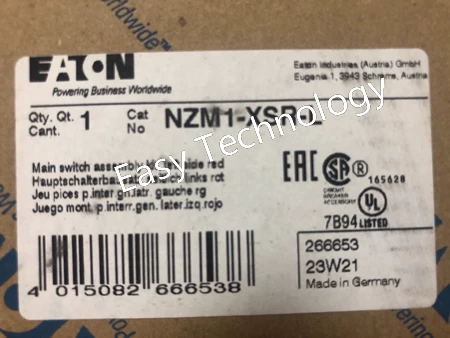

Technical Data Parameter Specification Product Series NZM1 (Molded Case Circuit Breaker) Product Type Electronic Trip Molded Case Circuit Breaker Rated Operational Voltage (Ue) Up to 690 V AC Rated Insulation Voltage (Ui) 1000 V Rated Current (In) Determined by the X-Series Rating Plug. The specific current rating is set by installing the appropriate plug (e.g., NZM1/2-XV100 for 100A). The range is defined by the breaker's frame size. Poles 3 Poles (Standard for this model) Mounting Style Fixed Mounting Trip Unit Type Electronic Trip Unit (Communication-ready) Protection Functions LSIG • L - Long-time Delay (Overload) • S - Short-time Delay (Short-circuit) • I - Instantaneous (Short-circuit) • G - Ground-fault Rated Ultimate Breaking Capacity (Icu) The exact value depends on the specific NZM1 frame size and voltage. (e.g., For an NZM1 frame size P, it could be 36kA at 415V AC). Communication Capability Ready for communication. Requires a separate communication adapter module (e.g., for Modbus, Profibus DP). Standards IEC 60947-1, IEC 60947-2 Electrical Durability 5,000 cycles (at rated current) Mechanical Durability 10,000 cycles
