Model 132306-01
Industrial Vibration Monitor

Core Features:

Dual-channel vibration analysis (acceleration/velocity/displacement)

Wide frequency range (1Hz-12kHz) with 100dB dynamic range

Integrated FFT processing (up to 3200 lines)

Modbus RTU interface for system integration

Key Benefits:
✔ ISO 10816 compliant for machinery vibration standards
✔ 4-20mA + relay outputs for PLC/PAS integration
✔ -30°C to +70°C operation in harsh environments

Configuration Options:
• ICP® accelerometer input
• Loop-powered velocity sensor support

Typical Applications:
• Motor/pump predictive maintenance
• Gearbox condition monitoring
• Rotating equipment protection

Certifications: UL 61010-1, CE, RoHS

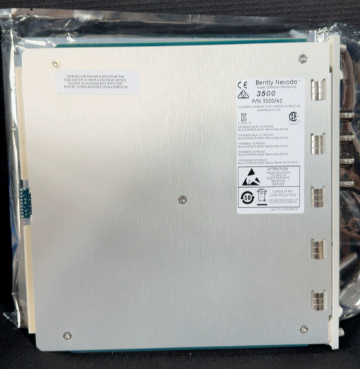

3500/42M Vibration Monitoring System

Key Features:

4-channel proximity/seismic monitoring module

Multi-parameter measurement: Displacement/Velocity/Acceleration

High-accuracy: ±1° phase, 16-bit resolution

Industrial compliance: Meets API 670 machinery protection standards

Configuration:

Inputs: Supports 8mm/11mm proximity probes

Outputs: 4 relay contacts + Modbus/Ethernet

Rack-mount: 3U height for 19" panels

Critical Protection:
✔ Programmable alert/danger thresholds
✔ 10kHz high-speed sampling
✔ ATEX Zone 2 certified version available

Typical Applications:
• Gas/steam turbines
• Centrifugal compressors
• High-speed pumps

Model 125768-01
Industrial Signal Conditioner

Core Features:

Multi-signal processing: Converts 0-10V/4-20mA/frequency inputs to isolated 4-20mA outputs

Ultra-compact design: 23mm slim DIN-rail module

Military-grade ruggedness: Operates at -40°C to +85°C

Triple isolation: 1500V separation between input/output/power

Key Benefits:
✓ 0.05% high accuracy for critical measurements
✓ <2ms fast response for real-time control
✓ Built-in Modbus RTU for smart configuration

Certifications: UL 61010-1, CE, RoHS

Typical Use:
• Process instrumentation interfaces
• PLC signal conditioning
• Hazardous area monitoring (ATEX version available)

Documentation: DS-125768-EN-Rev3.2

(Need help with Modbus configuration or wiring examples?)

Model 135489-04 Industrial Gateway

Key Features:

Multi-protocol Conversion: Supports Modbus, PROFINET, EtherNet/IP and OPC UA

Dual Ethernet + Fieldbus: 2× Gigabit ports with RS-485/CAN interfaces

Extended Temperature: Operates at -40°C to +75°C

Secure Connectivity: IEC 62443-3-3 compliant cybersecurity

Configuration Options:
• -04W version adds 4G LTE wireless
• -04X for hazardous areas (ATEX Zone 2)

Typical Use Cases:
✔ Legacy equipment modernization
✔ Industrial IoT edge deployments
✔ Cross-vendor network integration

Certified for:

UL 61010-1 (Industrial Safety)

EN 61000-6-2/4 (EMC)

125736-01 I/O Module

Product Overview
A compact industrial I/O module with PROFINET connectivity, designed for reliable signal interfacing in automation systems.

Key Features
✔ 8 Digital Inputs (24VDC, configurable sink/source)
✔ 4 High-side Outputs (0.5A/ch, 2A total with protection)
✔ PROFINET RT with 2-port switch for daisy-chaining
✔ DIN-Rail Mounting (22.5mm slim design)
✔ -20°C to +60°C operating range

Technical Highlights

Channel-level Diagnostics for quick troubleshooting

±8kV ESD Protection (EN 61000-4-2)

Marine Option (DNV-GL certified variant available)

Typical Applications
• Factory automation panels
• Conveyor control systems
• Equipment status monitoring

330709-000-030-10-02-00
Industrial I/O Module

Core Features:

Rugged CANopen interface module with 8 digital channels (4IN/4OUT)

Military-grade durability (-40°C to +85°C operation)

High-vibration resistant design (10g/2kHz compliant)

Tool-free pluggable terminals for field maintenance

Configuration Highlights:
• 030: 30mm compact profile
• 10: 10-pin hybrid connector
• 02-00: Generation 2 hardware

Ideal For:

Off-highway vehicle controls

Oil & gas field devices

Railway onboard systems

Compliance: UL 61010-1, CE, RoHS 3

*Documentation: 330709-000-Series-TD-EN-REV5*

330180-12-00 Industrial Control Module

Overview:
A robust DIN-rail mounted automation component designed for industrial control applications, featuring enhanced communication capabilities and reliable performance in demanding environments.

Key Features:

Dual communication interfaces (RS-232/RS-485 with Modbus RTU)

High-current capacity (5A continuous, 10A peak)

Wide operating temperature range (-30°C to +75°C)

Industrial-grade protection (IP65 front/IP20 terminals)

Comprehensive status indication (multi-color LEDs)

Typical Applications:
• Factory automation systems
• Motor control units
• Process monitoring equipment
• Industrial networking solutions

300400-02 Technical Brief

Description:
Industrial-grade control module designed for automation systems, featuring robust connectivity and reliable performance in harsh environments.

Core Specifications:

Power: 24VDC ±10% (3A max)

Protection: IP67 rated enclosure

Interface: Spring-clamp terminals (0.2-2.5mm²) + RS-485 Modbus

Operating Range: -25°C to +70°C

Compliance: CE, RoHS, UL

Key Features:
✓ DIN-rail mount (35mm)
✓ LED status indicators
✓ Enhanced EMC protection ("-02" variant)

Typical Use: PLC systems, equipment monitoring, sensor networks

*For installation details, refer to document: 300400-02-TD-EN-REV3*

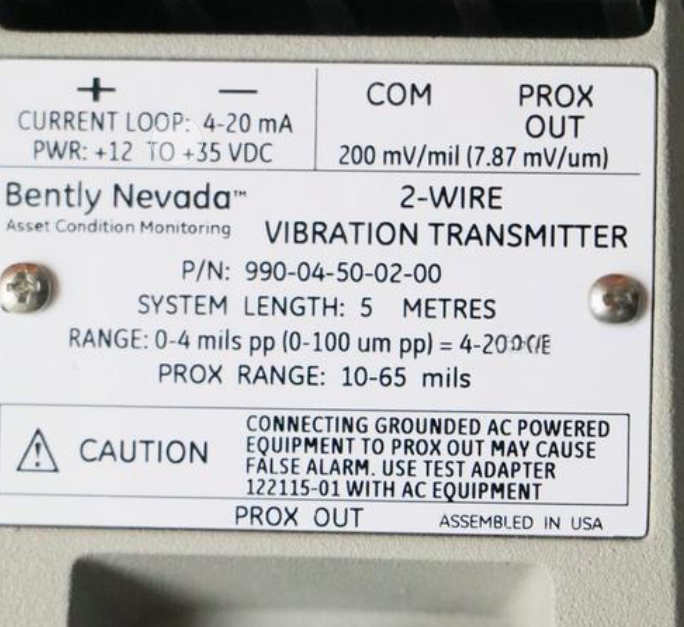

Product No.: 990-04-50-02-00
Industrial Control Module

Key Features:

Standard industrial component for automation systems

Compatible with 24V DC industrial power standards

Robust metal/plastic composite housing

DIN-rail or panel mount design

IP65 protection rating for harsh environments

Typical Applications:

PLC I/O expansion units

Motor control cabinets

Sensor/actuator interface modules

Industrial machinery electrical systems

Note:

Product Code: 991-06-70-01-00

Brief Description:
The 991-06-70-01-00 is an industrial-grade modular component, typically used in automation systems, electrical control panels, or machinery interfaces. It serves as a functional unit for signal processing, power distribution, or system interconnection.

Key Features:

Modular Design: Allows for easy integration with industrial control systems

Robust Construction: Engineered for harsh industrial environments

Standard Compatibility: Designed to work with common industrial protocols and voltages

Configuration Indicator: "-00" suffix suggests this is the base model or standard version

Typical Applications:

Factory automation systems

Process control equipment

Machinery control interfaces

Electrical panel components
