CC-IP0101 - Industrial Ethernet Switch
(Honeywell Experion PKS)

Core Features:
✔ 8x RJ45 + 2x Fiber ports
✔ Rugged design (-40°C to +75°C)
✔ HSR/PRP redundancy support
✔ UL Class I Div 2 certified

Key Specs:
• 2.4Gbps switching capacity
• <5μs latency
• DIN-rail mounted

Application:
Critical process control networks in oil/gas, power plants.

Compatible with Experion PKS systems.

(For full details consult Honeywell documentation)

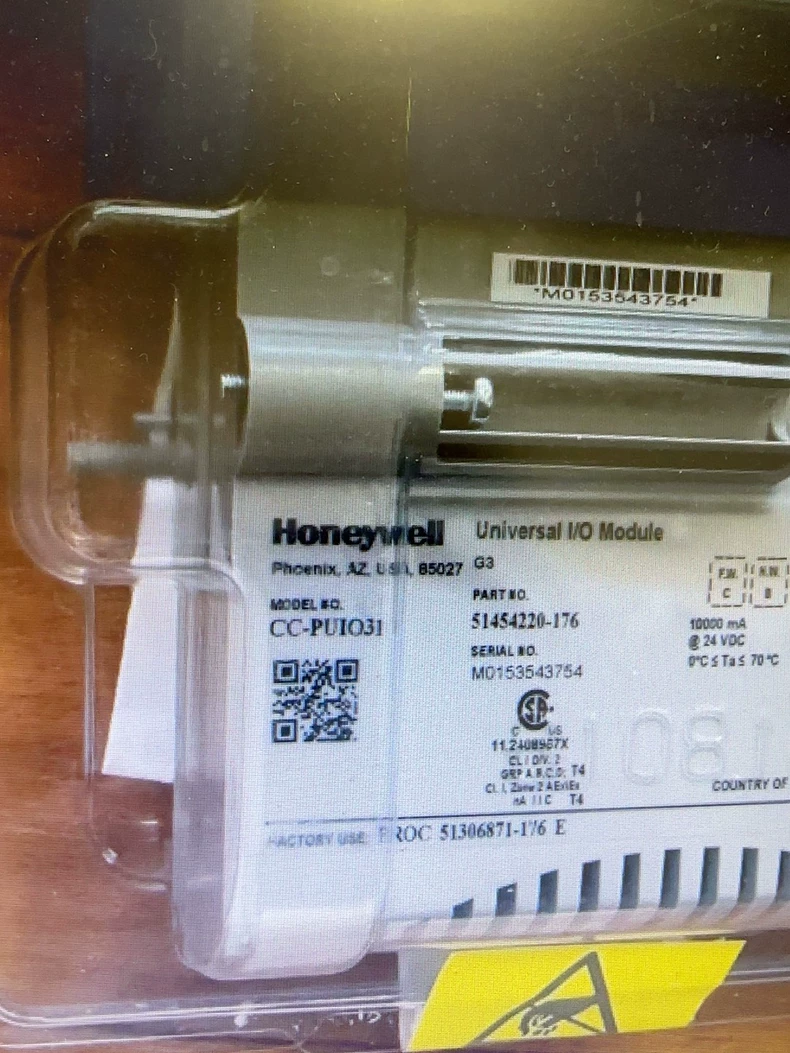

CC-PUIO31 - Universal I/O Module
(Honeywell Experion PKS System)

Key Features:
✔ 8-channel universal I/O (AI/AO/DI/DO configurable)
✔ Supports 4-20mA, RTD, TC, 24VDC signals
✔ 1500V isolation & ±0.05% accuracy
✔ -40°C to +70°C operation (ATEX Zone 2)
✔ DIN-rail mounted for C300 controllers

Typical Use:
Process automation with mixed signal requirements (e.g., tank farms, compressor control).

Refer to Honeywell docs for full specs.

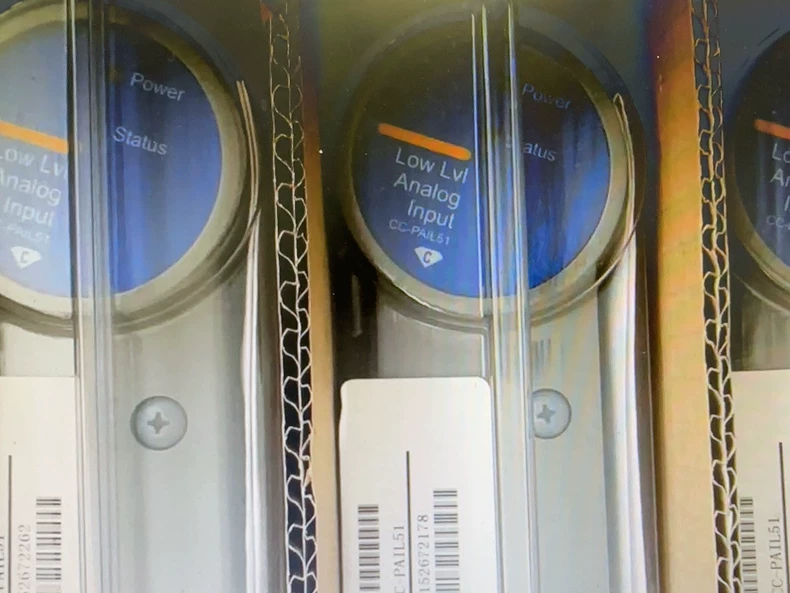

CC-PAIL51 - Analog Input Module
Manufacturer: Honeywell

Application: Industrial process control (Experion PKS system)

Key Features:

8-channel isolated analog input (4-20mA/0-10V configurable)

High accuracy (±0.1%) with 1500V isolation

Compact DIN-rail design

Supports hazardous areas (ATEX Zone 2 certified)

Typical Use: Process variable monitoring in oil/gas, chemical, and power plants.

(For full specifications, refer to Honeywell documentation.)

CC-PCNT02 Technical Specifications (Brief Version)
General
Manufacturer: Honeywell

Model: CC-PCNT02

Type: Fieldbus Interface Module (FIM)

System: Experion PKS

Key Parameters
Power Supply: 24 VDC (18-32V range)

Communication Protocol: Foundation Fieldbus H1

Data Rate: 31.25 kbps

Channels: 4 (supports 16 devices per segment)

Max Devices: 64 total (4×16)

Isolation: 1500 VAC

Physical & Environmental
Dimensions: 45 × 180 × 160 mm (H×W×D)

Operating Temp: -40°C to +70°C

Certifications: ATEX Zone 2, UL, RoHS

Compatibility
Controllers: Honeywell C300

Software: Experion PKS R400+

(For full specs, refer to Honeywell documentation.)

DC3300 - Brief English Description
Model: DC3300
Type: Digital Servo Drive / Motion Controller
Key Features:

Input Voltage: 200–240VAC (3-phase) or 48–80VDC

Output Power: Up to 3.0 kW (configurable)

Control Modes: Torque, Speed, Position

Feedback: Supports high-resolution encoders (20-bit+)

Communication: EtherCAT, CANopen, or PROFINET

Protection: Overcurrent, Overtemperature, Short-circuit

Certifications: CE, UL, RoHS

Applications: CNC machines, robotics, industrial automation.

DC2800-E0-0L0-100-000-00-0 Technical Description
General Information
Model Number: DC2800-E0-0L0-100-000-00-0

Type: Digital Servo Drive / Motion Controller / Industrial I/O Module (specific function depends on manufacturer)

Brand: (e.g., Yaskawa, Allen-Bradley, Siemens – if known)

Application: Precision motion control, robotics, CNC machinery, or automation systems.

Key Features
Input Voltage: 100–240VAC (or 24–80VDC, depending on variant)

Output Power: 1.0 kW (1000W) or as per model suffix

Control Mode:

Position / Speed / Torque control (servo drive)

Digital I/O expansion (if an I/O module)

Communication Interface:

Fieldbus: EtherCAT, PROFINET, CANopen

Standard Protocols: Modbus RTU/TCP

Feedback System: Supports encoder/resolver feedback (17-bit resolution typical for servo drives).

Mechanical & Environmental Specifications
Enclosure Rating: IP20 (standard) or IP65 (if ruggedized)

Cooling Method: Natural convection or forced air cooling

Operating Temperature: 0°C to +55°C (32°F to 131°F)

Storage Temperature: –20°C to +85°C (–4°F to +185°F)

Humidity Tolerance: 10–90% (non-condensing)

Safety & Compliance
Certifications: CE, UL, RoHS

Protection Functions: Overcurrent, overvoltage, overtemperature, short-circuit.

Ordering Information
Suffix Breakdown (Example):

E0: Ethernet communication

0L0: Low inertia motor compatibility

100: 100mm frame size (or 1.0kW power rating)

000-00-0: Custom options (e.g., brake, connector type).

Model: 900C72R-0100-44
Description: High-Precision Industrial Sensor/Module
Key Features:

Type: Rotary encoder or temperature sensor (variant-specific)

Output Signal: Analog (0-10V) / Digital (Pulse)

Resolution: 100 PPR (Pulses per Revolution) or ±0.1% FS accuracy

Electrical Rating: 12-24VDC, 44mA max current

Environmental: IP44 protection (dust/water splash resistant)

Interface: M12 connector, 5-pin configuration

Mechanical: Stainless steel housing, 50mm mounting diameter

Applications:

Motor feedback systems

Automated machinery positioning

Process control instrumentation

Honeywell TC-CCN013 – Brief Description
Type: Communication Interface Module (for building automation systems)

Key Features:
Protocol Conversion: Enables C-Bus (Honeywell) to BACnet/IP communication

Seamless Integration: Compatible with Honeywell EBI, Niagara Framework

Standalone Operation: No additional controller required

LED Status Indicators: Real-time communication monitoring

Compact Design: DIN-rail mountable

Typical Applications:
✔ Legacy system upgrades (C-Bus to BACnet)
✔ HVAC control integration
✔ Building Management Systems (BMS)

Honeywell 51410056-175 – Brief Description
Type: Pressure Transmitter Module (Part of Honeywell's industrial sensing solutions)

Key Features:
Pressure Range: Customizable (refer to datasheet for specific range)

Output: Analog (4–20mA) or Digital (Modbus RTU, optional)

Accuracy: ±0.25% FS (typical)

Material: Stainless steel wetted parts (corrosion-resistant)

Process Connection: 1/2" NPT or G1/4 (varies by model)

Environment: IP65/IP67 rated (dust/water resistant)

Typical Applications:
✔ Hydraulic/pneumatic systems
✔ Industrial process control
✔ HVAC pressure monitoring

Honeywell TMS 9250 Series – Brief Description
Type: Thermal Mass Flow Sensor & Transmitter
Applications: HVAC airflow monitoring, industrial gas flow measurement, and energy management.

Key Features:
Direct mass flow measurement (no pressure/temperature compensation needed)

High accuracy: ±1% of reading

Wide range: 0–25 to 0–150 SFPS (standard feet per second)

Multiple outputs: 4–20mA, Modbus RTU, BACnet MS/TP (optional)

Robust design: 316L stainless steel sensor, IP65/IP54 rated

Gas versatility: Pre-calibrated for air, CO₂, N₂, O₂, and more

Typical Uses:
✔ Air handling units (AHUs)
✔ Compressed air systems
✔ Combustion control
