This General Electric HE693PBM101 module is a powerful Profibus DP Master designed for industrial automation applications, ensuring seamless communication and control in complex manufacturing environments.

Core Function:
High-sensitivity eddy current displacement sensor for precision machinery monitoring

Key Specifications:
• Sensitivity: 12.0 mV/µm (±5%)
• Measurement Range: 0-1.2mm (1200µm)
• Frequency Response: DC to 10kHz
• Output: -2 to -20V DC (linear analog)

Mechanical Configuration:
✓ 8mm diameter probe
✓ M10×1 threaded mounting
✓ Operating temperature: -30°C to +120°C
✓ Vibration resistance: 20g (50Hz)

Measurement Performance:

Target material: AISI 4140 steel

Linear range: 60% of full scale

Accuracy: ±1% of full scale

System Integration:
• Compatible with EPRO MMS6000 monitors
• Standard 5m/9m cable options
• CON021 quick-disconnect available

Typical Applications:

Turbine shaft vibration monitoring

Compressor thrust position measurement

Precision bearing clearance monitoring

Compliance: API 670 machinery protection standard

Special Feature:
Enhanced 12.0 mV/µm sensitivity provides superior resolution for detecting minute displacement changes in critical equipment.

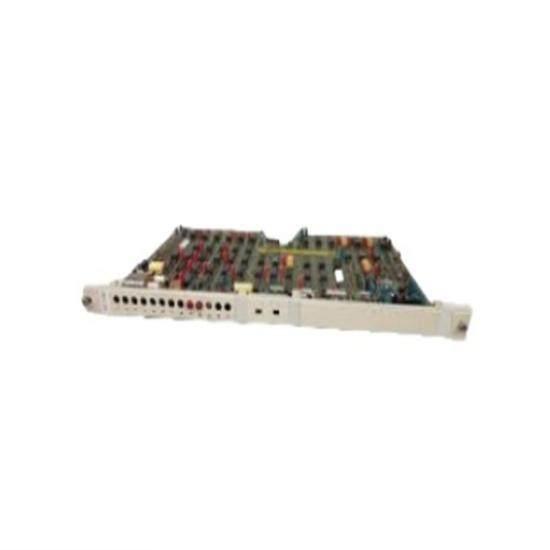

The ABB BBC Ed 1782 Electronics Module is a cutting-edge, high-performance component designed for integration into advanced industrial automation systems. It delivers precise control and enhanced efficiency across various manufacturing processes.
