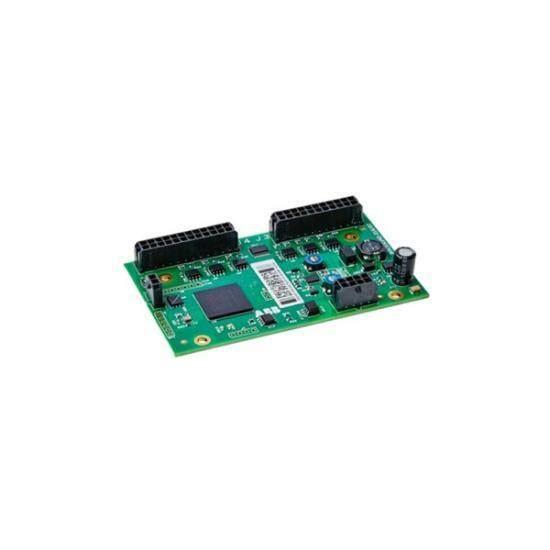

The ABB SMB DSQC402 measuring board is designed for precision measurement tasks in industrial automation environments, ensuring reliable performance and high accuracy.
home
The ABB SMB DSQC402 measuring board is designed for precision measurement tasks in industrial automation environments, ensuring reliable performance and high accuracy.
open
close
Brand & Model:ABB SMB DSQC402 3HAC045759-001
Module Type:Measuring Board
Frame Size:Compact
Number of Inputs/Outputs:8 Inputs / 8 Outputs
Analog Inputs:4 Analog inputs for precise signal acquisition
Analog Outputs:4 Analog outputs for control applications
Power Supply:DC 24V
Communication Interface:RS-485
Operating Temperature:-20°C to +70°C
Storage Temperature:-40°C to +85°C
Mounting Type:Panel Mount
Dimensions (WxHxD):86.1mm x 102mm x 58.5mm
Weight:0.24kg
This measuring board from ABB is engineered for high reliability and efficiency in industrial automation settings, offering precise measurement capabilities that enhance productivity and process control.
With its robust design and wide operating temperature range, the DSQC402 is suitable for harsh industrial environments, ensuring continuous operation even under extreme conditions.
Featuring 8 digital inputs and 8 digital outputs, this board enables seamless integration with various industrial equipment and systems, facilitating complex control strategies.
The inclusion of 4 analog inputs and 4 analog outputs provides flexibility in signal processing and control, making it an ideal choice for applications requiring high-resolution data acquisition and precise control.
Equipped with a DC 24V power supply and RS-485 communication interface, the DSQC402 ensures stable power delivery and efficient data exchange, crucial for maintaining system integrity and performance.
