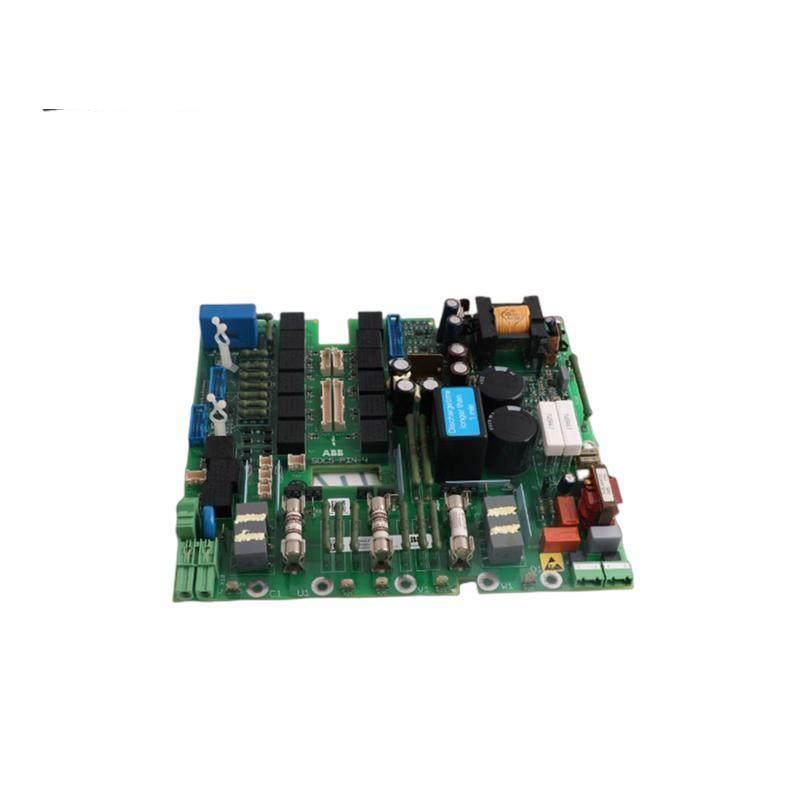

The ABB SDCS-PIN-4 Pulse Transformer Module is designed for high-precision control applications, offering unparalleled accuracy and reliability in industrial automation systems.
home
The ABB SDCS-PIN-4 Pulse Transformer Module is designed for high-precision control applications, offering unparalleled accuracy and reliability in industrial automation systems.
open
close
Module Type:Transformer
Model:SDCS-PIN-4
Frequency Range:Up to 1 MHz
Power Rating:100 W
Input Voltage:12 to 48 V DC
Output Voltage:5 V DC
Output Current:20 mA
Environmental Temperature Range:-25°C to +70°C
Dimensions (WxHxD):44.5 x 51 x 19.1 mm
Weight:12 g
Operating Life:Over 10 million cycles
Communication Protocol:MODBUS RTU
The ABB SDCS-PIN-4 Pulse Transformer Module is designed to meet the demanding requirements of modern industrial automation systems, providing unmatched precision and reliability. It is engineered to ensure seamless integration into various control circuits, enhancing system performance and efficiency.
Equipped with advanced transformer technology, this module ensures accurate signal conversion and transmission, making it ideal for applications requiring high-speed and precise pulse control. Its robust design withstands challenging environmental conditions, ensuring continuous operation even in harsh industrial settings.
Featuring a compact size and lightweight construction, the ABB SDCS-PIN-4 is easy to install and integrate into existing control panels. It supports a wide range of operating voltages and frequencies, making it versatile for diverse automation needs.
With its IP20 enclosure rating, the module offers protection against dust and light splashes, safeguarding critical components from contamination and damage. This ensures a longer lifespan and reduced maintenance requirements.
Compliant with international safety standards, the ABB SDCS-PIN-4 Pulse Transformer Module comes with detailed installation instructions and technical support, ensuring a smooth setup process and optimal performance in real-world applications.
