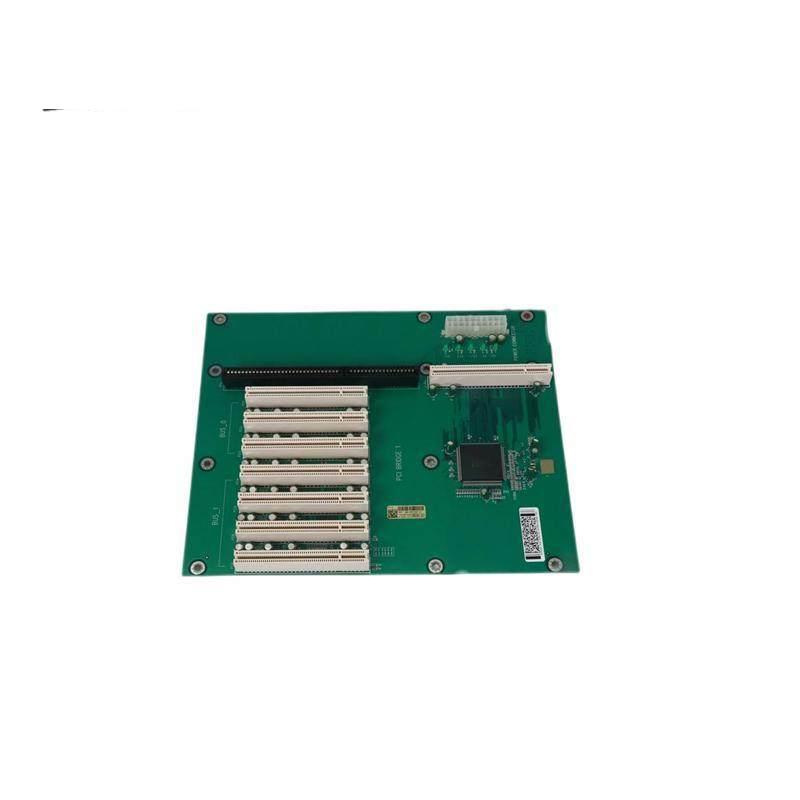

The ABB DSQC541 Back Plane is a high-performance modular input/output module designed for advanced control systems, offering seamless integration and enhanced system reliability.
home
The ABB DSQC541 Back Plane is a high-performance modular input/output module designed for advanced control systems, offering seamless integration and enhanced system reliability.
WhatsApp
Brand:ABB
Model:DSQC541
Sub-Model:Back Plane
Module Category:Control
Operating Voltage Range:10 to 30 V DC
Communication Protocol:EtherCAT
Number of I/O Channels:8 Digital Inputs + 4 Digital Outputs
Dimensions (WxHxD):84 x 37 x 80 mm
Weight:0.2 kg
Environmental Conditions:Operating Temperature: -25°C to 60°C, Storage Temperature: -40°C to 85°C
Certifications:CE, UL, CSA, EN61131-2
The ABB DSQC541 Back Plane is engineered to deliver exceptional performance and reliability in industrial automation environments. This compact back plane supports up to 32 I/O channels, making it ideal for applications requiring precise control and data acquisition.
Featuring a robust metal construction, the DSQC541 is built to withstand harsh industrial conditions, ensuring long-term operational stability. Its low power consumption ensures efficient energy use without compromising on functionality.
Integrated with EtherCAT, a leading real-time Ethernet protocol, this back plane facilitates fast and reliable communication between control systems and peripheral devices, enhancing overall system responsiveness and efficiency.
Operable within a wide temperature range from -20°C to +70°C, the DSQC541 is suitable for a variety of industrial settings, from cold storage facilities to hot manufacturing plants. This versatility makes it a preferred choice across diverse industries.
With its dual I/O configuration, the DSQC541 offers both differential and single-ended inputs and outputs, providing flexibility for connecting a wide range of sensors and actuators. This feature enables users to tailor the module to their specific application needs, ensuring optimal performance and ease of integration.
