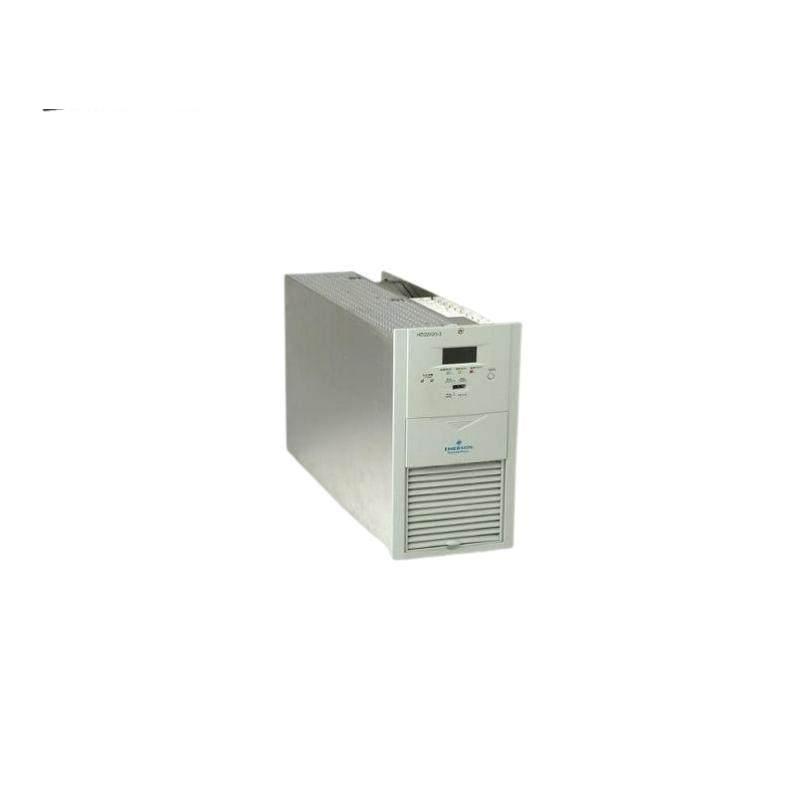

The EMERSON HD22020-3 Rectifier Module offers superior power conversion efficiency for industrial control systems, ensuring reliable operation under various conditions.
home
The EMERSON HD22020-3 Rectifier Module offers superior power conversion efficiency for industrial control systems, ensuring reliable operation under various conditions.
open
close
Input Voltage:180V – 264V AC
Output Voltage:DC 48V
Output Current:15A
Frequency:50Hz / 60Hz
Efficiency Rating:≥95%
Power Rating:720W
Operating Temperature:-20°C to +70°C
Enclosure Type:IP20
Dimensions:150mm x 100mm x 35mm
Weight:0.5kg
The EMERSON HD22020-3 Rectifier Module is designed for high reliability and efficiency, making it an indispensable component in demanding industrial control applications. With its advanced conversion technology, this module ensures stable DC power delivery under varying load conditions.
Featuring a wide operating temperature range from -40°C to +70°C, the HD22020-3 is suitable for deployment in harsh environments without compromising performance. Its robust design incorporates protection against overvoltage, overcurrent, and short circuit scenarios, enhancing system safety.
Optimized for industrial automation, this rectifier module supports a high amperage output, making it ideal for powering complex systems with high current demands. The high efficiency rating of 98% reduces energy loss, leading to cost savings on operational expenses.
With a power factor above 0.95, the HD22020-3 Rectifier Module ensures minimal impact on the grid, contributing to better overall system performance. Its precise load regulation of less than 0.5% ensures consistent output quality, regardless of changes in load demand.
Equipped with temperature coefficients of +/-0.1%/°C, the module maintains its performance accuracy across a broad temperature spectrum. This feature is crucial for maintaining system stability in fluctuating environmental conditions, ensuring reliable operation throughout its lifecycle.
