Number of Channels:8

Channel Configuration:Single-ended

Signal Type:Analog Output

Current Range:0 to 20 mA

Voltage Range:0 to 10 V DC

Power Consumption:Max. 300 mW per channel

Operating Temperature:-25°C to +85°C

Storage Temperature:-40°C to +85°C

Input Type:Current or Voltage

Communication Interface:Modbus RTU

Dimensions:104 x 100 x 35 mm

Weight:Approx. 0.3 kg

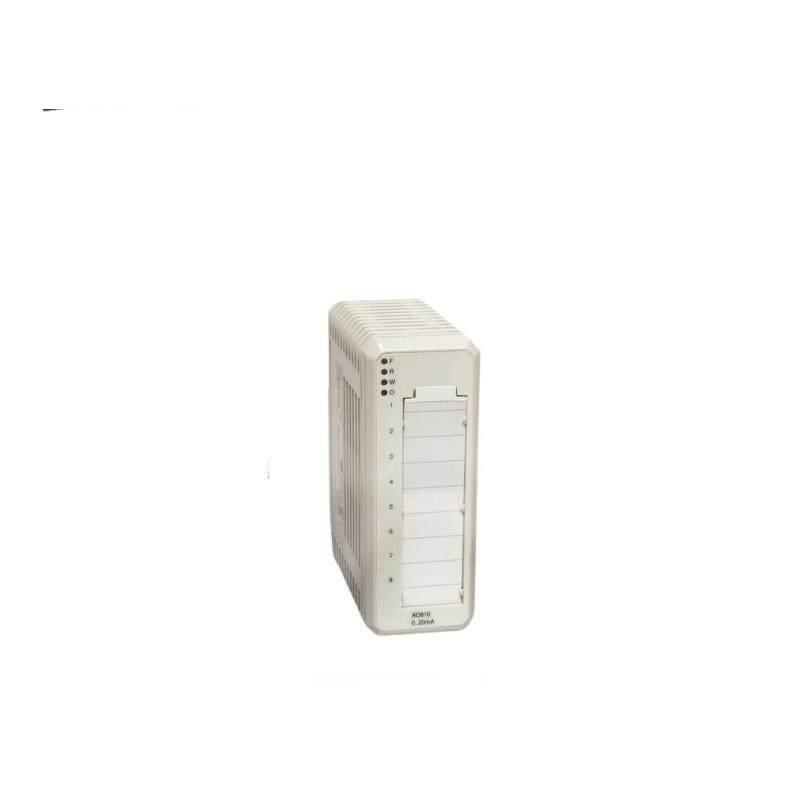

    Integrating cutting-edge technology, the ABB AO810 3BSE008522R1 ensures unparalleled performance in industrial control environments. With its robust design and high-channel capacity, this module is tailored for systems requiring versatile analog signal generation.

    Featuring precision signal outputs of 4-20mA or 0-10V, it caters to a wide range of industrial applications, from process control to instrumentation. The module is built to withstand harsh conditions, boasting an operating temperature range of -20°C to +60°C, ensuring reliability in diverse environments.

    Efficient power management is achieved with a maximum current consumption of 60mA per channel, which minimizes energy usage and optimizes system performance. The inclusion of environmental protection ratings IP20 safeguards the module against dust and splashes, enhancing durability.

    For ease of integration, the AO810 3BSE008522R1 is compatible with leading PLC platforms and offers a compact footprint of 112mm x 100mm x 100mm, facilitating streamlined installation and space optimization within control cabinets.

    Backed by ABB’s reputation for quality and innovation, this module is an essential component for enhancing operational efficiency and achieving precise control in industrial settings. Experience the future of analog output technology with the ABB AO810 3BSE008522R1.
