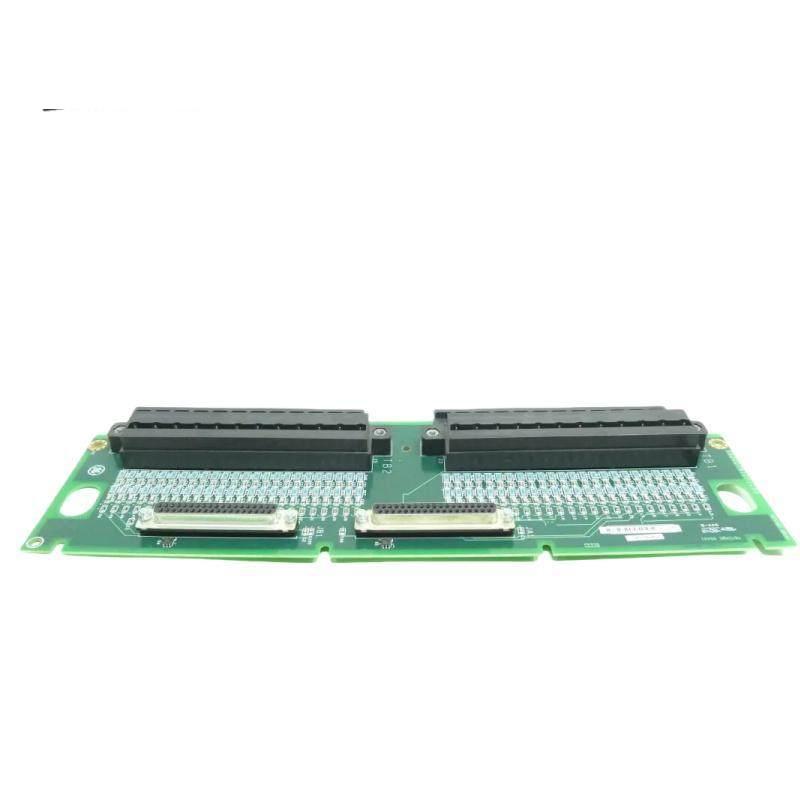

The General Electric IS200TBTCH1CBB Thermocouple Input Terminal Board is designed for precise temperature monitoring in industrial settings, ensuring reliable performance in the most demanding environments.
home
The General Electric IS200TBTCH1CBB Thermocouple Input Terminal Board is designed for precise temperature monitoring in industrial settings, ensuring reliable performance in the most demanding environments.
open
close
Model Number:IS200TBTCH1CBB
Manufacturer:General Electric
Application Category:Mark VI Speedtronic Series
Functional Revision:C
Artwork Revision:B
Connectivity Type:Pluggable Terminal Blocks
Wire Gauge Support:#12 AWG
Voltage Rating:Up to 300 V
Number of Connector Ports:6
LEDs Present:3
The GE IS200TBTCH1CBB Thermocouple Input Terminal Board is a vital component for maintaining precise control over industrial processes, ensuring operational efficiency and safety.
Manufactured using high-grade materials, this terminal board boasts a conformally-coated PCB design, enhancing its durability and performance under harsh industrial conditions.
With its advanced functional revision C and artwork revisions B, the IS200TBTCH1CBB board is compatible with a wide range of GE’s Mark VI Speedtronic series, facilitating seamless integration into existing systems.
Featuring a total of six connector ports, each labeled with specific nomenclature (JTA, JTB, JSA, JSB, JRA, JRB), the board ensures ease of installation and maintenance, reducing downtime and enhancing system reliability.
Each terminal block is securely attached to the base board via screws, providing a robust connection for reliable data transmission. This design allows for quick and efficient installation, streamlining the setup process.
Equipped with multiple LEDs on the faceplate, the IS200TBTCH1CBB provides real-time feedback on system status, enabling operators to monitor temperature inputs accurately and respond promptly to any anomalies.
