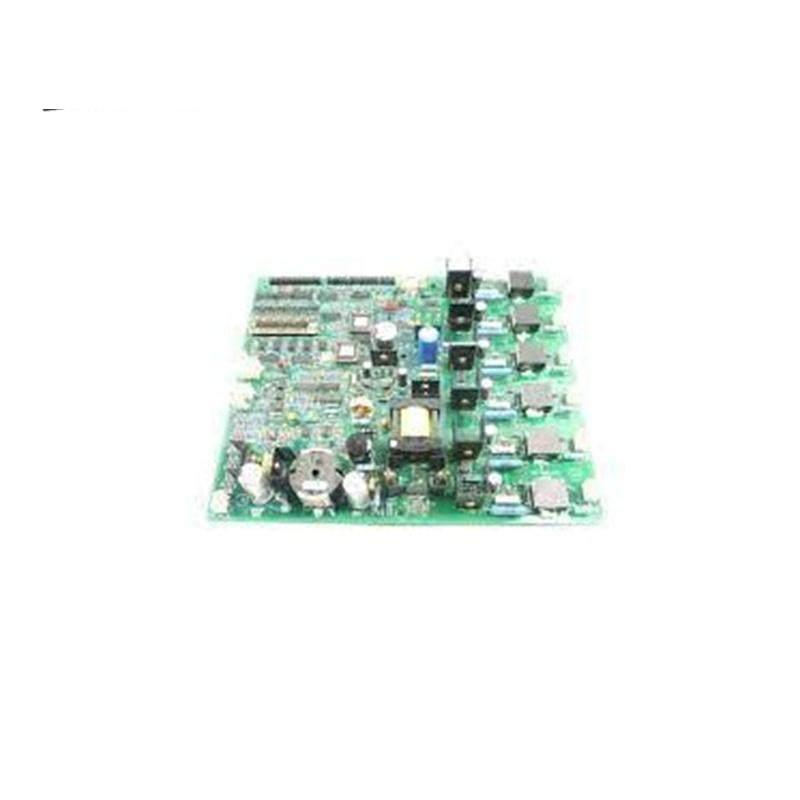

The GE IS200EGPAG1BEC is a specialized Gate Pulse Amplifier Board designed for GE Industrial Systems’ EX2100 Excitation Control series. It functions as a critical interface between the control assembly and power bridge, ensuring precise regulation and control for exciter systems.
open
close
Board Type:Gate Pulse Amplifier
Configurable Hardware:5 On-board Jumpers
Discontinued Status:Yes, legacy model
Function Interface:Control to Power Bridge
Acronym:EGPA
Instruction Manual:GEI-100461 (GEH-6632 Series Manual)
Model Number:IS200EGPAG1B
Notable Components:On-board Green and Red LED Indicators
OEM/Manufacturer:General Electric, GE Industrial Systems
Repairable:Y/N: Repair Available
Series/Product Line:EX2100 Excitation Control – Exciter System
Weight:1lbs 9oz
Engineered for seamless integration into the EX2100 Excitation Control System, the GE IS200EGPAG1BEC board is a critical component for managing power distribution in industrial applications.
Featuring on-board LED indicators, this board provides real-time status feedback, enhancing system reliability and ease of monitoring.
With five configurable on-board jumpers, users can tailor the board’s performance to meet specific operational requirements, ensuring optimal system performance across diverse industrial settings.
Crafted from high-quality materials, the IS200EGPAG1BEC board is designed for durability and long-term reliability, providing a robust solution for power management in heavy-duty industrial environments.
Expertly designed as an interface between the EX2100 Series drive assembly’s control unit and the power bridge, this board ensures precise control over SCR operations, optimizing energy efficiency and system responsiveness.
