This communication module enables efficient data exchange over Ethernet networks in industrial settings. Ideal for integration with Yokogawa’s CENTUM VP and ProSafe-RS systems, enhancing system reliability and performance.
home
This communication module enables efficient data exchange over Ethernet networks in industrial settings. Ideal for integration with Yokogawa’s CENTUM VP and ProSafe-RS systems, enhancing system reliability and performance.
open
close
Physical Layer Interface:IEEE802.3 10BASE-T
Connection Method:Point-to-point
Connector Type:RJ-45
Communication Function:Half-duplex
Transmission Speed:10 Mbps
Transmission Medium:100 ohm twisted-pair cable (unshielded)
Maximum Transmission Distance:1 segment, up to 100 meters
Number of Ports:1 port
Media Access Control:CSMA/CD
Compatibility:Mounted on ANB10, ANB11, ANR10, AFF50, AFV10, AFV30, or AFV40

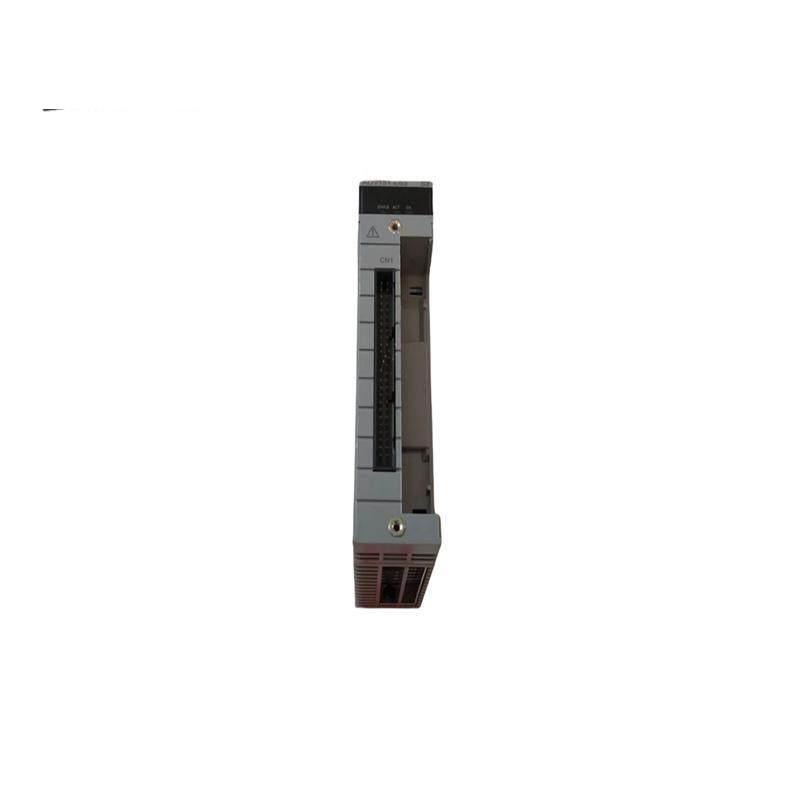

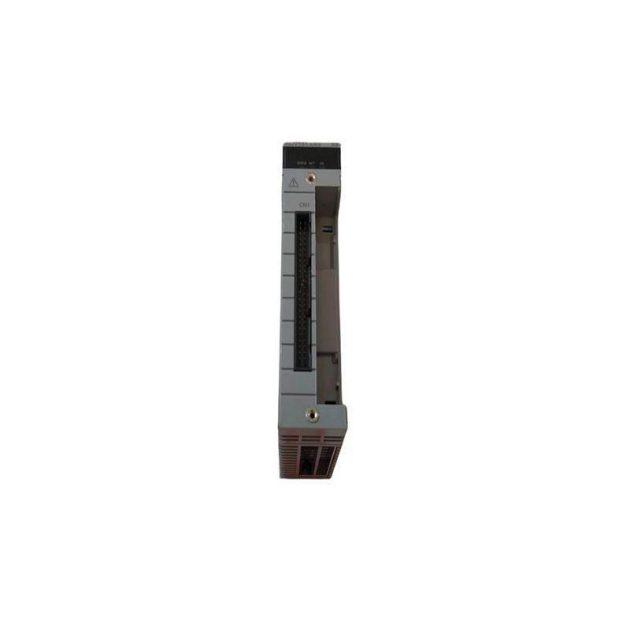

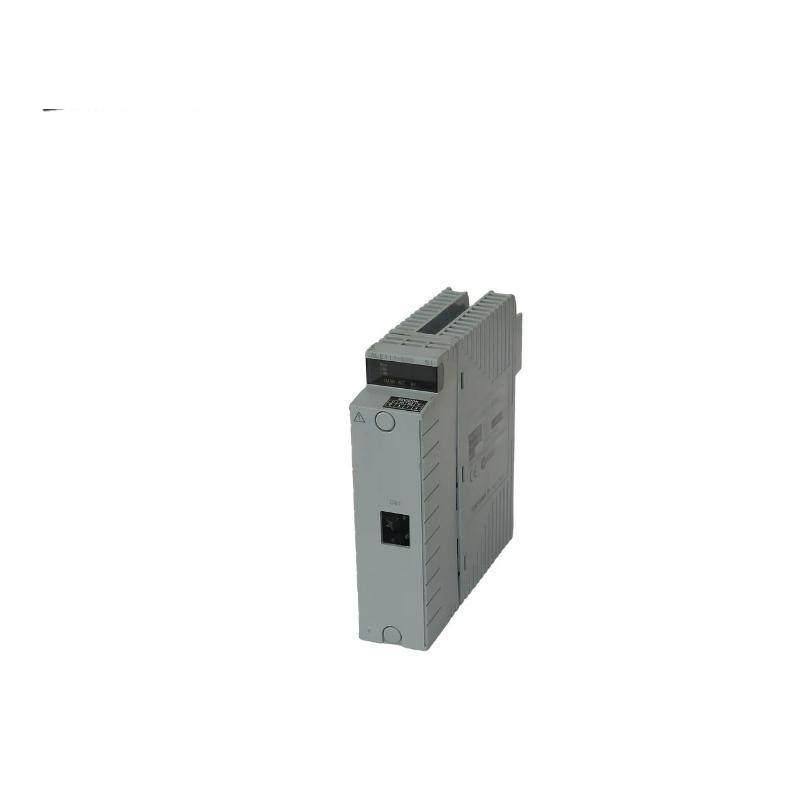

The Yokogawa ALE111-S00 Ethernet Communication Module is designed for seamless integration within industrial control systems, ensuring robust data transmission capabilities essential for today’s high-demand environments.
With its point-to-point connection method via RJ-45 connector and half-duplex communication function, this module supports up to 10 Mbps transmission speeds through standard 100 ohm twisted-pair cables without the need for shielding.
It excels in scenarios requiring reliable data exchange over distances up to 100 meters, making it perfect for interconnecting Field Control Systems (FCS) and subsystems or hubs with other components in your network.
Its ease of installation onto various Yokogawa devices like ANB10, ANB11, ANR10, among others, further simplifies setup processes.
Designed with CSMA/CD media access control protocol, it ensures efficient use of the shared network medium, thereby reducing the chances of collisions and enhancing overall system reliability.
