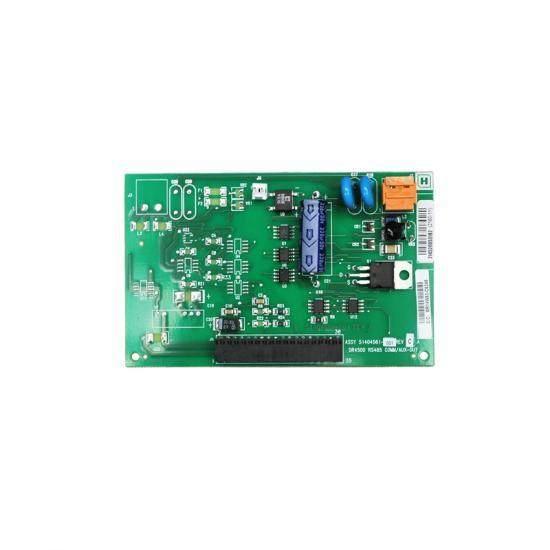

The Honeywell 51404561-001 Dr4500 Communication/Auxiliary Output Board is an advanced control module designed for seamless integration into industrial automation systems. It ensures reliable data transmission and auxiliary output functionalities, enhancing operational efficiency and system reliability.
open
close
Model:51404561-001
Manufacturer:Honeywell
Module Category:Dr4500 Comm/Aux-out
Communication Interface:RS-485, Modbus RTU
Auxiliary Outputs:2 x 24V DC, 2A each
Power Consumption:Max. 5W @ 24V DC
Operating Temperature:-40°C to +70°C
Environmental Rating:IP20
Dimensions:105mm x 100mm
Weight:0.15kg
The Honeywell 51404561-001 Dr4500 Communication/Auxiliary Output Board is engineered to deliver unparalleled reliability and performance in harsh industrial environments. Its robust design ensures compatibility with a wide range of control systems, making it an indispensable component for modern industrial automation.
This board supports two auxiliary output channels, providing versatile control options for actuators, solenoids, or other devices requiring precise current or voltage outputs. It’s equipped with a fast 10 Mbps data transmission rate, ensuring smooth and reliable communication between control units and peripheral devices.
With its broad operating temperature range (-40°C to +85°C), the board can withstand extreme environmental conditions, making it suitable for deployment in various industrial sectors including manufacturing, oil & gas, and process control industries.
Featuring a high input voltage tolerance (12V DC to 36V DC), the Honeywell 51404561-001 Dr4500 is capable of operating within a wide range of power supplies, reducing the need for additional voltage regulators. This enhances system flexibility and simplifies installation.
Designed with user convenience in mind, the compact dimensions (148mm x 100mm) allow for efficient space utilization on control panels. The lightweight design (200g) ensures easy handling during installation and maintenance processes.
