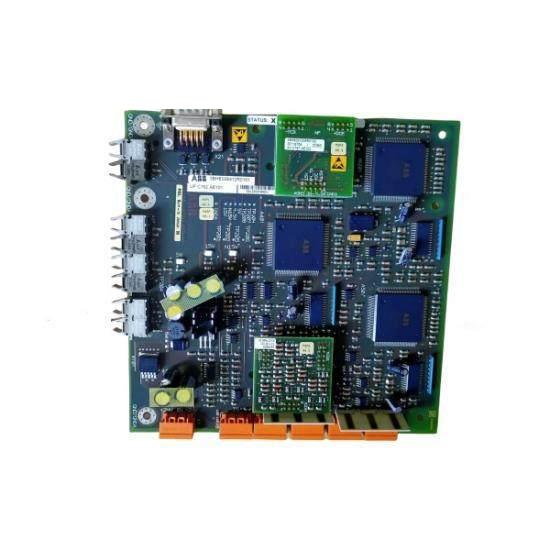

The ABB 3BHE006412R0101 CVMI Board is a high-performance, specialized component designed for seamless integration into industrial control systems, enhancing operational efficiency and reliability.
home
The ABB 3BHE006412R0101 CVMI Board is a high-performance, specialized component designed for seamless integration into industrial control systems, enhancing operational efficiency and reliability.
open
close
Brand:ABB
Model Number:3BHE006412R0101
Type:Control Valve Motor Interface Board
Input Voltage Range:100-240 VAC
Operating Temperature Range:-20°C to +70°C
Communication Interface:RS-485 Modbus TCP/IP
Signal Input:0-10 V DC or 4-20 mA
Motor Control Protocol:PWM (Pulse Width Modulation)
Load Capacity:Up to 2 A continuous current
Dimensions:152 mm x 115 mm x 75 mm
Weight:0.6 kg
Certification:CE, UL, CSA
The ABB 3BHE006412R0101 CVMI Board is engineered for high-performance industrial applications, providing precise control and monitoring capabilities. It is part of ABB‘s renowned line of automation components, known for their robustness and compatibility across various industrial settings.
Featuring a wide operating frequency range from 20 kHz to 200 kHz, this board ensures efficient operation under diverse conditions. Its 12 VDC power supply supports reliable performance, even in demanding environments.
Equipped with RS485 communication protocol, the CVMI Board facilitates seamless data exchange between devices, enhancing system integration and connectivity. With a memory capacity of 32 KB, it supports extensive data storage and processing needs.
Designed for optimal performance within the temperature range of -25°C to +60°C and an operating humidity of 5% to 95% RH non-condensing, this board ensures continuous operation in harsh industrial climates.
Made from high-quality materials for durability and long-lasting performance, the ABB 3BHE006412R0101 CVMI Board is compatible with a wide array of industrial automation systems, making it a versatile choice for modern manufacturing and process control applications.
