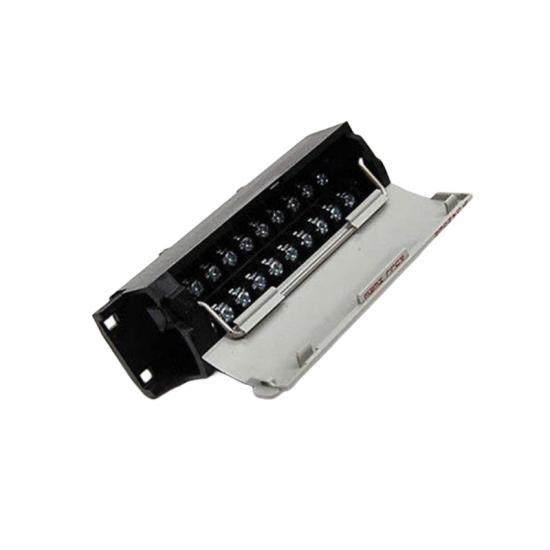

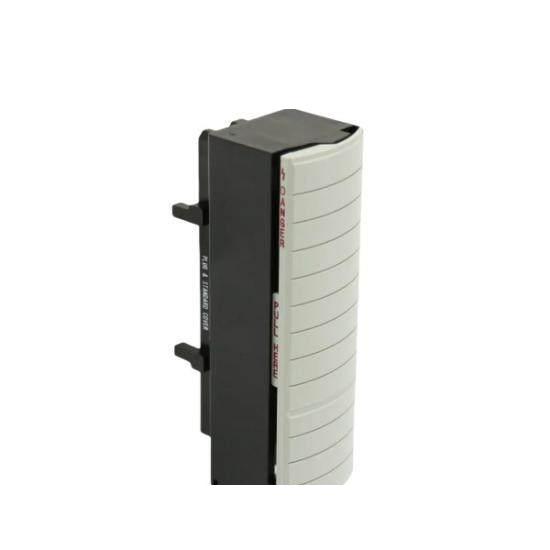

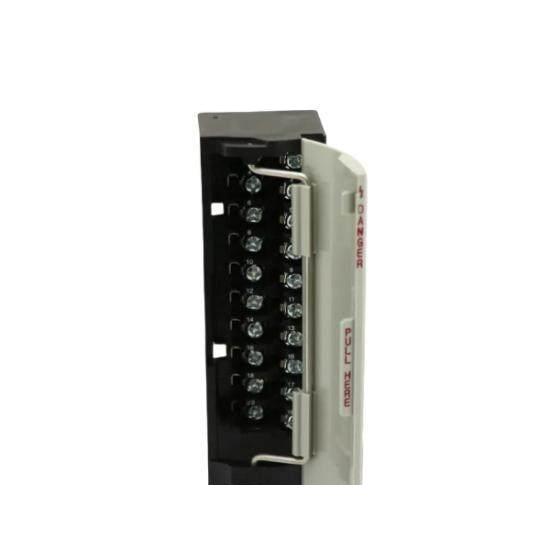

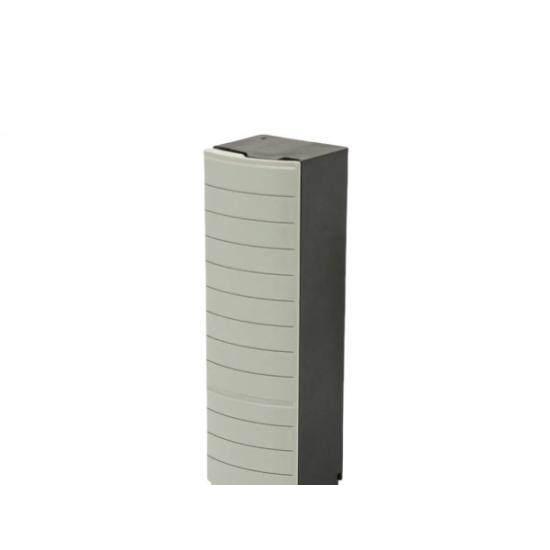

The Allen-Bradley 1756-TBNH is a high-performance terminal block designed for ControlLogix systems. It provides reliable connections for up to 20-pin configurations, ensuring efficient and secure wiring for industrial automation applications.
home
The Allen-Bradley 1756-TBNH is a high-performance terminal block designed for ControlLogix systems. It provides reliable connections for up to 20-pin configurations, ensuring efficient and secure wiring for industrial automation applications.
open
close
Series:ControlLogix
Model:1756-TBNH
Type:Terminal Block
Pins:20-Pin
Power Dissipation (Max):6.19 Watts
Wire Size:20 AWG
Dimensions:5.51 x 4.41 x 5.71 inches
Weight:0.3 pounds (0.1 kilograms)
The Allen-Bradley 1756-TBNH terminal block module is an essential component for any ControlLogix system. Designed for durability and reliability, this module offers a robust connection solution for various industrial applications. Its 20-pin design allows for seamless integration with other components within the ControlLogix framework. With an operating voltage of 220 V and an output frequency of 30 kHz, it ensures efficient data transfer and signal integrity. The module’s compact dimensions make it ideal for space-constrained environments, while its lightweight design ensures ease of installation. Crafted from high-quality materials, the 1756-TBNH terminal block module guarantees long-lasting performance and minimal maintenance. Suitable for a wide range of industrial settings, including manufacturing, automation, and process control systems, this module delivers superior connectivity and enhanced system functionality.
