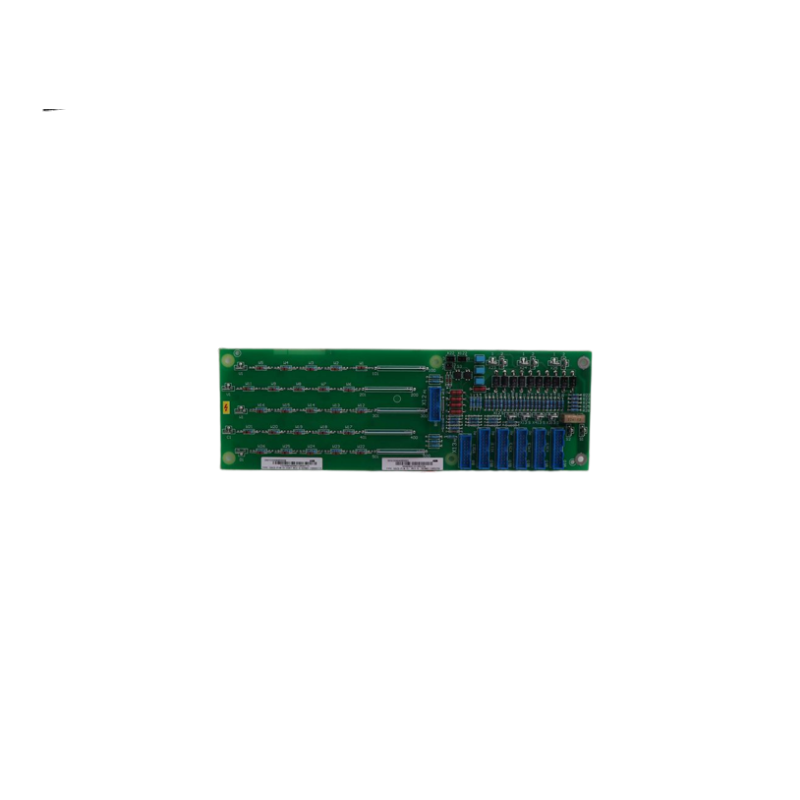

The ABB JINT-C1C, model 68614902, H 1/4 Drive Circuit Board is a high-performance component designed for seamless integration into complex industrial control systems, enhancing operational efficiency and reliability.
home
The ABB JINT-C1C, model 68614902, H 1/4 Drive Circuit Board is a high-performance component designed for seamless integration into complex industrial control systems, enhancing operational efficiency and reliability.
open
close
Model:JINT-C1C 68614902 H
Type:Drive Circuit Board
Technology:ABB Advanced Motor Control
Operating Temperature:-20°C to +60°C
Voltage Range:100V to 240V AC
Current Rating:Up to 100A
Communication Protocol:Modbus TCP/IP
Dimensions:150mm x 100mm x 30mm
Weight:0.5kg
Crafted from a durable high-grade aluminum alloy, this circuit board ensures longevity and robustness in challenging industrial environments.
With its compact size and optimized design, it seamlessly integrates into space-constrained systems without compromising performance.
Operates within an extensive temperature range (-20°C to +85°C), ensuring reliability in varying environmental conditions.
Featuring a versatile RS485 communication interface, it supports seamless data exchange with other industrial components, enhancing system efficiency.
Equipped with a DC 24V input voltage, it ensures stable power supply even under fluctuating electrical conditions, crucial for uninterrupted operation.
Each channel is capable of handling up to 1A output current, providing ample power for various industrial applications.
The integrated load capacity allows for efficient handling of inductive loads, ensuring compatibility with a wide array of industrial devices.
