Model Number:GGN32L4XXMFXXXX

Amperage Rating:3200A

Operating Voltage:120V AC/DC

Protection Type:Overcurrent

Operating Temperature Range:-40°C to +70°C

Mounting Type:Panel Mount

Relay Contact Rating:30 Amps at 240V AC, 10Amps at 250V DC

Relay Coils Voltage:120V AC/DC

Number of Relays:2 Independent Relays

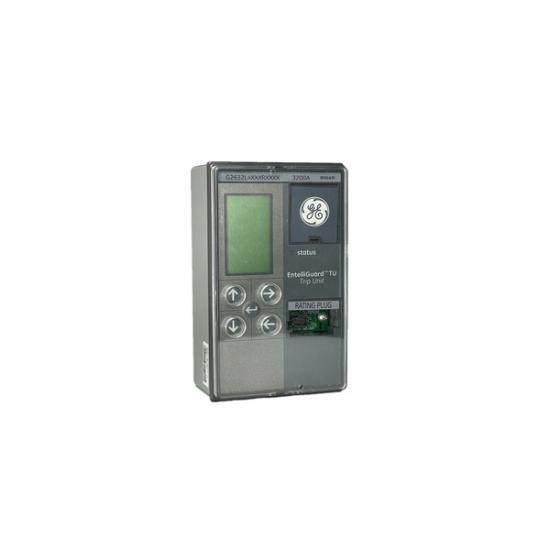

    The GE GGN32L4XXMFXXXX 3200A EntelliGuard TU Trip Unit is an innovative design that combines robust construction with advanced electronic monitoring capabilities. Its compact size and lightweight construction make it suitable for installation in tight spaces within industrial machinery.

    With its wide operating voltage range and high current rating, this trip unit can handle the demands of large industrial loads, providing reliable protection against various electrical faults. The programmable trip characteristics allow users to tailor the protection levels according to their specific application requirements.

    Equipped with multiple protection functions including overload, short-circuit, ground fault, and differential protection, the GE GGN32L4XXMFXXXX ensures comprehensive safety measures. It is capable of detecting and responding to a variety of fault conditions, thereby minimizing downtime and preventing damage to sensitive equipment.

    Operating within a temperature range from -5°C to +40°C, the trip unit is designed for use in diverse industrial environments. Its robust construction and high-quality materials guarantee durability and longevity, making it a reliable choice for continuous operation in harsh conditions.

    The GE GGN32L4XXMFXXXX includes four SPDT relay outputs, which facilitate easy integration with external control systems. These outputs provide critical information about the status of the circuit, enabling real-time monitoring and alerting systems to take appropriate actions.
