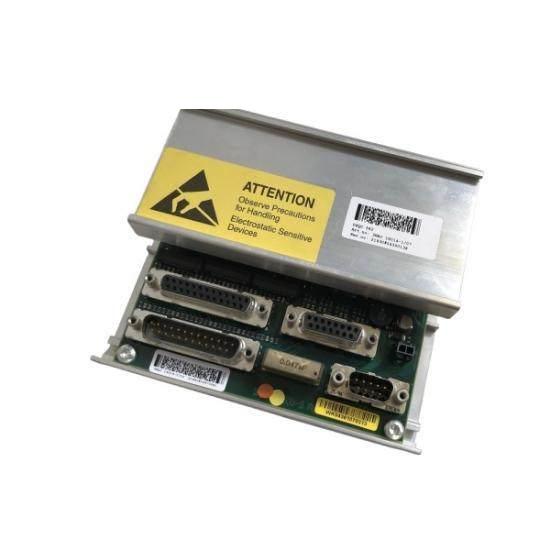

The ABB DSQC562 Measurement Board is an advanced industrial control component designed for precise data acquisition and monitoring in complex automation systems.
open
close
Operating System Compatibility:ABB DeviceNet compatible
Data Acquisition Channels:16 Analog Input and 16 Digital Input/Output
Sampling Rate:Up to 100 ksamples/sec
Analog Resolution:12-bit
Power Supply Voltage:10 to 30 VDC
Environmental Conditions:Temperature range: -25°C to +60°C
Dimensions:100mm x 51.8mm x 30.5mm
Weight:Approx. 30g
The ABB DSQC562 Measurement Board is engineered with high-precision technology to ensure accurate measurements in real-time. Its robust design withstands harsh industrial environments, guaranteeing consistent performance under various conditions.
Featuring a wide input current range and low power consumption, this board optimizes energy usage without compromising on measurement accuracy. Its compact size allows for easy integration into existing systems without requiring extensive space.
With a resolution of 0.01% of full scale, users can expect highly detailed and precise data, essential for applications requiring high sensitivity and responsiveness. The board is compatible with a wide range of ABB control systems, enhancing its versatility in diverse industrial settings.
The DSQC562 Measurement Board supports both digital and analog inputs, providing flexibility for various measurement tasks. Its compatibility with industry-standard protocols ensures seamless communication with other components in the system, facilitating efficient data exchange.
Designed with user convenience in mind, the board includes comprehensive documentation and support resources, enabling quick setup and minimal maintenance requirements. This makes it an ideal choice for engineers and technicians seeking a reliable and efficient measurement solution for their automation projects.
