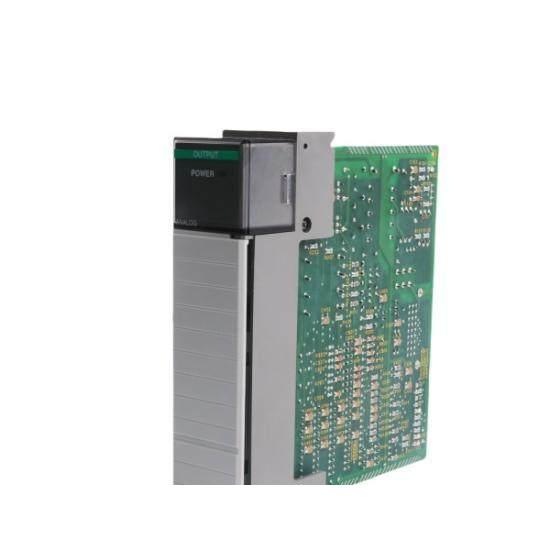

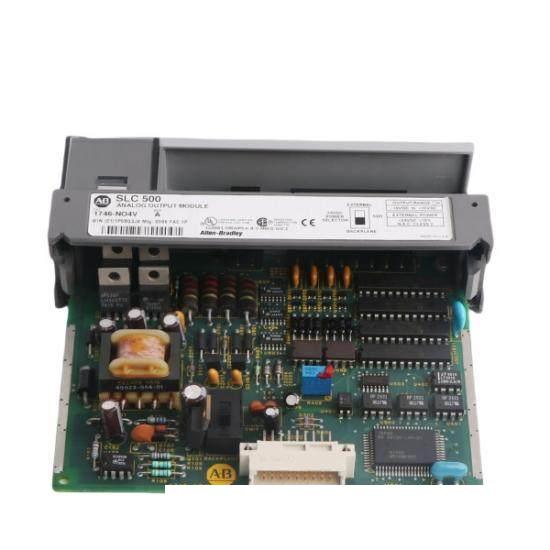

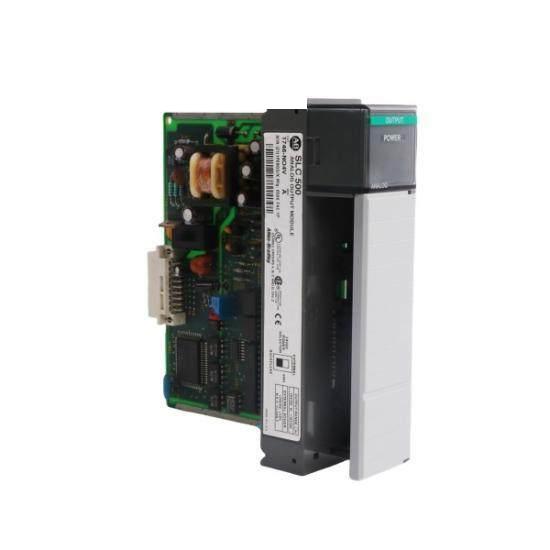

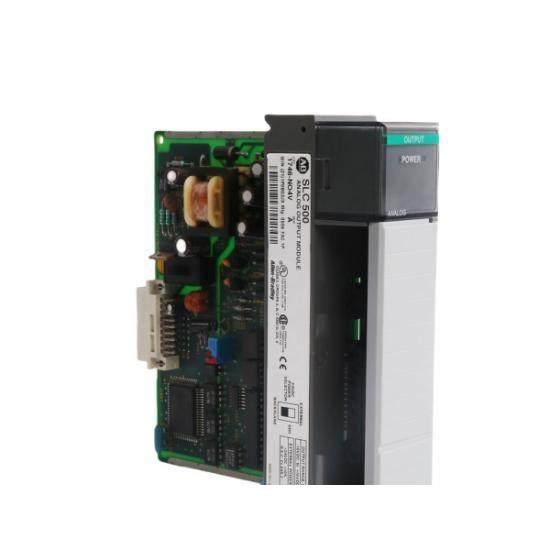

The Allen-Bradley 1746-NO4V is a high-resolution analog output module designed for SLC500 controllers. It offers four channels of analog output, making it ideal for industrial control systems requiring precise voltage outputs.
The Allen-Bradley 1746-NO4V is a high-resolution analog output module designed for SLC500 controllers. It offers four channels of analog output, making it ideal for industrial control systems requiring precise voltage outputs.
open
close
Model Number:1746-NIO4V
Manufacturer:Allen Bradley
Module Type:SLC500 Analog Combination Module
Channels:2 input channels, 2 output channels
Common Mode Voltage Range (Input):-20 to 20 V
Absolute Input Voltage (Max.):+/- 7.5 VDC or 7.5 VAC RMS
Input Range (Max.):-20 to 20 mA
Absolute Input Current (Max.):-30 to 30 mA
Output Range (Max.):-10 to 10 V – 1 LSB
Full Scale Output (Voltage):10 VDC
Overvoltage Protection (Input):7.5 VAC RMS
Current Rating (Backplane Draw):55 mA
Operating Voltage:220 V
The Allen-Bradley 1746-NO4V SLC500 Analog Output Module is a robust solution for industrial automation and control systems.
This high-resolution analog output module provides reliable and accurate performance for applications that require precise control and monitoring.
Key features include two channels of analog output with a wide voltage and current range, ensuring versatility across different industrial environments.
Designed with overvoltage protection, this module guarantees long-term reliability and safety.
Its compact design and ease of installation make it an ideal choice for upgrading existing systems or incorporating into new installations.
Ideal for use in manufacturing facilities, process control systems, and any application needing stable and precise analog output signals.
